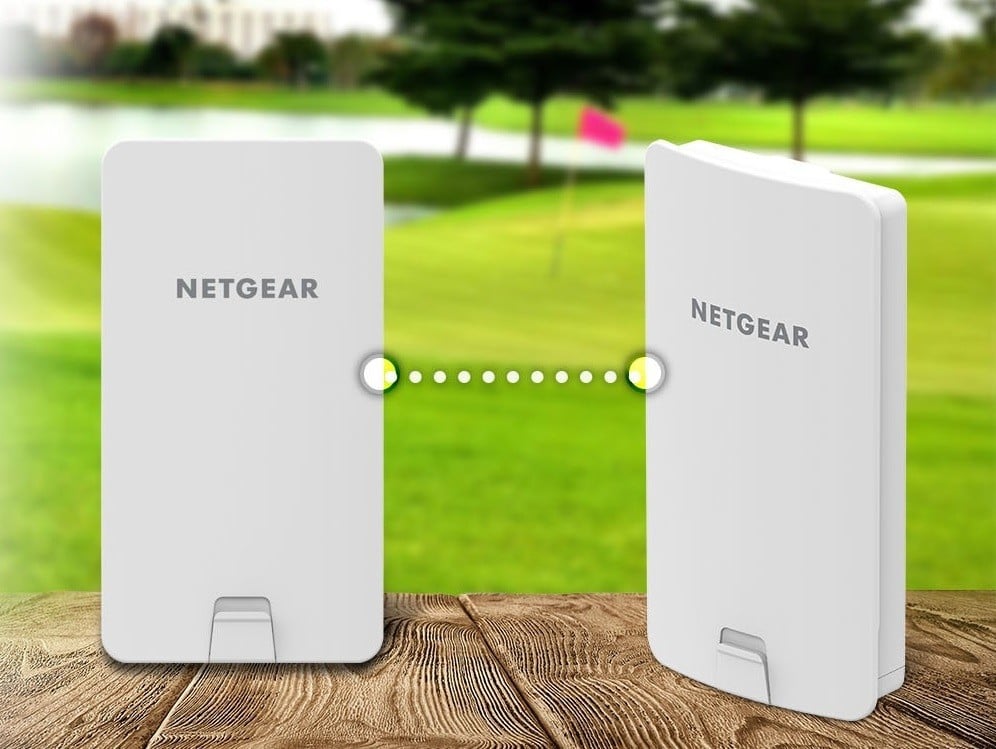

NETGEAR WBC502 Network bridge 867 Mbit/s White
Part number:
WBC502B2-100PES
EAN:
0606449150667
Payment methods
Delivery methods
> 802.11ac 5.0GHz WiFi Bridge - Kit of 2
> Point-to-point or point-to-multipoint network
> Covers range of 12,000ft with 500Mbps at 500ft
> Insight enabled features and remote management
> Pairs with another AirBridge or connects to an existing wireless router/access point
> Withstands harsh environmental conditions/temperatures
> Ideal for country clubs,external lodges,outdoor IP surveillance cameras,etc
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
NETGEAR WBC502. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 3000 m, Supported data transfer rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867.... Antenna design: Internal, Antenna gain level (max): 14 dBi. Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s, Signal strength: 23 dBm. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Connectivity technology: Wired & Wireless
Multimedia
Leaflets:
Specifications
Ports & interfaces
Connectivity technology
Wired & Wireless
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Features
Product colour
White
Surge protection
Yes
Wall mountable
Yes
Product type
Network bridge
LED indicators
Yes
Reset button
Yes
International Protection (IP) code
IP55
Packaging data
Quantity per pack
2.0000
Operational conditions
Storage relative humidity (H-H)
0 - 90
Storage temperature (T-T)
-40 - 80
Operating relative humidity (H-H)
0 - 90
Operating temperature (T-T)
-4 - 140
Operating temperature (T-T)
-20 - 60
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
867 Mbit/s
Wi-Fi
Yes
Signal strength
23 dBm
Modulation
16-QAM, 256-QAM, 64-QAM, BPSK, QPSK
Certificates
Certification
FCC / ISED, CE
Data transmission
Supported data transfer rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 to 2)
Maximum transfer distance
3000.0000
Maximum data transfer rate
867 Mbit/s
Power
Power source type
PoE
Power over Ethernet (PoE) voltage
24.0000
Power over Ethernet (PoE)
Yes
Power consumption (max)
8.9300
Antenna
Antenna design
Internal
Antenna gain level (max)
14 dBi
Antennas quantity
1
Weight & dimensions
Depth
100 mm
Width
186 mm
Height
29 mm
Weight
504 g
SKU:
1690803
