4K HDMI CAT6 Extender
Part number:
VE1821-AT-G
EAN:
4710469342790
£91.75
ex VAT
£110.10
inc VAT
Availability:
11-20
pcs
Order within:
12h
28min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Monday, 19 October 2026
£16.73
Fastest delivery
Friday, 16 October 2026
Payment methods
Delivery methods
> Crystal clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended) /30 m via a Cat 5e cable

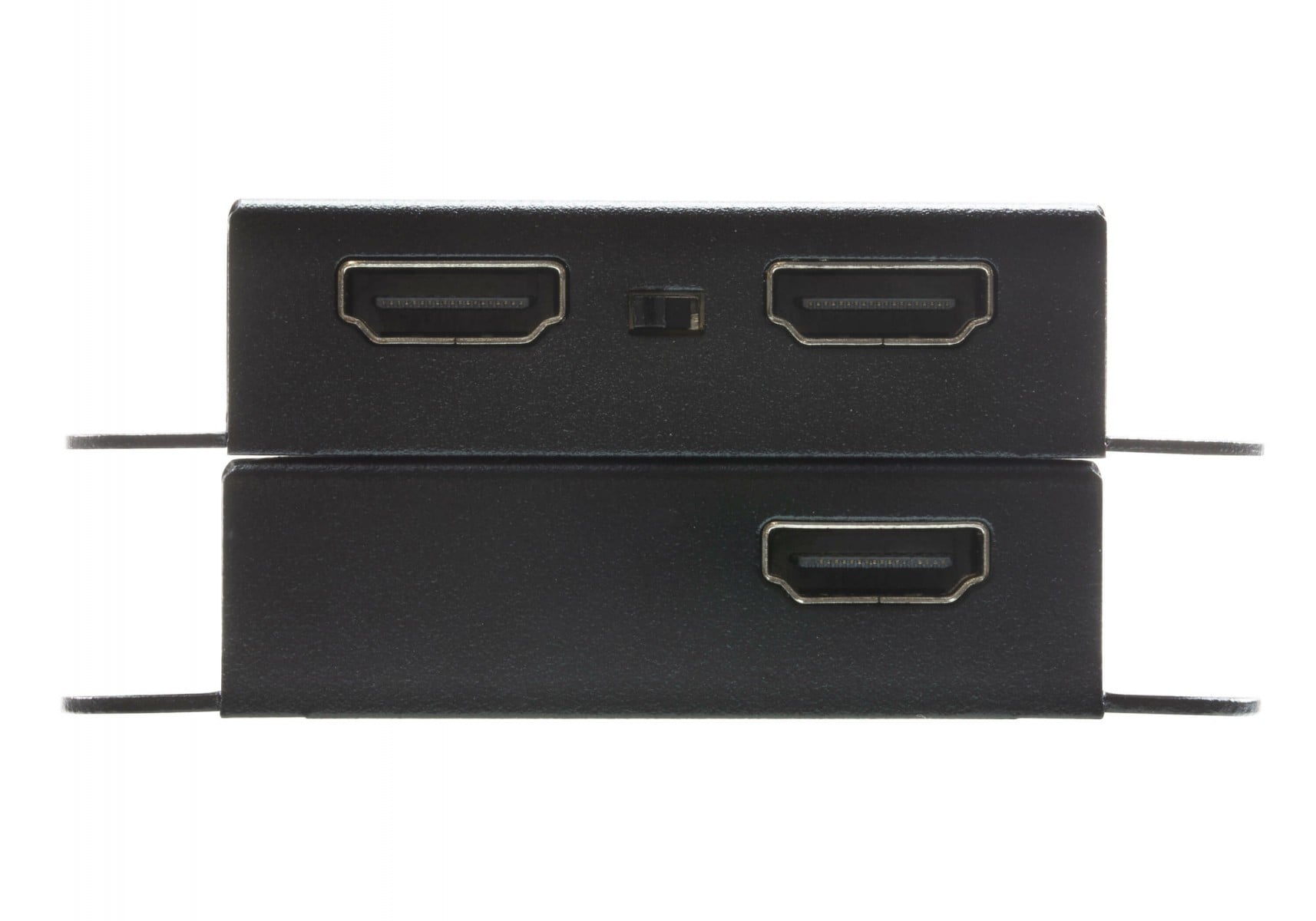

> Local HDMI output port on the transmitter unit – enables cascading or users to monitor the UHD signal being extended to the receiver
> EDID Copying Mode – HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display

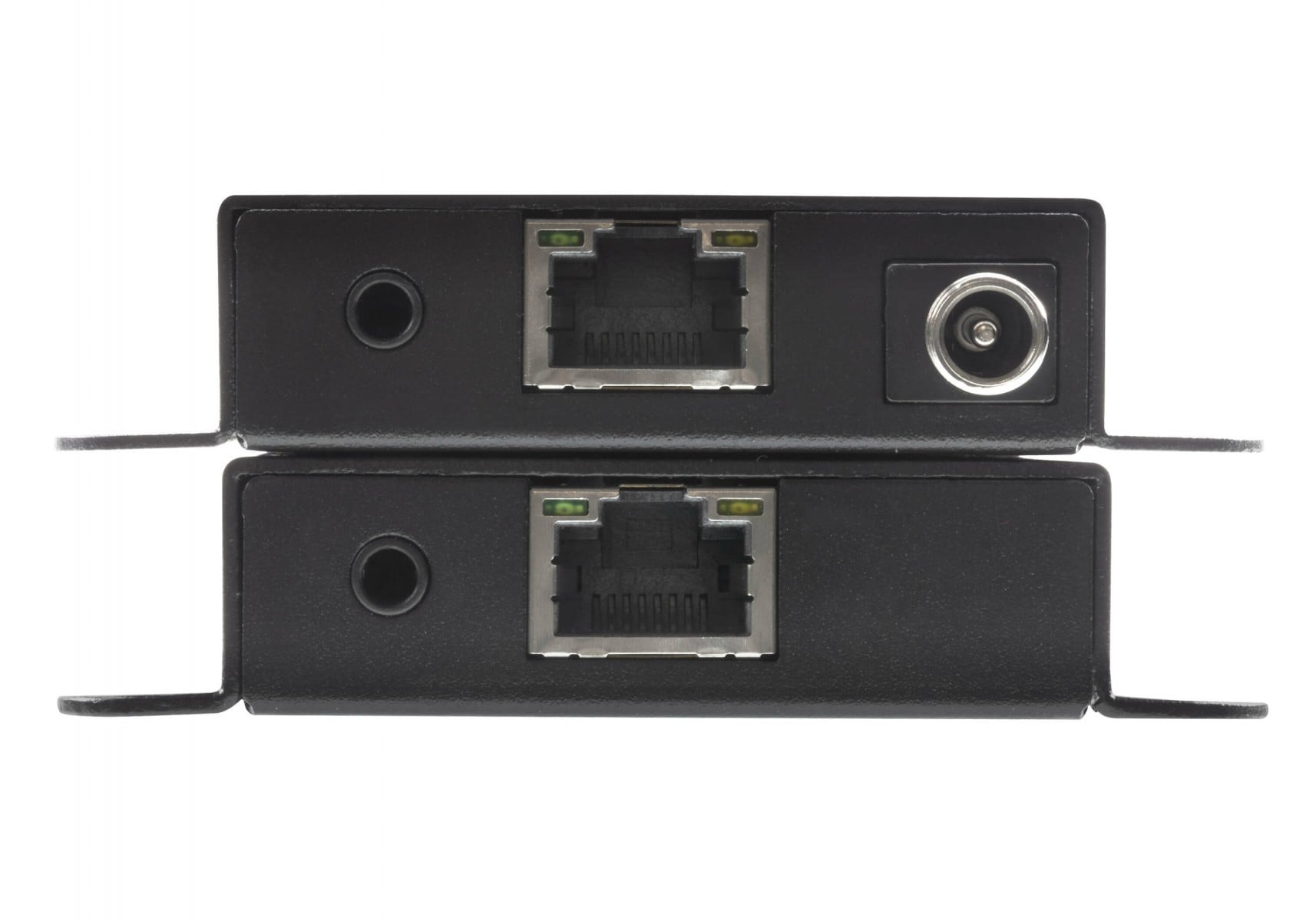

> PoC (Power over Cable) technology – power can be delivered from the transmitter to the receiver via a Cat 5e / 6 cable to eliminate the need for a bulky external power supply
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN VE1821-AT-G. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Power source type: DC, Power consumption (receiver) (max): 0.87 W, Power consumption (transmitter) (max): 1.86 mA. Receiver dimensions (WxDxH): 68 x 79.5 x 16.5 mm, Receiver weight: 120 g, Transmitter dimensions (WxDxH): 68 x 79.5 x 16.5 mm. Quantity per pack: 2 pc(s)
Multimedia
Leaflets:
Other Digital Assets:
Specifications
Ports & interfaces
Ethernet LAN
Yes
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
Number of HDMI outputs
1
HDMI in
1
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Yes
Features
Type
AV transmitter & receiver
Product colour
Black
Maximum transfer distance
35.0000
Cable types supported
Cat5e, Cat6
Bandwidth
340 MHz
3D
Yes
Impedance
100.0000
HDCP
Yes
Maximum resolution
4096 x 2160
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
HDCP version
1.4
Bandwidth
10.2 Gbit/s
Maximum refresh rate
60.0000
Material
Metal
Packaging data
Quantity per pack
2.0000
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating relative humidity (H-H)
20 - 90
Operating temperature (T-T)
0 - 40
Power
Power source type
DC
Power consumption (transmitter) (max)
1.86 mA
Power consumption (receiver) (max)
0.8700
Weight & dimensions
Receiver dimensions (WxDxH)
68 x 79,5 x 16,5
Receiver weight
120 g
Transmitter dimensions (WxDxH)
68 x 79,5 x 16,5
Transmitter weight
120 g
SKU:
1706809
