Ubiquiti UDB-IoT Network bridge 866.7 Mbit/s White
Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.
> Dimensions: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1")
> WiFi Standard: WiFi 4
> Spatial Streams: 2
> Mounting Locations: Wall, DIN rail
> Power Method: USB Type-C (5V DC, 1A) or 4-pin DC (9–30V DC)
> 2.4 GHz: 300 Mbps (BW40)
> Max. Conducted TX Power: 20 dBm
> Wireless Security: WPA2 AES (Always On)
> Networking Interface: (1) 10/100M RJ45 port
> Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
> Certifications: CE, FCC, IC
Ideal solutions for your business
Express delivery of equipment worldwide
Implementation support guaranteed
Customer first
Description
COMPACT AND VERSATILE DESIGN FOR IOT CONNECTIVITY
The Ubiquiti Device Bridge IoT (UDB-IoT) is engineered for seamless integration into various environments, boasting ultra-compact dimensions of just 63 x 44.5 x 25.5 mm. Its lightweight design, weighing only 45 grams, allows for flexible installation options, whether mounted on a wall or a DIN rail. The included mounting hardware ensures that setup is straightforward, making it an ideal choice for both residential and commercial applications. With its robust polycarbonate enclosure, the device is built to withstand diverse conditions, ensuring reliable performance in various settings.
ADVANCED WIRELESS PERFORMANCE WITH ENHANCED SECURITY FEATURES
Equipped with WiFi 4 technology, the UDB-IoT supports dual spatial streams, delivering impressive data rates of up to 300 Mbps on the 2.4 GHz band. This ensures efficient communication between IoT devices, making it suitable for applications requiring stable and fast connectivity. The device also features advanced wireless security with WPA2 AES encryption, providing peace of mind against unauthorised access. With a maximum conducted transmit power of 20 dBm, the UDB-IoT guarantees strong signal strength, enhancing the reliability of your network.
FLEXIBLE POWER OPTIONS AND ENVIRONMENTAL RESILIENCE
The Ubiquiti Device Bridge IoT offers versatile power options, supporting both USB Type-C and a 4-pin DC socket, accommodating a voltage range of 5V to 30V DC. This flexibility allows for easy integration into existing power infrastructures. Designed to operate in a wide temperature range from -10 to 50°C and with a humidity tolerance of 5 to 95% non-condensing, the UDB-IoT is well-suited for various indoor and outdoor applications. Its compliance with NDAA standards and certifications from CE, FCC, and IC further affirm its reliability and safety in deployment.
Specifications

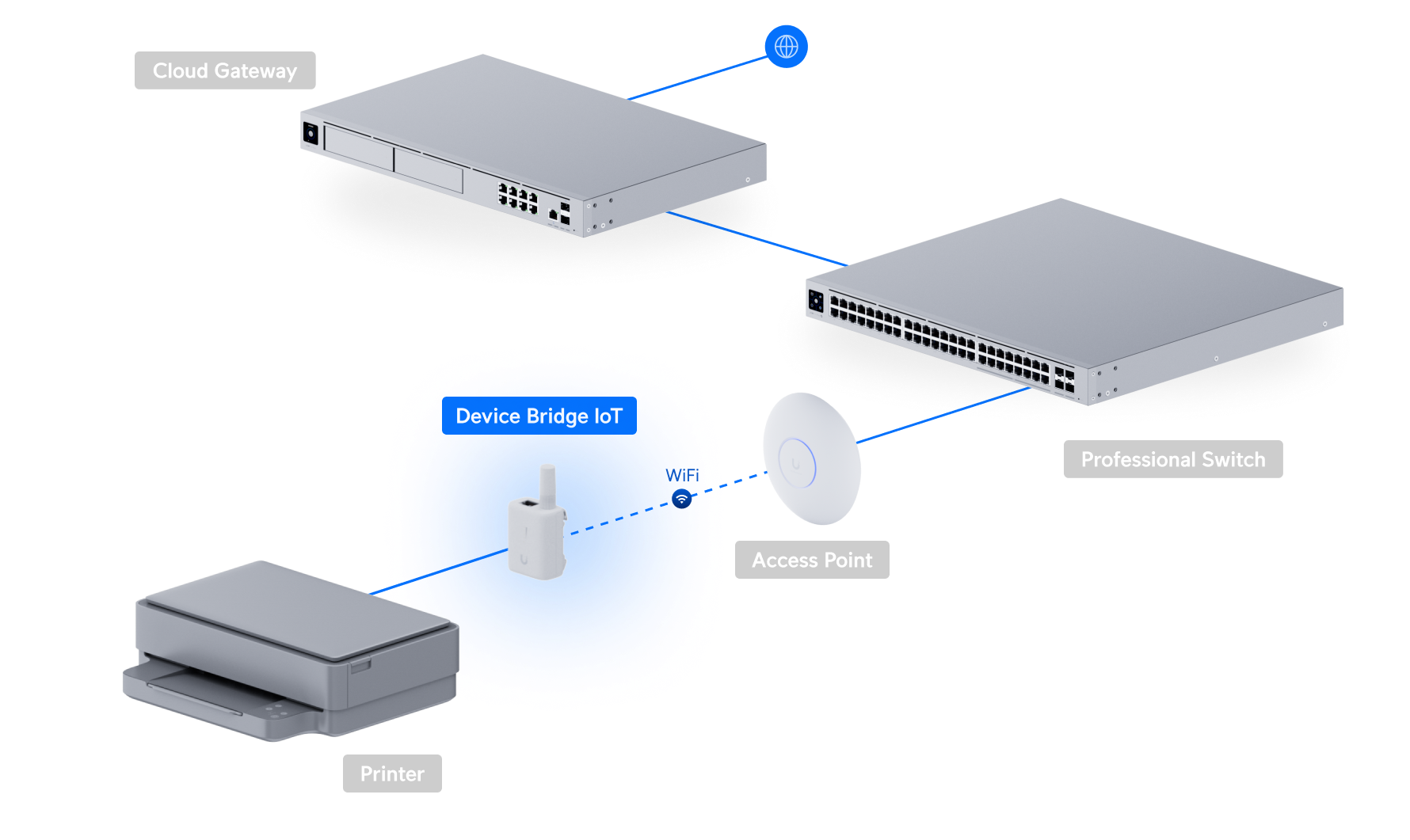

Application

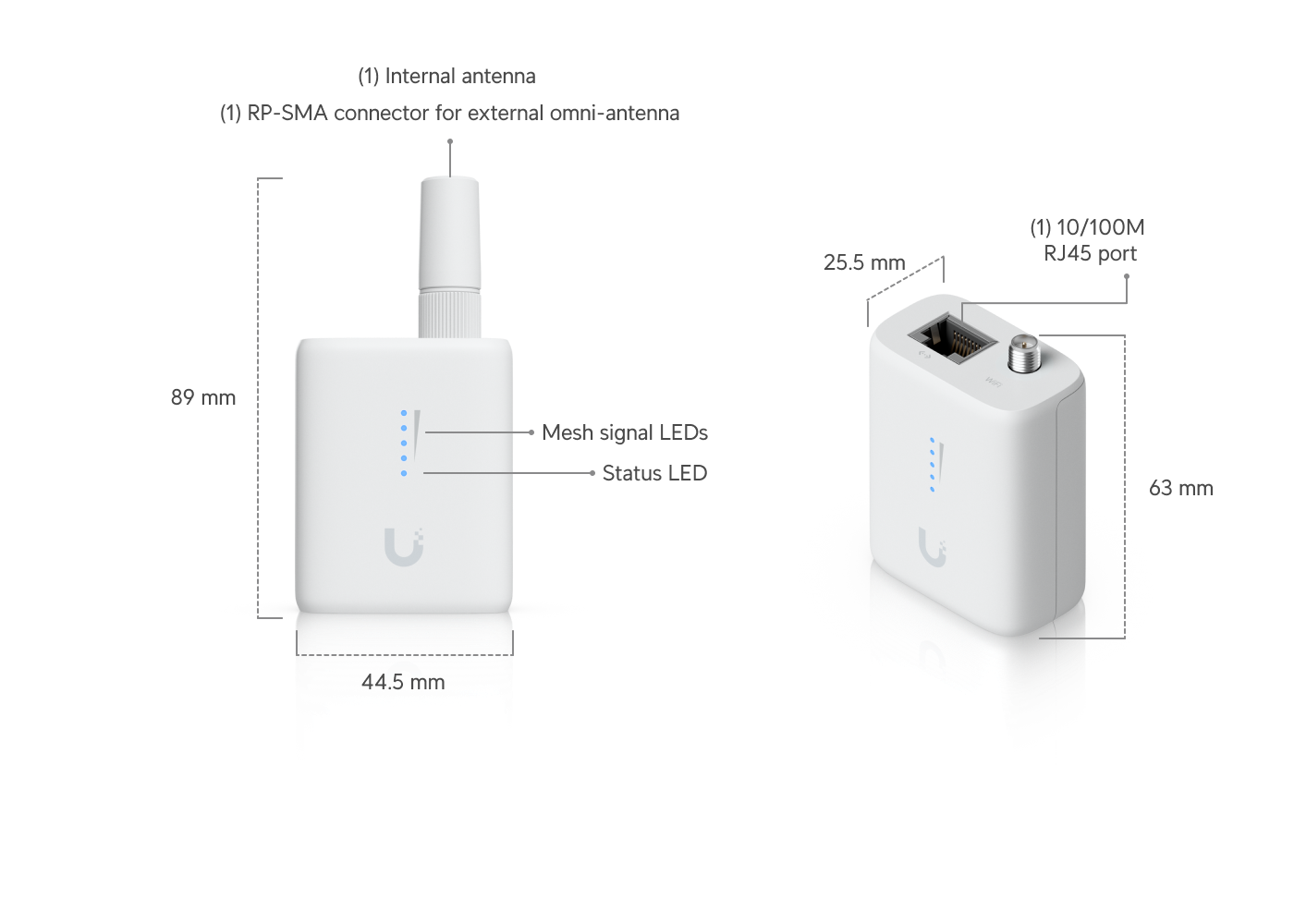

Construction Features
Installation Tutorial
