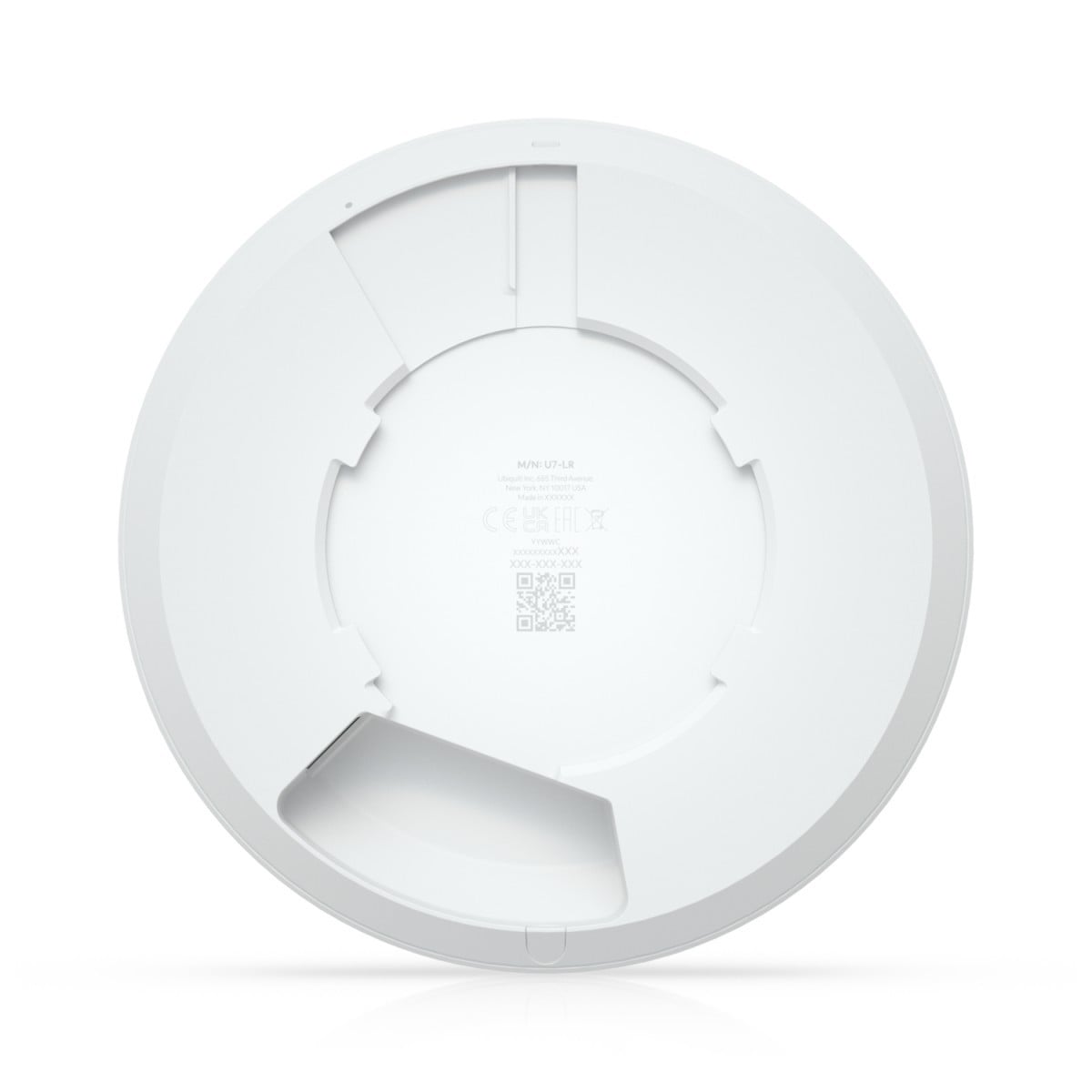

Ubiquiti U7 Long-Range 7300 Mbit/s White Power over Ethernet (PoE)
Part number:
U7-LR
EAN:
810177161929
£129.65
ex VAT
£155.58
inc VAT
Availability:
50+
pcs
Order within:
15h
17min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Friday, 9 October 2026
£16.73
Fastest delivery
Thursday, 8 October 2026
Payment methods
Delivery methods
Compact, ceiling-mounted WiFi 7 access point with 5 spatial streams and extended signal range.
> WiFi Standard: WiFi 7
> Max. Client Count: 300+
> Uplink: 2.5 GbE RJ45 port
> Coverage Area: 160 m² (1,750 ft²)
> Power Method: PoE
> 5 GHz: 3 x 3 (DL/UL MU-MIMO)
> 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
> Max. Power Consumption: 14W
> Dimensions: ⌀175.7 x 43 mm (⌀6.9 x 1.7")
> Weight: 448 g (15.8 oz)
> NDAA Compliant: Yes
> Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356
Recommended accessories:
Availability:
ex VAT
inc VAT
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
EXCEPTIONAL COVERAGE AND PERFORMANCE WITH WIFI 7 TECHNOLOGY
The Ubiquiti U7 Long-Range Access Point is engineered to deliver outstanding wireless performance with the latest WiFi 7 technology. Featuring five spatial streams, this compact ceiling-mount AP provides an impressive coverage area of up to 160 m² (1,750 ft²), making it ideal for both residential and commercial environments. With a maximum client count of over 300, it ensures seamless connectivity for multiple devices, accommodating the demands of modern users who require high-speed internet access.
ADVANCED FEATURES FOR ENHANCED CONNECTIVITY
Equipped with advanced features such as wireless meshing, band steering, and fast roaming, the U7 Long-Range Access Point optimises network performance and user experience. The device supports multiple authentication methods, including voucher and password authentication, ensuring secure access for guests and users alike. Its dynamic RADIUS-assigned VLAN and client device isolation capabilities further enhance network security, making it a reliable choice for businesses looking to maintain a secure and efficient wireless environment.
ROBUST BUILD AND VERSATILE MOUNTING OPTIONS
Constructed from durable polycarbonate and aluminium alloy, the U7 Long-Range Access Point is designed to withstand a range of environmental conditions, with an operating temperature of -30 to 50° C (-22 to 122° F) and humidity tolerance of 5 to 95% non-condensing. This robust design is complemented by versatile mounting options, allowing for easy installation on ceilings or walls using the included plastic mounting plate. Its sleek white and blue aesthetic ensures it blends seamlessly into various settings, enhancing both functionality and appearance.
HIGH-SPEED CONNECTIVITY WITH POE SUPPORT
The U7 Long-Range Access Point supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power sources. With a maximum power consumption of just 14W, it operates efficiently while delivering exceptional speeds of up to 4.3 Gbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. The device features a 2.5 GbE uplink port, ensuring high-speed data transfer and reliable connectivity for demanding applications, making it an ideal choice for users seeking a high-performance wireless solution.
Multimedia
Manual (PDF):
Specifications
Management features
Access point management
Wi-Fi schedule
Security
Security algorithms
PPSK, TLS
Remote Authentication Dial-In User Service (RADIUS)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
Maximum data transfer rate (5 GHz)
4300 Mbit/s
Ethernet LAN data rates
1000,2500 Mbit/s
Frequency band
2.4 - 5 GHz
Coverage area
160.0000
Number of users
300 user(s)
Spatial streams
5
Fit AP mode features
Hotspot 2.0
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Fast roaming
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wireless meshing
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
VLAN support
Yes
Maximum data transfer rate
7300 Mbit/s
Maximum Tx power (2.4 GHz)
26 dBmW
Rate limiting
Yes
Maximum Tx power (5 GHz)
27 dBmW
Design
Product colour
White
LED indicators
Yes
Housing material
Aluminium, Polycarbonate (PC)
Placement
Ceiling, Wall
Reset button
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95
Operating temperature (T-T)
-30 - 50
Packaging content
Mounting kit
Yes
Quantity per pack
1.0000
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Power
Power over Ethernet (PoE)
Yes
Power consumption (max)
14.0000
DC voltage range
42.5 - 57 V
Antenna
Antenna features
Integrated antenna
Antenna gain level (max)
6 dBi
Antenna type
Internal
Weight & dimensions
Depth
175.7 mm
Width
175.7 mm
Height
43 mm
Weight
448 g

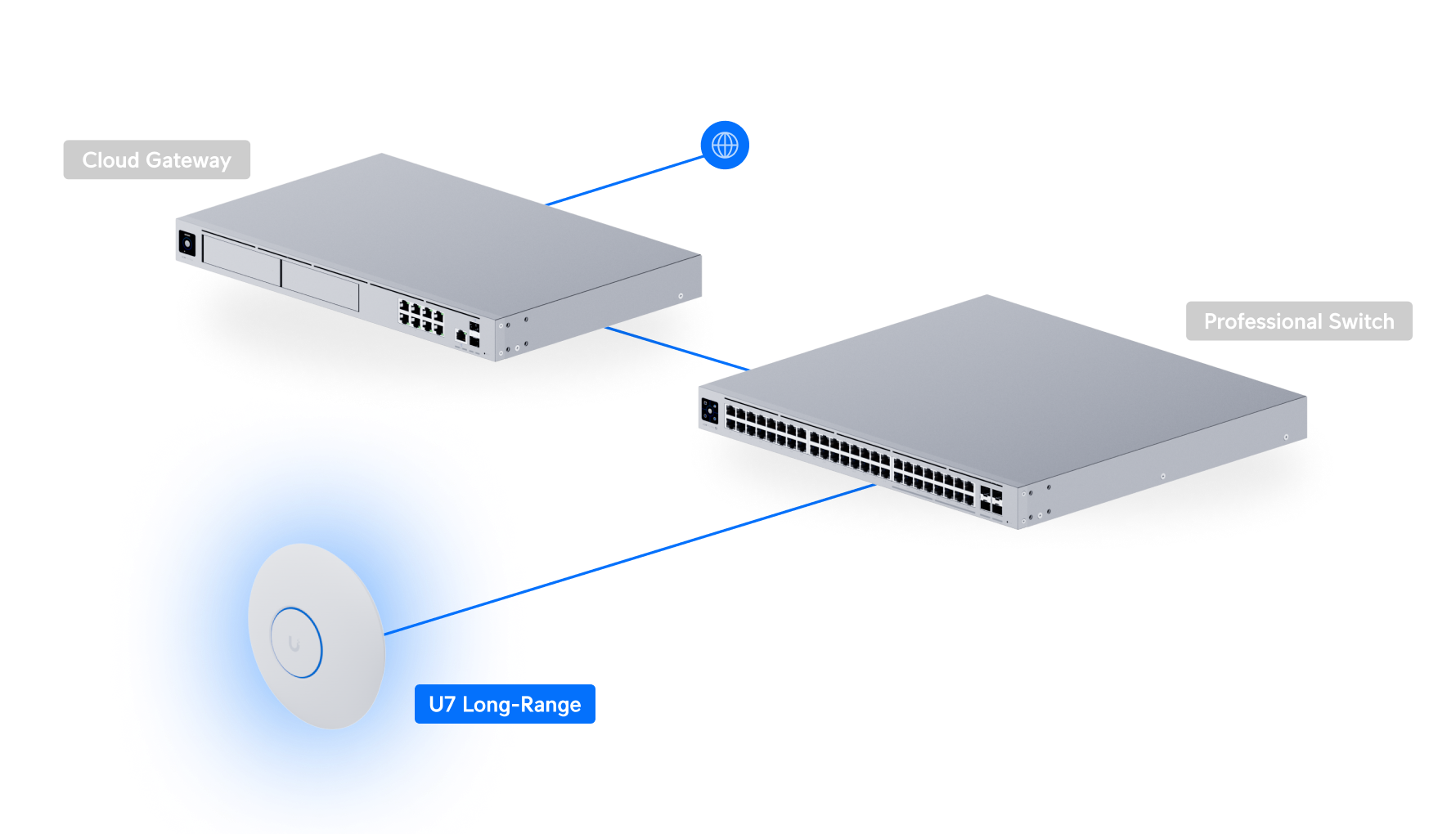

Application
Construction Features
Installation Tutorial
