Hanwha QNB-8002 security camera Box IP security camera 2592 x 1944 pixels Ceiling/wall
Part number:
QNB-8002
EAN:
-
Please contact us by phone or e-mail in order to determine the details.
Payment methods
Delivery methods
> [email protected] (Color)
> Max. 30fps@5MP (H.265/H.264)
> Day & Night (ICR), WDR(120dB)
> Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Tampering
> SD 1slot (128GB)
> H.265, H.264, MJPEG codec, WiseStream II
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Hanwha QNB-8002. Type: IP security camera, Connectivity technology: Wired, Certification: CE EMC : EN 55032:2012/AC:2013; EN 50130-4:2011 RoHS : EN 50581:2012. Mounting type: Ceiling/wall, Product colour: Black, Ivory, Form factor: Box. Minimum illumination: 0.07 lx, White balance: ATW, AWC, Indoor, Manual, Outdoor, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 2592 x 1944 pixels. Focus: Manual
Multimedia
Specifications
Management features
Web-based management
Yes
Web browser
Yes
Reset button
Yes
Security
Security algorithms
EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Defocus
Active tampering alarm
Yes
HTTPS encryption
Yes
IP address filtering
Yes
Video motion detection
Yes
Anti-flicker
Yes

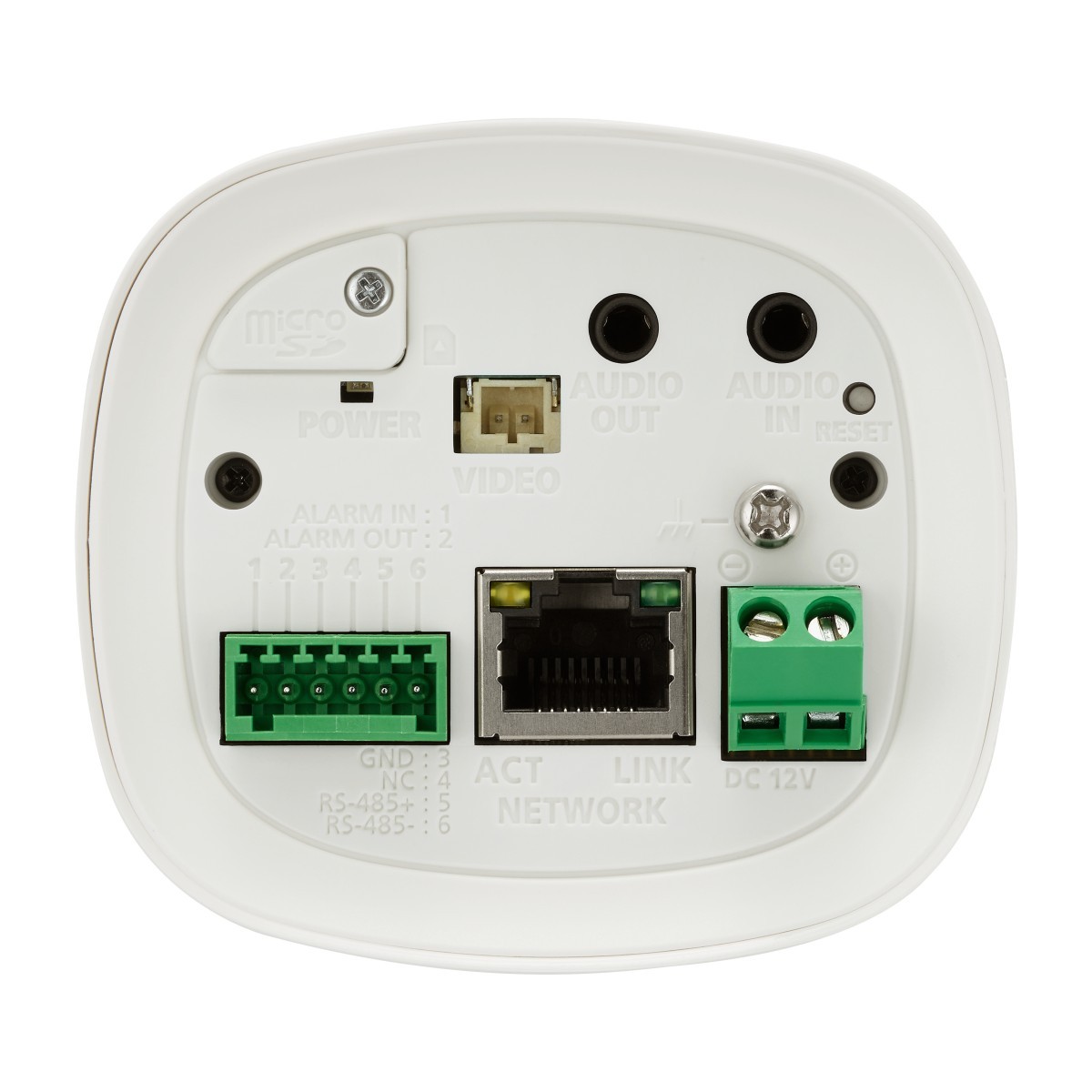

Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Composite video out
1
RS-485 ports
1
Terminal block port
Yes
Performance
Type
IP security camera
Connectivity technology
Wired
Wide Dynamic Range (WDR)
Yes
Infrared (IR) cut-off filter
Yes
Day/night mode
Yes
Alarm input/output
Yes
Certification
CE
EMC : EN 55032:2012/AC:2013; EN 50130-4:2011
RoHS : EN 50581:2012
Network
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af
Ethernet interface type
Fast Ethernet
Quality of Service (QoS) support
Yes
Bluetooth
No
Streaming method
Multicast, Unicast
Wi-Fi
No
Lens system
Focus
Manual
Number of lenses
1
Maximum aperture number
1.2
Video
Video intelligence analytic
Yes
Maximum resolution
2592 x 1944
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2592 x 1944
Video streaming
Yes
Flip & mirror
Yes
Privacy masking
Yes
Back Light Compensation (BLC)
Yes
Total megapixels
5 mpx
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Frame rate
30 fps
Video compression formats
H.264, H.265, M-JPEG
Noise reduction
Yes
Camera
Camera tilt control
No
Minimum illumination
0.07 lx
Camera pan control
No
Camera shutter type
Electronic
Camera shutter speed
1/5 - 1/12000 s
White balance
ATW, AWC, Indoor, Manual, Outdoor
Storage
Flash memory
256 MB
Internal memory
512 MB
Built-in HDD
No
Card reader integrated
Yes
Maximum memory card size
128 GB
Compatible memory cards
MicroSDHC, MicroSDXC, MicroSD (TransFlash)
System requirements
Windows operating systems supported
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Design
Product colour
Black, Ivory
Form factor
Box
Mounting type
Ceiling/wall
Housing material
Plastic
Audio
Audio output channels
1.0
Audio input channels
1.0
Audio formats supported
ADPCM
Voice codecs
G.711alaw, G.711ulaw, G.726
Sample rate
8 kHz
Operational conditions
Storage relative humidity (H-H)
0 - 90
Storage temperature (T-T)
-30 - 60
Operating relative humidity (H-H)
0 - 90
Operating temperature (T-T)
-10 - 55
Image sensor
Number of effective pixels (H x V)
2592 x 1944
Number of sensors
1
Optical sensor size
25,4 / 2,8
Sensor type
CMOS
Packaging content
Number of cameras
1
Power
Power source type
DC, PoE
Power consumption (Power over Ethernet (PoE))
6.4000
Power consumption (max)
5.8000
Power consumption (typical)
4.1000
DC output voltage
12
Weight & dimensions
Depth
136.2 mm
Width
73.8 mm
Height
66.6 mm
Weight
320 g
