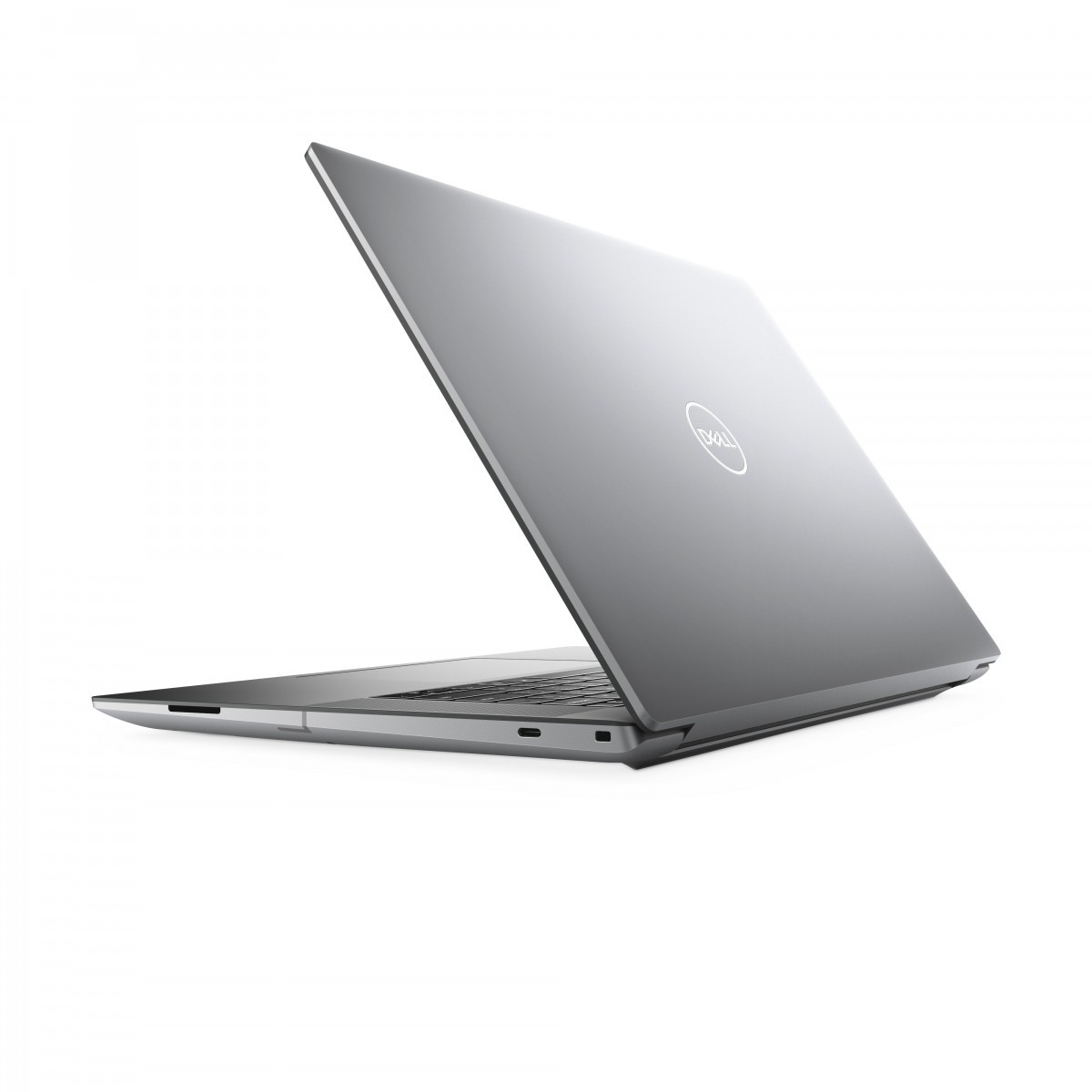

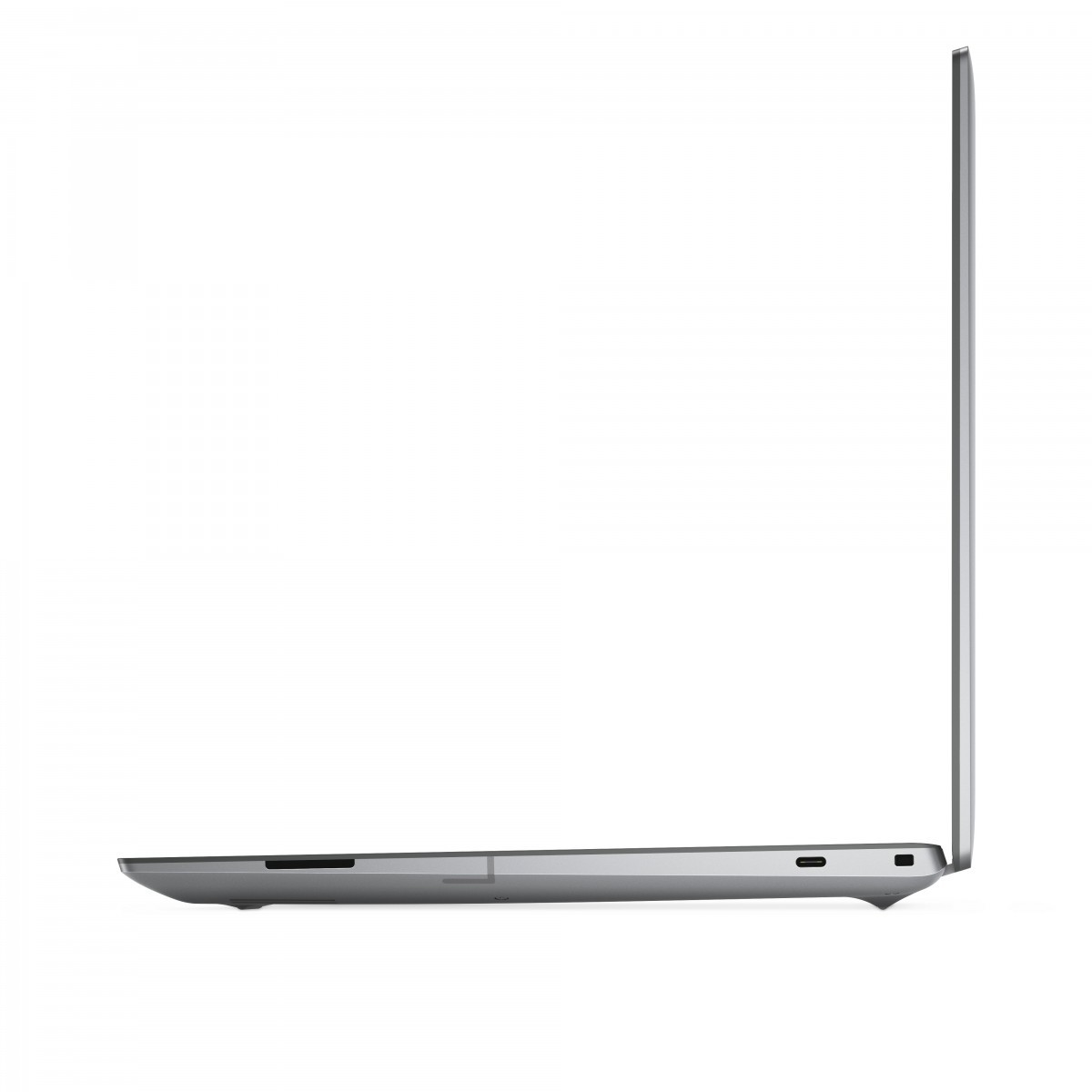

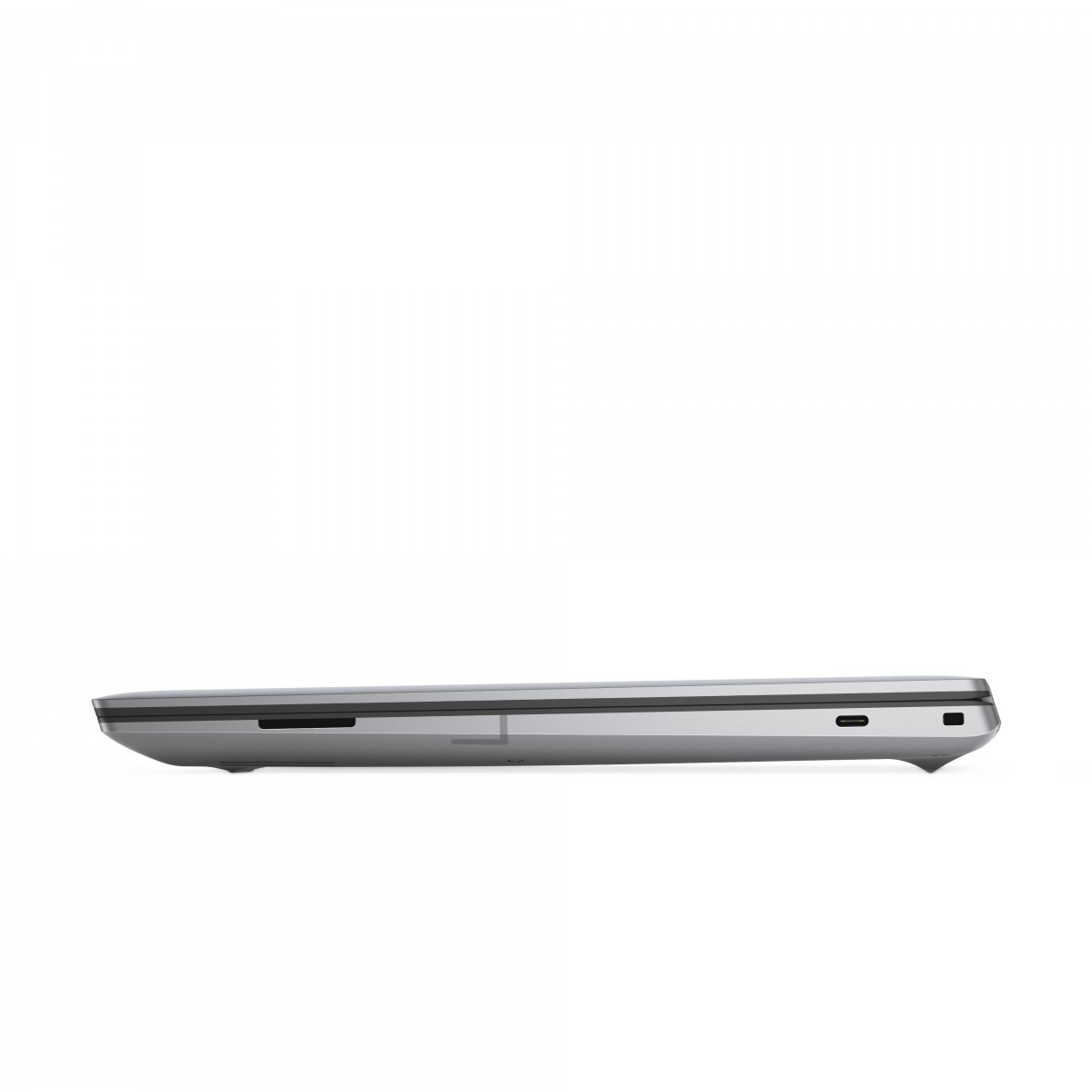

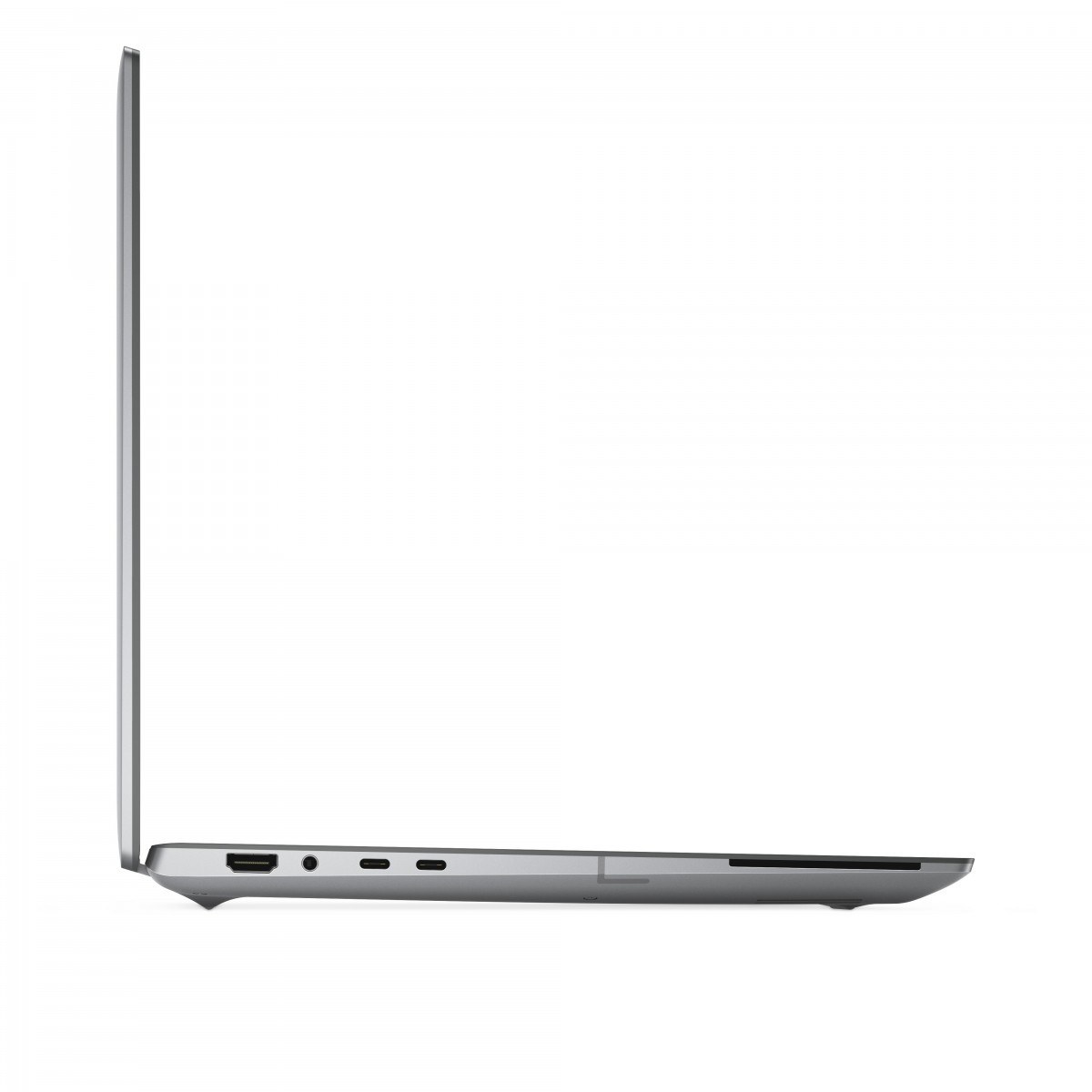

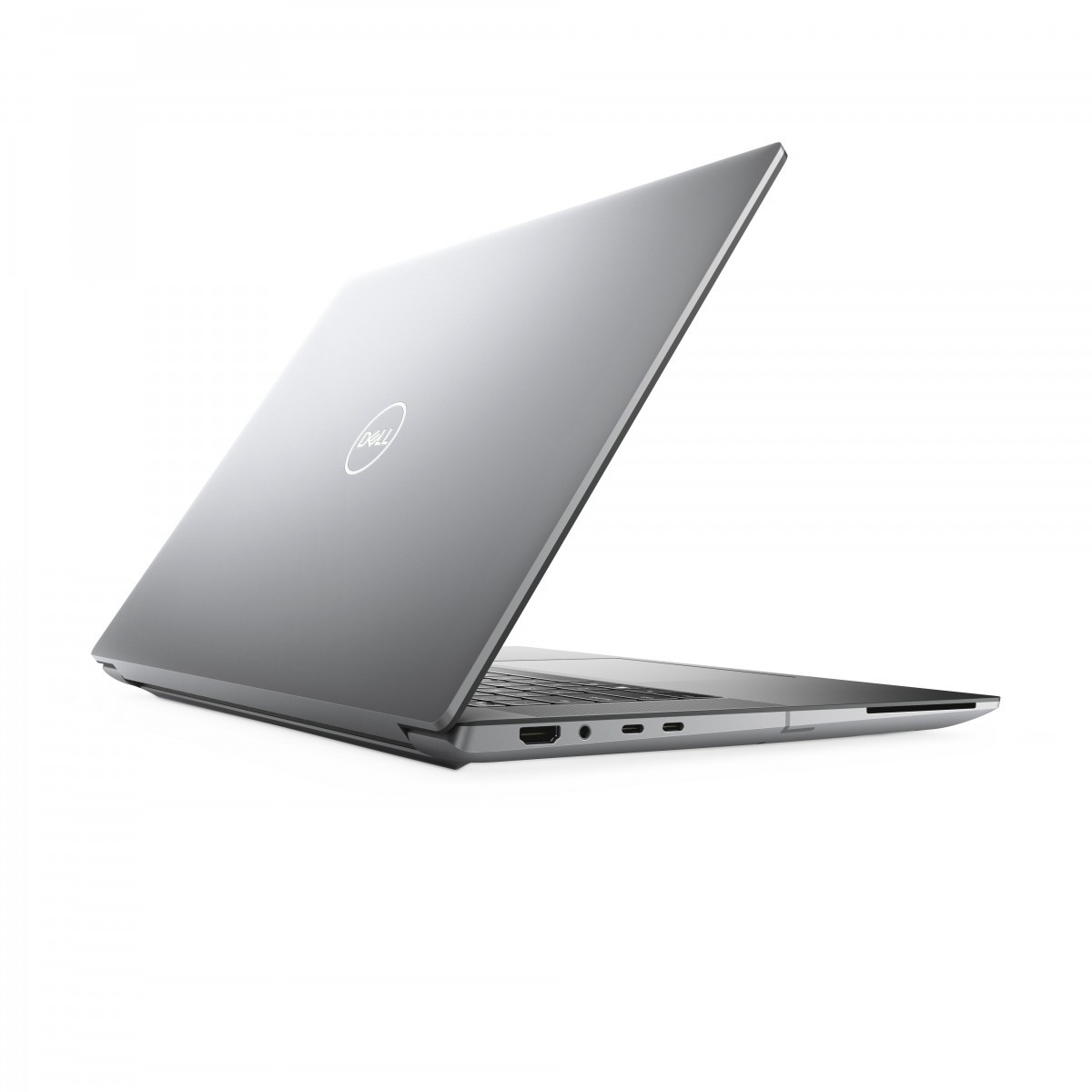

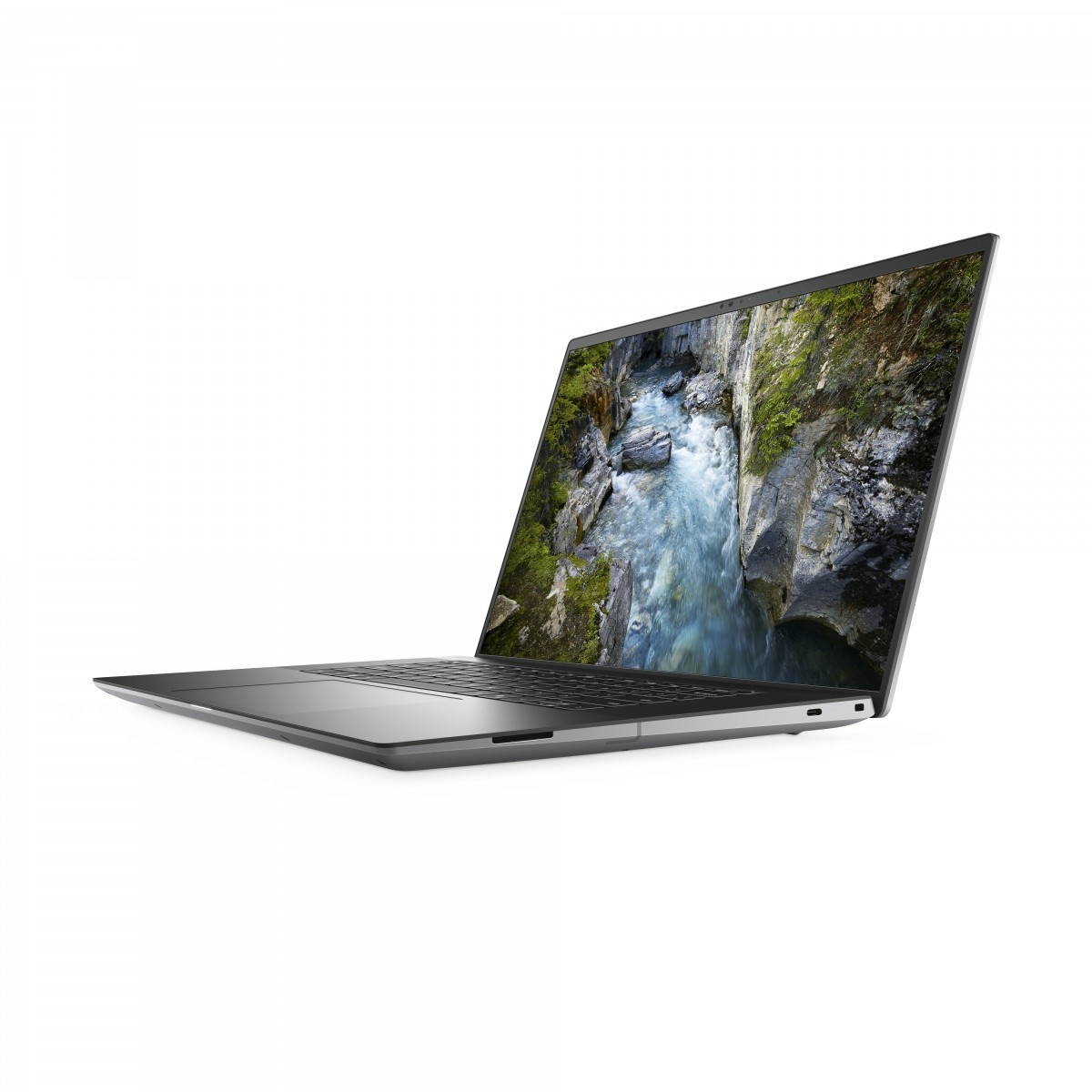

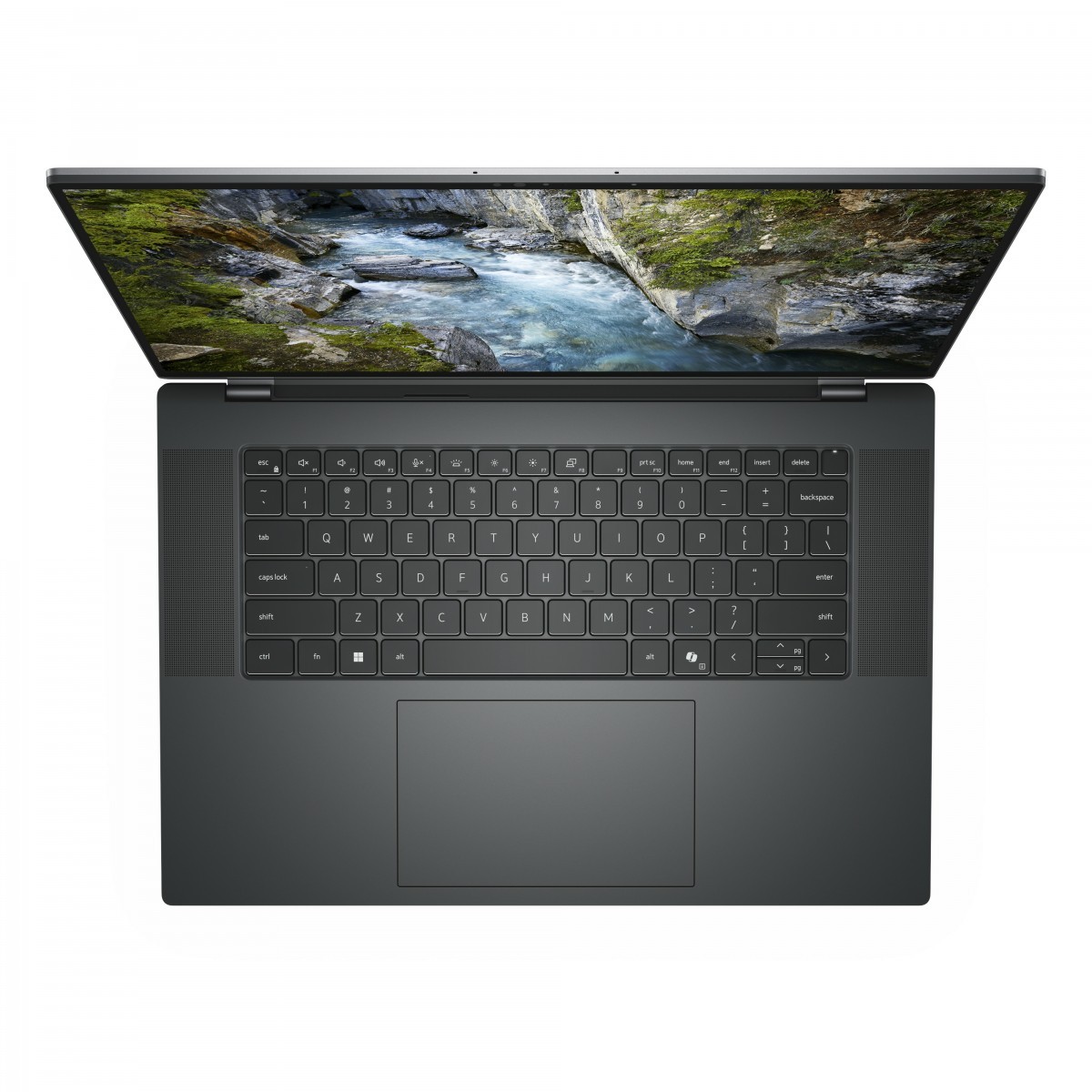

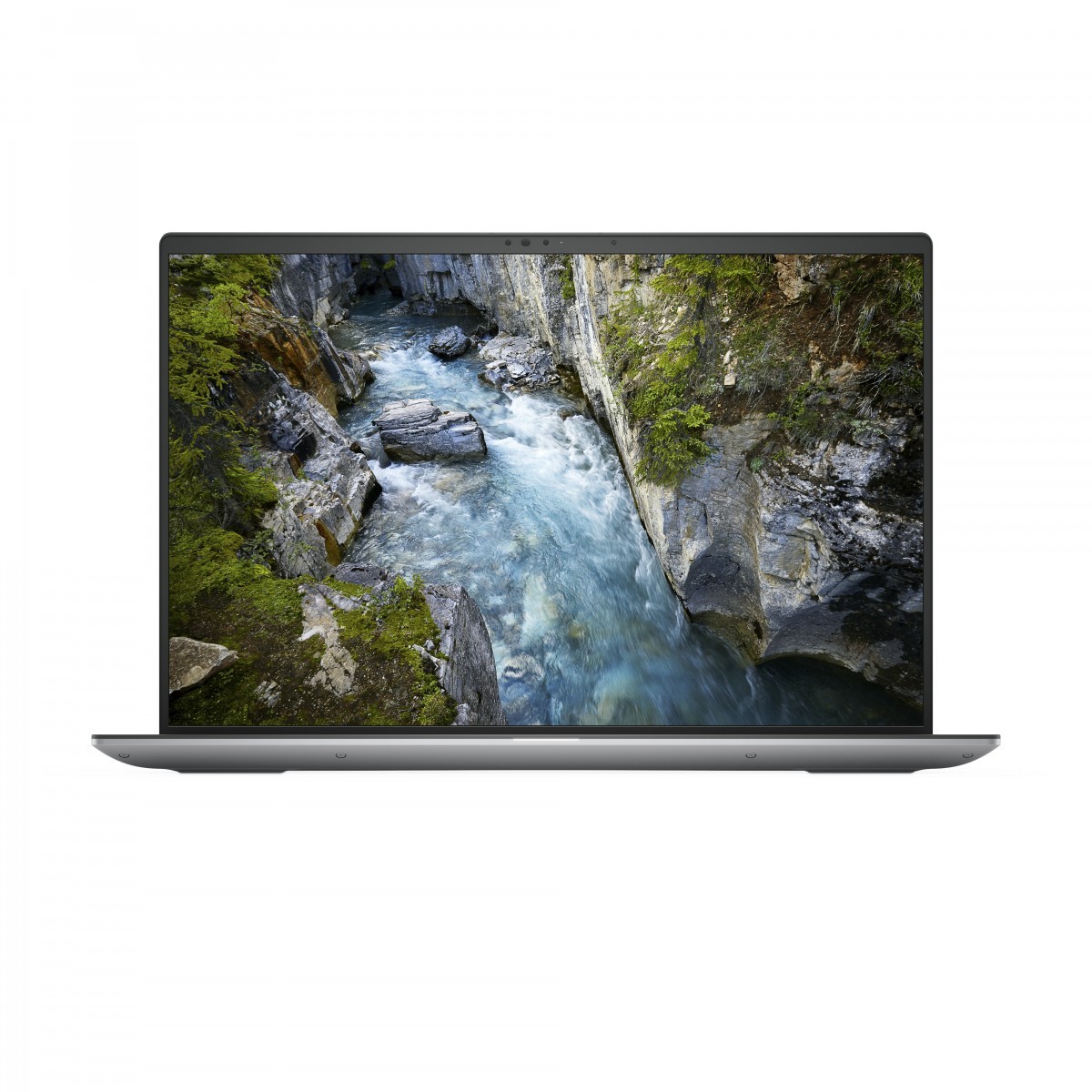

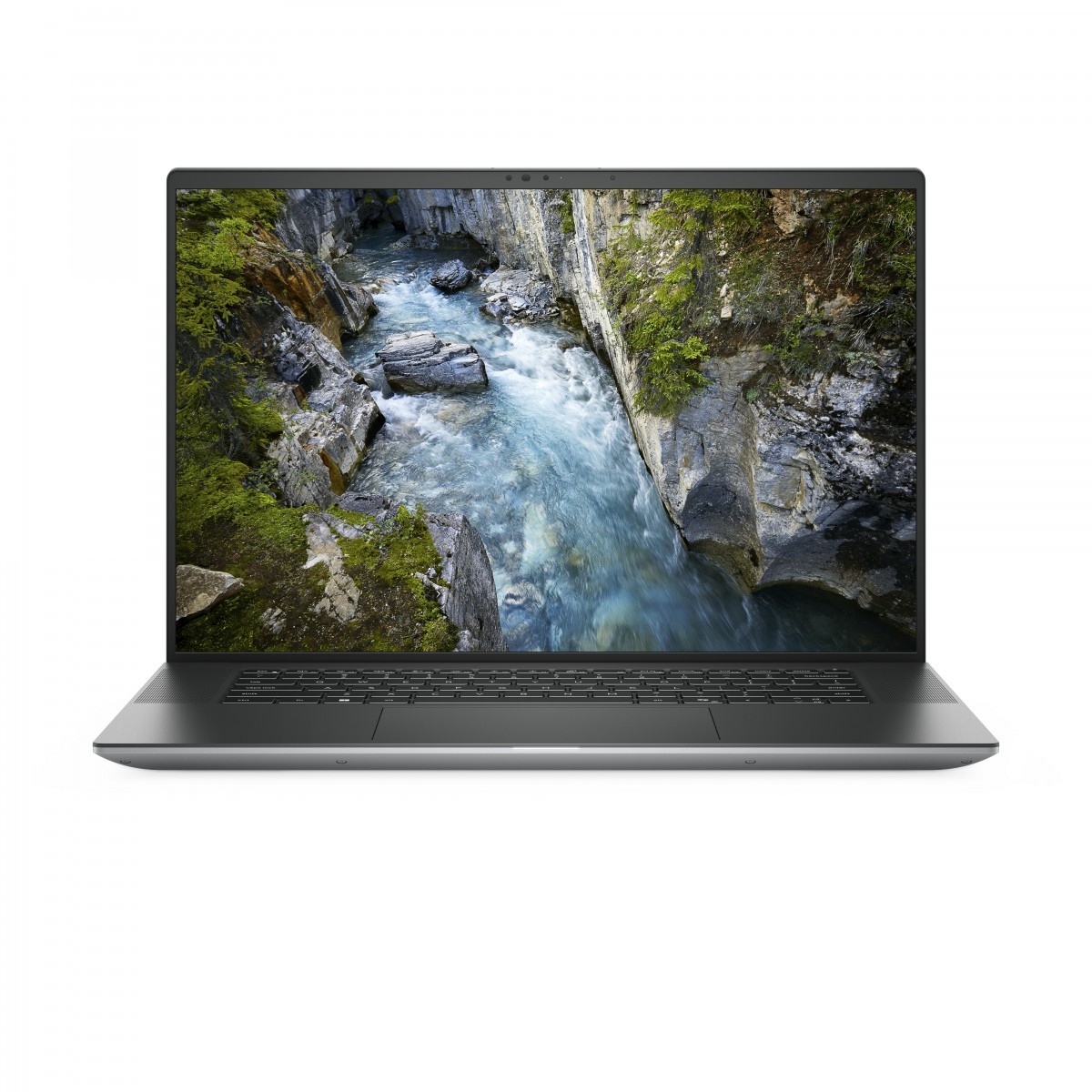

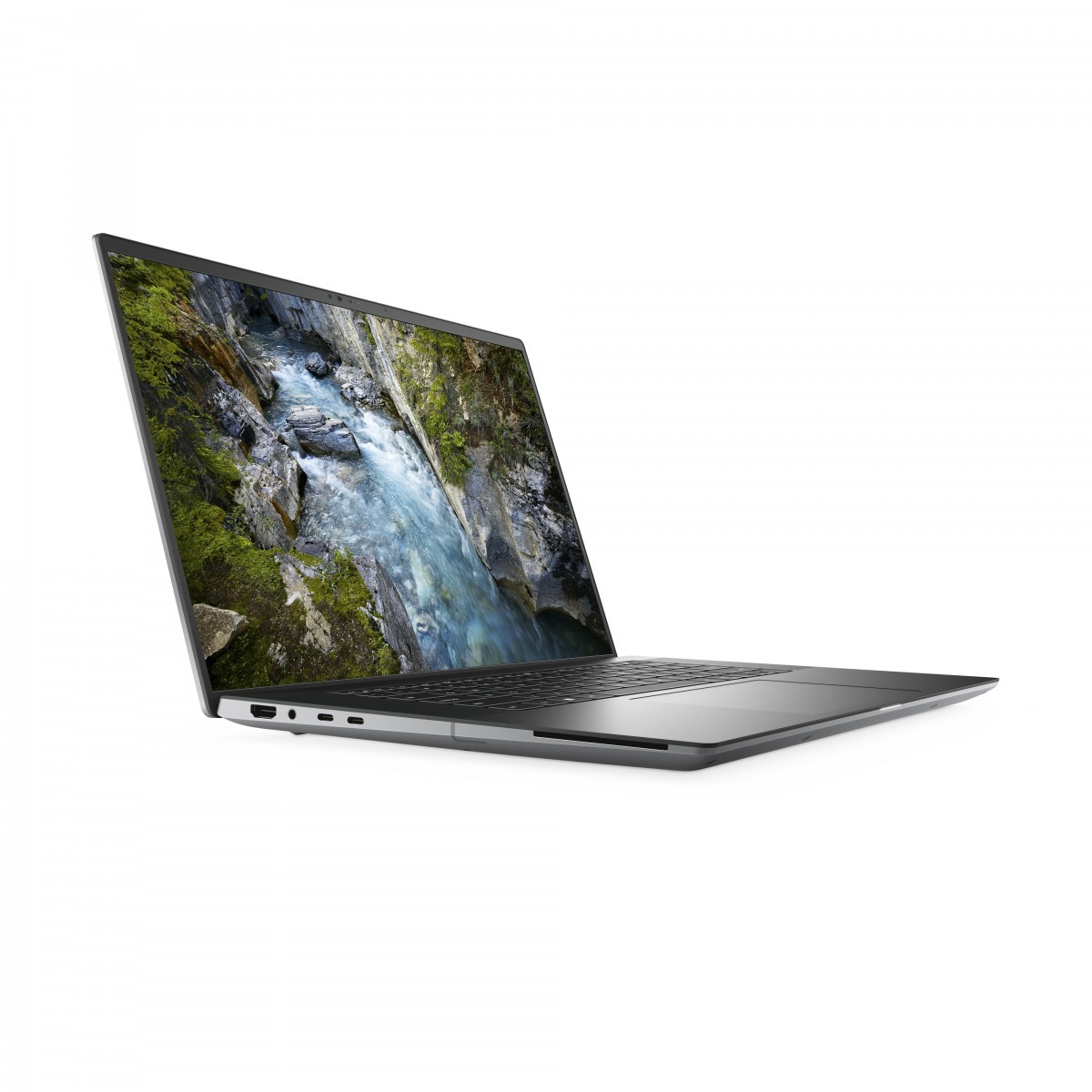

DELL Precision 5690 Core Ultra 7 165H Notebook 40,6 cm (16") FHD+ IPS 1920x1200 Intel® Core™ Ultra 7 16 GB LPDDR5-SDRAM 1 TB SSD RTXA1000_6GB Ada Wi-Fi 7 BE200 FPR Windows 11 Pro (keyboard US Int backlit) 3YPS
EAN:
5902002254205
Part number:
N003P5690EMEA_VP
Please contact us by phone or e-mail in order to determine the details.
Payment methods
Delivery methods
> Business Mobile workstation Clamshell Grey
> Intel Core Ultra 7 165H
> 40.6 cm (16") Full HD+ 1920 x 1200 pixels IPS LED backlight 16:10
> 16 GB LPDDR5x-SDRAM 7467 MHz
> 1 TB SSD
> NVIDIA RTX 1000 Ada 6 GB Intel Arc Graphics
> Wi-Fi 7 (802.11be) Bluetooth
> Lithium-Ion (Li-Ion) 99.5 Wh 165 W
> Windows 11 Pro 64-bit
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
DELL Precision 5690. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 165H. Display diagonal: 40.6 cm (16"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 1000 Ada. Operating system installed: Windows 11 Pro. Product colour: Grey
Multimedia
Other Digital Assets:
Specifications
Design
Product type
Mobile workstation
Product colour
Grey
Form factor
Clamshell
Market positioning
Business
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
Full HD+
Panel type
IPS
Native aspect ratio
16:10
LED backlight
Yes
Anti-glare screen
Yes
Display brightness
500 cd/m²
Pixel density
142 ppi
RGB colour space
DCI-P3
Colour gamut
100%
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1300:1
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor generation
Intel® Core™ Ultra (Series 1)
Processor model
165H
Processor cores
16
Processor boost frequency
5 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
0.9 GHz
Low Power Efficient-core Base Frequency
700 MHz
Processor cache
24 MB
Processor cache type
Smart Cache
Maximum turbo power
115 W
Processor base power
28 W
Neural processor unit (NPU)
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
Memory
Internal memory
16 GB
Internal memory type
LPDDR5x-SDRAM
Memory form factor
On-board
Memory clock speed
7467 MHz
Maximum internal memory
16 GB
Memory data transfer rate
7467 MT/s
Memory channels
Dual-channel
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Optical drive type
No
Graphics
Discrete graphics card model
NVIDIA RTX 1000 Ada
Discrete graphics card memory
6 GB
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
On-board graphics card
Yes
Discrete graphics card
Yes
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics
Audio
Number of built-in speakers
4
Speakers manufacturer
Waves
Number of microphones
2
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera HD type
Full HD
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Infrared (IR) camera
Yes
Network
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Mobile network connection
No
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 7 BE200
WLAN controller manufacturer
Intel
Bluetooth
Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
Performance
Hall sensor
Yes
Gyroscope
Yes
Proximity sensor
Yes
Accelerometer
Yes
Ambient light sensor
Yes
Keyboard
Pointing device
Touchpad
Keyboard backlit
Yes
Numeric keypad
No
Software
Operating system architecture
64-bit
Trial software
Microsoft Office Trial,McAfee Business Protection 1-year
Operating system installed
Windows 11 Pro
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery voltage
11.55 V
Battery capacity
99.5 Wh
Battery recharge time
3 h
Fast charging
Yes
Battery weight
363 g
Battery charge indicator
Yes
Power
AC adapter power
165 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Power Delivery (USB PD)
Yes
Security
Cable lock slot
Yes
Cable lock slot type
Wedge
Fingerprint reader
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Password protection
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.05 cm
Height (rear)
2.22 cm
Weight
2.03 kg
Carbon footprint
Total carbon emissions, w/o use phase (kg of CO2e)
210
PAIA version
GaBi version 1, 2024
Carbon emissions, end-of-life (kg of CO2e)
2
Carbon emissions, energy usage (kg of CO2e)
36
Carbon emissions, manufacturing (kg of CO2e)
200
Carbon emissions, logistics (kg of CO2e)
7
Total carbon footprint (kg of CO2e)
246
Packaging content
Cables included
AC
