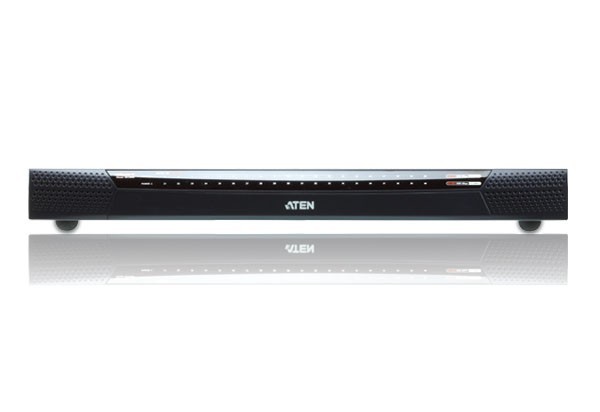

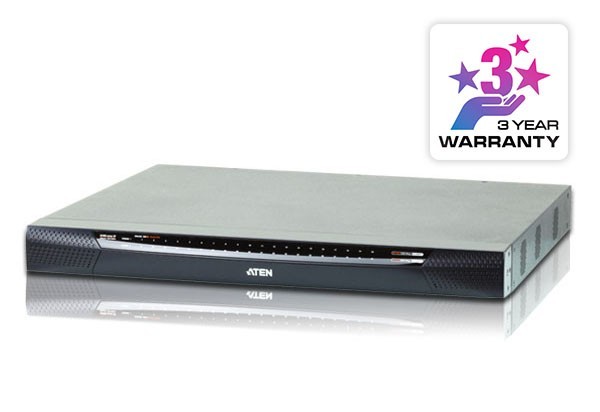

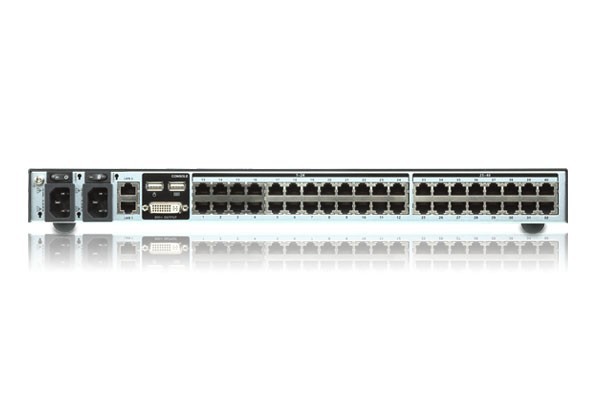

1-Local /4-Remote Access 40-Port Cat 5 KVM over IP Switch with Virtual Media
Part number:
KN4140VA-AX-G
EAN:
4719264644153
Payment methods
Delivery methods
> Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
> ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
> High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN 40-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio Virtual Media Support. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Security algorithms: 3DES, 128-bit RC4, 256-bit AES, DES, FIPS 140-2. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 / 60 Hz
Multimedia
Leaflets:
Manual (PDF):
Specifications
Display
Built-in display
No
Ports & interfaces
DVI-I ports quantity
1
Number of computers controlled
32
Keyboard port type
USB
USB hub
Yes
Mouse port type
USB
Video port type
DVI-I
Console ports
DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB 2.0 Type-A hub ports quantity
3
Serial port type
RJ-45
Serial ports quantity
1
Audio connections
Yes
USB connector type
Mini-USB B, USB Type-A
Performance
HD type
WUXGA
Video bandwidth
60.0000
Scan interval
1, 255
Data transfer rate (max)
1000 Gbit/s
Maximum resolution
1920 x 1200
Firmware upgradeable
Yes
Network
Ethernet LAN
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms
128-bit RC4, 256-bit AES, 3DES, DES, FIPS 140-2
Ethernet LAN (RJ-45) ports
42
Cabling technology
10/100/1000Base-T(X)
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Design
Rack mounting
Yes
Product colour
Black, Grey
Wired remote switch
Yes
Cascadable
Yes
Rack capacity
1U
LED indicators
Yes
Housing material
Metal
Hot keys
Yes
Push button
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating relative humidity (H-H)
0 - 80
Operating temperature (T-T)
0 - 40
Packaging data
Package width
506 mm
Package depth
575 mm
Package height
130 mm
Package weight
7688 g
Sustainability
Compliance certificates
RoHS
Sustainability certificates
RoHS
Packaging content
Rack mount kit
Yes
Cables included
AC
Manual
Yes
Power
Input voltage
100 - 240 V
AC input voltage
100 - 240 V
External power adapter
No
Input current
1 A
Power source
AC
AC input frequency
50 / 60 Hz
Weight & dimensions
Weight
5860 g
Depth
412.1 mm
Width
433.6 mm
Height
412.1 mm
Logistics data
Master (outer) case width
506 mm
Master (outer) case net weight
5860 g
Harmonized System (HS) code
85176200
Master (outer) case height
130 mm
Master (outer) case gross weight
7688 g
Master (outer) case length
575 mm
Products per master (outer) case
1.0000
SKU:
1005766
