Hikvision DS-D5224F2-1V1S
Part number:
DS-D5224F2-1V1S
EAN:
-
Payment methods
Delivery methods
> Ultra-thin device body with ultra-thin border for 3 sides
> 8 bit LVDS HD (1920 × 1080) display
> 178° ultra-wide view screen
> 3D noise reduction
> Low blue light design for eye care
> Dual interface of HDMI and VGA
> Support VESA wall mount
> Built-in speaker for audio input
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Installation and configuration recommendationsHikvision products are professional-grade solutions designed for demanding surveillance installations. To ensure full functionality, safety, and correct system configuration, we recommend installation and commissioning by a certified installer or CCTV system specialist.
Hikvision DS-D5224F2-1V1S. Product type: CCTV monitor, Mounting type: Freestanding, Product colour: Black. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Panel type: VA. Speaker power: 4 W, Panel mounting interface: 75 x 75 mm. Power source type: AC, Battery, Power supply type: Internal, Power consumption (typical): 25 W. Weight: 3.32 kg, Height: 327 mm, Depth: 41.8 mm
Multimedia
Energy Label:
Product Fiche:
Leaflets:
Specifications
Display
Response time
6.5 ms
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Surface hardness
3H
NTSC coverage (typical)
72%
Display diagonal
23.8 in
Haze rate
25%
Panel type
VA
Contrast ratio (typical)
4000:1
Pixel pitch
0,275 x 0,275
Display viewable area (HxV)
527 x 296,5
Display aspect ratio
16:9
Display resolution
1920 x 1080
Display number of colours
16.7 million colours

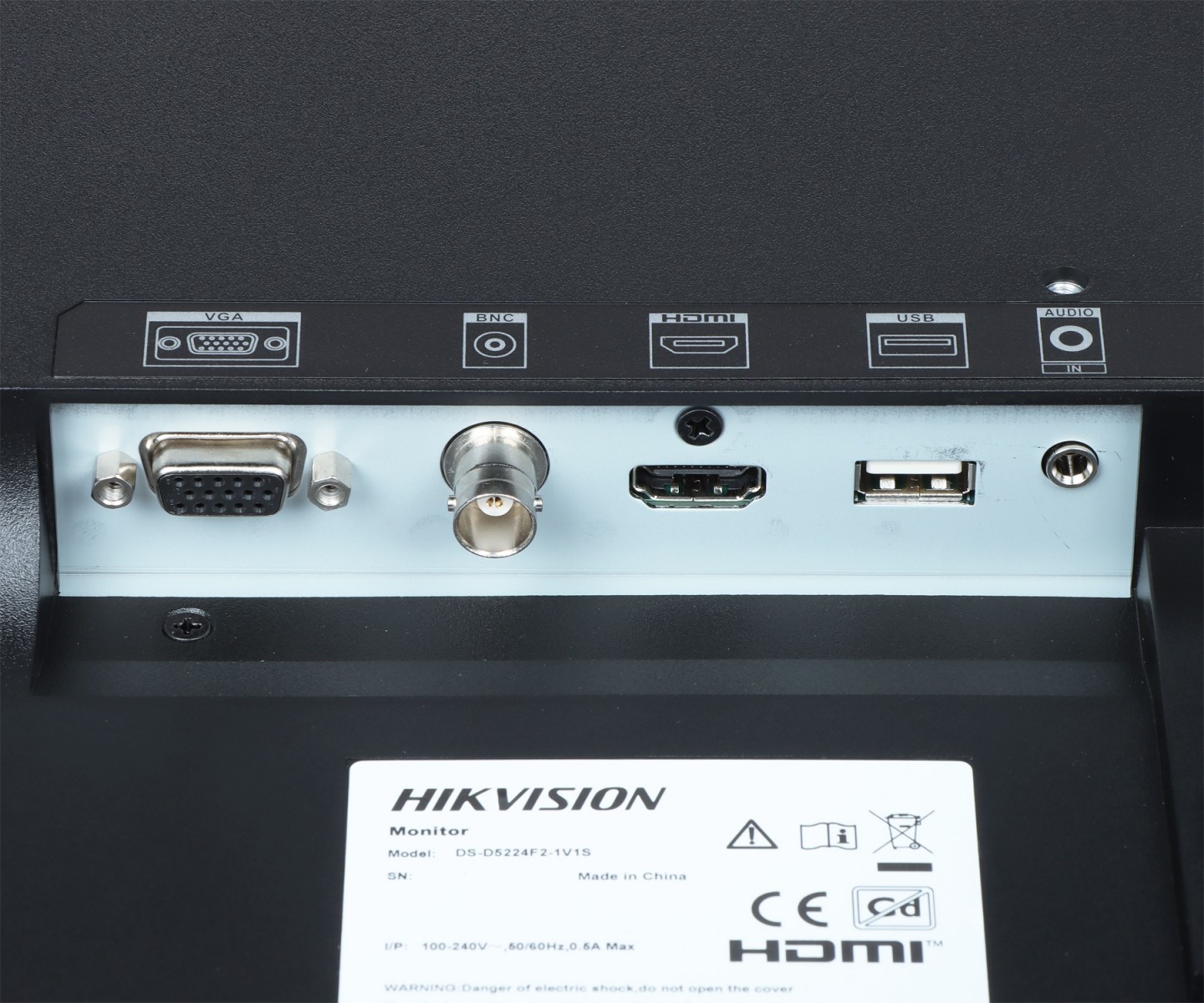

Ports & interfaces
USB 2.0 ports quantity
1
VGA (D-Sub) ports quantity
1
USB port
Yes
HDMI ports quantity
1
HDMI version
1.4
3.5 mm (1/8-inch) in
Yes
Composite video in
1
Performance
Panel mounting interface
75 x 75
VESA mounting
Yes
Number of built-in speakers
2
Built-in speaker(s)
Yes
Speaker power
4.0000
Design
Product colour
Black
Product type
CCTV monitor
Mounting type
Freestanding
Operational conditions
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-20 - 60
Operating relative humidity (H-H)
10 - 80
Operating temperature (T-T)
0 - 40
Packaging content

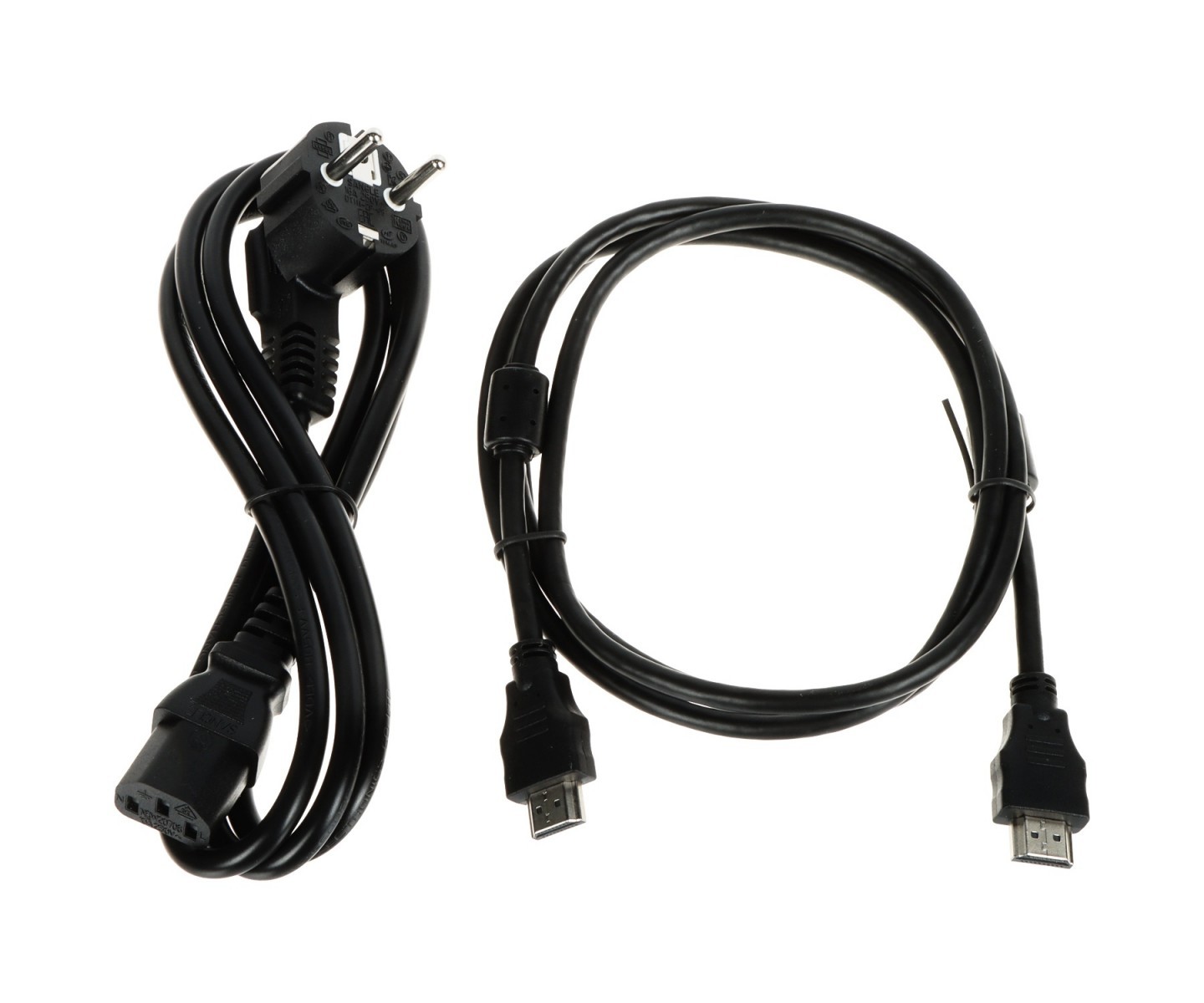

Cables included
AC, HDMI
Power
Power supply type
Internal
Energy consumption (SDR) per 1000 hours
17.7 kWh
Power source type
AC, Battery
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
AC input voltage
100 - 240 V
Power consumption (typical)
25.0000
Power consumption (standby)
0.4000
Input current
0.5 A
AC input frequency
50/60 Hz
Weight & dimensions
Package width
652 mm
Package depth
116 mm
Package height
445 mm
Depth (with stand)
209.99 mm
Weight
3320 g
Height (with stand)
433.2 mm
Height
327.04 mm
Width
539.1 mm
Depth
41.78 mm
Width (with stand)
539.1 mm
Package weight
4660 g
