> Supports 4K2K/60Hz (4:4:4)

> Video bandwidth: 18 Gbps

> Maximum transmission distance (UHD 4K2K): 70 m

> PoC (Power over Cable) - Only the transmitter unit requires an external power adapter

> Supports CAT 6/7/8 cables

> HDCP 2.2 / 1.4

> HDMI 2.0

> Audio return channel (ARC)

> Supports HDR

> IR signal transfer (passback)

> Auto down-scaling

> Supports CEC

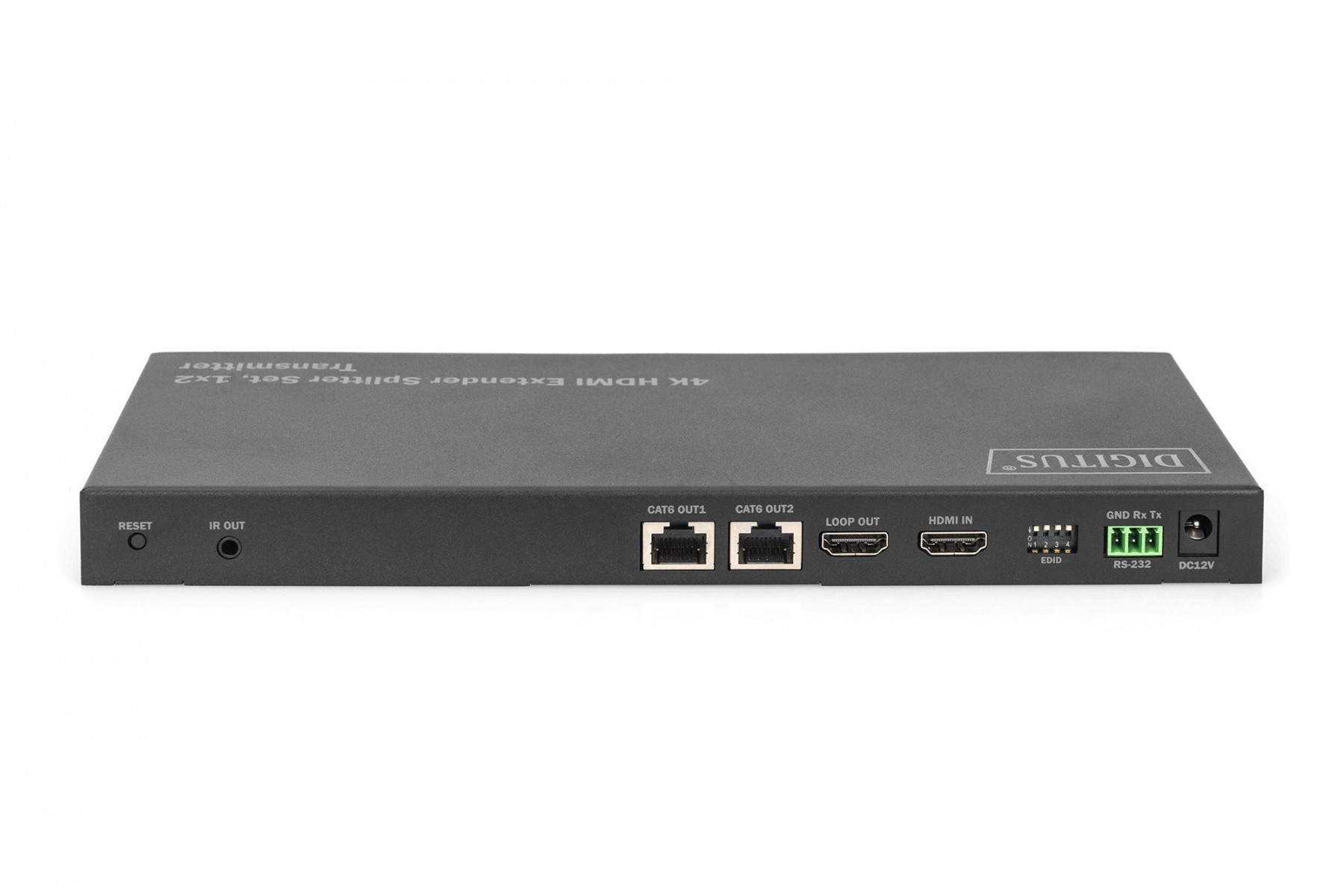

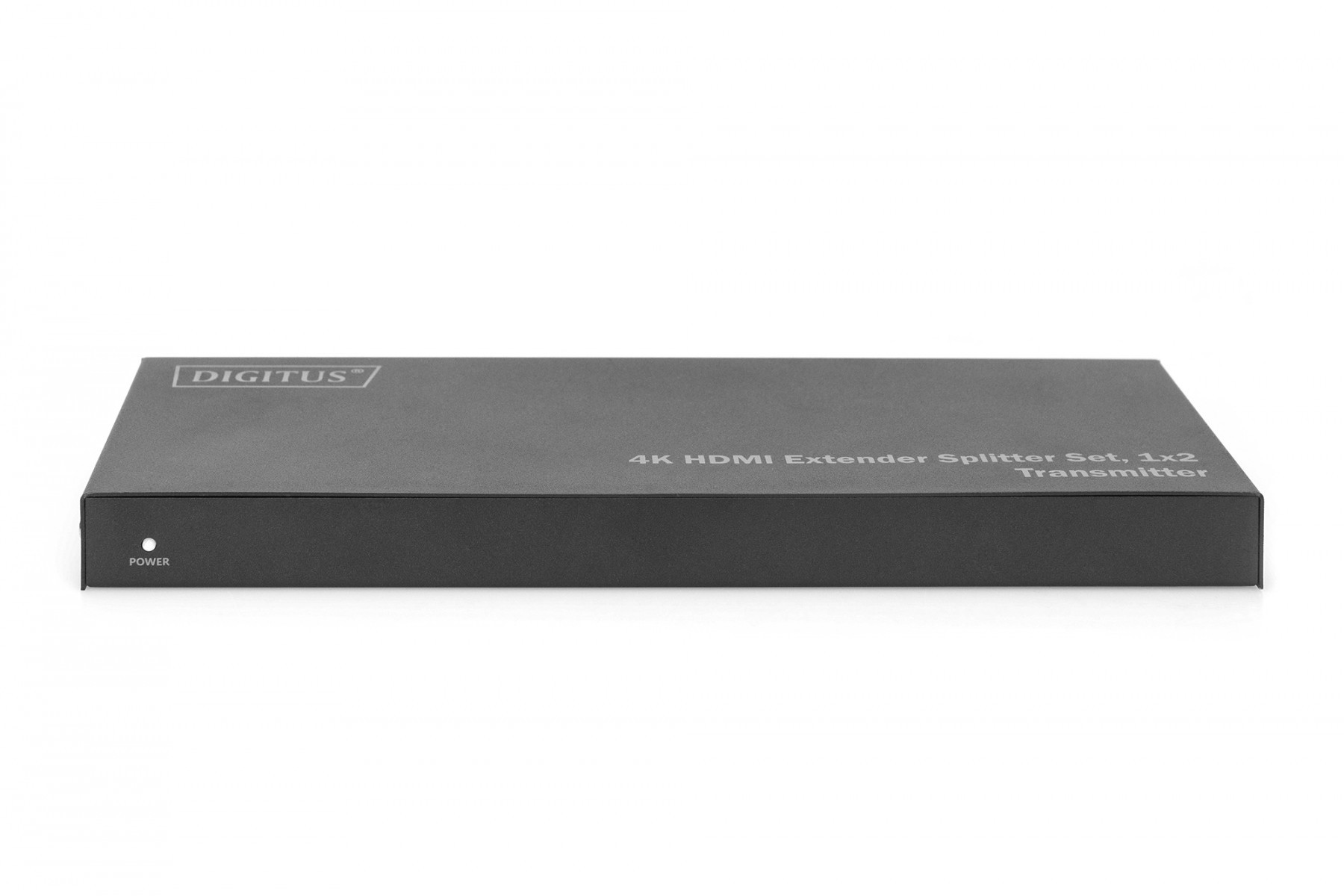

> Transmitter unit connections:

> 1x HDMI input (4K/60Hz) - Connection signal source

> 2x RJ45 output - Connection CAT transmission cable

> 1x HDMI loop-out / output – Connection of local monitor (source device)

> 1x IR output for control of the source device

> 1x RS232 (3-pin Phoenix) for RS232 command transmission

> 1x Power adapter input (DC 12V/3A)

> 1x EDID changeover switch (management)

> 1x Reset button /

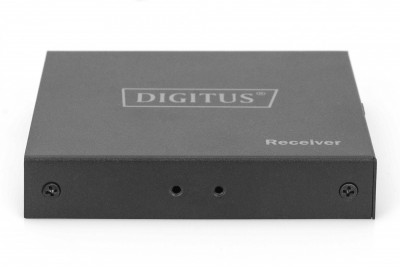

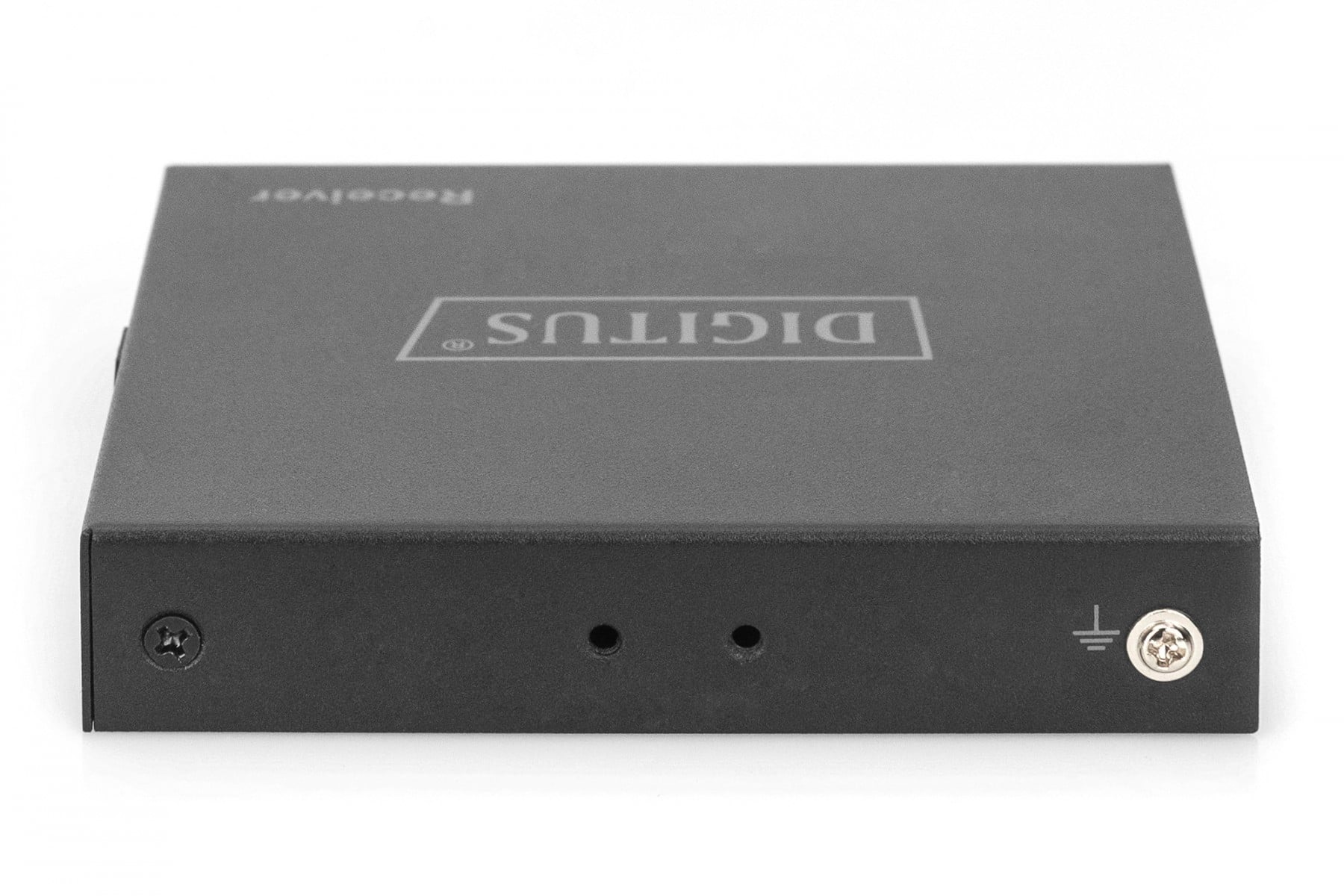

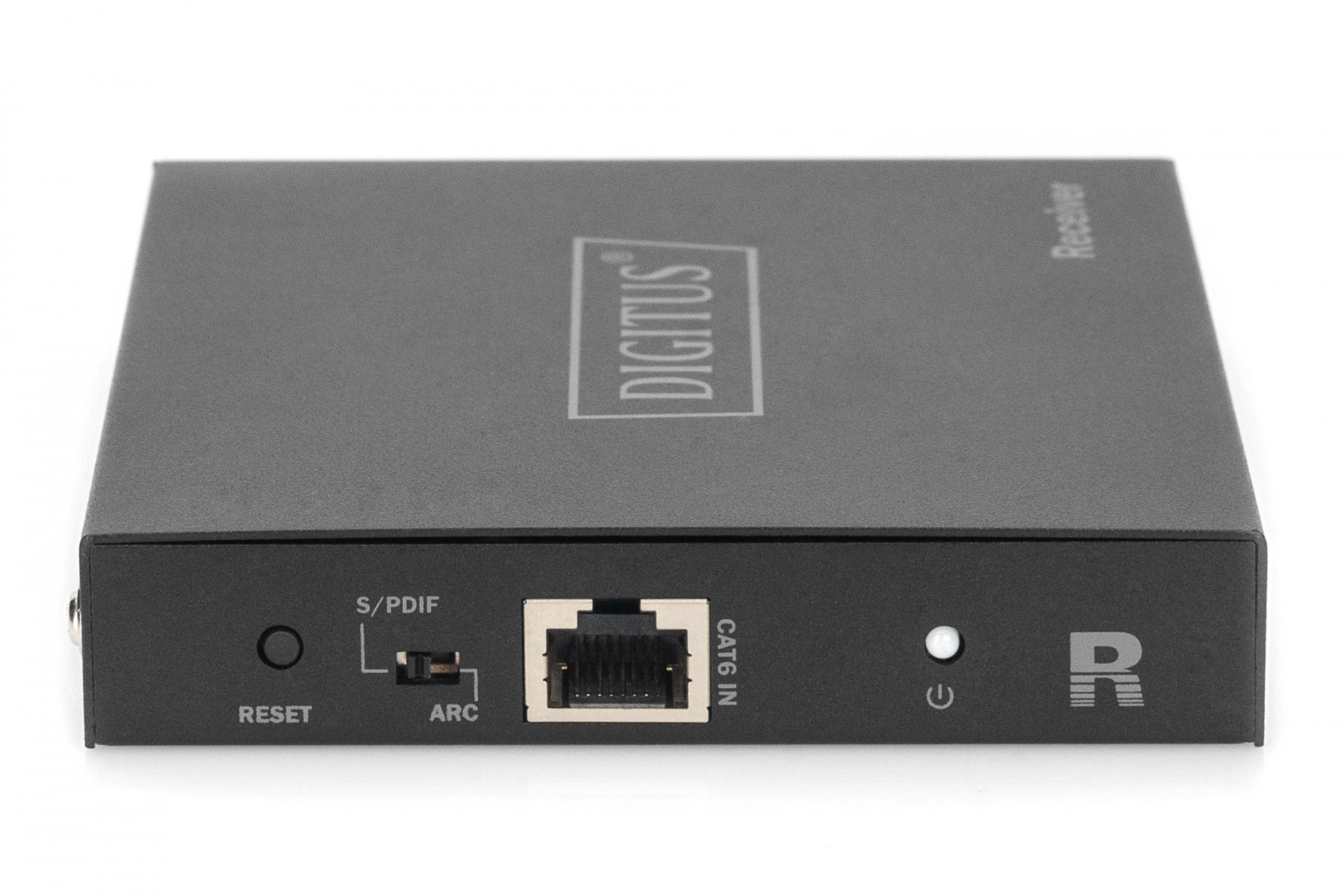

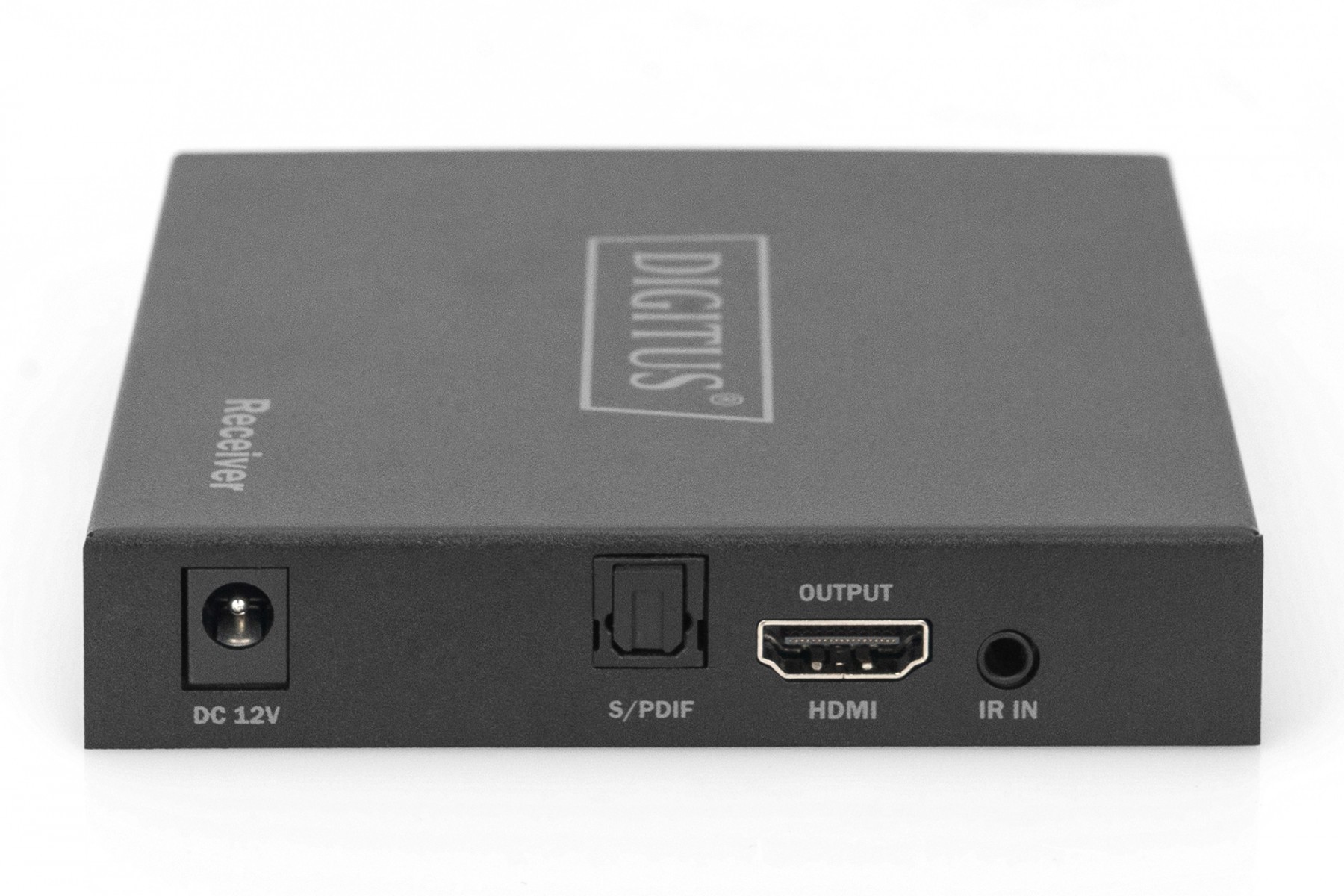

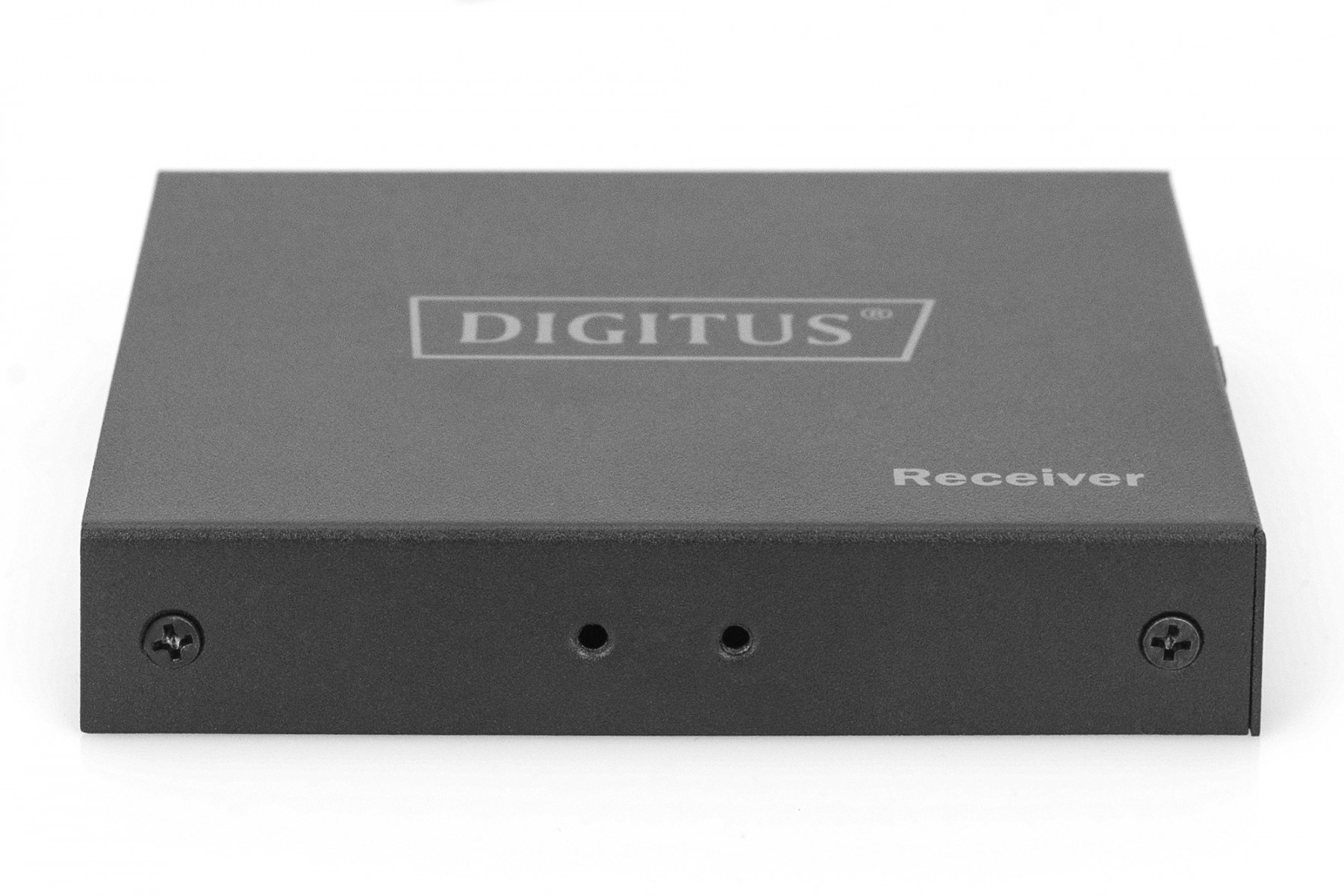

> Receiver unit connections:

> 1x HDMI output (4K/60Hz) - Connection output device

> 1x RJ45 input - Connection CAT transmission cable

> 1x IR input to receive remote control signals

> 1x Audio output (digital - S/PDIF

> 1x Audio changeover switch (input signal) - S/PDIF (source devices) / ARC (output display)

> 1x Reset button

> 1x LED status display

> Surge protection & ESD protection

> Suitable for wall mounting

> Operating temperature: -20-60°

> Power consumption: Transmitter ca. 13W / receiver ca. 4W

> Housing: Metal

> Dimensions: Transmitter W 26.4 x L 10.4 x H 2.35 cm / Receiver W 10.6 x L 9.9 x H 2.6 cm

> Weight: Transmitter 640 g, receiver 210 g

> Color: black
