Hikvision DS-3E1310HP-EI(B) network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Part number:
DS-3E1310HP-EI(B)
EAN:
6936422135867
£56.23
ex VAT
£67.48
inc VAT
Availability:
1
pcs
Order within:
16h
52min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Thursday, 8 October 2026
£16.73
Fastest delivery
Wednesday, 7 October 2026
Payment methods
Delivery methods
> 8 x 10/100M PoE Ports, 2 x Gigabit Uplink Ports
> Total PoE Power Budget 110W
> IEEE802.3af/at/bt Compliant, 90W Max. Output Power for PTZ camera
> Support 802.1Q VLAN
> Support PoE watchdog to detect and restart the cameras that do not respond
> Support STP/RSTP Loop prevention
> Support cable detection to locate failure
> Up to 300 m Long Range PoE Transmission
> 6KV Surge Protection
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Installation and configuration recommendationsHikvision products are professional-grade solutions designed for demanding surveillance installations. To ensure full functionality, safety, and correct system configuration, we recommend installation and commissioning by a certified installer or CCTV system specialist.
Hikvision DS-3E1310HP-EI(B). Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 4000 entries, Switching capacity: 9.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Multimedia
Leaflets:
Other Digital Assets:
Specifications
Management features
Switch type
Managed
Optical fiber
Transmission distance (max)
0.3 km
Security
Loop protection
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30.0000
Total Power over Ethernet (PoE) budget
110.0000
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
8
Gigabit Ethernet (copper) ports quantity
2
Power connector
DC-in jack
Network
10G support
No
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Flow control support
Yes
VLAN support
Yes
Number of VLANs
4094
Design
Rack mounting
No
Product colour
Grey
Stackable
No
Wall mountable
Yes
LED indicators
Yes
Housing material
Metal
International Protection (IP) code
IP40
Packaging data
Package weight
950 g
Operational conditions
Storage relative humidity (H-H)
5 - 95
Storage temperature (T-T)
-40 - 85
Operating relative humidity (H-H)
5 - 95
Operating temperature (T-T)
0 - 40
Certificates
Compliance certificates
REACH, RoHS, WEEE
Data transmission
Forwarding rate
7.14 Mpps
Switching capacity
9.6 Gbit/s
MAC address table
4000 entries
Store-and-forward
Yes
Power
Surge protection
Yes
Power consumption (max)
120.0000
DC input voltage
54 V

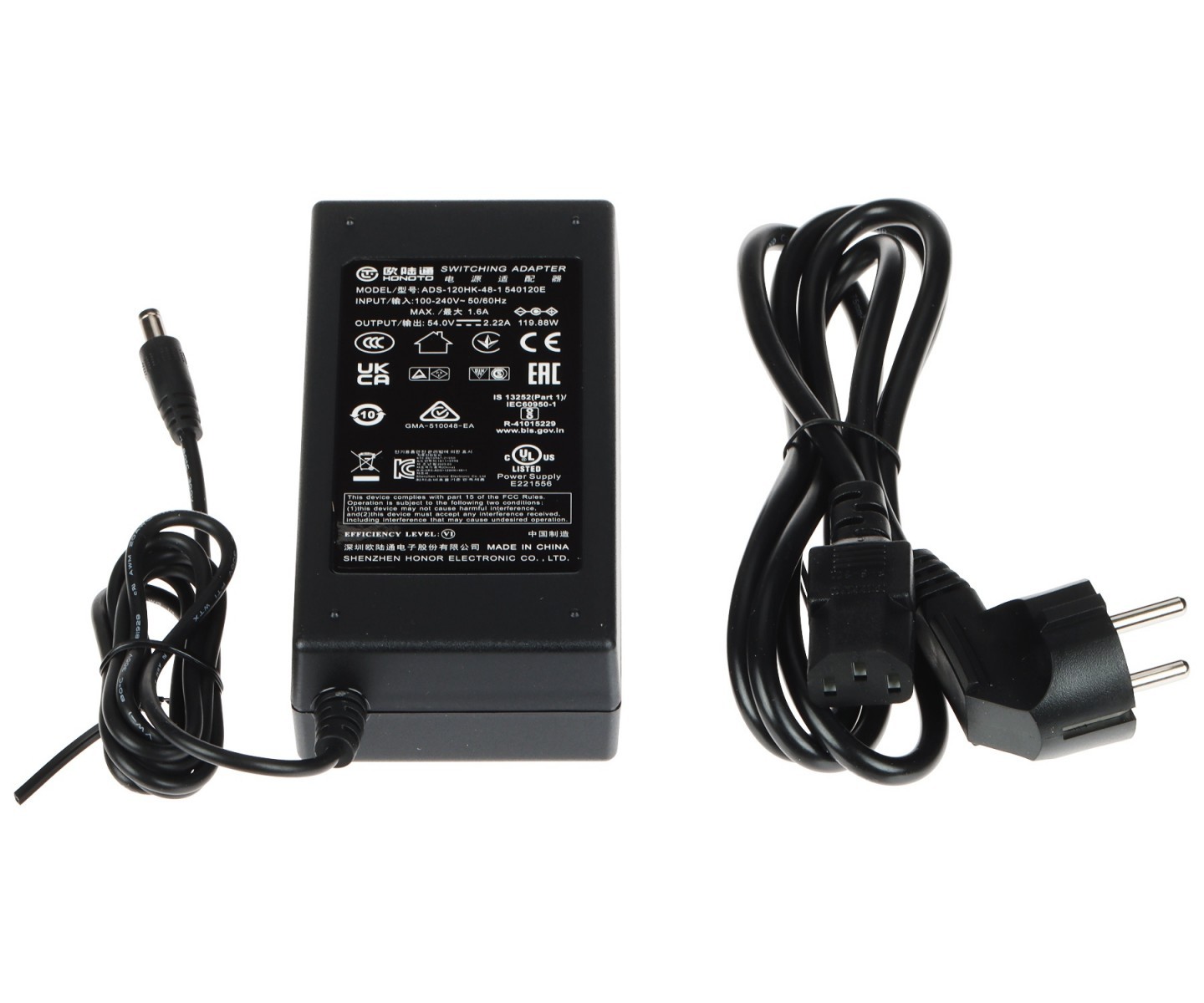

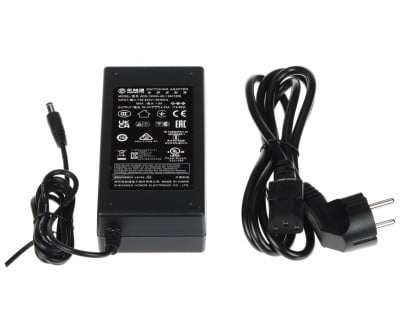

Power supply included
Yes
Power consumption (typical)
10.0000
Power source
DC/PoE
Input current
2.22 A
Surge protection voltage
6 kV
Weight & dimensions
Depth
108.5 mm
Width
217.6 mm
Weight
550 g
Height
27.6 mm
