Hikvision DS-2CD2183G2-IS(2.8mm)(BLACK) 8 MP AcuSense Vandal Fixed Dome Network Camera
Part number:
DS-2CD2183G2-IS(2.8mm)(BLACK)
EAN:
6941264095224
Payment methods
Delivery methods
> High quality imaging with 8 MP resolution
> Clear imaging against strong backlight due to 120 dB true WDR technology
> Efficient H.265+ compression technology
> Focus on human and vehicle targets classification based on deep learning
> Built-in microphone for real-time audio security
> Water and dust resistant (IP67) and vandal-resistant (IK10)
Recommended accessories:
Availability:
ex VAT
inc VAT
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Installation and configuration recommendationsHikvision products are professional-grade solutions designed for demanding surveillance installations. To ensure full functionality, safety, and correct system configuration, we recommend installation and commissioning by a certified installer or CCTV system specialist.
Equipped with a high-resolution 8 MP sensor, this vandal-resistant dome network camera captures video at a resolution of 3840 x 2160, providing clear and detailed images. The camera features AcuSense technology, which enhances its ability to accurately distinguish between human figures and vehicles from other moving objects, reducing false alarms and improving security efficiency.
The unit includes a 2.8mm fixed lens that offers a wide field of view, making it suitable for monitoring large areas. It supports H.265+ video compression technology, which significantly reduces bandwidth and storage requirements while maintaining high-quality video output.
Designed for durability, the camera boasts an IP67 rating, ensuring protection against dust and water, and an IK10 rating for impact resistance, making it suitable for installation in high-risk environments. It also features built-in IR illumination with a range of up to 30 meters, providing dependable night vision capabilities.
Additional functionalities include a built-in microphone for audio recording and support for microSD cards, allowing for local storage of video footage. The camera is encased in a black exterior, blending seamlessly into various environments.
The unit includes a 2.8mm fixed lens that offers a wide field of view, making it suitable for monitoring large areas. It supports H.265+ video compression technology, which significantly reduces bandwidth and storage requirements while maintaining high-quality video output.
Designed for durability, the camera boasts an IP67 rating, ensuring protection against dust and water, and an IK10 rating for impact resistance, making it suitable for installation in high-risk environments. It also features built-in IR illumination with a range of up to 30 meters, providing dependable night vision capabilities.
Additional functionalities include a built-in microphone for audio recording and support for microSD cards, allowing for local storage of video footage. The camera is encased in a black exterior, blending seamlessly into various environments.
Multimedia
Specifications
Management features
Web browser
Yes
Behavior analysis
Intrusion detection, Line crossing detection
Reset button
Yes
Security
Password protection
Yes
Anti-flicker
Yes
Heartbeat
Yes
HTTPS encryption
Yes
IP address filtering
Yes
Mirror
Yes
Video motion detection
Yes
Active tampering alarm
Yes
Intelligent Video Surveillance (IVS) system features
Face detection
Night vision
Night vision distance
30 m
Night vision
Yes
Infra-red wavelength
850 nm
LED type
IR
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Performance
Type
IP security camera
Connectivity technology
Wired
Languages support
Multi
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Alarm input/output
Yes
Number of languages
33
Placement supported
Indoor___outdoor
Certification
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Network
Supported network protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Number of users
32 user(s)
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af
Ethernet interface type
Fast Ethernet
Quality of Service (QoS) support
Yes
Bluetooth
No
Wi-Fi
No
Lens system
Recognize distance (wide)
17.0000
Identify distance (wide)
9.0000
Observe distance (wide)
35.0000
Detect distance (wide)
88.0000
Maximum aperture number
1.6
Number of lenses
1
Fixed focal length
2.8 mm
Video
Maximum resolution
3840 x 2160
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Gain control type
Auto
Video streaming
Yes
Privacy masking
Yes
Highlight Compensation (HLC)
Yes
Region of Interest (ROI) encoding
Yes
Back Light Compensation (BLC)
Yes
Frame rate
30 fps
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Bit rate control
constant_bit_rate__cbr__variable_bit_rate__vbr_
Bit rate
32 Kbps - 16 Mbps
Video compression formats
H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels
8 mpx
Camera
Camera tilt control
Yes
Angle of rotation
355 °
Lens viewing angle, diagonal
128°
Camera pan control
Yes
Lens viewing angle, vertical
57°
Lens viewing angle, horizontal
107°
Minimum illumination
0 lx
Tilt angle range
0 - 75
Pan range
0 - 355
Camera shutter speed
1/3 - 1/100000 s
Storage
Built-in HDD
No
Maximum memory card size
256 GB
Compatible memory cards
MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Design
Product colour
Black
Form factor
Dome
Protection features
Dust resistant, Water resistant
IK code
IK10
Mounting type
Ceiling/wall
Housing material
Aluminium, Plastic
International Protection (IP) code
IP67
Audio
Voice codecs
AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
52.0000
Operational conditions
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-30 - 60
Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
-30 - 60
Packaging data
Package width
134 mm
Package depth
134 mm
Package height
108 mm
Package weight
720 g
Image sensor
Number of sensors
1
Progressive scan
Yes
Optical sensor size
25,4 / 2,8
Sensor type
CMOS
Packaging content
Number of cameras
1
Power
Power source type
DC, PoE
Power consumption (Power over Ethernet (PoE))
7.5000
Power consumption (max)
6.0000
DC output voltage
12
DC output current
0.5000

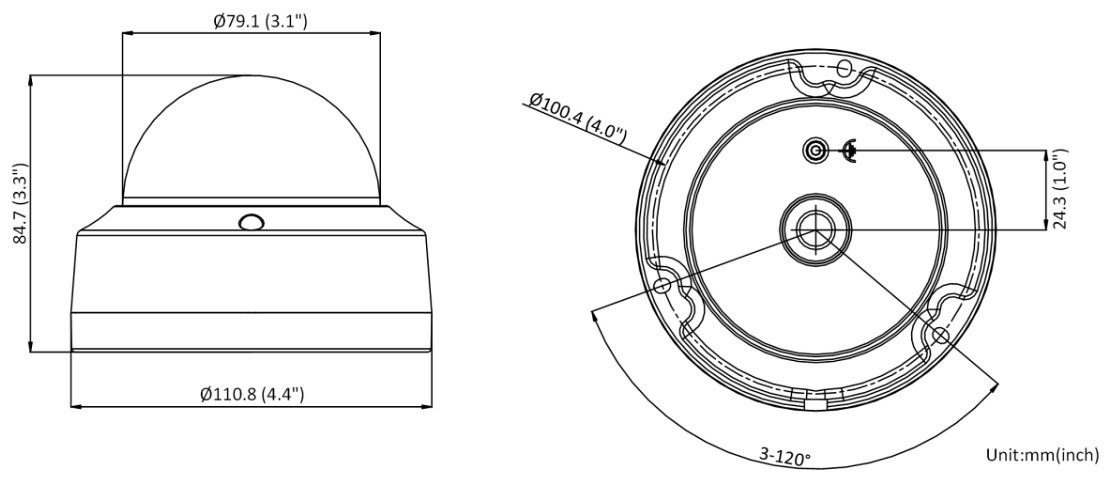

Weight & dimensions
Diameter
110.8 mm
Height
84.7 mm
Weight
520 g
