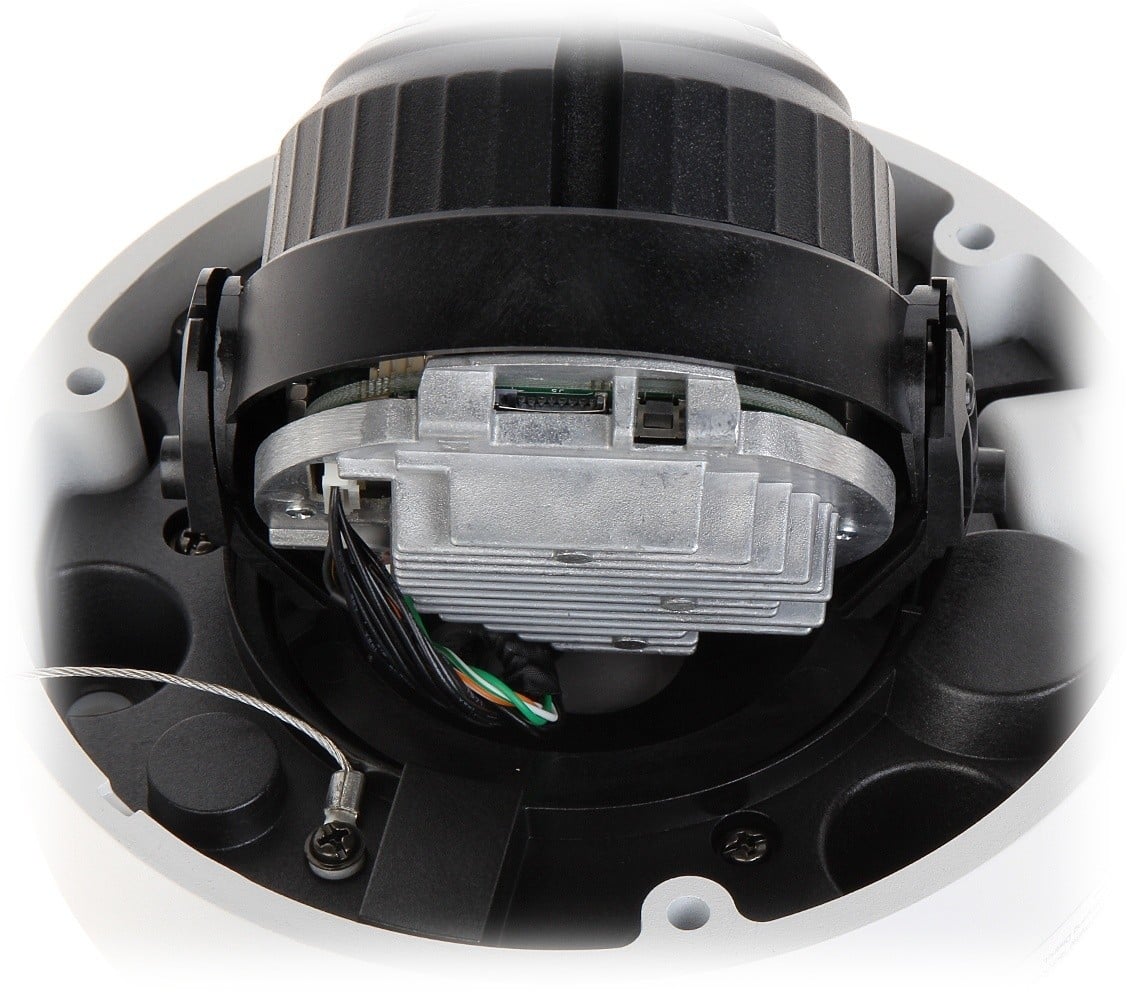

Hikvision DS-2CD1743G0-IZ(2.8-12mm)(C) 4 MP Varifocal Dome Network Camera

Part number: DS-2CD1743G0-IZ(2.8-12mm)(C)
EAN: 6931847127527
£127.00 ex VAT
£152.40 inc VAT
Not in stock
Payment methods
Visa Mastercard Paypal Apple Pay Google Pay
Delivery methods
UPS Standard InPost Paczkomaty 24/7 FedEx PL Schenker Kuehne Nagel RABEN

> High quality imaging with 4 MP resolution

> Efficient H.265+ compression technology

> Clear imaging even with strong back lighting due to 120 dB WDR

> Up to 256 GB memory card slot for storage

> 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring

> Water and dust resistant (IP67) and vandal proof (IK10)

> EXIR 2.0: advanced infrared technology with long IR range

Recommended accessories:

Ideal solutions for your business Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.

Description

Installation Note IconInstallation and configuration recommendations

Hikvision products are professional-grade solutions designed for demanding surveillance installations. To ensure full functionality, safety, and correct system configuration, we recommend installation and commissioning by a certified installer or CCTV system specialist.

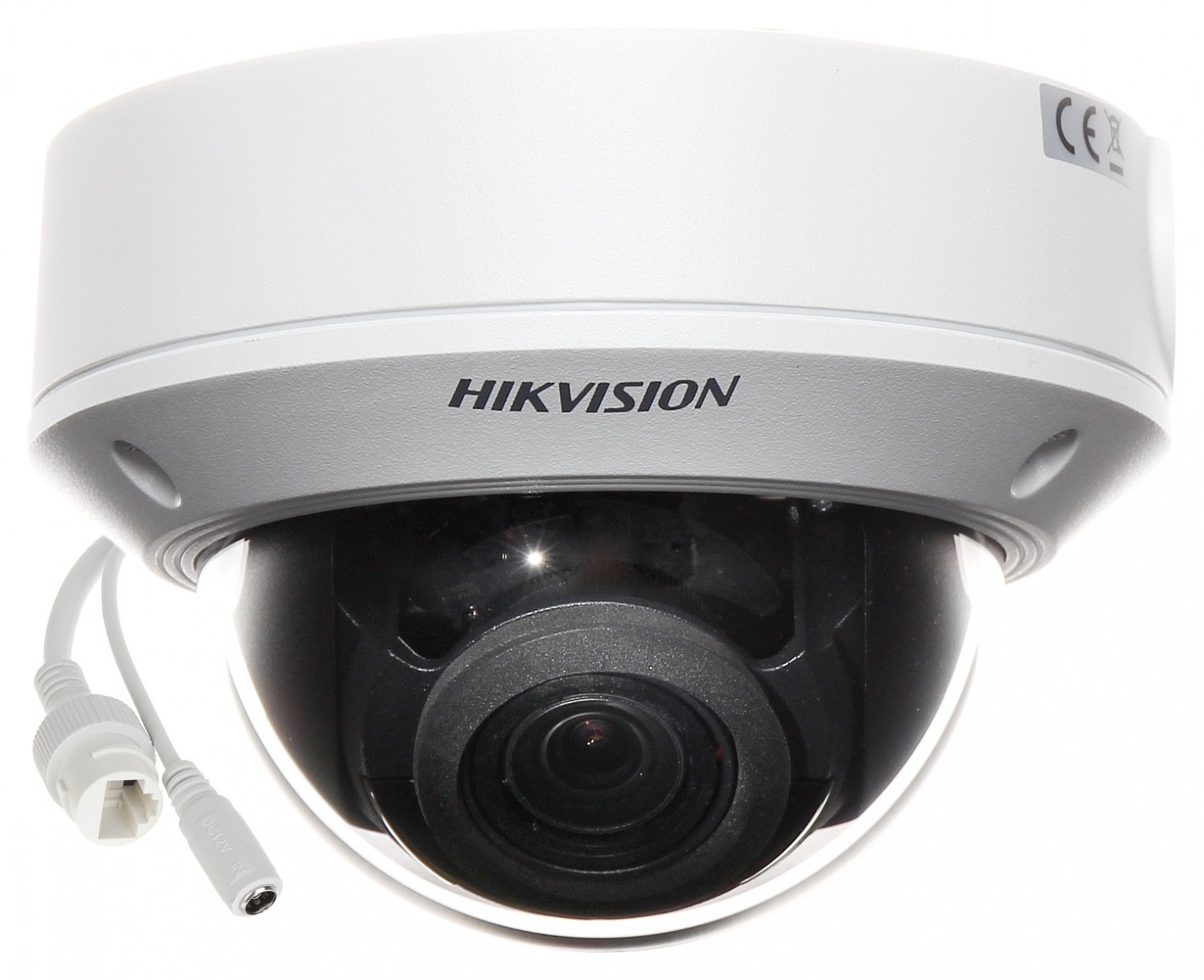

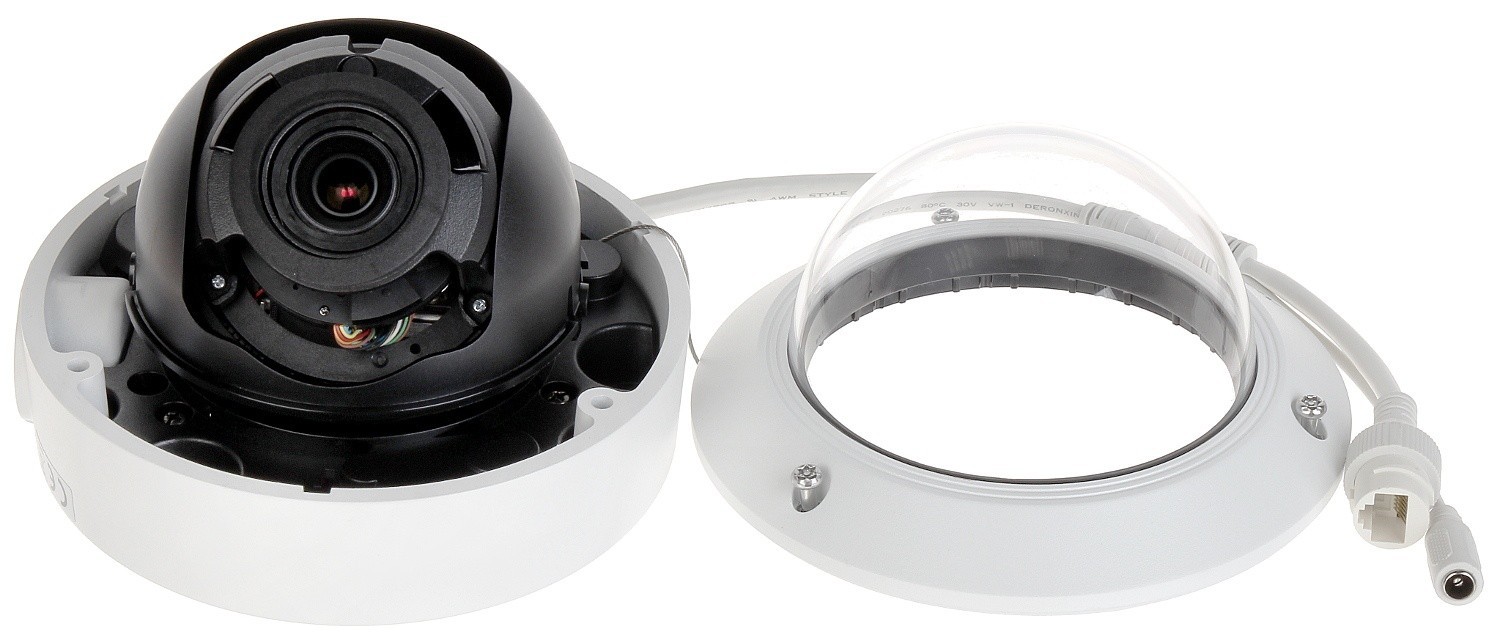

This network camera features a 4-megapixel resolution, ensuring high-quality images with enhanced detail and clarity. It is equipped with a varifocal lens, which has an adjustable focal length ranging from 2.8 to 12mm, allowing for a more flexible field of view. The dome design of the camera provides a discreet installation option, suitable for both indoor and outdoor environments due to its weather-resistant properties.

The device supports H.265+ video compression technology, which reduces bandwidth and storage requirements while maintaining high video quality. It also includes infrared night vision capabilities, enabling clear video capture in low-light conditions up to a distance of 30 meters.

Additional features include motion detection, which can trigger alerts and recording, and a built-in microSD card slot for onboard storage. The camera can be integrated into a larger security system and accessed remotely, providing users with flexibility in monitoring and security management. It is also compatible with various network protocols, ensuring easy integration into existing network infrastructures.

Multimedia

Other Digital Assets:

User Manual:

Quick Start Guide:

Specifications

Management features
Web-based management
Yes
show more
Reset button
Yes
show more
Security
Digital watermark
Yes
show more
Password protection
Yes
show more
Video motion detection
Yes
show more
Heartbeat
Yes
show more
Anti-flicker
Yes
show more
Mirror
Yes
show more
IP address filtering
Yes
show more

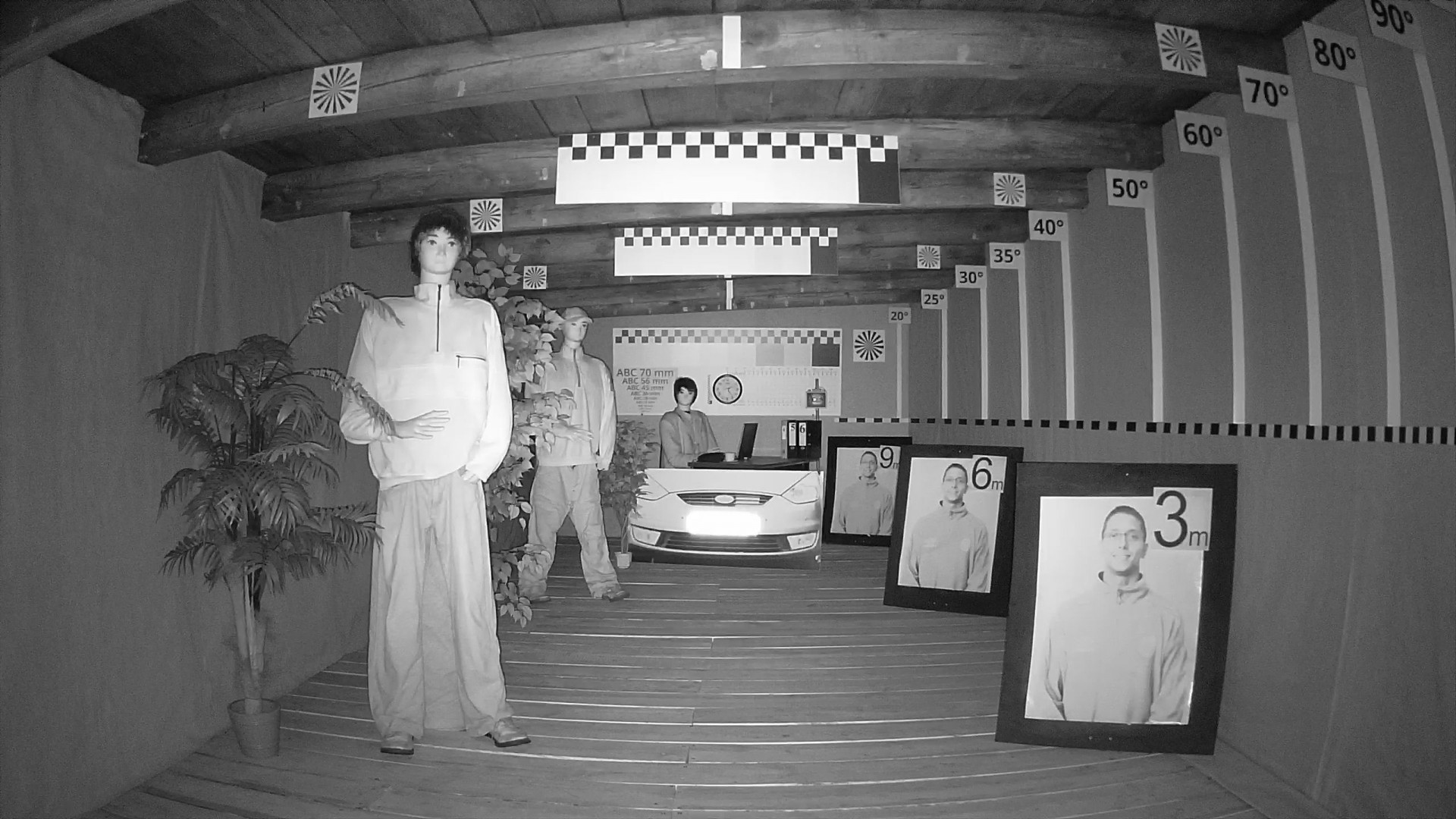

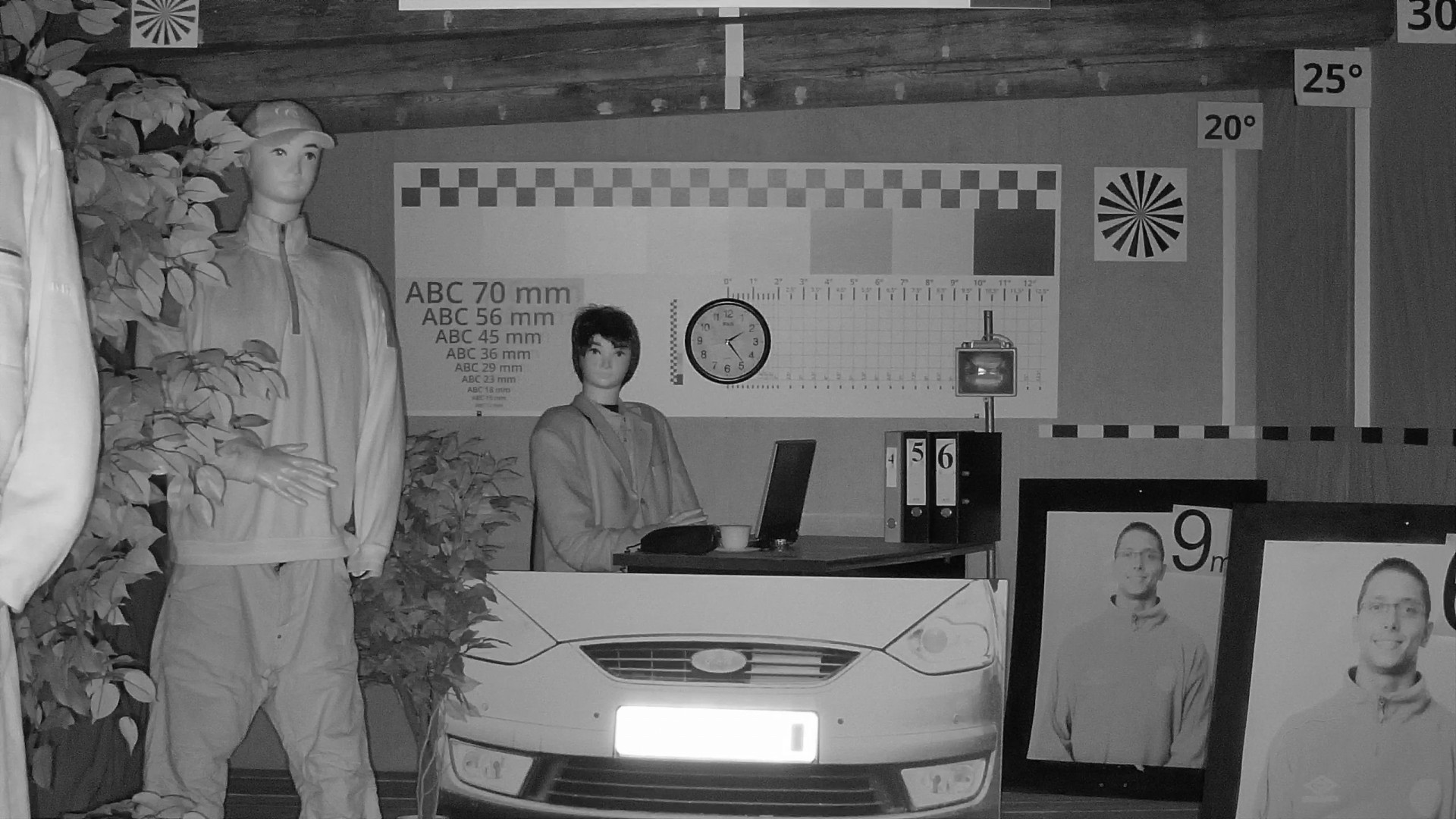

Night vision
Night vision distance
30 m
show more
Infra-red wavelength
850 nm
show more
Night vision
Yes
show more
LED type
IR
show more
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
show more
Performance
Type
IP security camera
show more
Connectivity technology
Wired
show more
Wide Dynamic Range (WDR)
Yes
show more
Infrared (IR) cut-off filter
Yes
show more
Day/night mode
Yes
show more
Placement supported
Outdoor
show more
Certification
FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(1):2010+A1:2013+A2:2015)
show more
Network
Supported network protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
show more
Number of users
32 user(s)
show more
Ethernet LAN
Yes
show more
Networking standards
IEEE 802.1x, IEEE 802.3af
show more
Ethernet interface type
Fast Ethernet
show more
Quality of Service (QoS) support
Yes
show more
Bluetooth
No
show more
Wi-Fi
No
show more
Lens system
Auto focus
Yes
show more
Focal length range
2.8-12 mm
show more
Number of lenses
1
show more
Maximum aperture number
1.6
show more
Camera
Camera tilt control
Yes
show more
Angle of rotation
355 °
show more
Lens viewing angle, diagonal
123°
show more
Camera pan control
Yes
show more
Lens viewing angle, vertical
54°
show more
Lens viewing angle, horizontal
102°
show more
Minimum illumination
0 lx
show more
Tilt angle range
0 - 70
show more
Pan range
0 - 355
show more
Camera shutter speed
1/3 - 1/100000 s
show more
Video
Maximum resolution
2560 x 1440
show more
Noise reduction technology
3d_noise_reduction
show more
Supported graphics resolutions
320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
show more
Gain control type
Auto
show more
Video streaming
Yes
show more
Privacy masking
Yes
show more
Region of Interest (ROI) encoding
Yes
show more
Back Light Compensation (BLC)
Yes
show more
Frame rate
30 fps
show more
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
show more
Bit rate
32 Kbps - 8 Mbps
show more
Video compression formats
H.264, H.264+, H.265, H.265+, M-JPEG
show more
Total megapixels
4 mpx
show more
Noise reduction
Yes
show more
Storage
Built-in HDD
No
show more

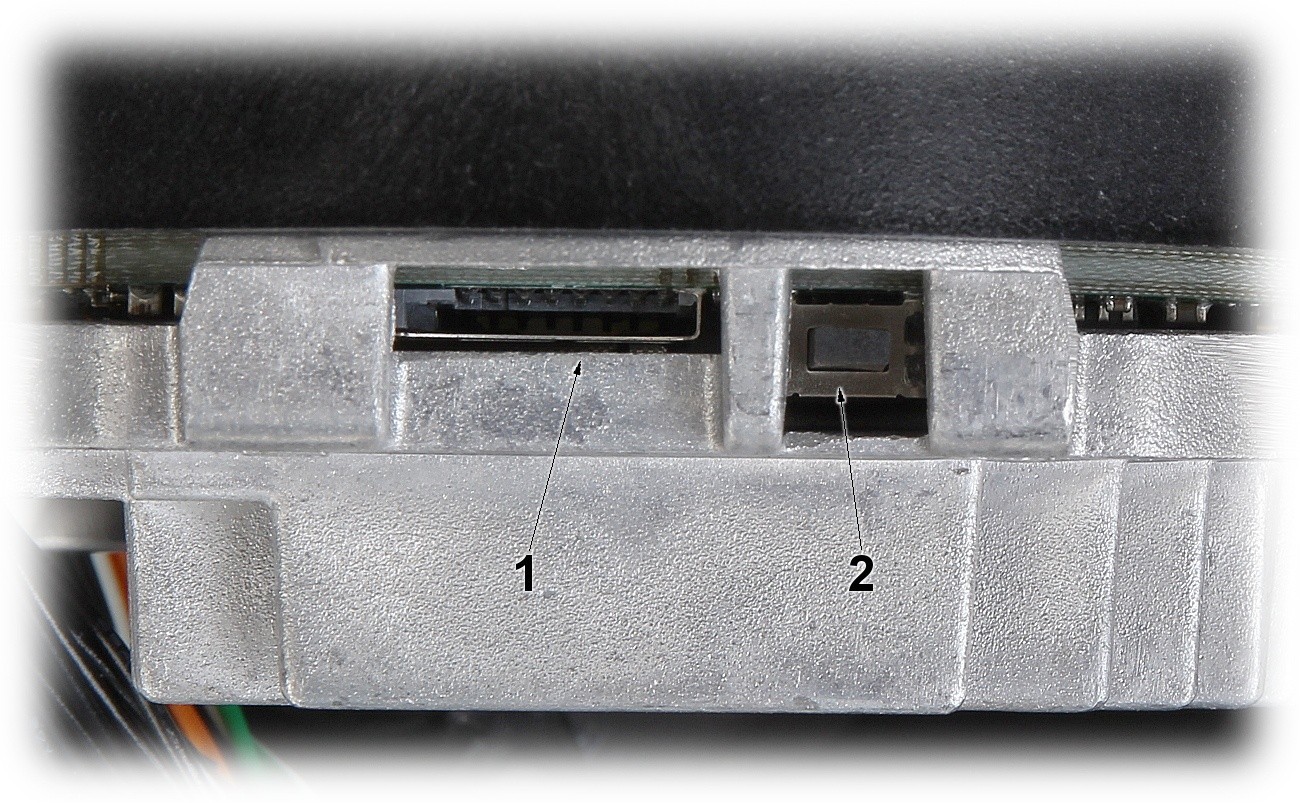

Card reader integrated
Yes
show more
Maximum memory card size
128 GB
show more
Compatible memory cards
MicroSDHC, MicroSDXC, MicroSD (TransFlash)
show more
Design
Product colour
White
show more
Form factor
Dome
show more
IK code
IK10
show more
Housing material
Metal
show more
Mounting type
Ceiling/wall
show more
International Protection (IP) code
IP67
show more
Packaging data
Package width
140 mm
show more
Package depth
140 mm
show more
Package height
154 mm
show more
Package weight
1200 g
show more
Operational conditions
Storage relative humidity (H-H)
0 - 95
show more
Storage temperature (T-T)
-30 - 60
show more
Operating relative humidity (H-H)
0 - 95
show more
Operating temperature (T-T)
-30 - 60
show more
Image sensor
Number of sensors
1
show more
Progressive scan
Yes
show more
Optical sensor size
25,4 / 3
show more
Sensor type
CMOS
show more

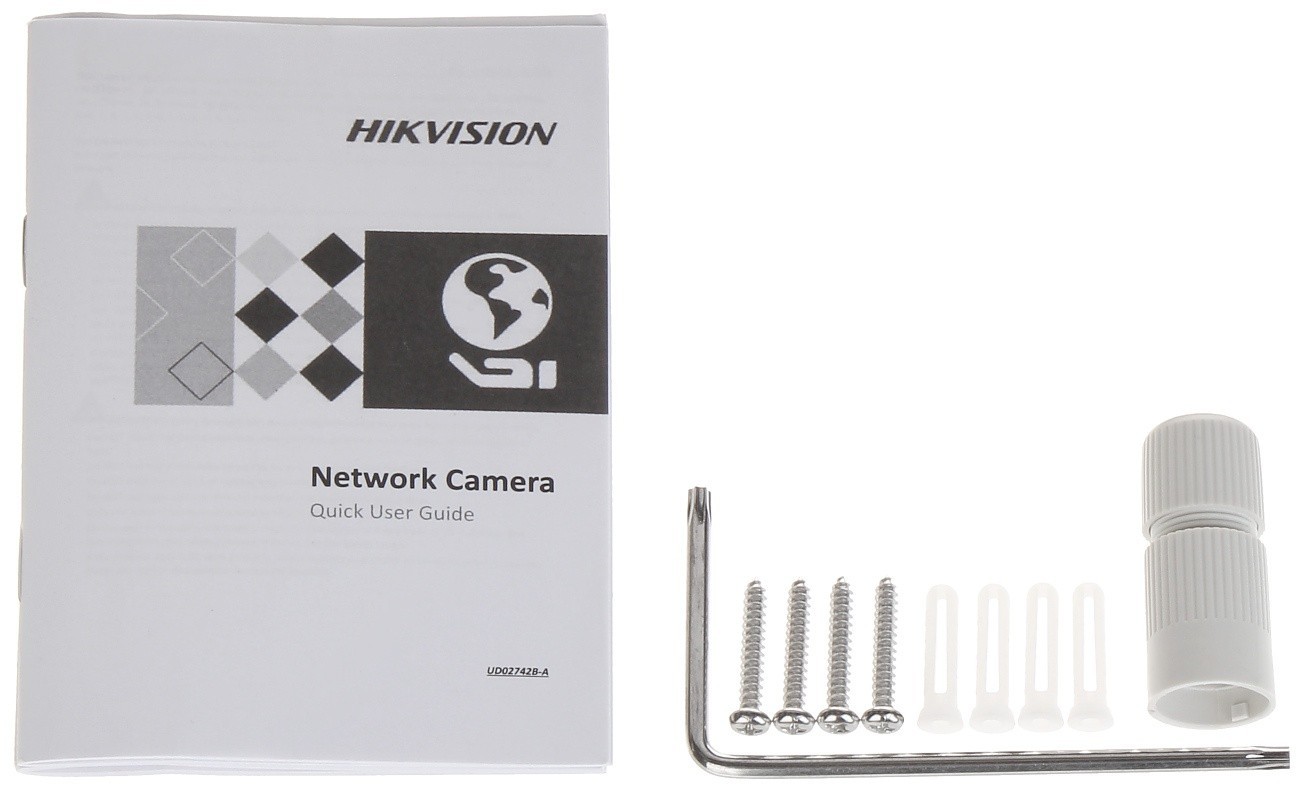

Packaging content
Number of cameras
1
show more
Power
Power source type
DC, PoE
show more
Power consumption (Power over Ethernet (PoE))
11.5000
show more
Power consumption (max)
10.0000
show more
DC output current
0.8000
show more
DC output voltage
12
show more
Weight & dimensions

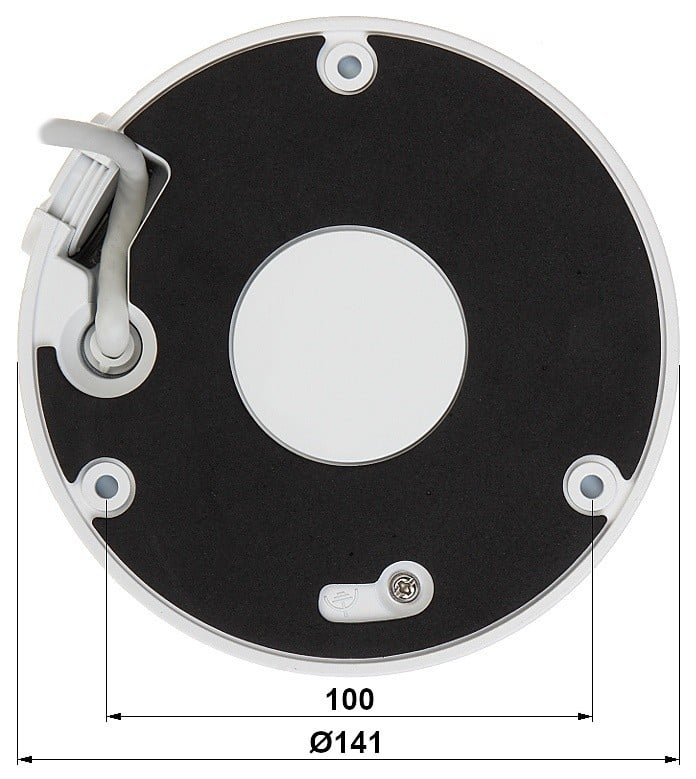

Diameter
141 mm
show more
Height
99.9 mm
show more
Weight
820 g
show more
