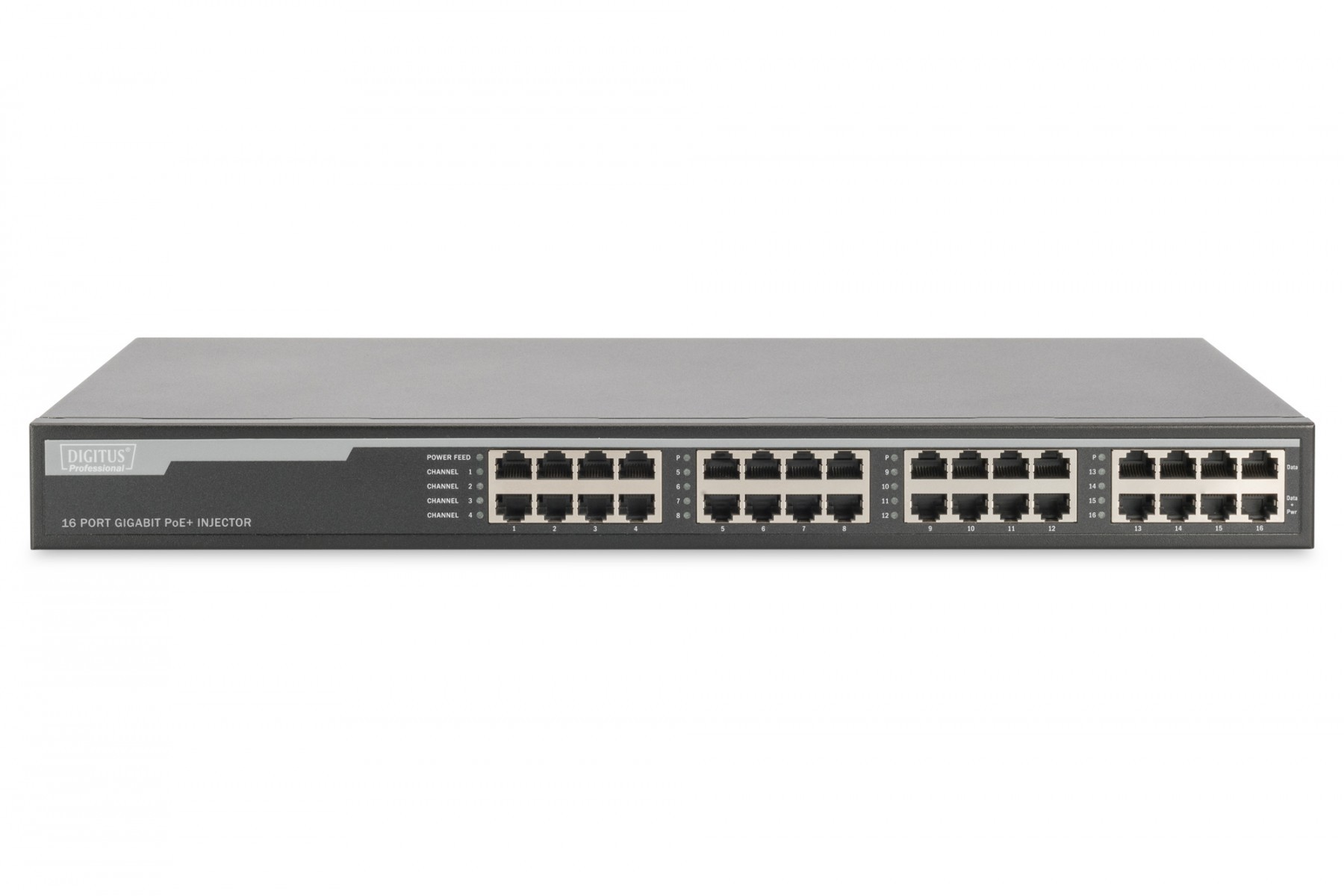

Gigabit Ethernet PoE+ Injector Hub, 802.3at, 10G 16-port, Power Pins:3/6(+), 1/2(-), 250W
Part number:
DN-95116
EAN:
4016032430377
£209.57
ex VAT
£251.48
inc VAT
Availability:
41-50
pcs
Order within:
19h
17min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Friday, 16 October 2026
£18.83
Fastest delivery
Thursday, 15 October 2026
Payment methods
Delivery methods
> 32 x 10/100/1000Mbps 2.5G /10G (16 x input data, 16 x output data+PoE)
> Compatible with the IEEE802.3af and IEEE802.3at standards
> PoE power supply via PIN 1,2(V-) and PIN 3,6(V+)
> Maximum total output of 250 watts
> Compatible with the standards IEEE802.3, IEEE802.3u, IEEE802.3ab
> Automatic cable detection - Auto-MDI/MDI-X function
> Auto-detection of full and half-duplex
> Power supply: 100 - 240V AC 50/60Hz
> Operating temperature range: 0 °C to 40 °C
> Storage temperature: -20°C - 70°C
> Dimensions (mm): 440(L) x 200(W) x 45(H)
> MTBF: 100,000 hours
> Power consumption: 15W
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus 16-port 10G Ethernet PoE+ injector, 802.3at, 250 W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex, Networking standards: IEEE 802.3af. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Multimedia
Leaflets:
Manual (PDF):
Specifications
Management features
Switch layer
L2
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) voltage range
1,2 - 3,6
Power over Ethernet (PoE) power per port
30.0000
Total Power over Ethernet (PoE) budget
250.0000
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
AC-in jack
Performance
Mean time between failures (MTBF)
100000 h
Plug and Play
Yes
Network
10G support
No
Networking standards
IEEE 802.3af
Full duplex
Yes
Auto MDI/MDI-X
Yes
Design
Rack mounting
Yes
Product colour
Grey
Stackable
No
Form factor
1U
LED indicators
Power
On/off switch
Yes
Country of origin
China
Packaging data
Quick start guide
Yes
Package width
280 mm
Package depth
500 mm
Package height
100 mm
Cables included
AC
Package volume
14000 cm³
Package type
Box
Package weight
4166.67 g
Operational conditions
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-20 - 70
Operating relative humidity (H-H)
0 - 90
Operating temperature (T-T)
-10 - 45
Packaging content
Quick start guide
Yes
Cables included
AC
Power
Surge protection
Yes
Power consumption (max)
250.0000
AC input voltage
100 - 240 V
Input current
3 A
AC input frequency
50 - 60 Hz
Power protection features
Overload, Short circuit
Weight & dimensions
Weight
2800 g
Depth
440 mm
Width
200 mm
Height
45 mm
Other features
Ethernet interface type
Gigabit Ethernet
Logistics data
UK Trade Tariff code
85176200
Harmonized System (HS) code
85176990
