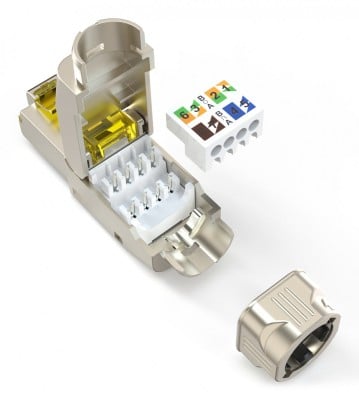

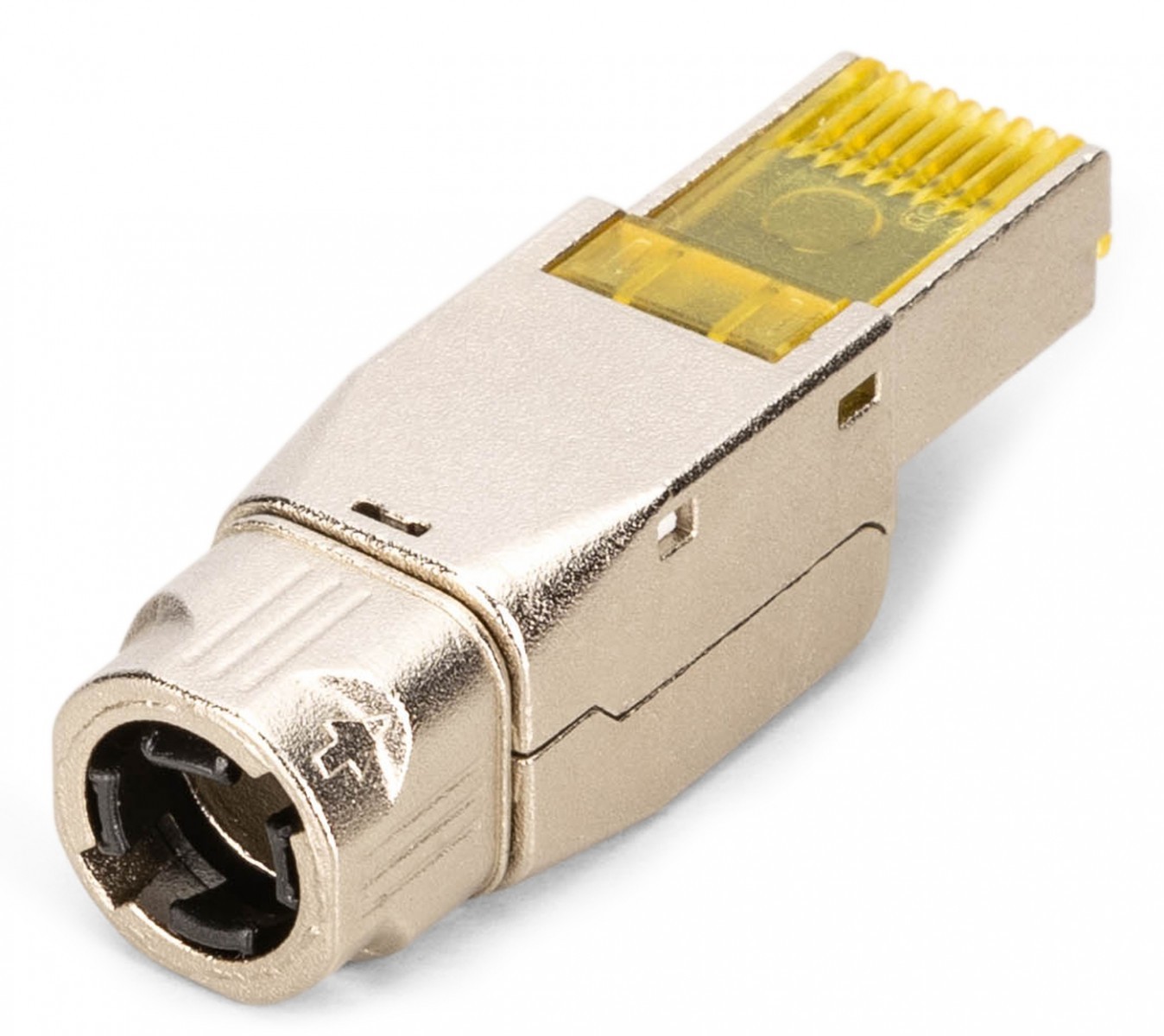

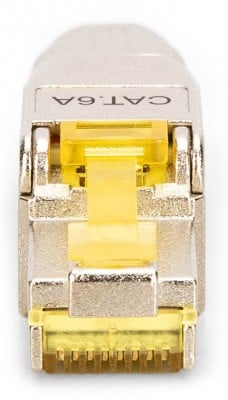

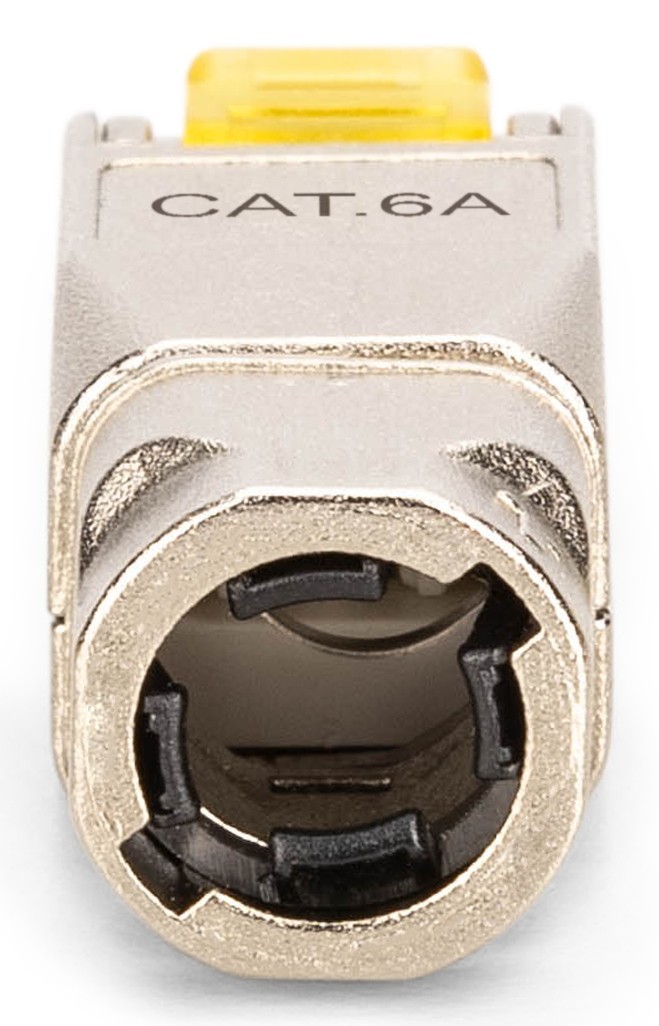

DIGITUS CAT 6A tool-less connector AWG 22-27 supports up to 4PPoE IEEE802.3bt
Part number:
DN-93638
EAN:
4016032499367
£2.46
ex VAT
£2.95
inc VAT
Availability:
50+
pcs
Order within:
20h
20min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Thursday, 8 October 2026
£15.72
Fastest delivery
Wednesday, 7 October 2026
Payment methods
Delivery methods
> Transmission properties:
> Category 6A, 10GBase-T, 500 MHz
> ISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51
> Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3b)
> General properties:
> Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
> Cable fixation by screwable strain relief
> RJ45 Plug, 8P8C
> Tool-free mounting connection
> 360° shield coverage
> Technical properties:
> Housing material: Zinc die-cast
> Contact material: Phosphor bronze
> Coating of the contacts: Nickel, gold-plated 0.5 μ
> Physical properties:
> Insertion force: 30N max. (IEC 60603-7-5)
> Operation temperature: -20°C bis zu +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
> Mating cycles female: > 1500 acc. to ISO/IEC 11801, IEC 60603-7-5
> IDC wire size: AWG (27/7 - 22/1), solid and stranded conductor
> Tested with AWG 22/1 solid conductor
> Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt. Connector(s): RJ-45, Product colour: Silver, Yellow, Connector gender: Male. Quantity per pack: 1 pc(s), Package width: 20 mm, Package depth: 40 mm
Multimedia
Leaflets:
Specifications
Features
Connector form factor
Straight
Product colour
Silver, Yellow
Connector contacts plating
Nickel/Gold
Connector shielding
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Connector gender
Male
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Cable standard
Cat6a
Connector(s)
RJ-45
Dielectric strength
1000.0000
Insertion force
30.0000
Packaging data
Package width
20 mm
Package depth
40 mm
Package height
10 mm
Quantity per pack
1.0000
Package weight
20 g
Operational conditions
Operating temperature (T-T)
-20 - 70
Technical details
Housing material
Zinc
Connector material
Phosphor bronze
