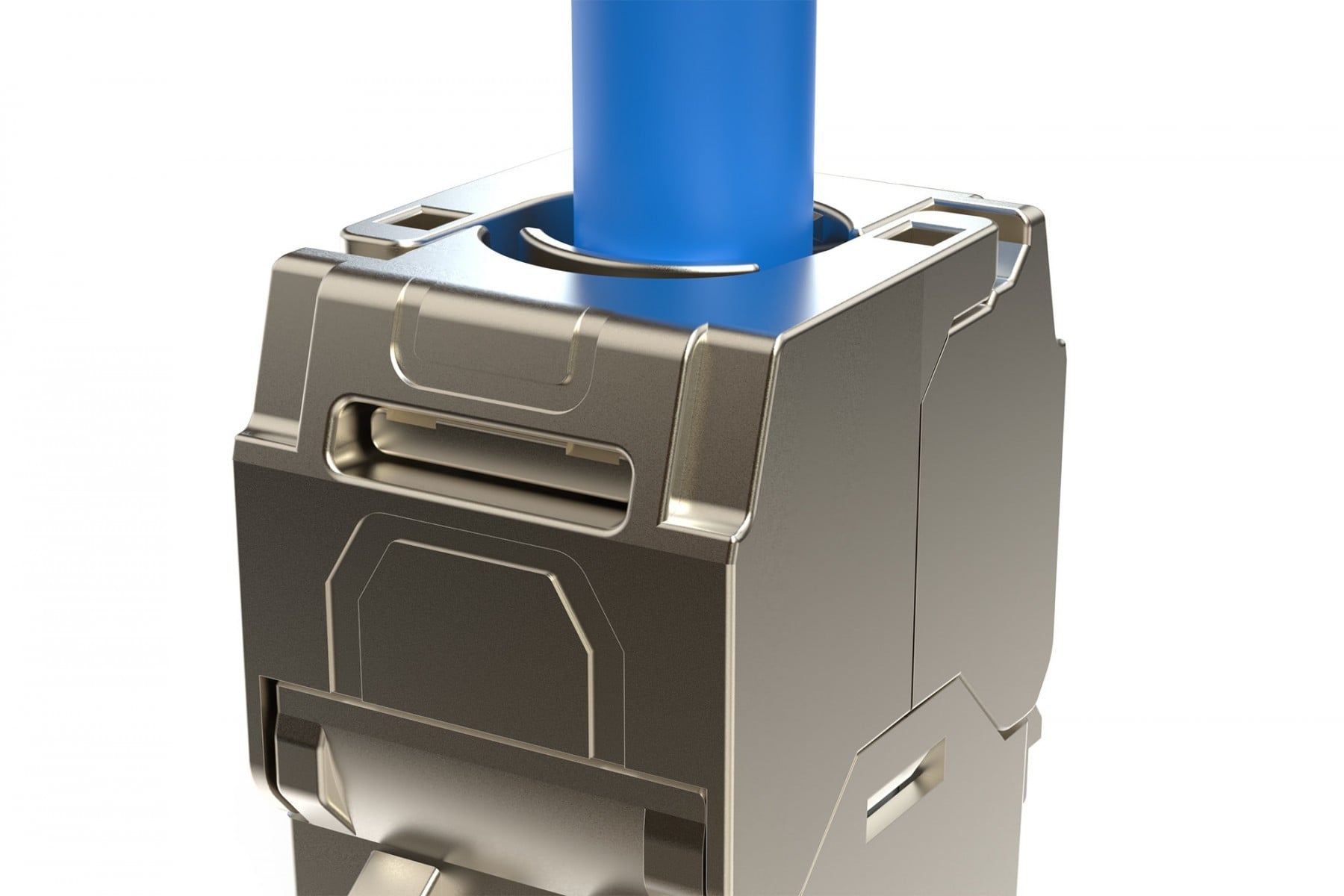

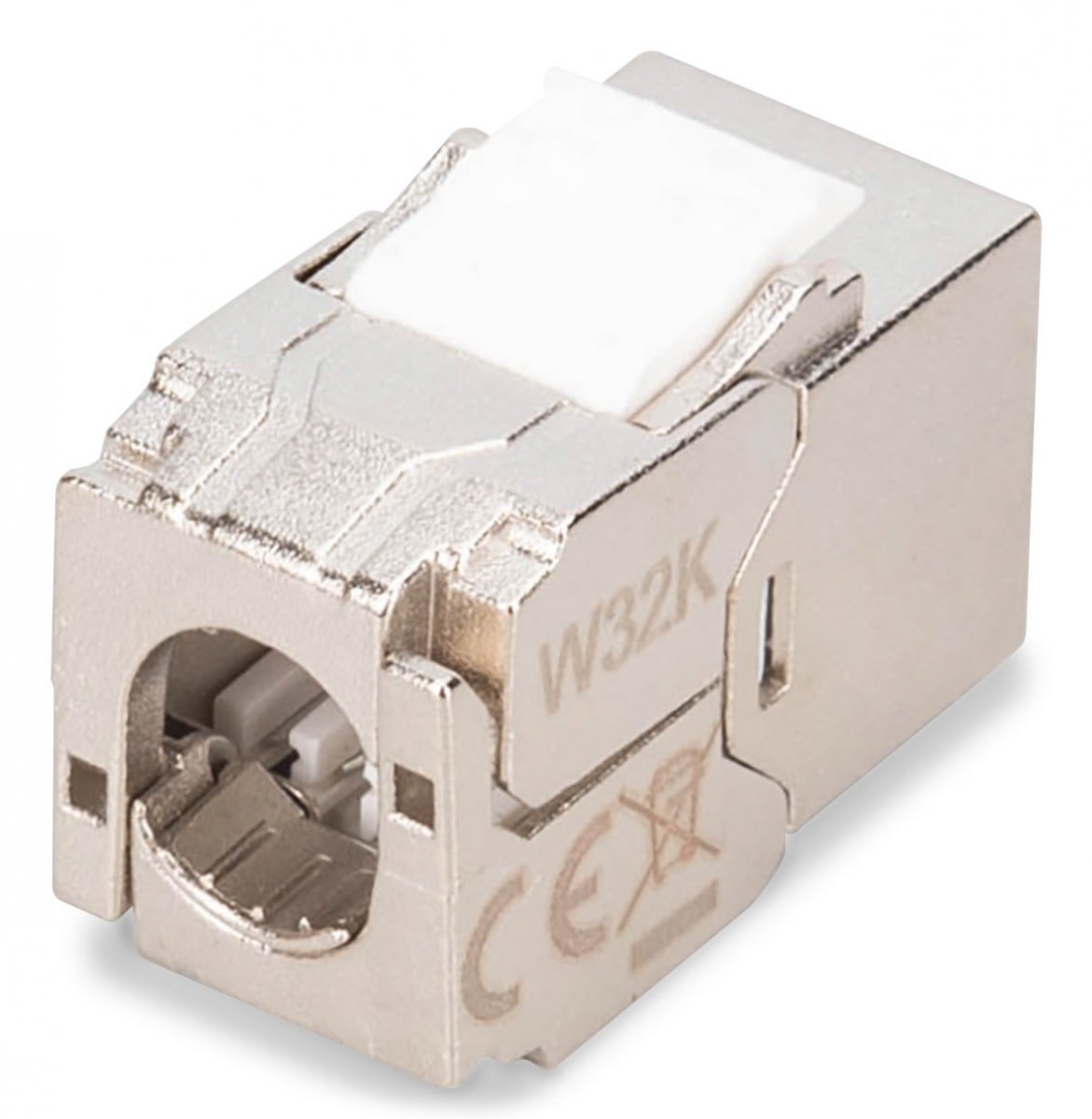

Short Keystone Module (socket) RJ45 (8P8C) cat.6A, shielded, tool-less, steel, length 28mm
Part number:
DN-93615-S
EAN:
4016032497462
£2.54
ex VAT
£3.05
inc VAT
Availability:
50+
pcs
Order within:
17h
1min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Monday, 12 October 2026
£15.72
Fastest delivery
Friday, 9 October 2026
Payment methods
Delivery methods
> Category 6A 10GBase-T, 500 MHz
> ISO/IEC 11801 3rd Edition, EN 50173-1
> Suitable for IEEE 802.3 af/at/bt - PoE, PoE+(4PPoE in permanent link)
> Suitable for distribution panel and junction box installation
> RJ45 socket, 8P8C

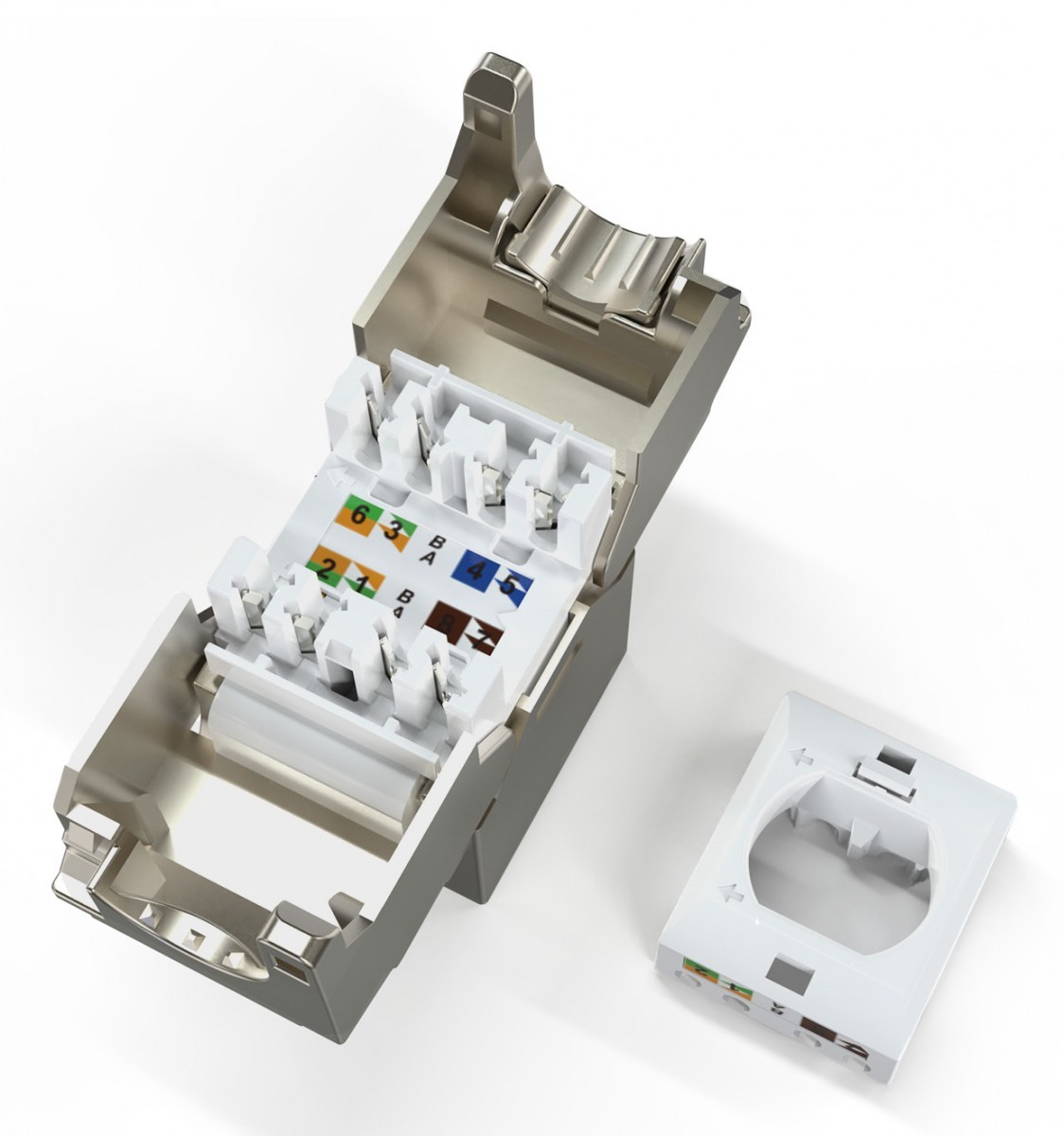

> Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B
> Strain relief and cable fixing using cable ties

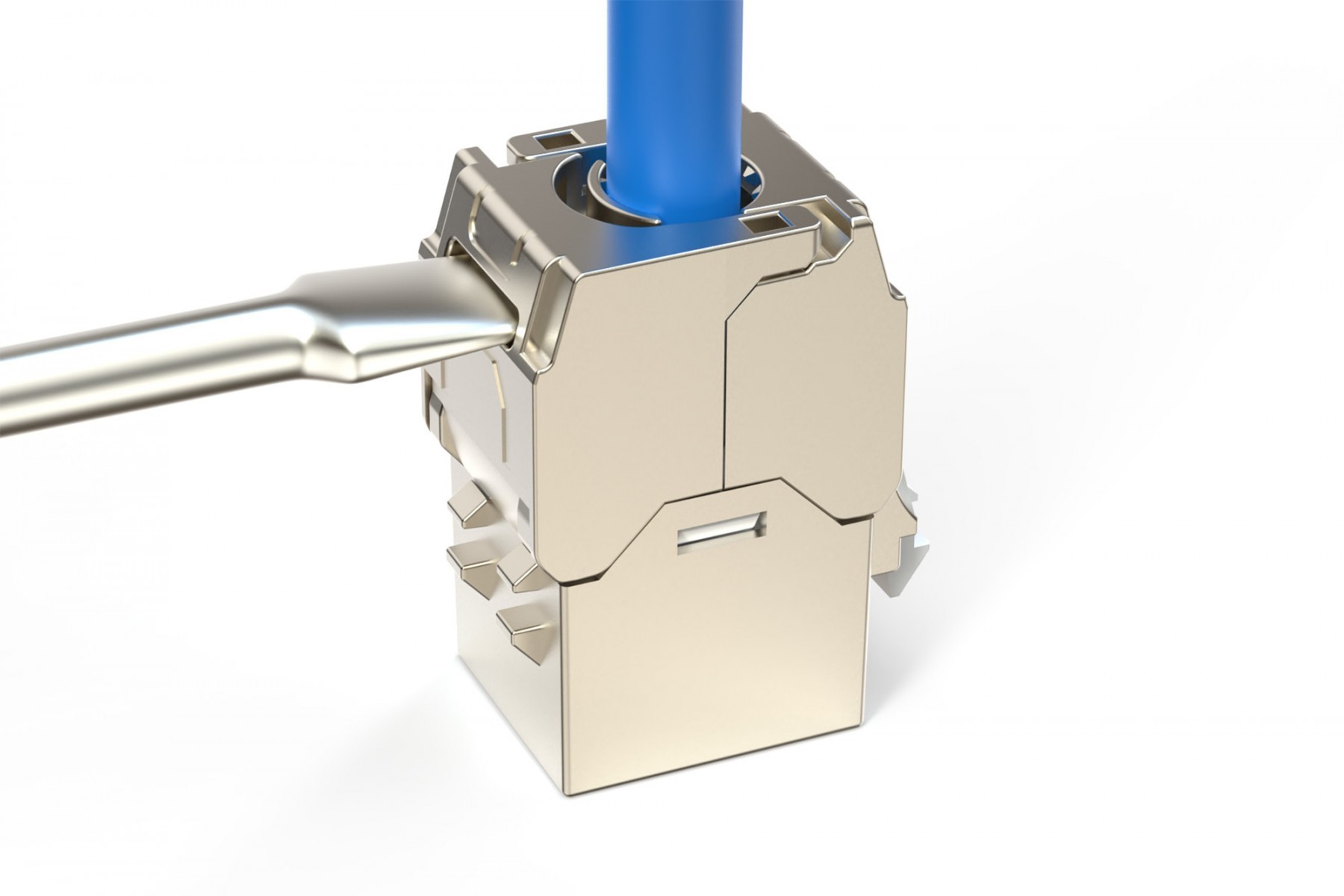

> Tool-free mounting connection
> 360° shield contacting
> Housing material: Zinc die-cast - nickel-plated
> Contact material: Phosphor bronze
> Coating Contacts: Nickel, gold-plated
> Insertion force: Max. 30N (according to IEC 60603-7-51)
> Holding force: 7.7 kg between socket and plug
> Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
> Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
> In accordance with IEC 60512-5, IEC 60512-6-5
> Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
> Tested with AWG 22/1 solid installation cable
> (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
> Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
> Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
> Intelligent cable manager (reclosable)
> Weight: 22 g
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus CAT 6A compact keystone module, shielded, tool-free mounting connection. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Weight: 22 g. Package width: 20 mm, Package depth: 30 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)
Multimedia
Leaflets:
Specifications
Features
Product colour
Silver
Connector contacts plating
Nickel/Gold
Cable types supported
Cat6a
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Connector 1 gender
Female
AWG wire size
22/1
Magnetically shielded
Yes
Cabling technology
10GBase-T
Connector 1
RJ-45
Housing material
Zinc
Construction type
Flat
Operational conditions
Operating temperature (T-T)
-20 - 70
Packaging data
Package width
20 mm
Package depth
30 mm
Package height
20 mm
Package weight
20 g
Packaging content
Quantity per pack
1.0000
Weight & dimensions
Weight
22 g
SKU:
1771315
