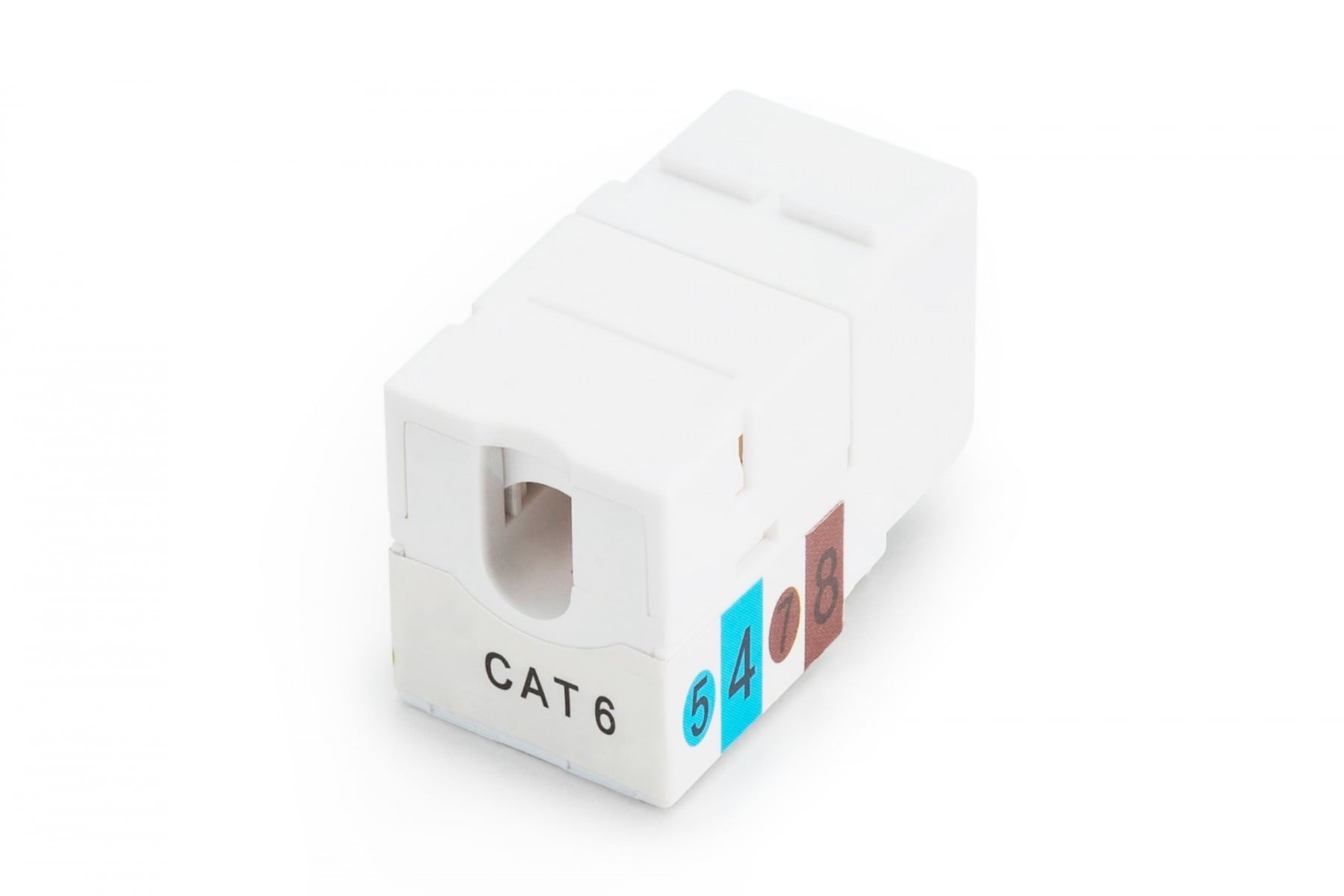

Digitus DN-93601 RJ45 (8P8C) keystone module (socket), Cat. 6, UTP, unshielded, tool-free, white, 1 piece

> Transmission properties: Category 6

> Area of application: Up to 250 MHz, 1GBase-T

> Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

> General properties:

> Suitable for 483 mm (19") cabinet mounting

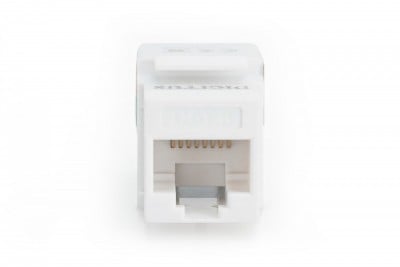

> RJ45 female, 8P8C

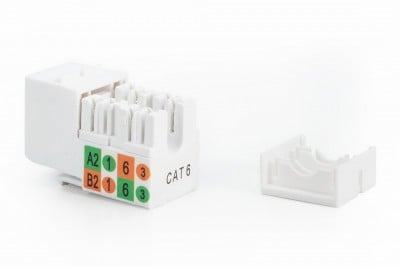

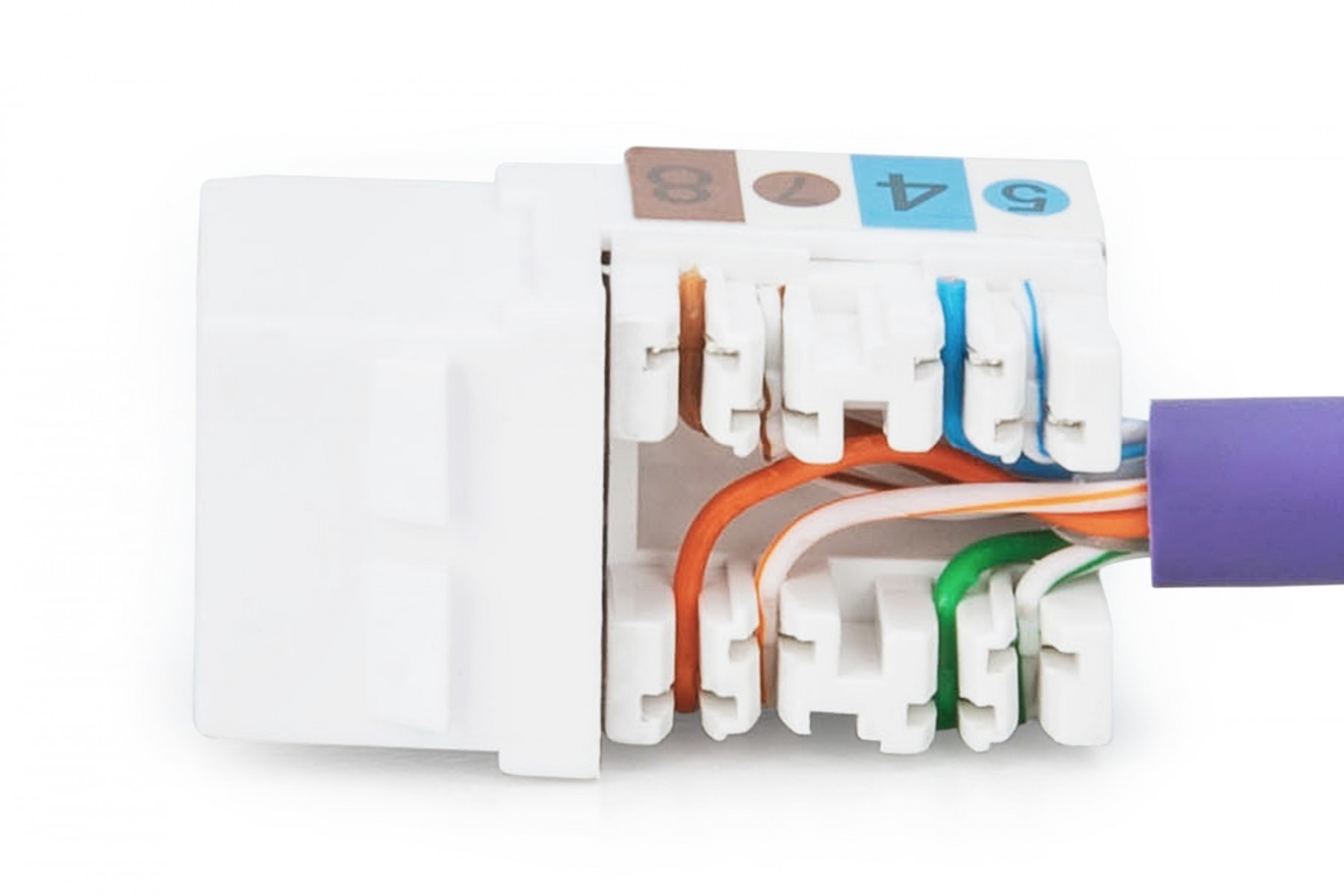

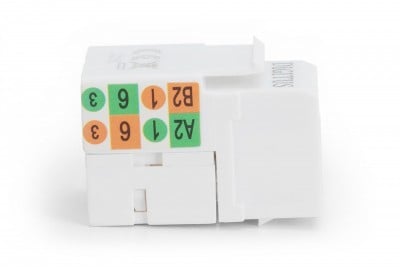

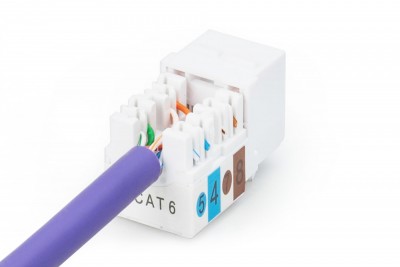

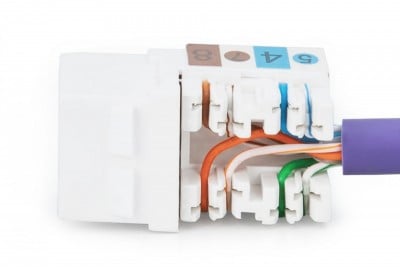

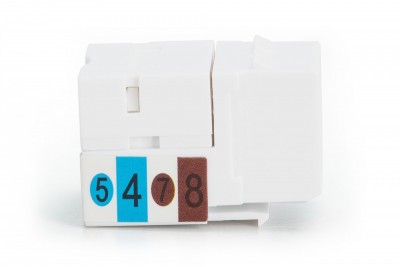

> Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

> Cable fixing with smart cable ties

> Technical properties:

> RJ45 female material: ABS UL 94V-0

> RJ45 female contact: Tinned phosphor bronze, gold-plated contact

> LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

> Conductor plate: FR4, UL 94V-0

> Physical properties:

> Insertion force: 30N max. (IEC 60603-7-5)

> Retention strength: 7.7 kg between jack and plug

> Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

> Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

> Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

> IDC wire size: 22 – 26 AWG solid and stranded conductor

> Insulation resistance: > 500 MOhm

> Contact resistance: < 20 MilliOhm

> Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
