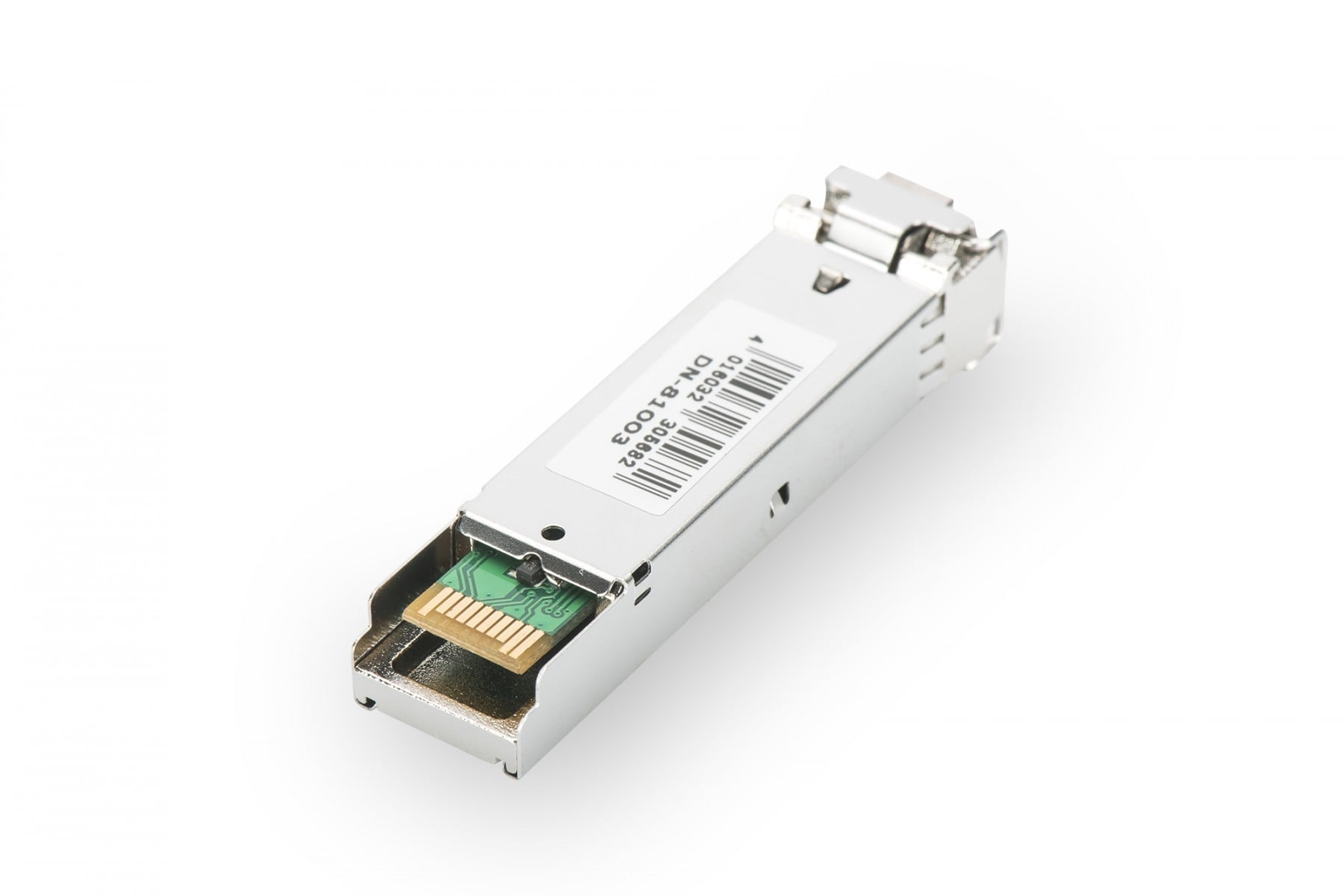

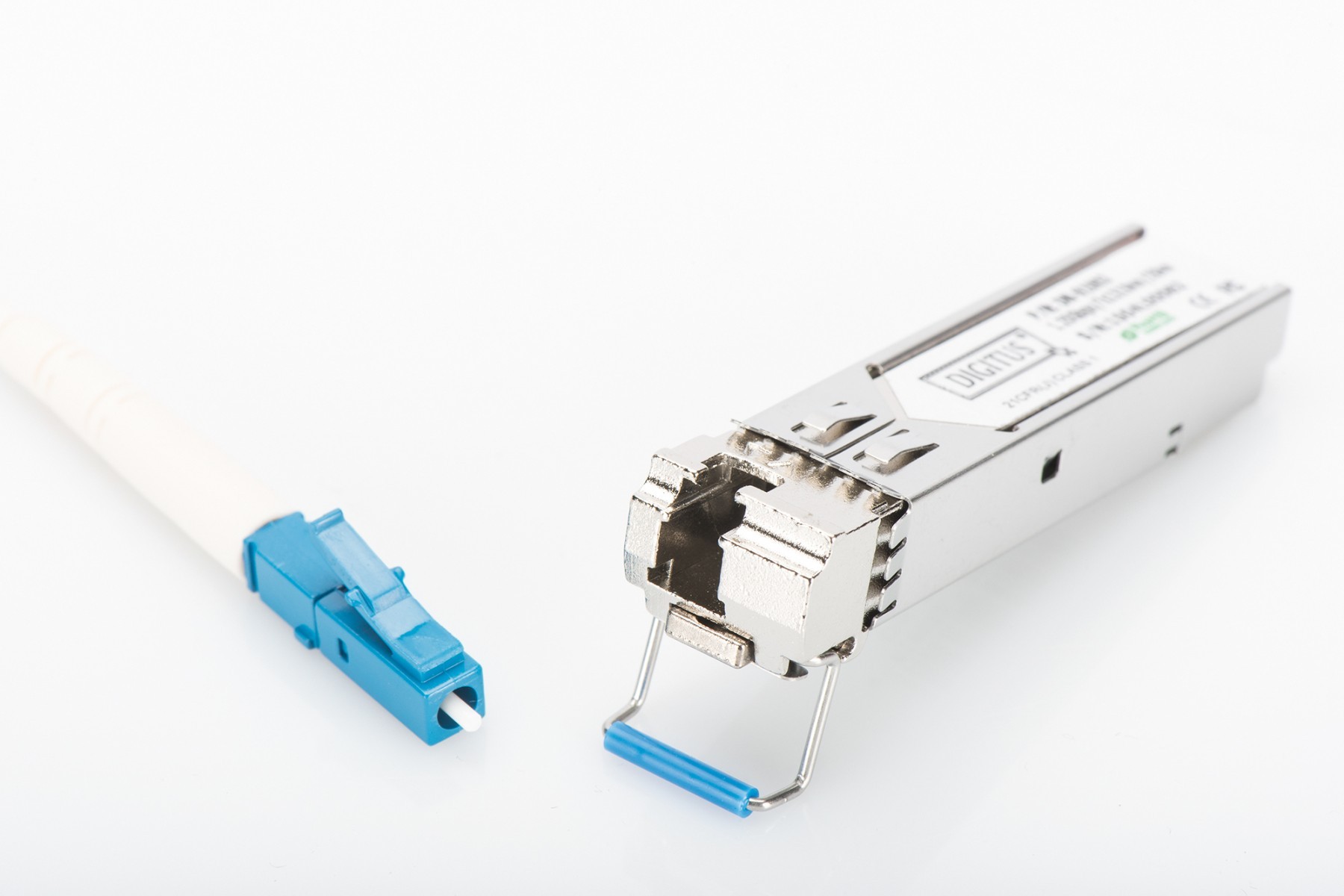

1.25 Gbps SFP Module, Singlemode, BiDi LC Simplex, Tx1310nm/Rx1550nm, up to 20km
Part number:
DN-81003
EAN:
4016032305682
£15.11
ex VAT
£18.13
inc VAT
Availability:
7
pcs
Order within:
13h
14min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Friday, 16 October 2026
£15.72
Fastest delivery
Thursday, 15 October 2026
Payment methods
Delivery methods
> Mini GBIC SFP (Small Form Factor Pluggable) module
> Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
> Bidirectional WDM Module - Only one fiber is needed
> High quality and excellent reliability
> 1.25 Gbps Maximum Data Rate
> Compliant to IEEE 802.3z Gigabit Standard
> Class 1 laser product compliant with EN 60825-1
> Easy plug-and-play installation
> MSA (Multi Source Agreement) compliant
> Hot pluggable
> Connector: 1x LC Simplex
> Wavelength: Tx 1310nm / Rx 1550nm
> Transmission Power: Minimum -5 dBm, Maximum 0 dBm
> Sensitivity receiving power: minimum -24 dBm
> For a Distance of up to 20km
> Suitable for 09/125μm Singlemode Fiber Cables
> Safe fast-locking mechanism
> 3.3V power supply
> Suitable Module for Opposite Side: DN-81004
> Operating temperature: 0 °C ~ 70 °C
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus mini GBIC (SFP) Module, 1.25 Gbps, 20km. Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC, Fiber optic connector: LC. Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Certification: EN 60825-1. Package width: 115 mm, Package depth: 30 mm, Package volume: 310.5 cm³
Multimedia
Leaflets:
Specifications
Performance
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LX, TX
Maximum transfer distance
20000.0000
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1550 nm
Networking standards
IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Wavelength
1310 nm
Digital Diagnostics Monitoring (DDM)
No
Interface type
mini-GBIC
Fiber optic connector
LC
Maximum data transfer rate
1250 Mbit/s
Features
Brand compatibility
MSA Compliant
Country of origin
China
Certification
EN 60825-1
Packaging data
Package width
115 mm
Package depth
30 mm
Package volume
310.5 cm³
Package weight
35.417 g
Certificates
Certification
EN 60825-1
Power
Input voltage
3.3 V
Logistics data
UK Trade Tariff code
85176200
Harmonized System (HS) code
85369010
