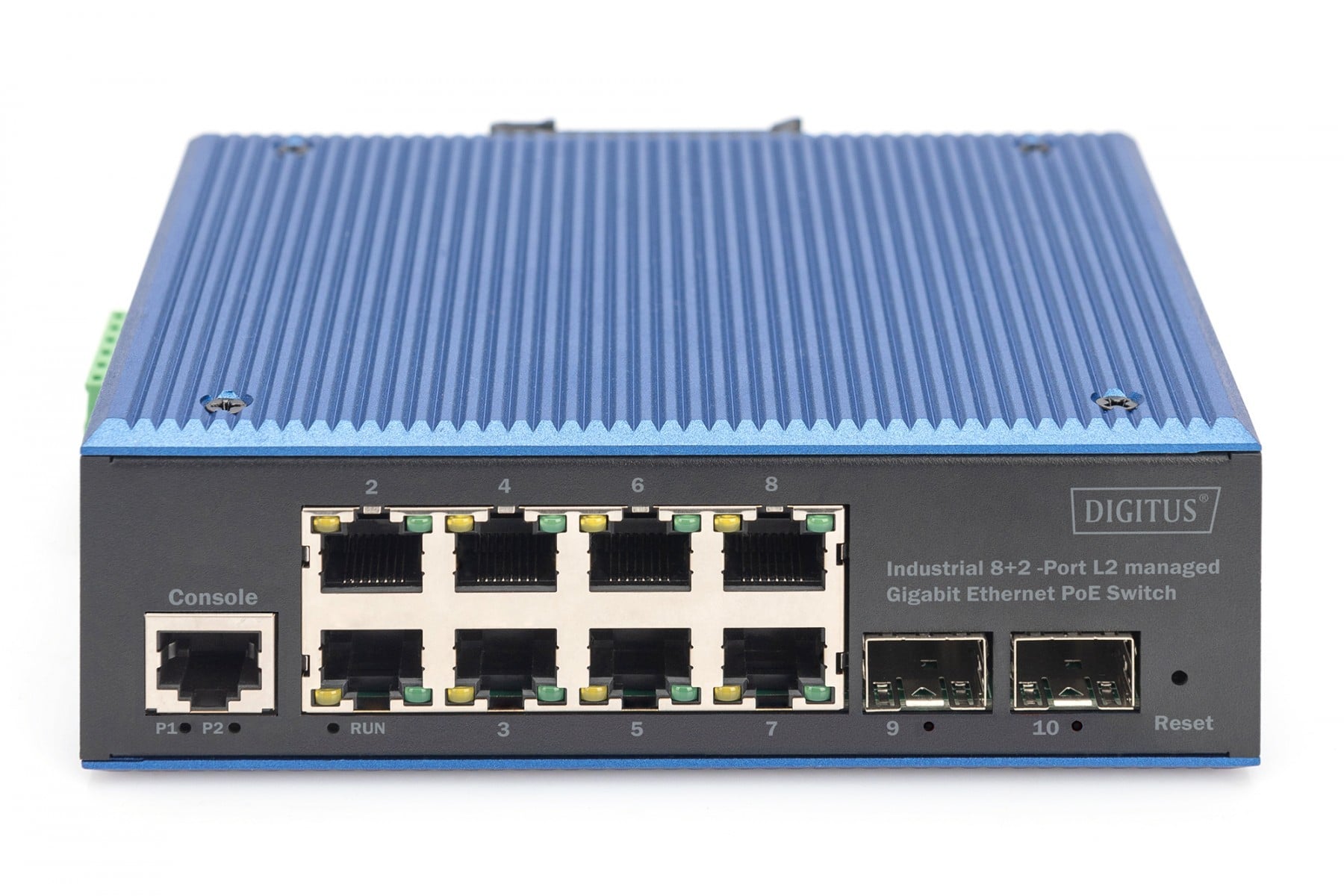

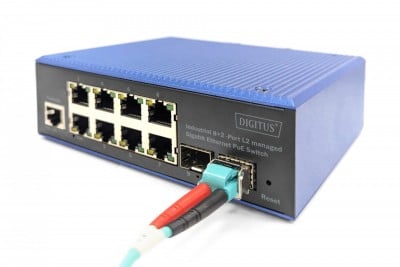

Ind. 8+2-Port Gigabit L2 managed Ethernet POE Swit 8 x GE RJ45 + 2 SFP Port, IEEE802.3at (30W)
Part number:
DN-651157
EAN:
4016032490210
£271.65
ex VAT
£325.98
inc VAT
Availability:
21-30
pcs
Order within:
16h
34min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Thursday, 22 October 2026
£16.73
Fastest delivery
Wednesday, 21 October 2026
Payment methods
Delivery methods
> Supports IEEE802.3x flow control, and backpressure
> Supports store-and-forward technology for optimized data transmission
> Automatic speed and half/full duplex detection/adjustment
> Bandwidth: 20 Gbps
> Packet buffer: 4.1 Mbit
> Packet forwarding size: 15 Mbps
> Size of the MAC address table: 4 K
> Jumbo frame rate: 10240 bytes
> ESD protection: 6 kV
> EFT protection: 6 kV
> Metal housing, IP40
> 4 kV lightning protection and surge protection

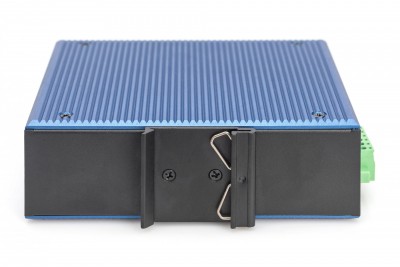

> Suitable for mounting on DIN rail (top-hat rail)

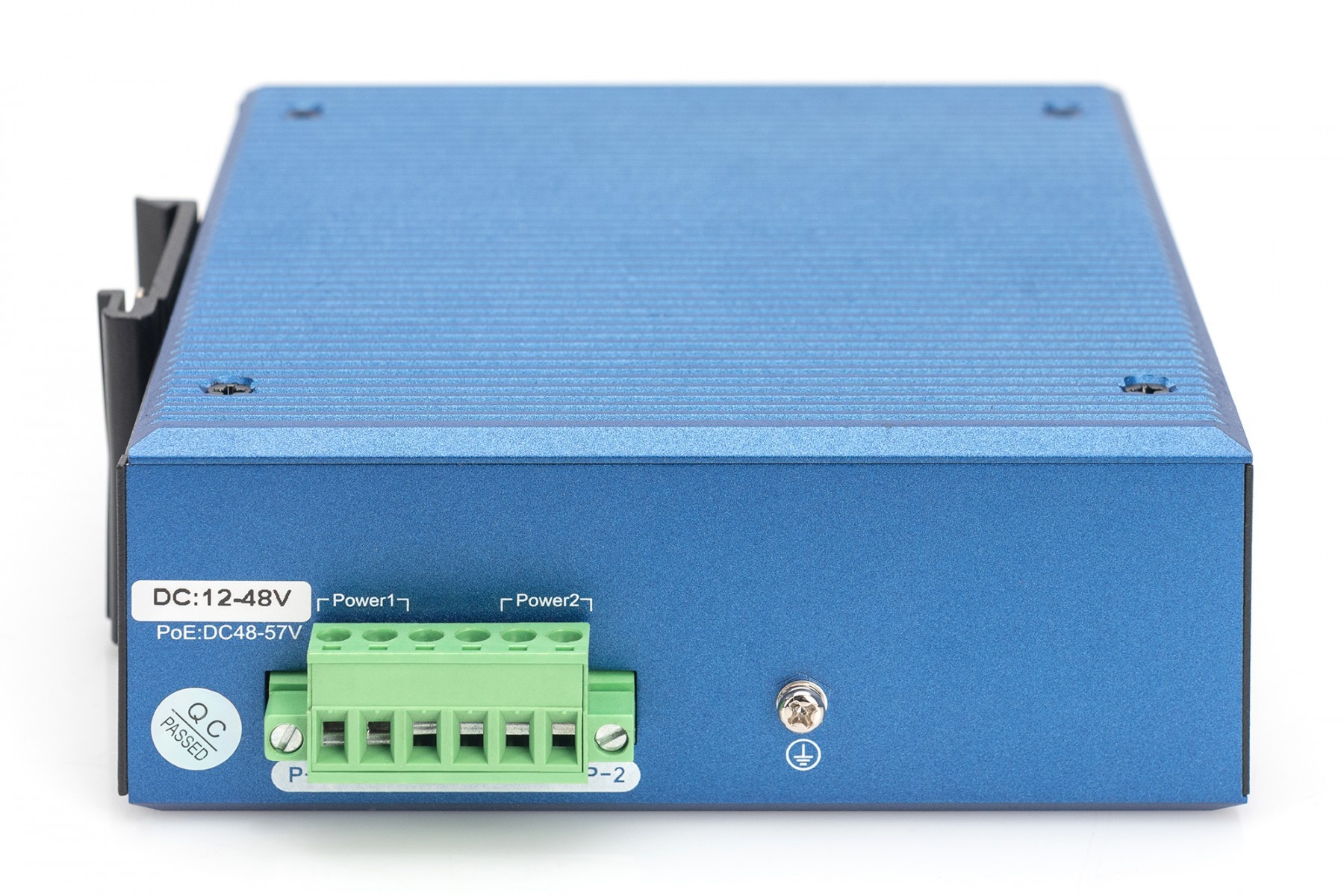

> Redundant power supply with reverse polarity protection function
> Power supply: 48 to 57 V (DC)
> Power consumption: <10 W
> Removable terminal connection
> Protection class: IP40
> Dimensions: 143.7 x 125 x 47.7 mm
> Weight: 0.7 kg
> Operating temperature: -40 to 80 ° C
> Storage temperature: -40 to 80 ° C
> Humidity: 5% to 95% (non-condensing)
> MTBF: 300,000
> Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
> Supports up to 8 aggregation groups, each with up to 8 ports
> Support for source MAC, destination MAC, source-destination MAC, source IP, destination IP, source-destination IP routing strategy
> MAC table management, port forwarding, IVL forwarding, static MAC address, support MAC address binding, support MAC address filtering, port mirroring, port-based mirroring
> Spanning tree: IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ERPS (G.8032), single ring, sub-ring, multi-ring, load balancing,
> Recovery time < 50 ms
> QINQ: VLAN-based QinQ, GVRP support
> LLDP: LLDP, LLDP-MED,
> VLAN: 4094 VLANs, port-based VLAN, GVRP, protocol VLAN, MAC-based VLAN, IP subnet-based VLAN, voice VLAN
> Static entries: Port isolation support
> IGMP: IGMP snooping V1, IGMP snooping V2, IGMP snooping V3, source port check, IGMP fast leave, IGMP filter,
> MLD snooping: MLD snooping V1, MLD snooping V2, source port check, MLD fast leave, MLD filter
> ACL: ACL (IP Standard ACL), IPv4/IPv6, Extended MAC ACL, Extended IP ACL, Matching of L2, L3 and L4 fields, Logging, Forwarding, Mirroing, Speed limiting
> QoS: QoS class, re-evaluation, SP, WRR queue scheduling, ingress port-based rate limiting, ingress priority-based rate limiting, egress port-based rate limiting, egress queue-based rate limiting, policy-based QoS, storm control, 8 queues per port
> Dot1x: Port access control, user access control, MAC address access control
> Various other L2 features
> Total PoE budget: 200 W
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus Industrial 8+2 port L2 managed Gigabit Ethernet PoE switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V
Multimedia
Leaflets:
Specifications
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Security
MAC address filtering
Yes
Access Control List (ACL)
Yes
IGMP snooping
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
30.0000
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
SFP module slots quantity
2
Fiber optic connector
SFP
Performance
Mean time between failures (MTBF)
300000 h
Network
10G support
No
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af
Flow control support
Yes
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Broadcast storm control
Yes
Link aggregation
Yes
VLAN support
No
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs
4094
Design
Rack mounting
No
Product colour
Black, Blue
Stackable
No
Vandal-proof
No
DIN rail mounting
Yes
Housing material
Metal
Suitable for outdoor use
No
Country of origin
China
International Protection (IP) code
IP40
Packaging data
Quick start guide
Yes
Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
785 g
Operational conditions
Storage relative humidity (H-H)
5 - 95
Storage temperature (T-T)
-40 - 80
Operating relative humidity (H-H)
5 - 95
Operating temperature (T-T)
-40 - 80
Packaging content
Quick start guide
Yes
Data transmission
Forwarding rate
15 Mpps
Switching capacity
1 Gbit/s
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10240
Packet buffer memory
4.1 MB
Power
Surge protection
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power supply included
Yes
Power consumption (typical)
10.0000
Power source
DC/PoE
Surge protection voltage
4 kV
Weight & dimensions
Depth
125 mm
Width
143.7 mm
Height
47.7 mm
Weight
650 g
Other features
Ethernet interface type
Gigabit Ethernet
Bandwidth
20 Gbit/s
Logistics data
UK Trade Tariff code
85176200
