Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 2 SFP+ Port, PoE
Part number:
DN-651153
EAN:
4016032490494
£191.82
ex VAT
£230.18
inc VAT
Availability:
8
pcs
Order within:
14h
38min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Friday, 16 October 2026
£16.73
Fastest delivery
Thursday, 15 October 2026
Payment methods
Delivery methods
> Supports IEEE802.3x flow control, and backpressure
> Supports store-and-forward technology for optimized data transmission
> Automatic speed and half/full duplex detection/adjustment
> 8 port PoE with up to 30 W
> Bandwidth: 52 Gbps
> Packet buffer: 4.1 Mbit
> Packet forwarding size: 38.7 Mbps
> Size of the MAC address table: 8K
> Jumbo frame rate: 9000 byte
> ESD protection: 6 kV (DC)
> EFT protection: 6 kV (DC)
> Metal housing, IP40
> 4 kV lightning protection and surge protection

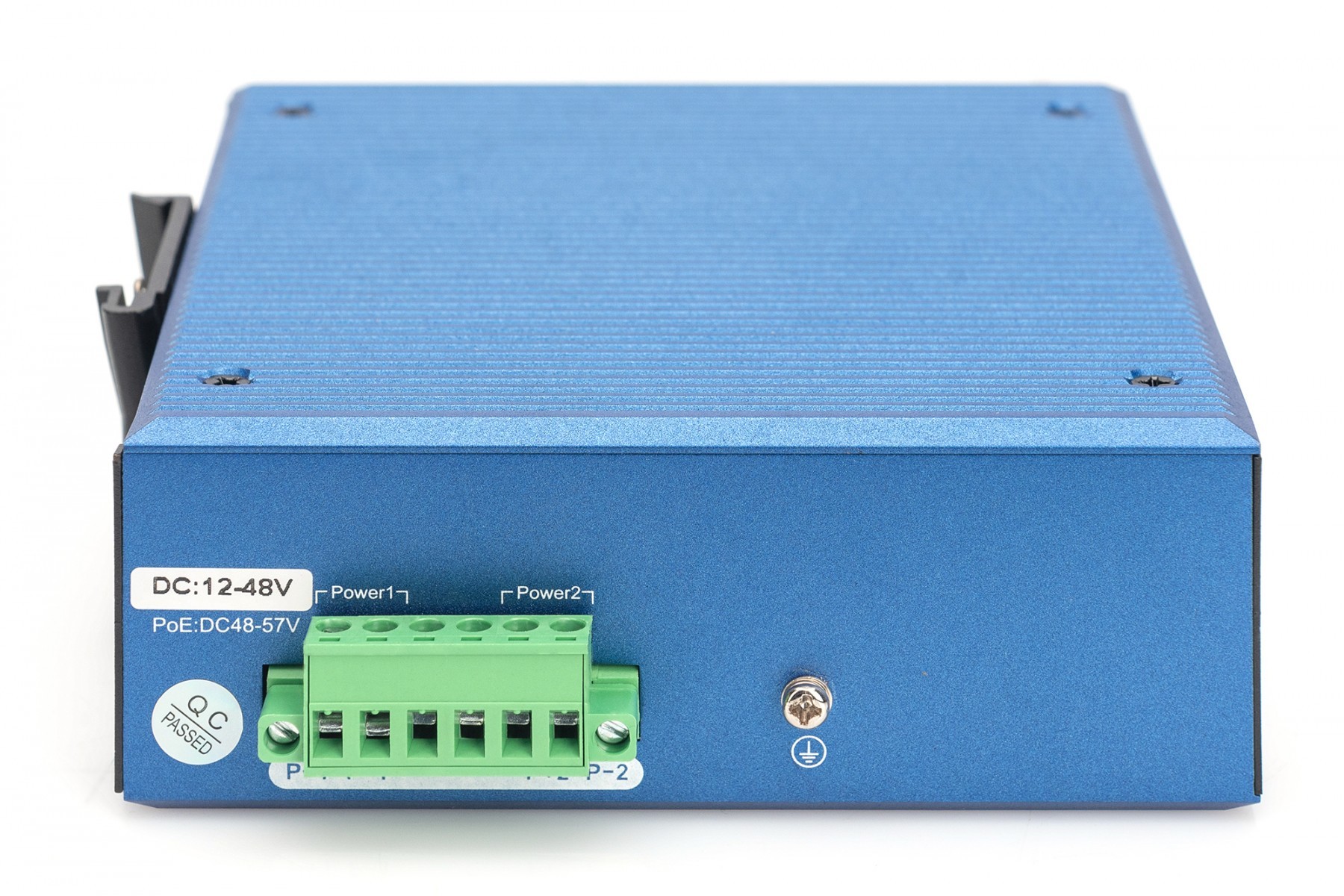

> Redundant power supply with reverse polarity protection function
> Power supply: 48 to 57 V
> Power consumption: < 10 W
> Removable terminal connection
> Protection class: IP40
> Dimensions: 143.7 x 125 x 47.7 mm
> Weight: 0.76 kg
> Operating temperature: -40 to 80 ° C
> Storage temperature: -40 to 80 ° C
> Humidity: 5% to 95% (non-condensing)
> MTBF: 300,000
> Total PoE budget: 200 W
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description

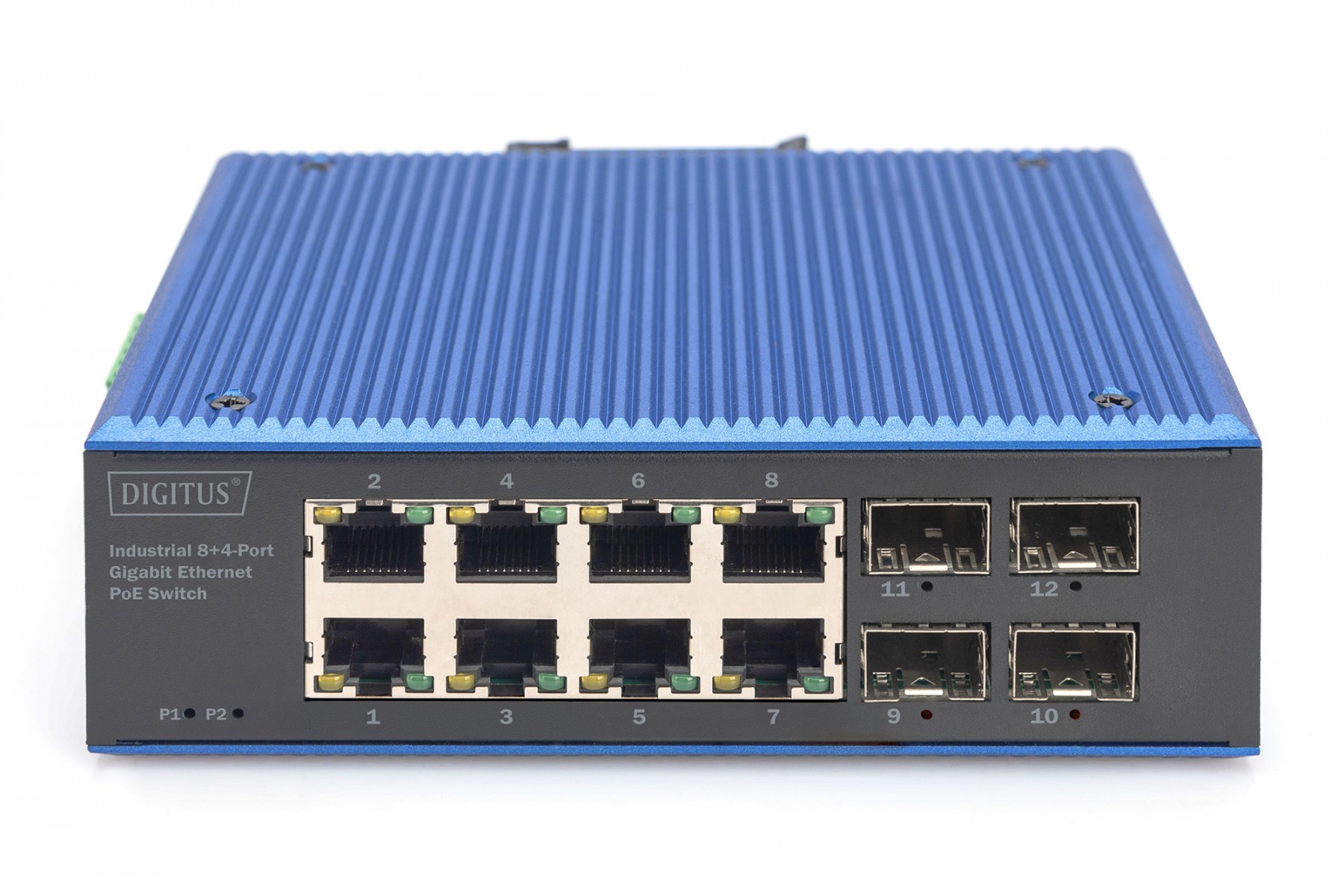

Digitus Industrial 8+4 port Gigabit Ethernet PoE switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2, Installed SFP+ modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
Multimedia
Leaflets:
Specifications
Management features
Switch type
Unmanaged
Switch layer
L2
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
30.0000
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Installed SFP+ modules quantity
2
Fiber optic connector
SFP, SFP+
SFP module slots quantity
4
Performance
Mean time between failures (MTBF)
300000 h
Plug and Play
Yes
Network
10G support
No
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af
Flow control support
Yes
Half duplex
Yes
Full duplex
Yes
VLAN support
No
Design
Rack mounting
No
Product colour
Black, Blue
Stackable
No
Vandal-proof
No

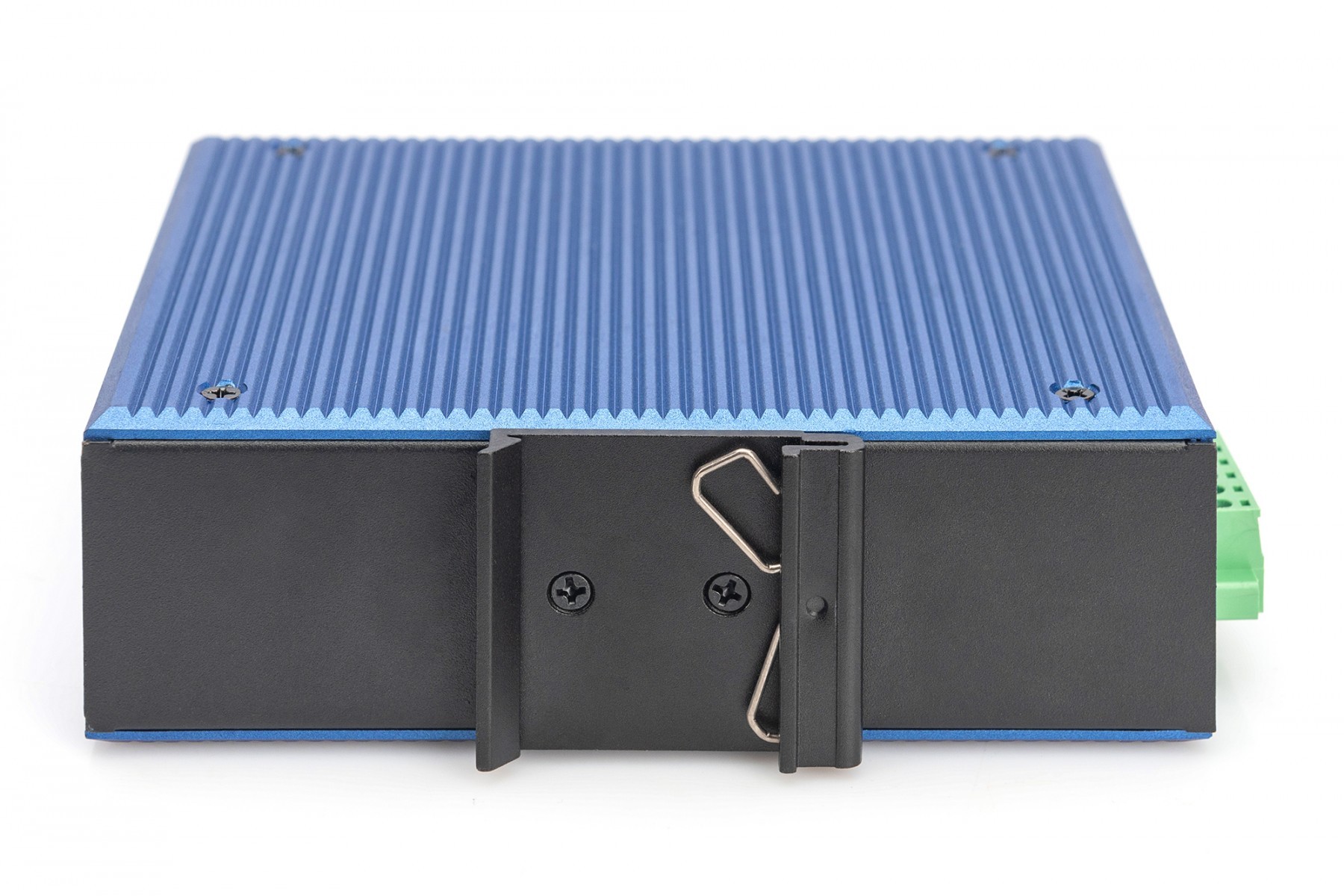

DIN rail mounting
Yes
Housing material
Metal
Suitable for outdoor use
No
Country of origin
China
International Protection (IP) code
IP40
Packaging data
Quick start guide
Yes
Package width
158 mm
Package depth
66 mm
Package height
213 mm
Manual
Yes
Package volume
2221.16 cm³
Package weight
750 g
Operational conditions
Storage relative humidity (H-H)
5 - 95
Storage temperature (T-T)
-40 - 80
Operating relative humidity (H-H)
5 - 95
Operating temperature (T-T)
-40 - 80
Packaging content
Quick start guide
Yes
Manual
Yes
Data transmission
Forwarding rate
38.7 Mpps
Switching capacity
1 Gbit/s
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB
Power
Surge protection
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power supply included
Yes
Power consumption (typical)
10.0000
Power source
DC/PoE
Surge protection voltage
4 kV
Weight & dimensions
Depth
125 mm
Width
143.7 mm
Height
47.7 mm
Weight
760 g
Other features
Ethernet interface type
Gigabit Ethernet
Bandwidth
52 Gbit/s
Logistics data
UK Trade Tariff code
85176200
