> Safety class rating IP20

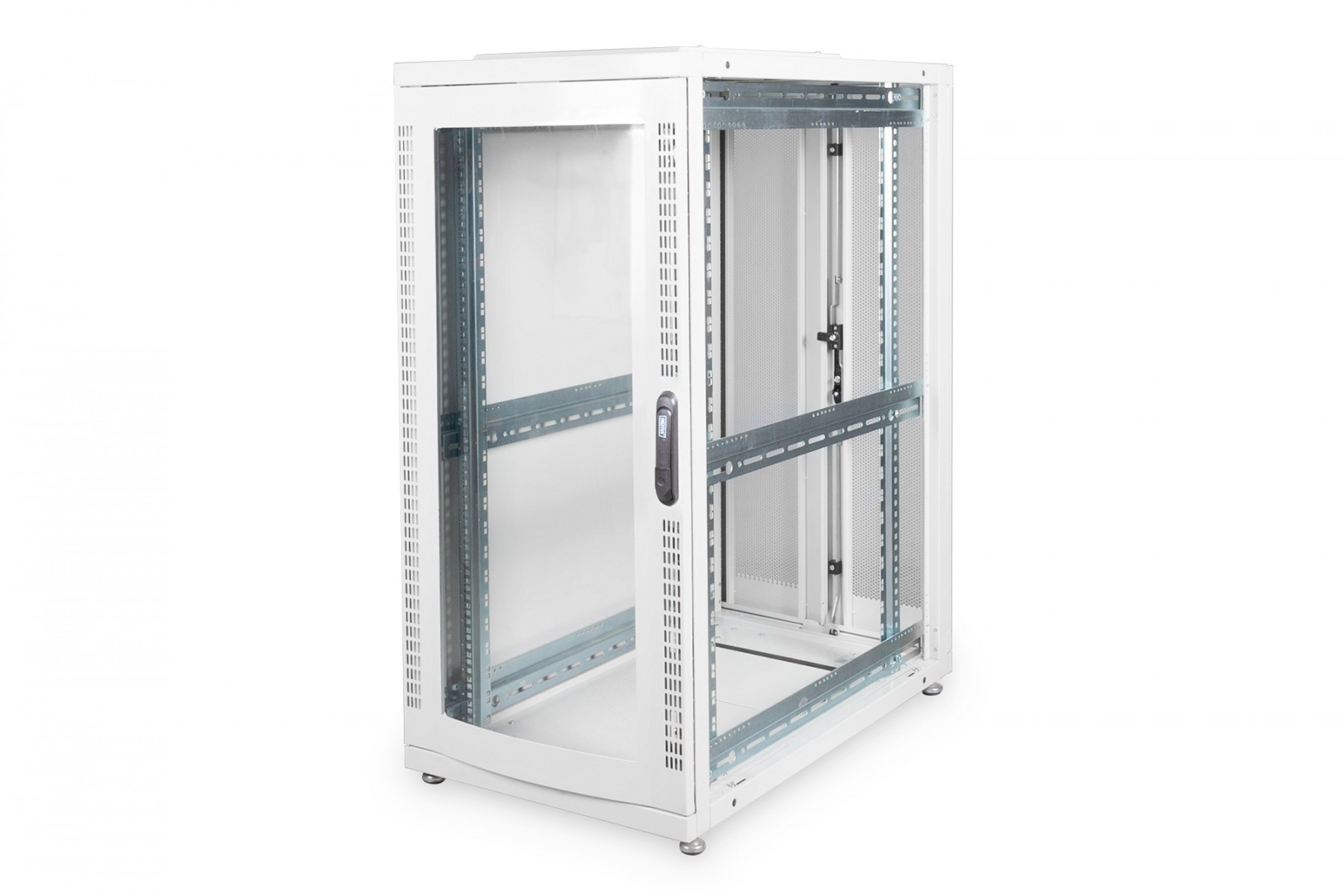

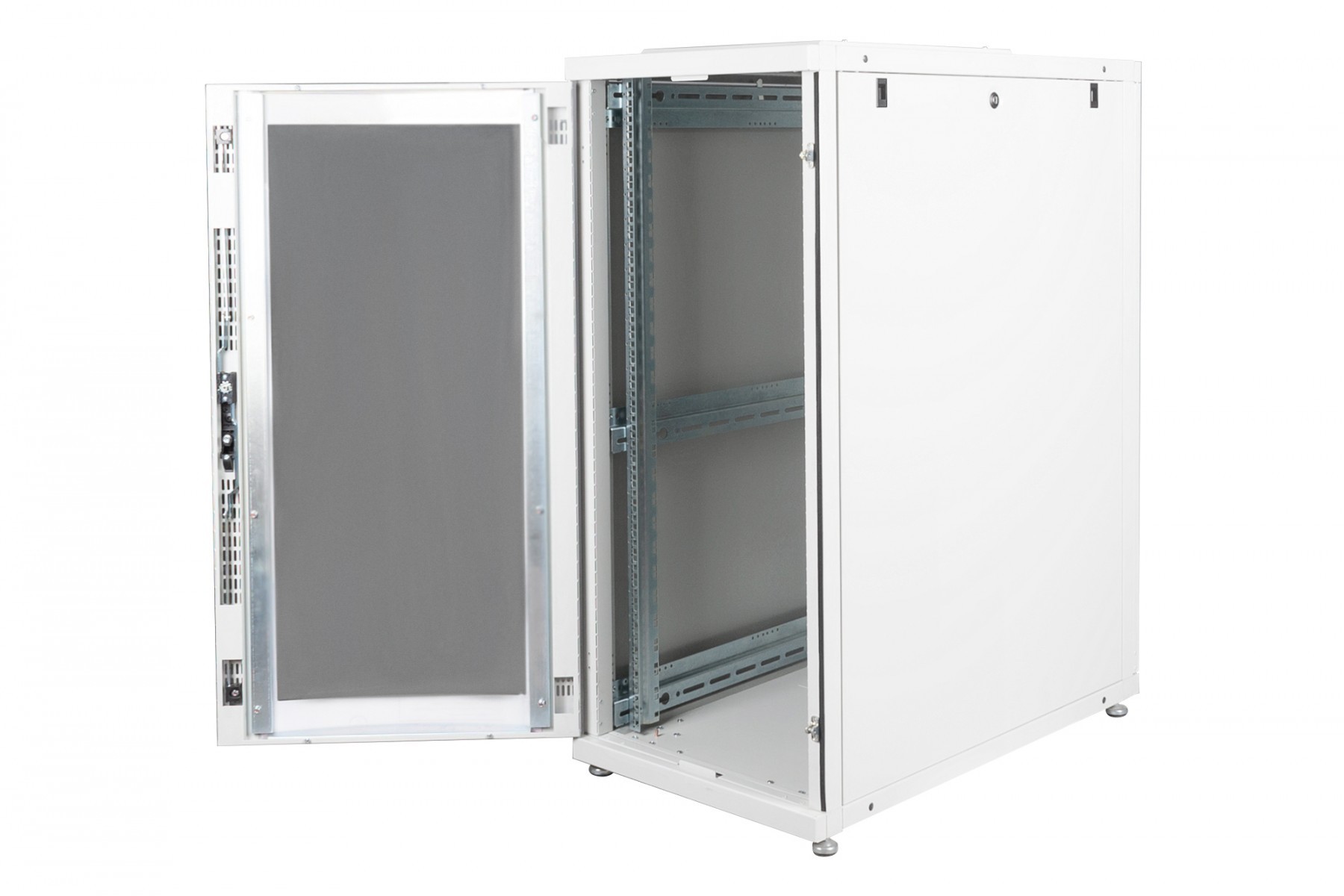

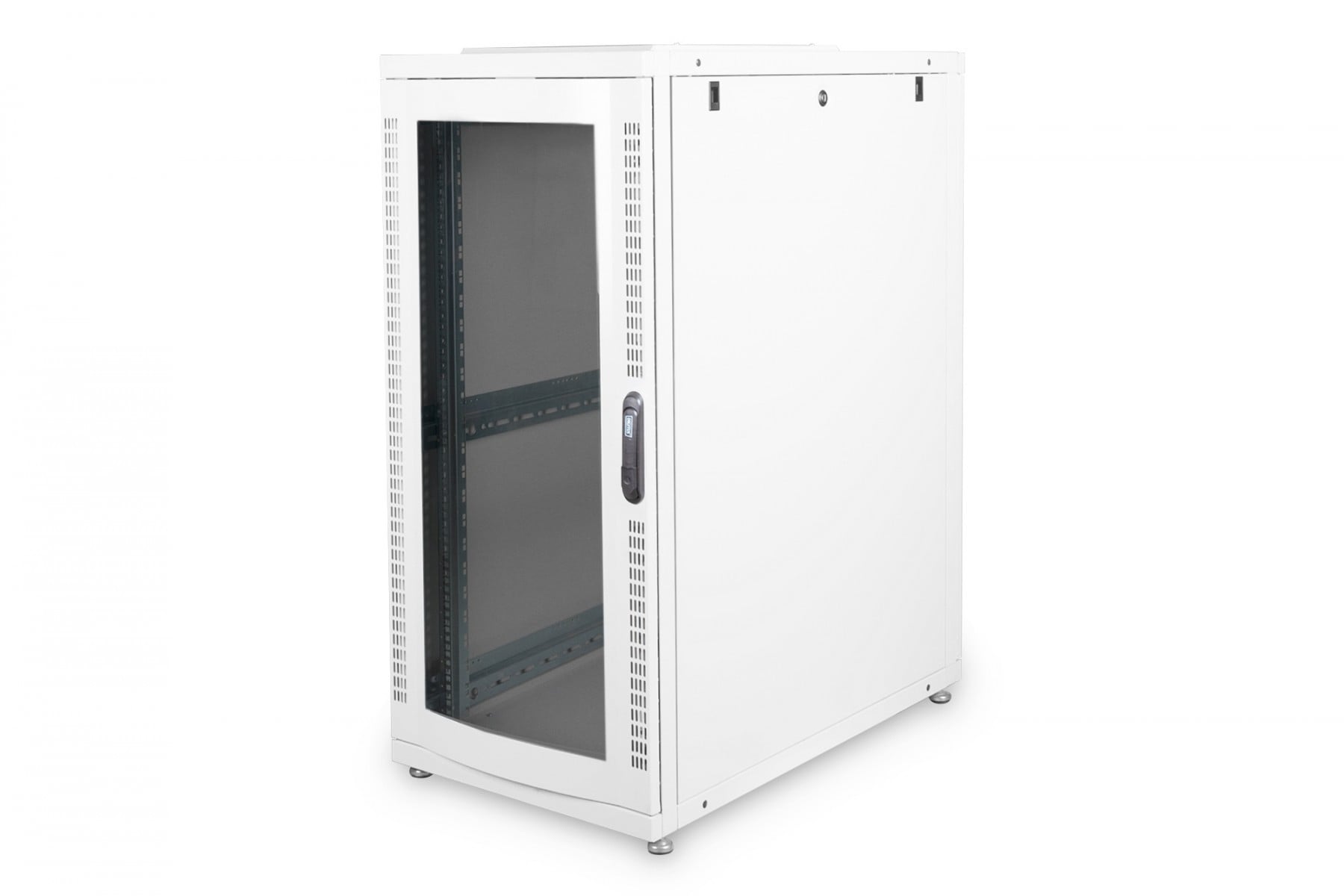

> Single wing opening front door with perforated steel frame with plexi glass

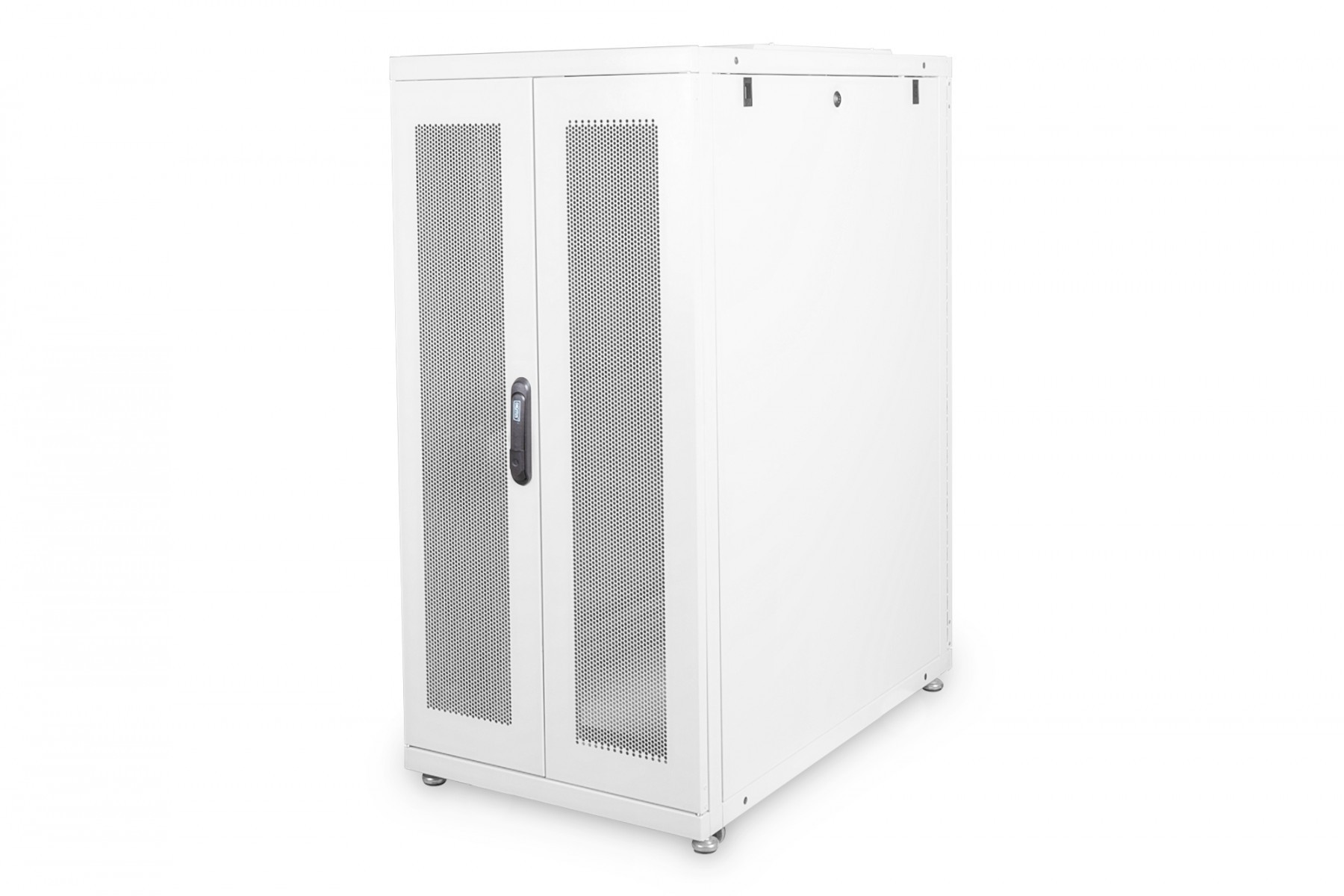

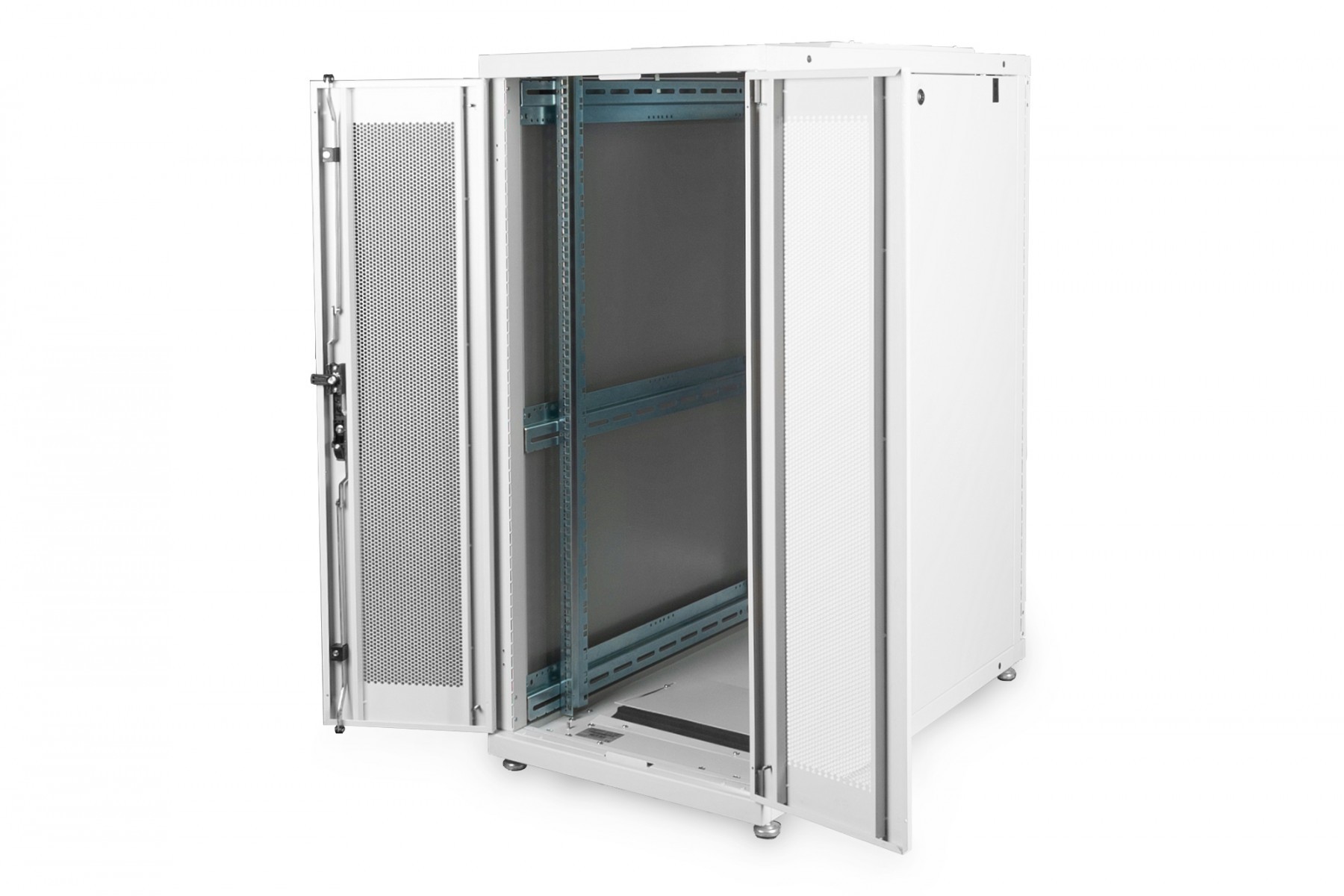

> Double wing opening steel rear door with 70% perforation

> Front door is curved to the outside in perforated resp. plexi glass area

> Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)

> 230° door opening angle on front- and rear doors

> Front door with 4-point locking and rear door with 3-point locking

> Side panels are lockable and removable

> incl. 4 pieces of leveling feet and 4 pieces of castor, already pre-configured under the cabinet (front castor are lockable)

> 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized

> 483 mm (19“) profile rails are adjustable in depth and with height unit marking

> Built-in depth support bars for more stability

> Sliding cable entry with rubber sealing on the top and base

> Special roof construction for fan unit, incl. perforated cover

> Several earthing points for rack components

> Incl. installation set (screws, cage nuts, washers)

> Rack is completely mounted

> Equipment mounting depth min.-max.: 675-875 mm
