Uninterruptible Power Supply (UPS) Online Rack 19" LCD 1000VA/1,000W 2x12V/9Ah 8xC13 1xC14 USB RS232 RJ45 Depth 325mm
Part number:
DN-170093
EAN:
4016032474647
£249.42
ex VAT
£299.30
inc VAT
Availability:
6
pcs
Order within:
9h
47min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Thursday, 8 October 2026
£28.16
Fastest delivery
Wednesday, 7 October 2026
Payment methods
Delivery methods
> Online double conversion system (VFI-SS-111)
> Input: IEC60320 C14 socket, 208/220/230/240 Vac
> Output: 8 x IEC60320 C13, max. 10A per socket outlet
> Nominal system power: 1000 VA / 1000 W, power factor 1.0
> AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
> Internal battery pack can be replaced during operation.
> Cold start function
> Battery: Valve-protected, non-spillable lead-acid battery
> Battery quantity: 2 x 12V x 9.0 Ah
> Charging: 4 hours to 90% capacity after full discharge
> Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.

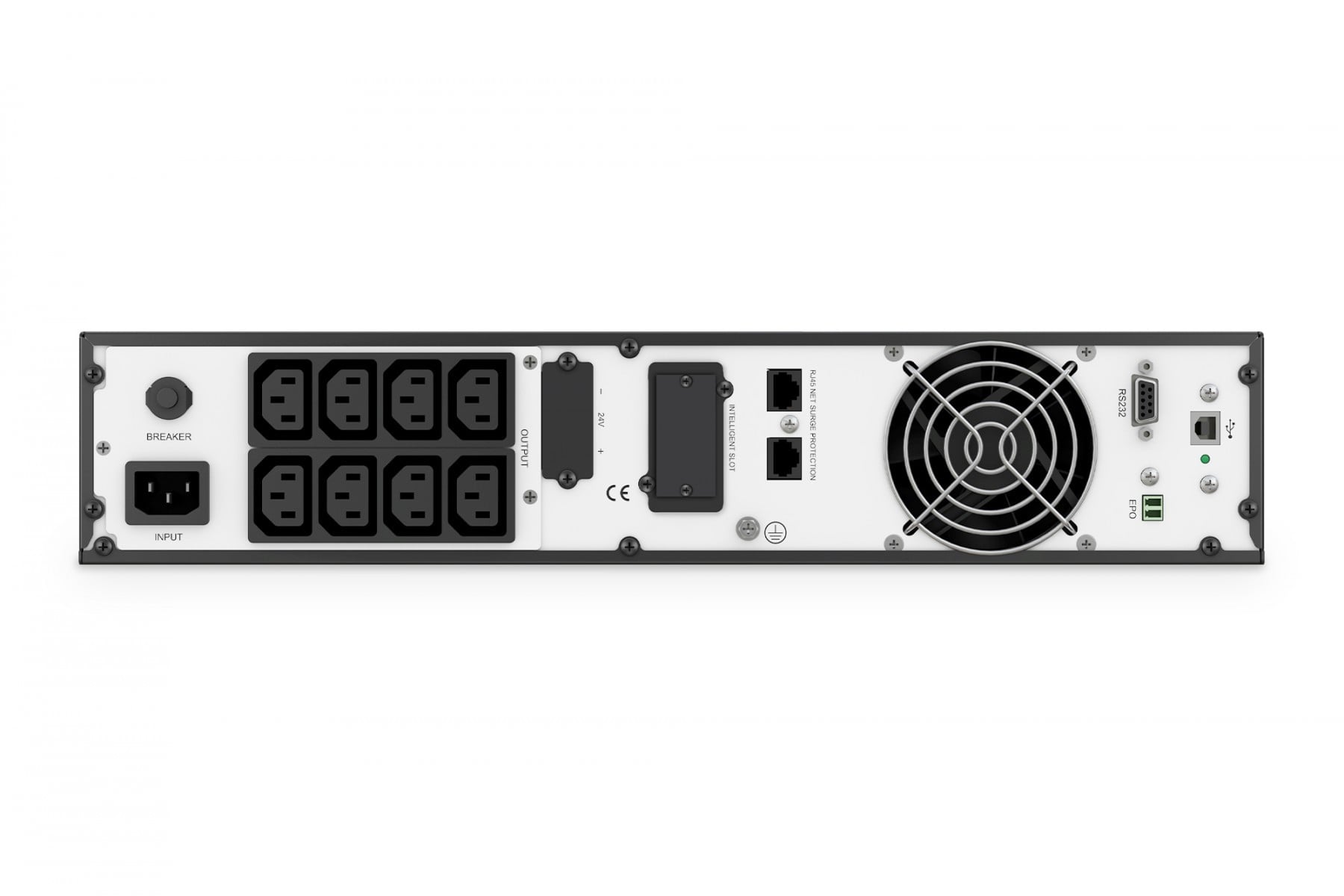

> Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
> Emergency Power-off (EPO) contact for switching off the UPS in an emergency
> Maximum operating temperature: 0 - 40 °C
> Storage temperature: -25 - 55 °C
> Relative humidity: 20 - 90% non-condensing
> Operating altitude: < 1500 m
> Product dimensions WxDxH (mm): 440 (19") x 325 x 86.5 (2U)
> Product weight: 11.3 kg
> Shipping dimensions WxDxH (mm): 560 x 455 x 200
> Shipping weight: 15.5 kg
> Safety standards: IEC/EN62040-1,IEC/EN60950-1
> EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
> Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
> IP protection class: IP21
> Heat dissipation: 307 BTU/h
> Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus OnLine UPS system, 1000 VA/ 1000 W. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Cables included: RS-232, USB cable
Multimedia
Leaflets:
Specifications
Ports & interfaces
Serial interface type
RS-232
USB 2.0 ports quantity
1
AC outlets quantity
8 AC outlet(s)
Ethernet LAN (RJ-45) ports
2
USB port
Yes
Power plug
C14 coupler
Serial interface
Yes
RS-232 ports
1
AC outlet types
C13 coupler
Emergency Power Off (EPO) connector
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
1.5 kVA
Input operation voltage (min)
208.0000
Input operation voltage (max)
240.0000
Efficiency (ECO mode)
98%
Power factor
1
ECO mode
Yes
Output power
1000.0000
Efficiency
93%
Country of origin
China
Design
Product colour
Black
Form factor

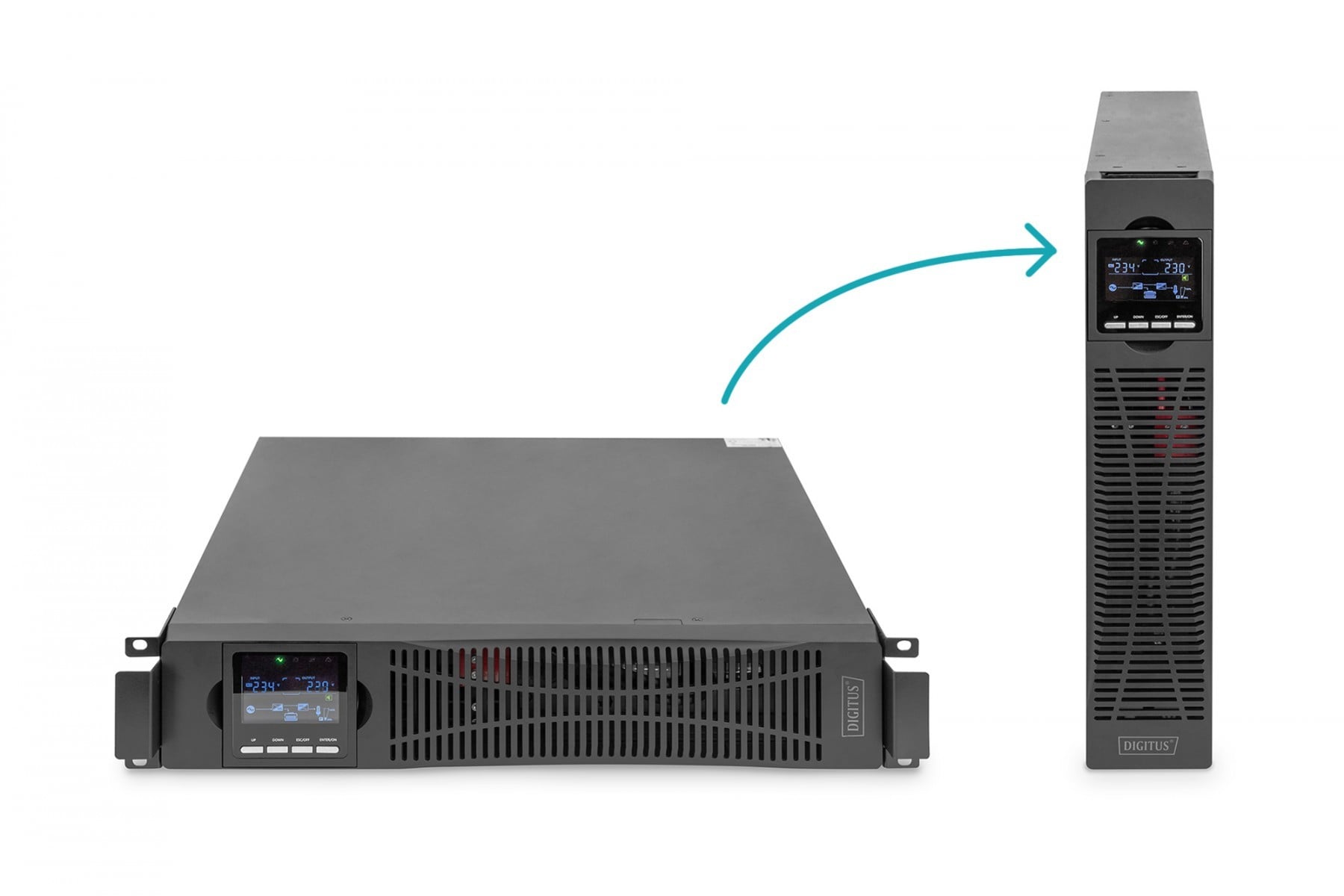

Rackmount/Tower
Display type
LCD
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
2
Battery voltage
12.0000
Battery recharge time\t(90%)
4 h
Battery capacity
9.0000
ADR Classification
UN 2800
Operational conditions
Storage temperature (T-T)
-25 - 55
Operating altitude
0 - 1500
Operating relative humidity (H-H)
20 - 90
Operating temperature (T-T)
0 - 40
Packaging data
Rack mount kit
Yes
Package width
467 mm
Package depth
555 mm
Package height
200 mm
Cables included
RS-232, USB cable
Manual
Yes
Package volume
52355.4 cm³
Package weight
14300 g
Packaging content
Rack mount kit
Yes
Cables included
RS-232, USB cable
Manual
Yes
Weight & dimensions
Package width
467 mm
Package depth
555 mm
Package height
200 mm
Depth
325 mm
Height
86.5 mm
Width
440 mm
Weight
11300 g
Package weight
14300 g
Other features
Size (imperial)
19 in
Logistics data
UK Trade Tariff code
85044085
SKU:
1716001
