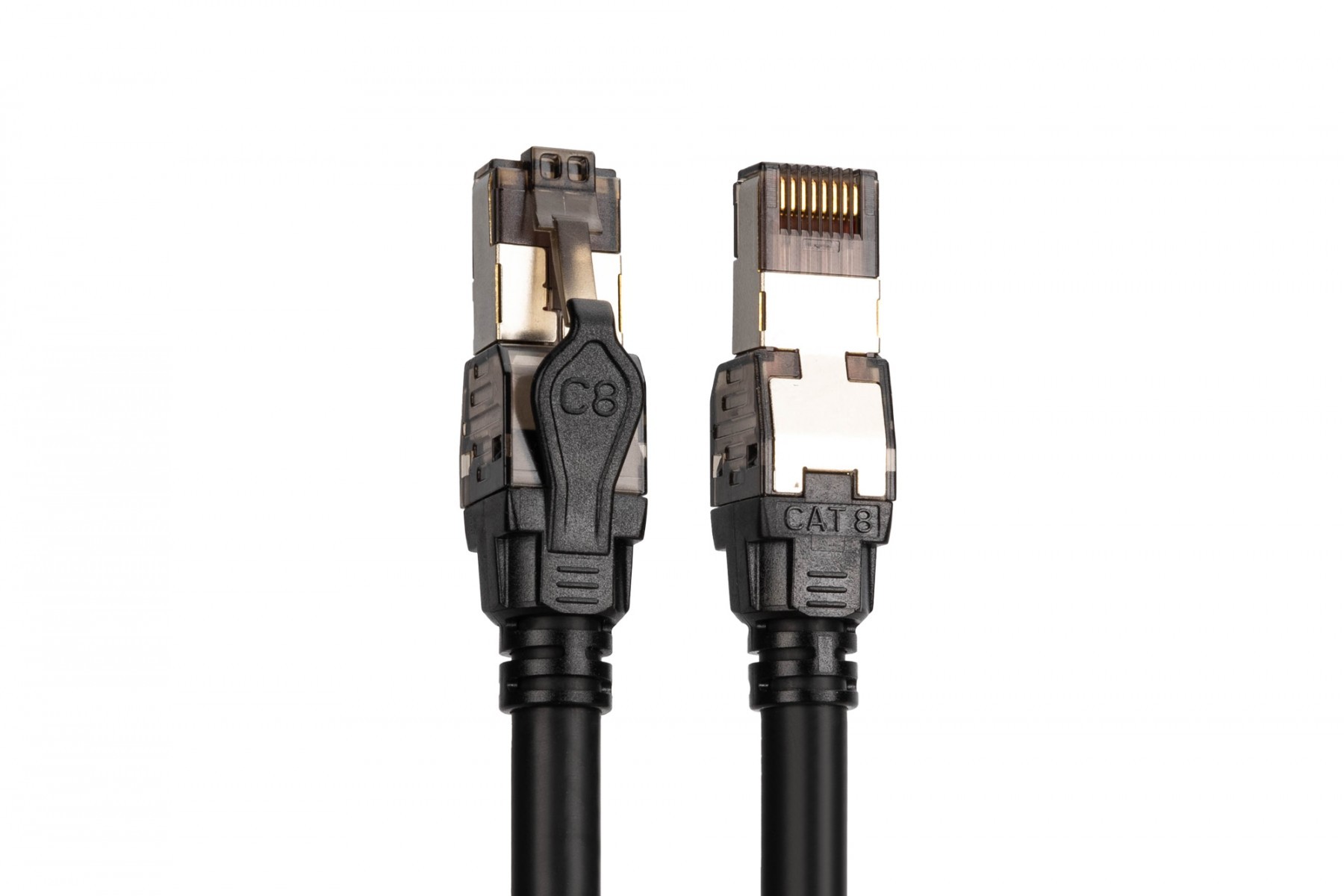

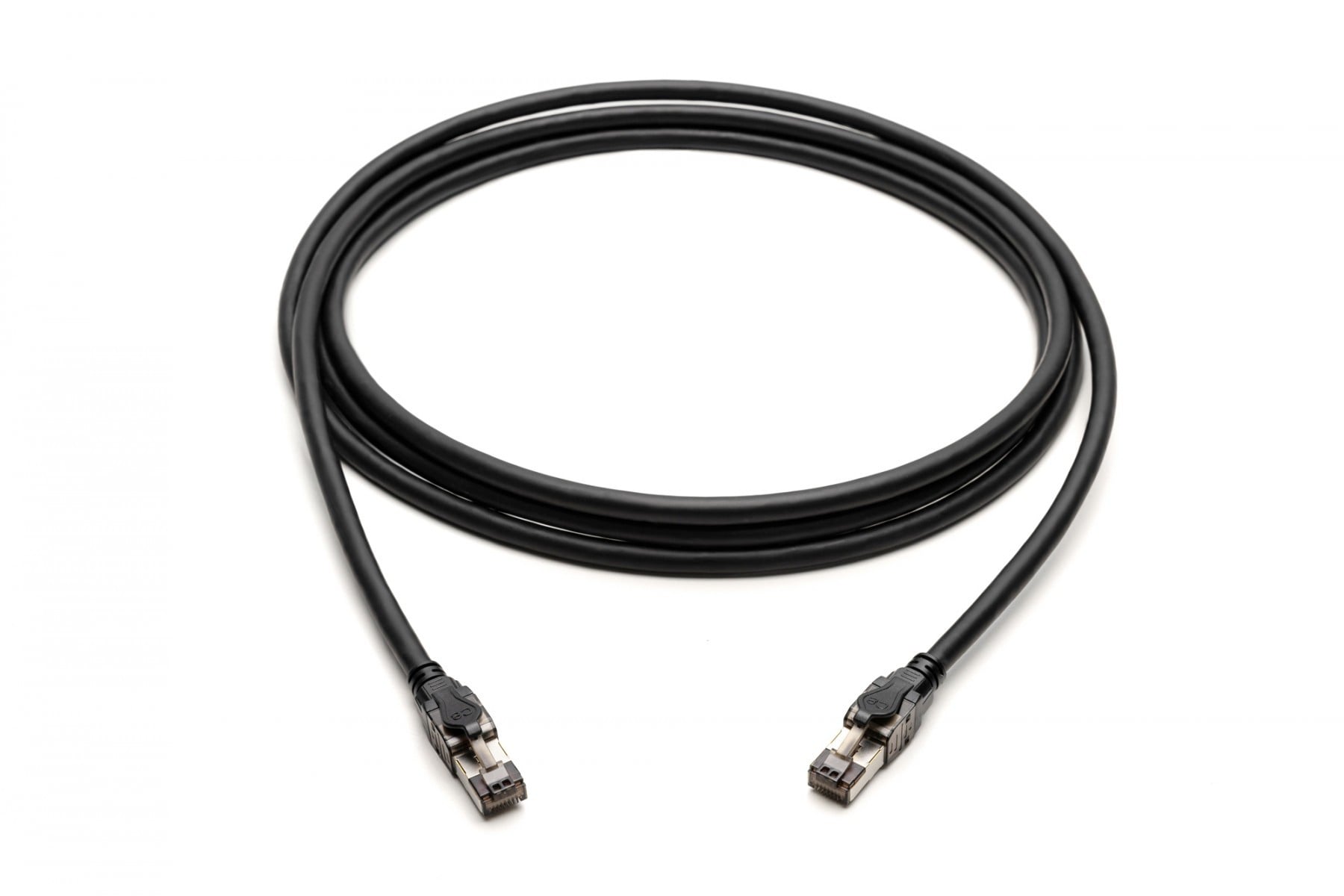

RJ45-RJ45 patch cord, Cat. 8.1, S/FTP, AWG 24/7, LSOH, 3 m, black
Part number:
DK-1843-030
EAN:
4016032499244
£12.55
ex VAT
£15.06
inc VAT
Availability:
3
pcs
Order within:
18h
31min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Friday, 16 October 2026
£15.72
Fastest delivery
Thursday, 15 October 2026
Payment methods
Delivery methods
> 2 x RJ45 plug connector (PCB)
> RJ45 plug connector 3 μ nominal gold-plated over 60 μ nickel-primed contact pins
> FO-PE (foamed polyethylene) insulation
> Total diameter 8.0 mm ± 0.2 mm
> Bending radius 15x OD
> Wiring standard EIA/TIA 586B
> Color code orange x white, green x white, blue x white, brown x white
> Pin assignment 1:1
> Contact resistance 750 mating cycles
> Contact resistance 30 mΩ maximum
> Unbalanced resistance 3% maximum
> Insulation resistance 2500 VDC for 3 seconds
> Uninsulated resistance 150 MΩ/km minimum
> Operating temperature -20 °C to +60 °C
> NVP 72%
> Flame resistance IEC 60332-1
> Smoke emission IEC 61034
> Typical applications IEEE 802.3 Ethernet (10/100/1000BASE-T)
> PoE according to IEEE 802.3af/at/bt (PoE+, PoE++ type 3 & 4)
> Standards ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Digitus CAT 8.1 S/FTP patch cable, 3 m. Cable length: 3 m, Cable standard: Cat8.1, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black
Multimedia
Leaflets:
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
Black
Cable shielding
S/FTP (S-STP)
Connector contacts plating
Gold
Connector shielding
Yes
Connector shield material
Metal foil
Jacket material
Low smoke zero halogen (LSZH)
Cable shape
Round
Connector 1 gender
Male
Connector 2 gender
Male
AWG wire size
24/7
Frequency
2000 MHz
Bend radius (min)
15 mm
Cable standard
Cat8.1
Connector 1
RJ-45
Plug and Play
Yes
Connector 2
RJ-45
Cable length
3.0000
Conductor material
Copper
Operational conditions
Operating temperature (T-T)
-20 - 60
Packaging data
Package width
340 mm
Package depth
370 mm
Package height
10 mm
Package weight
200 g
Packaging content
Quantity per pack
1.0000
Certificates
Certification
IEC 60332-1
IEC 61034
SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Weight & dimensions
Outer diameter
8 mm
SKU:
1771182
