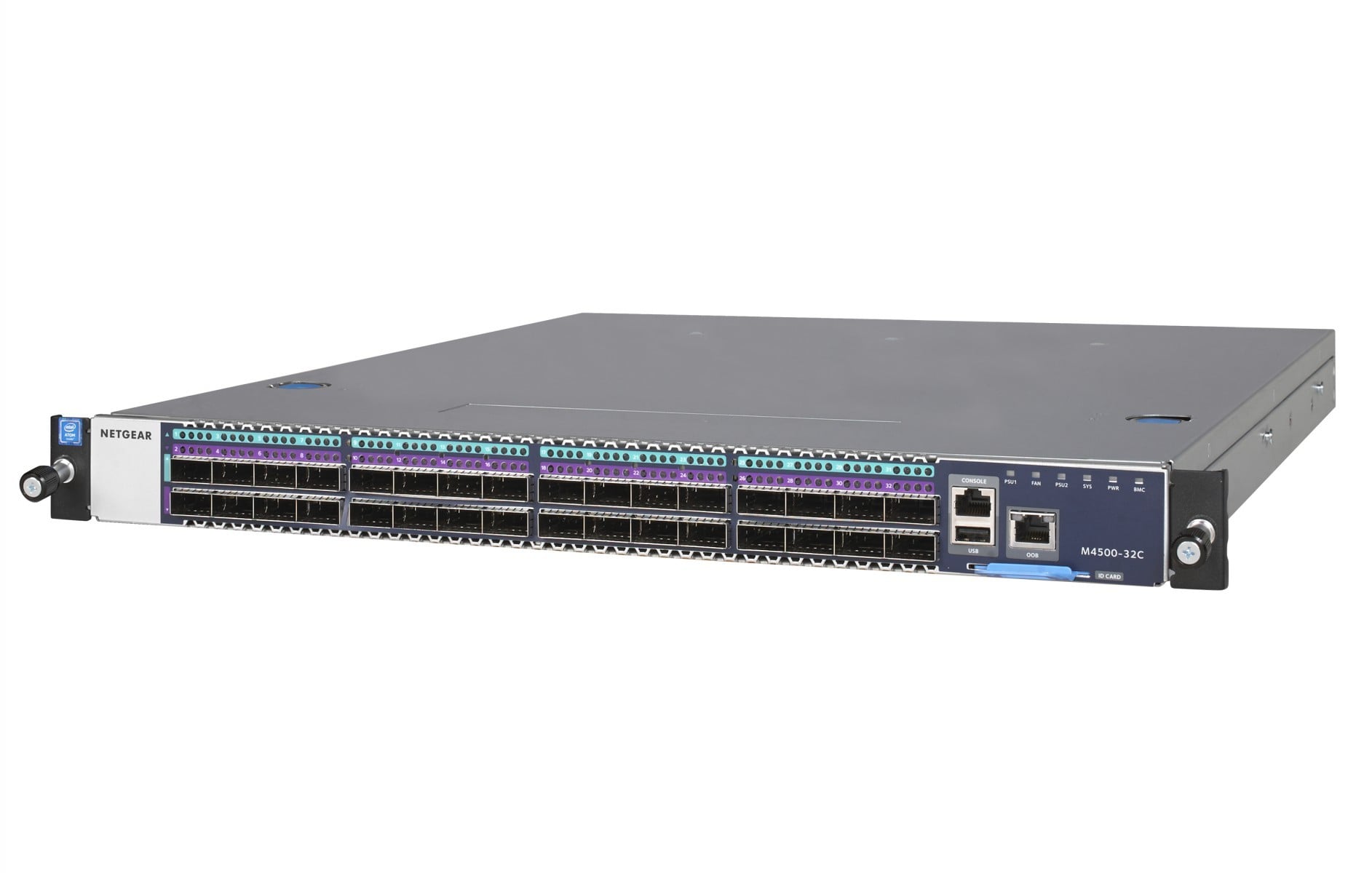

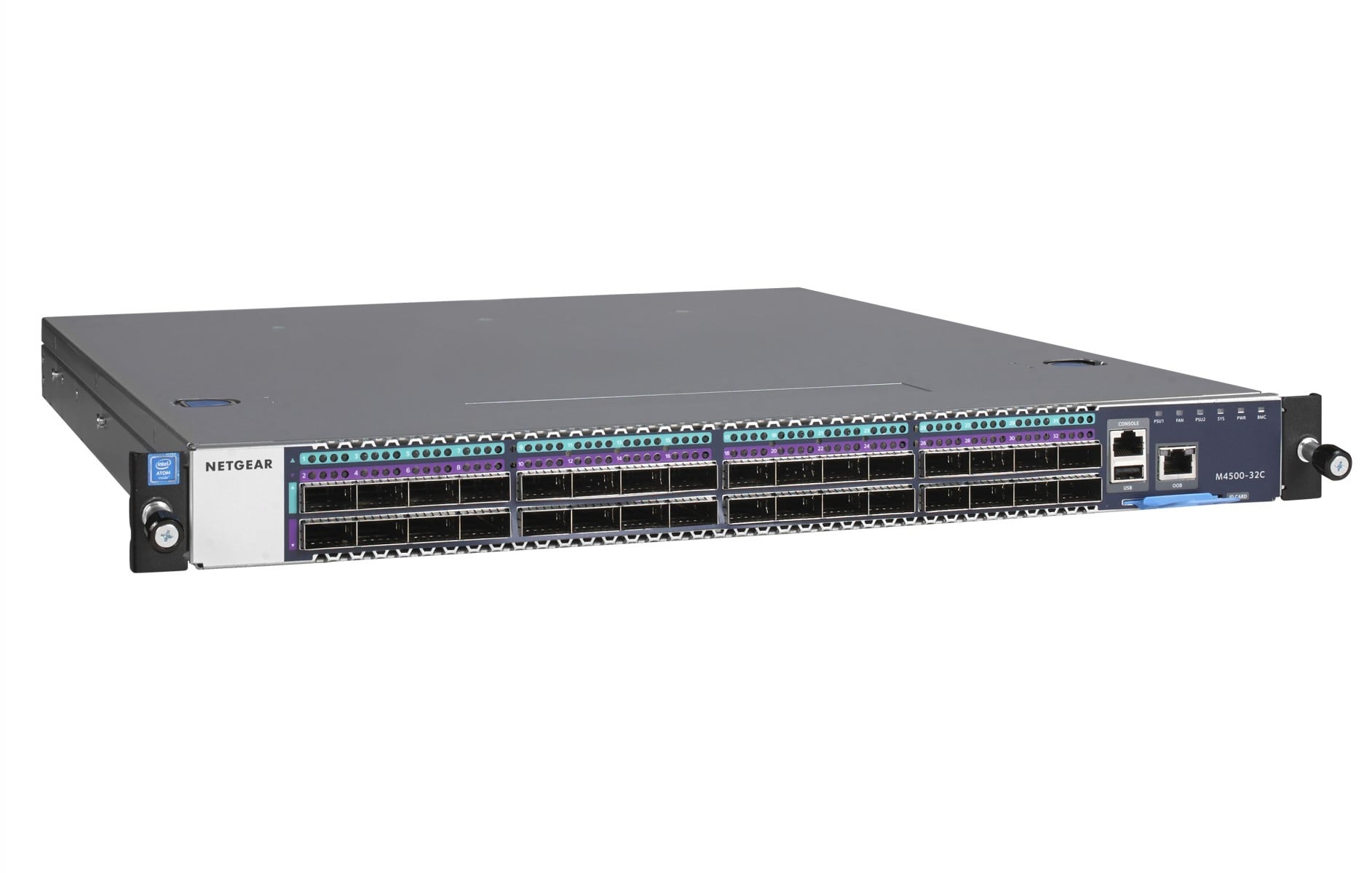

NETGEAR M4500-32C Managed L2/L3/L4 1U Black
Part number:
CSM4532-100EUS
EAN:
0606449145731
£19,850.22
ex VAT
£23,820.26
inc VAT
Availability:
2
pcs
Order within:
20h
10min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Thursday, 15 October 2026
£31.78
Fastest delivery
Wednesday, 14 October 2026
Payment methods
Delivery methods

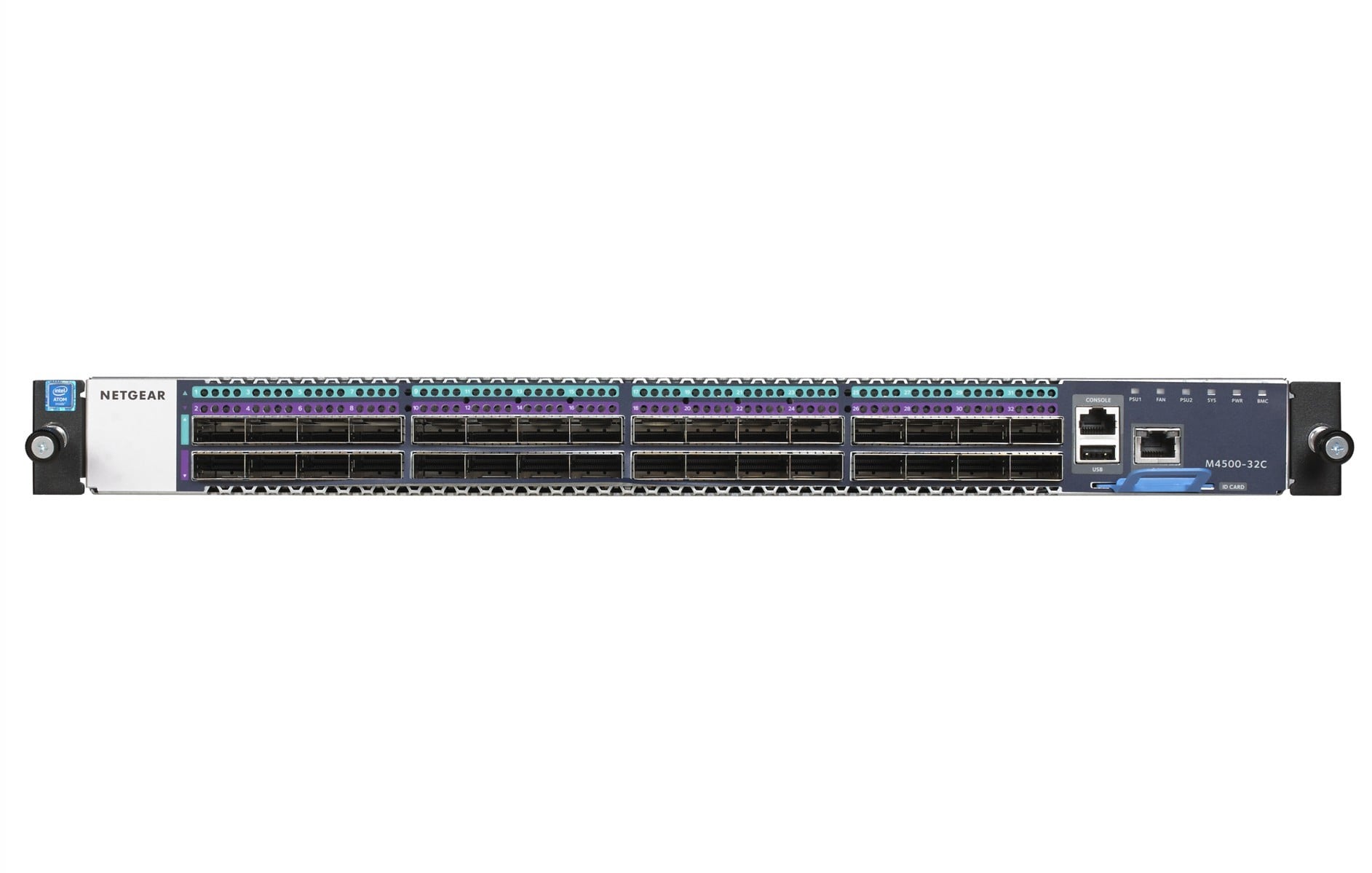

> The M4500-32C switch provides 32-port QSFP28 (40G, 50G and 100G fiber)
> With 6.4Tbps non-blocking fabric and 2Bpps forwarding rate, M4500-32C delivers L2/L3/L4 and IPv4/IPv6 rich services for Professional AV-over-IP installations (SDVoE-ready certified)

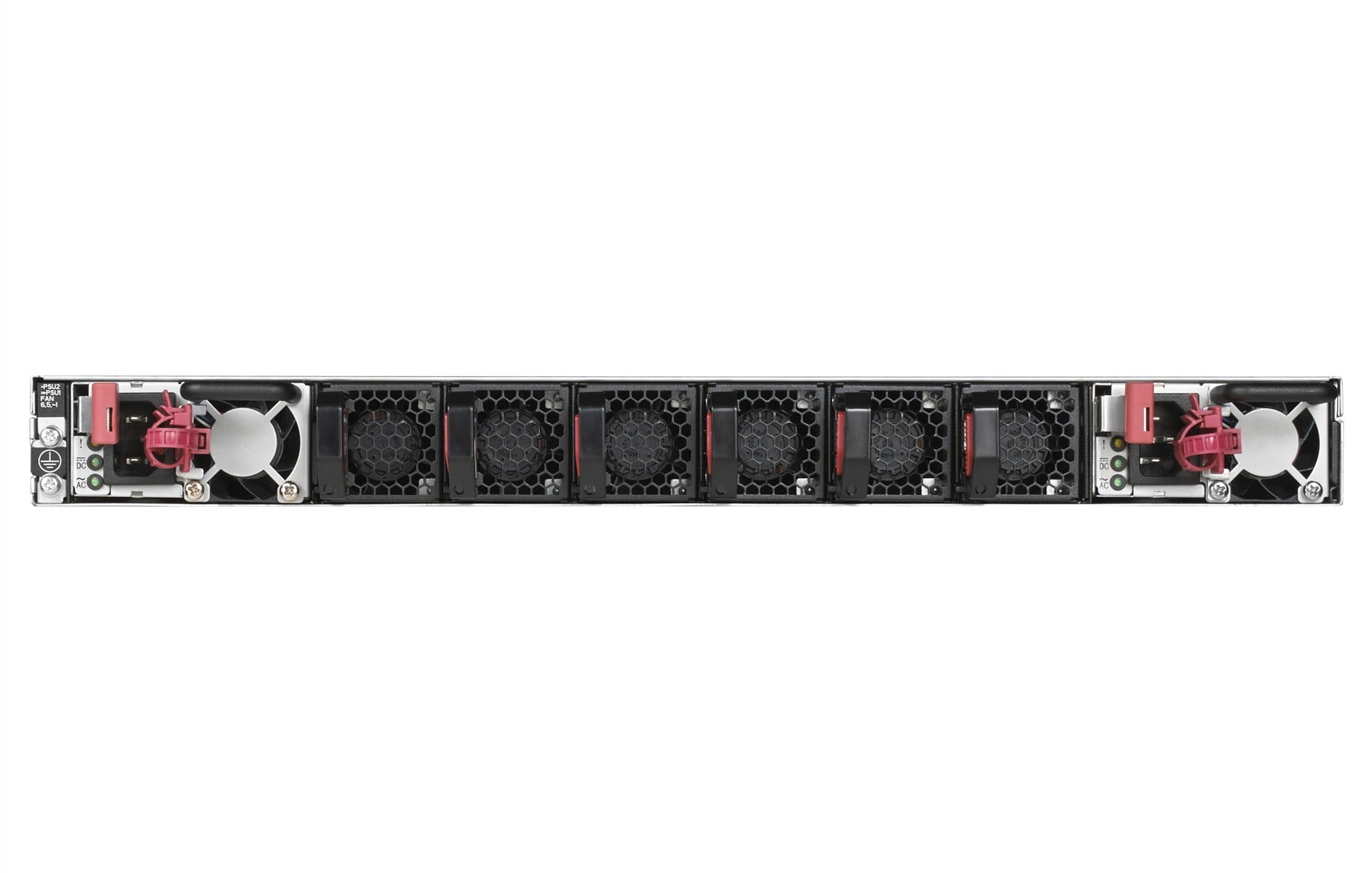

> Two modular power supplies are pre-installed for 1+1 power redundancy
> Six modular fan trays are pre-installed for 4+2 fan redundancy
> Line-rate spine and leaf topologies with the M4500-48XF8C (32-port SFP28 and 8-port QSFP28)
> Layer 3 feature set includes static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM
> Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300/M4500 switches
> Lifetime hardware warranty, Lifetime NBD and Lifetime online technical chat for investment protection and post-sales support
Recommended accessories:
Availability:
ex VAT
inc VAT
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
NETGEAR CSM4532. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Multimedia
Leaflets:
Other Digital Assets:
Specifications
Management features
Switch type
Managed
Switch layer
L2/L3/L4
Web-based management
Yes
Quality of Service (QoS) support
Yes
ARP inspection
Yes
System event log
Yes
Optical fiber
Fiber ethernet cabling technology
100BASE-X
Security
Security algorithms
HTTPS, SNMP, SSH
DHCP features
DHCP client, DHCP relay, DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Ports & interfaces
USB 2.0 ports quantity
1
Console port
RJ-45
Basic switching RJ-45 Ethernet ports quantity
QSFP28 ports quantity
32
Power connector
DC-in jack
SFP module slots quantity
32
Fiber optic connector
QSFP+
Performance
Flash memory
256 MB
Internal memory
8000 MB
Noise level
64.0000
Memory type
DDR3-SDRAM
Built-in processor
Yes
Network
10G support
Yes
Networking standards
IEEE 802.1AX, IEEE 802.3ad
Flow control support
Yes
Port mirroring
Yes
Auto MDI/MDI-X
Yes
Auto-sensing
Yes
Auto-negotiation
Yes
VLAN support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000
Design
Rack mounting
Yes
Electromagnetic compatibility
CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Product colour
Black
Stackable
No
Form factor
1U
LED indicators
Yes
Housing material
Metal
Reset button
Yes
Packaging data
Package width
593 mm
Package depth
888 mm
Package height
186 mm
User guide
Yes
Manual
Yes
Package type
Box
Package weight
20490 g
Packaging content
User guide
Yes
Manual
Yes
Protocols
Management protocols
Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Data transmission
Switching capacity
6400 Gbit/s
MAC address table
32000 entries
Power
Power consumption (max)
426.0000
Weight & dimensions
Weight
9780 g
Logistics data
Harmonized System (HS) code
85176990
Products per master (outer) case
1.0000
SKU:
1677089
