2P USB DP Single Display PP4 Secure KVM Switch with CAC
Part number:
CS1182DP4C-AT-G
EAN:
4710469341502
Payment methods
Delivery methods
> Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
> Always-on chassis intrusion detection –renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
> Configurable Device Filtration –supports administrative configuration to filter specific USB authentication devices and USB HID devices
> Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description

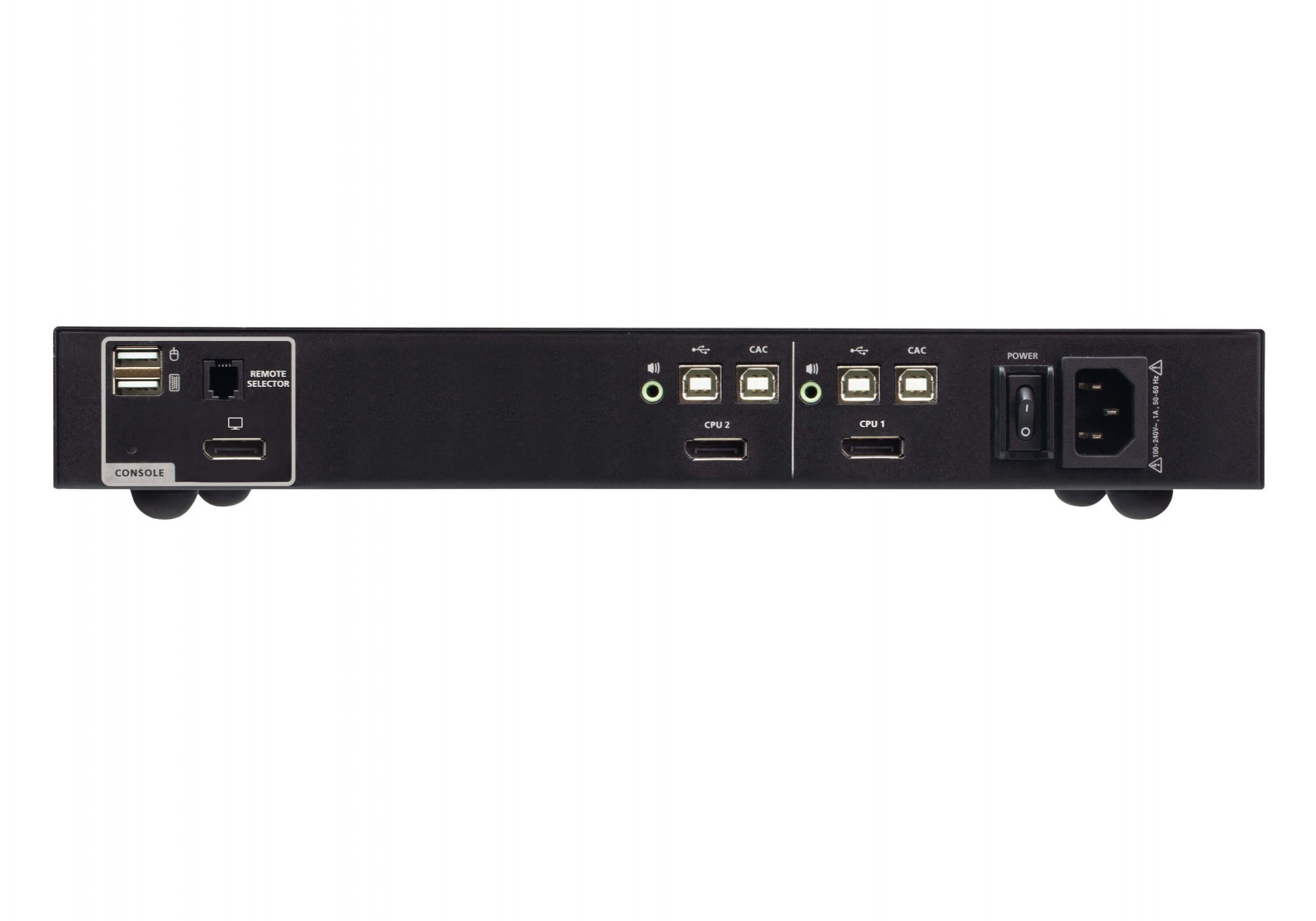

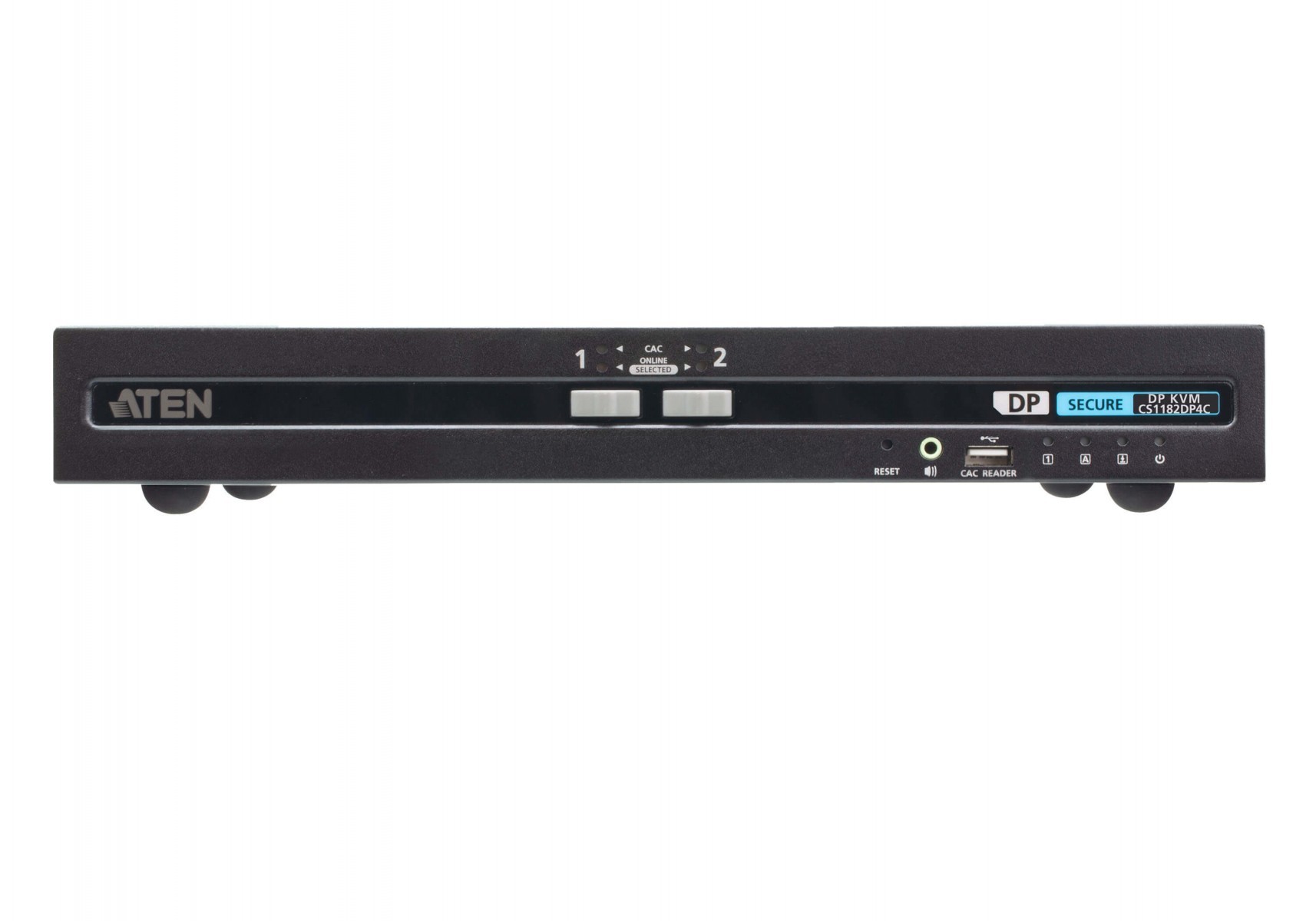

ATEN 2-Port USB DisplayPort Secure KVM Switch with CAC (PSD PP v4.0 Compliant). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 163.9 mm, Depth: 335 mm, Height: 44 mm
Multimedia
Leaflets:
Manual (PDF):
Specifications
Display
Built-in display
No
Ports & interfaces
USB 2.0 Type-B ports quantity
4
Number of computers controlled
2
Keyboard port type
USB
USB hub
Yes
Mouse port type
USB
Video port type
DisplayPort
Console USB ports quantity
2
Console ports
DisplayPort, USB A
USB 2.0 Type-A hub ports quantity
1
Headphone outputs
2
RJ-11 ports quantity
1
DisplayPorts quantity
2
Audio connections
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160
Design
Rack mounting
No
Product colour
Black
Wired remote switch
Yes
LED indicators
Yes
Housing material
Metal
Push button
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating relative humidity (H-H)
0 - 80
Operating temperature (T-T)
0 - 50
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package volume
14583.176 cm³
Package weight
2540 g
Packaging content
Cables included
AC
Manual
Yes
Power
Input voltage
100 - 240 V
Power consumption (typical)
6.6800
AC input frequency
50 - 60 Hz
Input current
1 A
Power source
AC
Weight & dimensions
Depth
335 mm
Width
163.9 mm
Height
44 mm
Weight
1960 g
Logistics data
Master (outer) case volume
54651.5139 cm³
Master (outer) case height
258 mm
Master (outer) case width
375 mm
Master (outer) case net weight
5880 g
Master (outer) case gross weight
8250 g
Master (outer) case length
565 mm
SKU:
1750617
