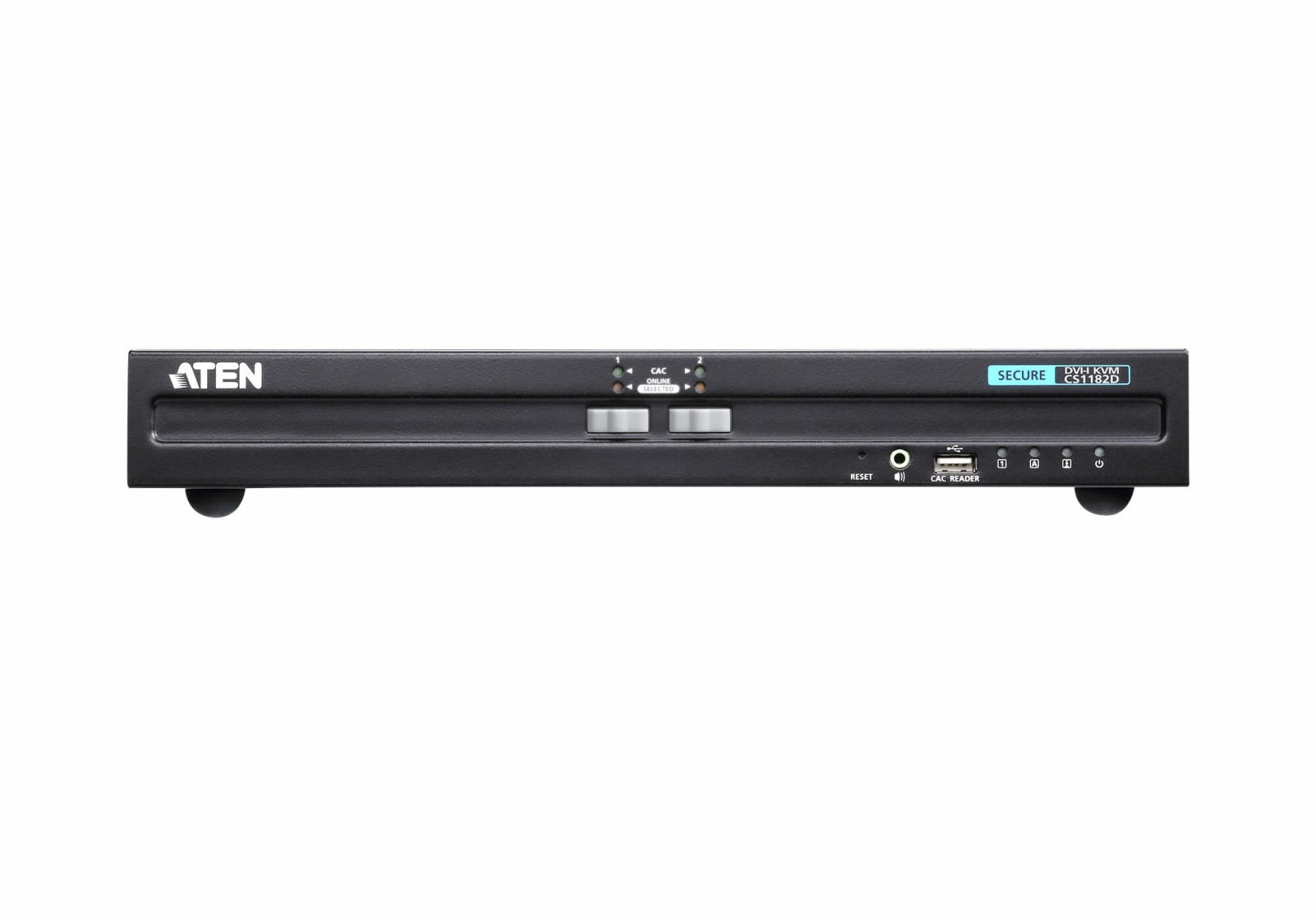

2-Port USB DVI Secure KVM Switch (PSS PP v3.0 Compliant)
Part number:
CS1182D-AT-G
EAN:
4719264646515
Payment methods
Delivery methods
> Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements
> Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected
> Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application
> Superior video quality – up to 4K (3840 x 2160 @ 30 Hz), 2560 x 1600 (DVI Dual Link), 1920 x 1200 (DVI Single Link), and 2048 x 1536 (DVI-A)
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN 2-Port USB DVI Secure KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS
Multimedia
Leaflets:
Manual (PDF):
Specifications
Display
Built-in display
No
Ports & interfaces
DVI-I ports quantity
2
USB 2.0 Type-B ports quantity
4
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I

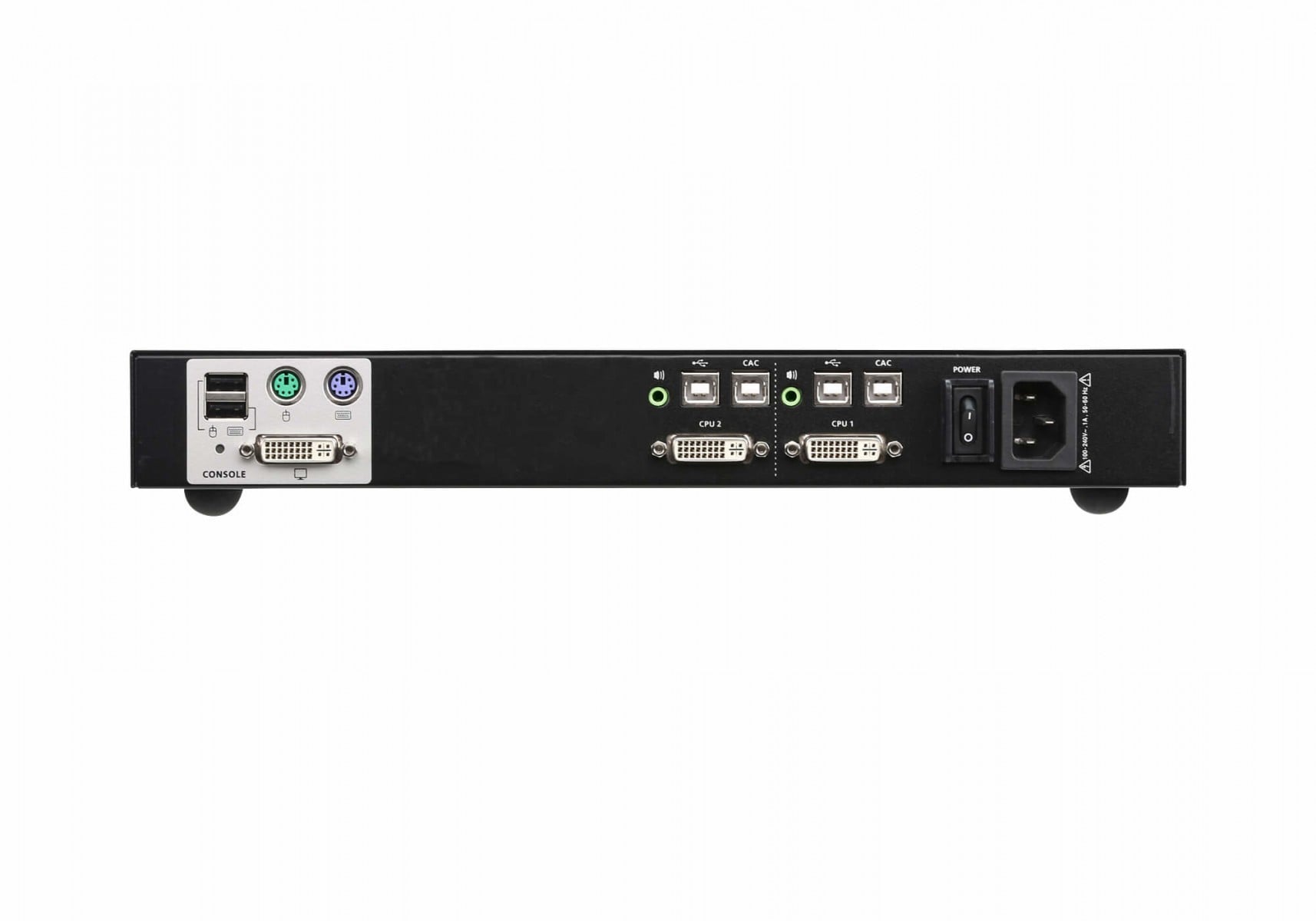

Console ports
3.5mm headphone, DVI-I, PS/2, USB A
Console USB ports quantity
2
Headphone outputs
3
USB connector type
USB Type-B
Audio connections
Yes
Performance
HD type
4K Ultra HD
Video bandwidth
30.0000
Maximum resolution
3840 x 2160
System requirements
Windows operating systems supported
Yes
Design
Product colour
Black
LED indicators
Yes
Push button
Yes
Housing material
Metal
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating relative humidity (H-H)
0 - 80
Operating temperature (T-T)
0 - 50
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2510 g
Sustainability
Compliance certificates
RoHS
Sustainability certificates
RoHS
Packaging content
Cables included
AC
Quick installation guide
Yes
Manual
Yes
Technical details
Compliance certificates
RoHS
Power
Input voltage
100 - 240 V
AC input voltage
100 - 240 V
Power consumption (typical)
4.4000
Input current
1 A
AC input frequency
50 - 60 Hz
Power source
AC
Weight & dimensions
Depth
164.3 mm
Width
335 mm
Height
44 mm
Weight
2000 g
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case height
258 mm
Master (outer) case net weight
6000 g
Master (outer) case gross weight
8470 g
Master (outer) case length
565 mm
Products per master (outer) case
3.0000
