Aten CL6700MW-ATA-DNG USB DVI WideScreen Full HD 17.3" LCD Console with USB Peripheral Support and with Scandinavian keyboard
Part number:
CL6700MW-ATA-DNG
EAN:
4710469343421
Payment methods
Delivery methods
> Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

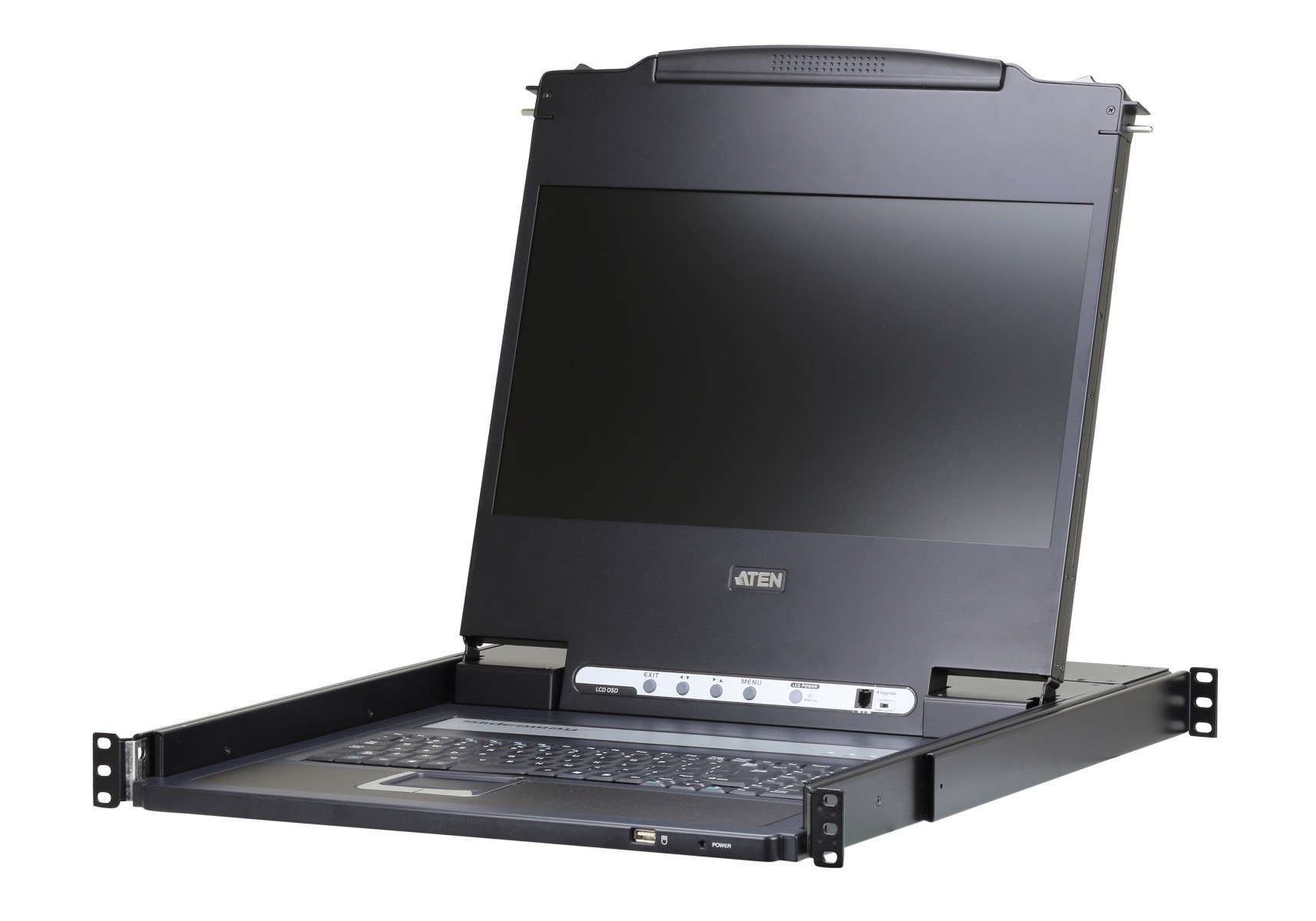

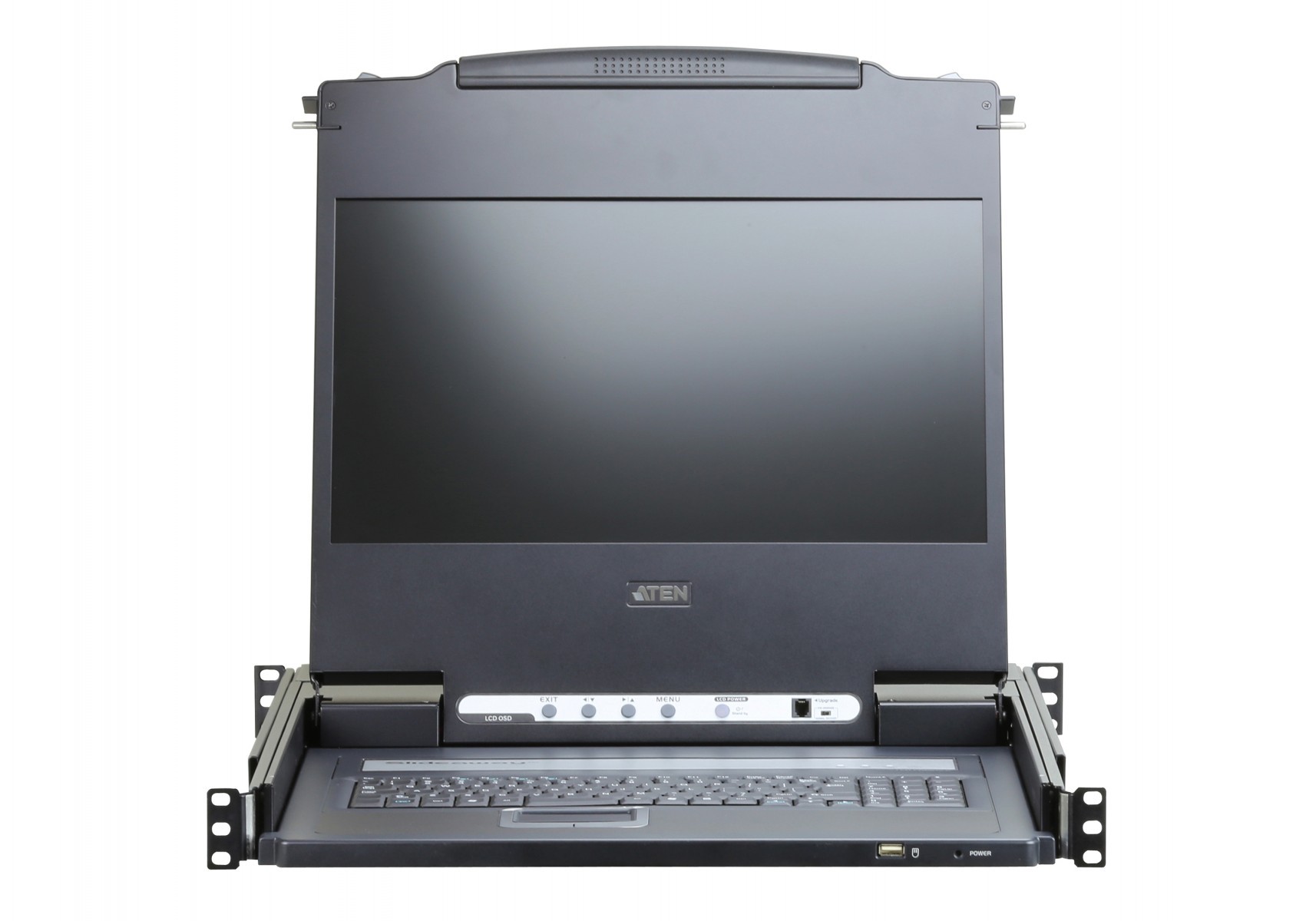

> Integrated KVM console with a 17.3” LED-backlit widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation with a 1U high system rack (CL6700MW)

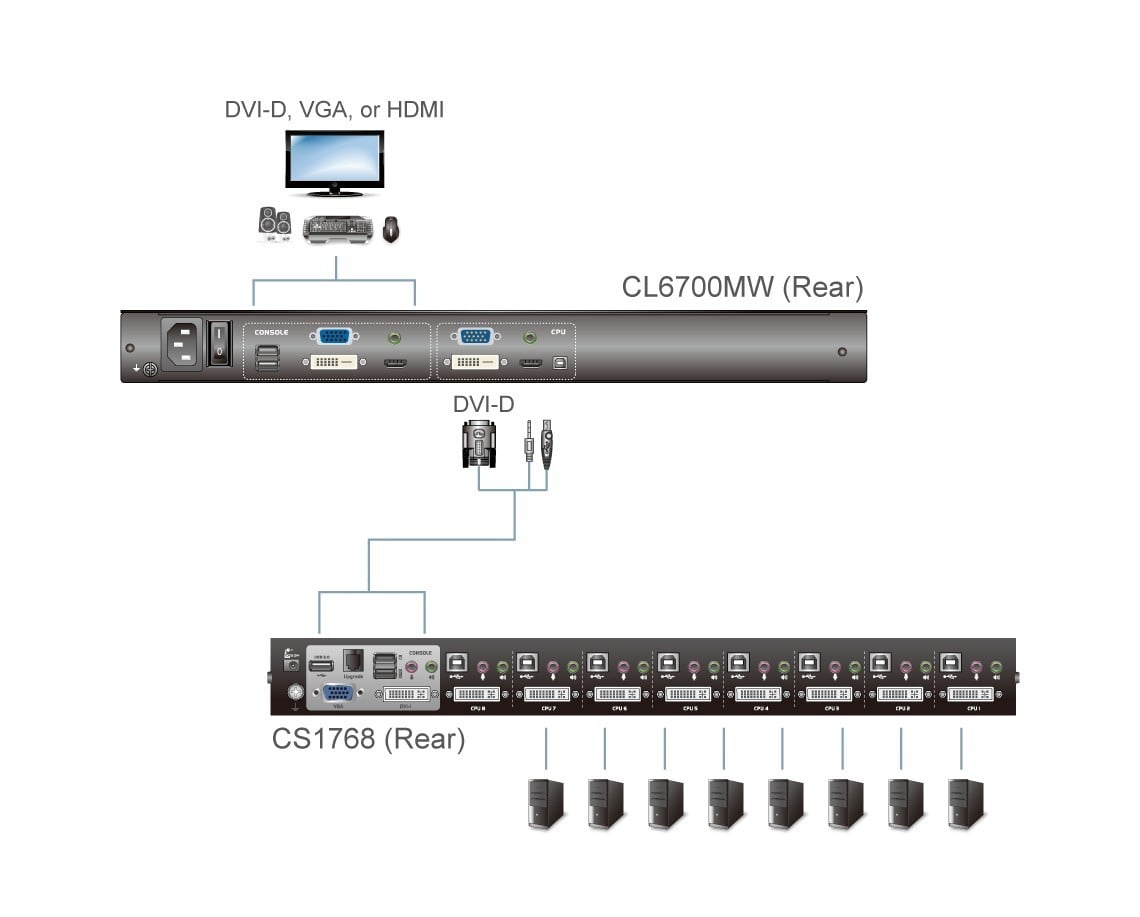

> Supports an external console with USB / DVI / VGA / HDMI connectors
> Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN CL6700MW. Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: LCD. DVI connector type: DVI-D, Keyboard port type: USB, Mouse port type: USB. Keyboard language: Nordic, Keyboard layout: QWERTY. Power consumption (typical): 19.4 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 589.2 mm, Height: 44 mm, Depth: 480 mm
Multimedia
Leaflets:
Manual (PDF):
Other Digital Assets:
Specifications
Display
Response time
16 ms
Viewing angle, horizontal
170 °
Viewing angle, vertical
170 °
Display diagonal
17.3 in
Contrast ratio (typical)
800:1
Pixel pitch
0,199 x 0,199
Aspect ratio
16:9
Supported resolutions
up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B
Display resolution
1920 x 1080
Display type
TFT
Display
LCD
Display brightness
250 CDM2
Ports & interfaces
I/O ports
2x HDMI
1x RJ-11
USB 2.0 Type-B ports quantity
1
Keyboard port type
USB
Mouse port type
USB
VGA (D-Sub) ports quantity
2
DVI connector type
DVI-D
DVI output ports
1
DVI input ports
1
3.5 mm (1/8-inch) in
Yes
3.5 mm (1/8-inch) out
Yes
USB 2.0 Type-A ports quantity
3
Keyboard
Keyboard layout
QWERTY
Keyboard number of keys
105
Built-in touchpad
Yes
Keyboard language
Nordic
Hot keys
Yes
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating temperature (T-T)
0 - 40
Packaging content
Rack mount kit
Yes
Cables included
AC, KVM
Manual
Yes
Quick installation guide
Yes
Technical details
Rack mounting
Yes
Product colour
Black
Compliance certificates
RoHS
Number of computers controlled
1
Console port
HDMI/VGA/DVI/USB/3.5mm
Rack capacity
1U
Maximum resolution
1920 x 1200
Operating relative humidity (H-H)
0 - 80
Hot-Plug support
Yes
LED indicators
Yes
Push button
Yes
Built-in KVM switch
Yes
On/off switch
Yes
Material
Metal
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Power consumption (typical)
19.4000
AC (power) in
Yes
Input current
1 A
Weight & dimensions
Depth
480 mm
Width
589.2 mm
Height
44 mm
Weight
11380 g
