Aten CL5816N-ATA-SWG 16-Port PS/2-USB VGA Dual Rail 19" LCD KVM Switch with Daisy-Chain Port USB Peripheral Support and with Swiss German keyboard
Part number:
CL5816N-ATA-SWG
EAN:
4710469345937
Payment methods
Delivery methods

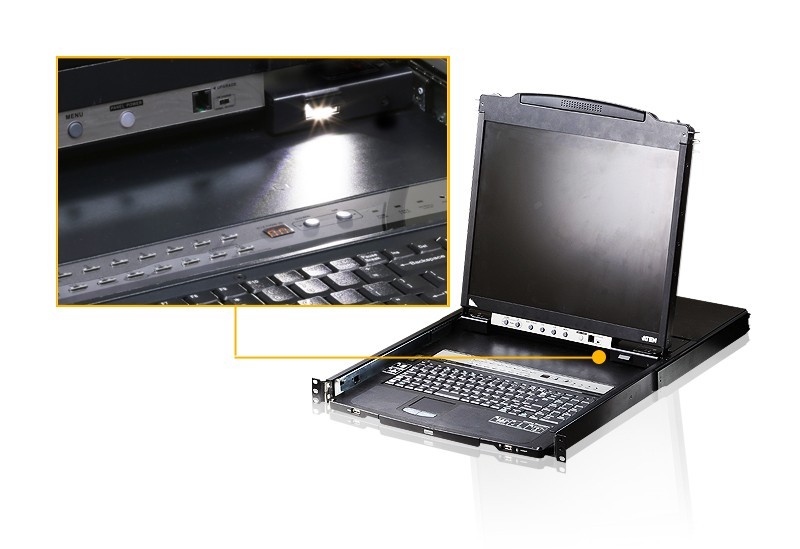

> Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
> Integrated KVM console with 19" LED-backlit LCD in a Dual Rail housing
> Daisy-chain up to 31 additional units*– control up to 512 computers from two consoles (one bus)
> Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN CL5816N. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Keyboard language: Swiss, Keyboard layout: QWERTZ. Power consumption (typical): 26.8 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 680.4 mm, Height: 44 mm, Depth: 480 mm
Multimedia
Leaflets:
Manual (PDF):
Specifications
Display
Response time
5 ms
Viewing angle, horizontal
170 °
Viewing angle, vertical
160 °
Display diagonal
19 in
Contrast ratio (typical)
1000:1
Pixel pitch
0,294 x 0,294
On Screen Display (OSD)
Yes
Supported resolutions
1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Display brightness
250 CDM2
Display type
TFT
Display resolution
1280 x 1024
Display
LCD
Ports & interfaces
I/O ports
1x RJ-11
1x DB-25
16x SPHD-17/18
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
VGA (D-Sub) ports quantity
1
USB 2.0 Type-A ports quantity
3
Keyboard
Keyboard layout
QWERTZ
Built-in touchpad
Yes
Keyboard language
Swiss
Hot keys
Yes
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating temperature (T-T)
0 - 50
Packaging content
Rack mount kit
Yes
Cables included
AC, KVM
Manual
Yes
Quick installation guide
Yes
Technical details
Rack mounting
Yes
Product colour
Black
Compliance certificates
RoHS
Number of computers controlled
512
Console port
SPHD-18
Auto scan delay (min)
1.0000
Auto scan delay (max)
255.0000
Rack capacity
1U
Maximum resolution
1920 x 1200
Operating relative humidity (H-H)
0 - 80
Hot-Plug support
Yes
Daisy chain
Yes
LED indicators
Yes
Push button
Yes
KVM switch ports quantity
16
Built-in KVM switch
Yes
On/off switch
Yes
Material
Metal, Plastic
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Power consumption (typical)
26.8000
AC (power) in
Yes
Input current
1 A
Weight & dimensions
Depth
480 mm
Width
680.4 mm
Height
44 mm
Weight
14760 g
SKU:
1790188
