Aten CL3884NW-ATA-GG 4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch with German keyboard
Part number:
CL3884NW-ATA-GG
EAN:
4710469344190
Payment methods
Delivery methods

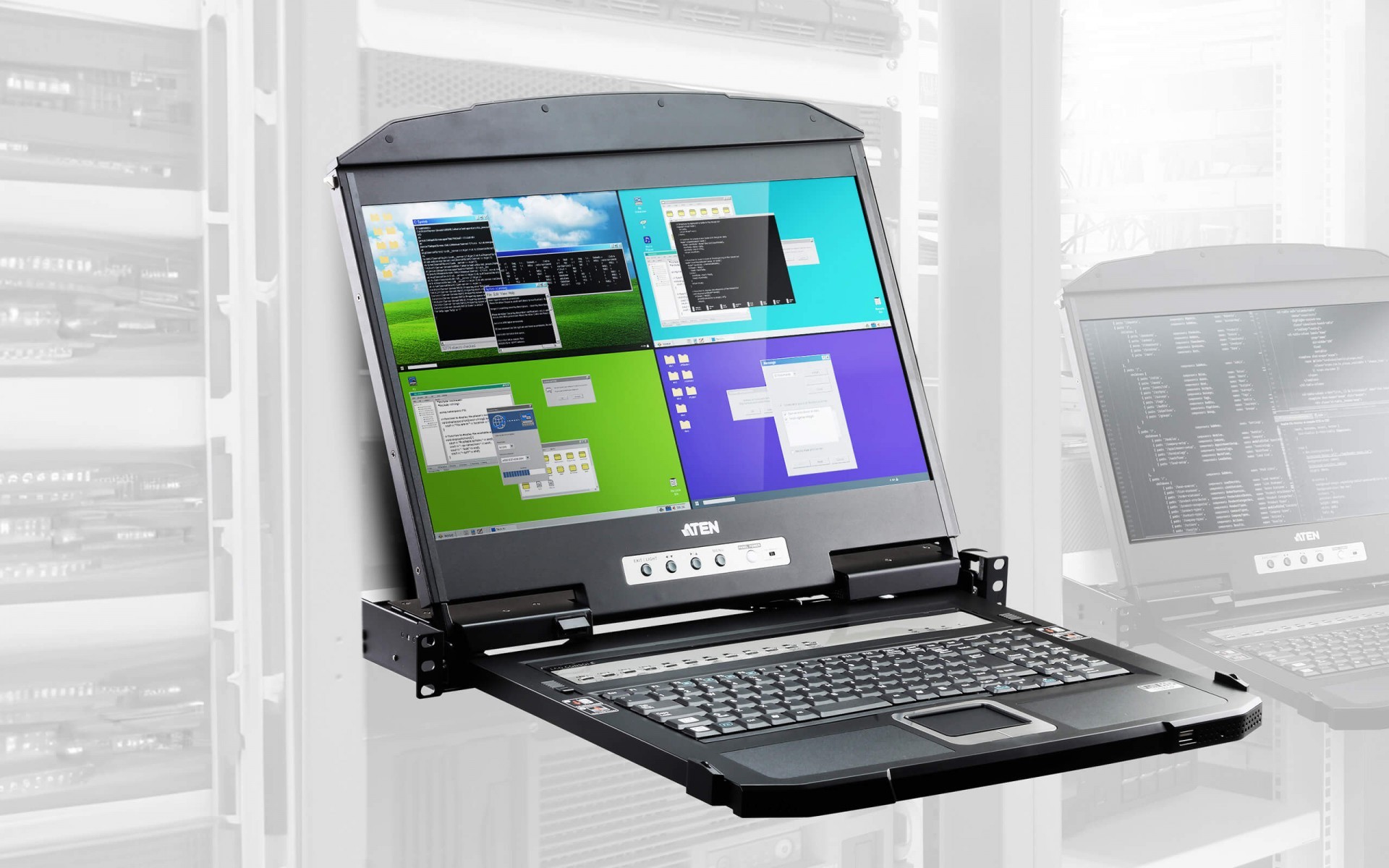

> Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)

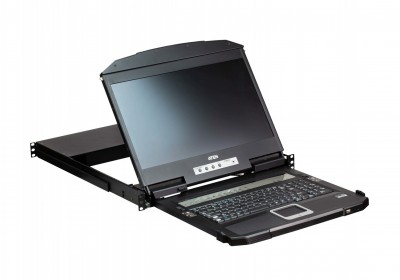

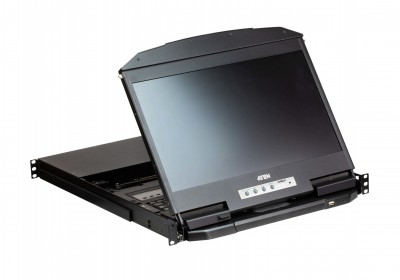

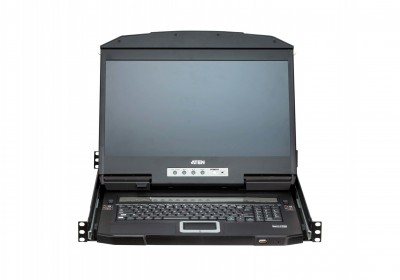

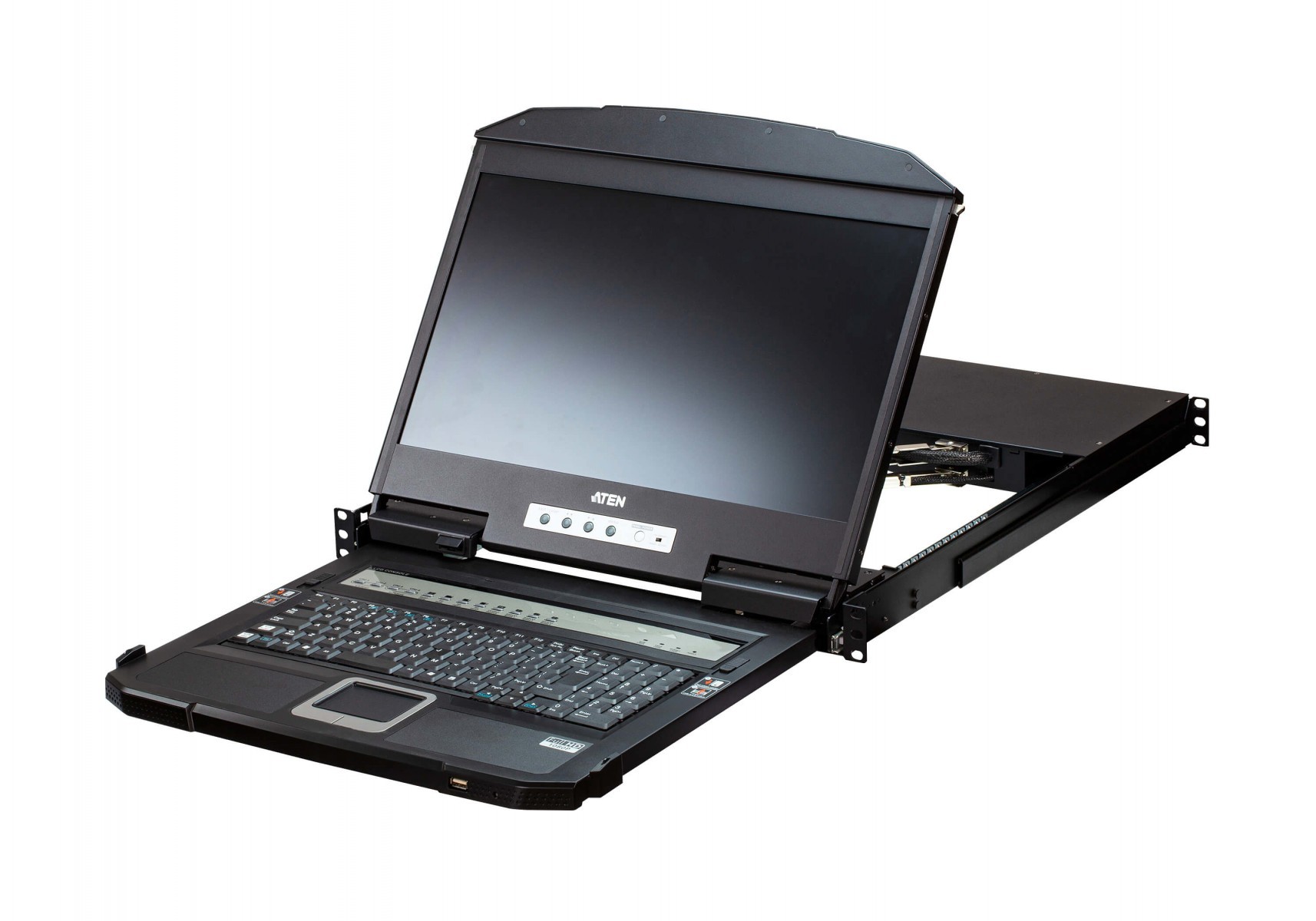

> Integrated KVM console with an 18.5” LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
> Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
> Superior video quality – 1920 x 1200 @ 60Hz
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
ATEN CL3884NW. Display diagonal: 47 cm (18.5"), Display resolution: 1920 x 1080 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. Keyboard language: German, Keyboard layout: QWERTZ. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Other operating systems supported: SunOS
Multimedia
Leaflets:
Manual (PDF):
Specifications
Display
Response time
20 ms
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Display diagonal
18.5 in
Contrast ratio (typical)
1000:1
Pixel pitch
0,213 x 0,213
Supported resolutions
1920 x 1200 @ 60 Hz
On Screen Display (OSD)
Yes
Display
LCD
Display type
TFT
Display resolution
1920 x 1080
Display brightness
350 CDM2

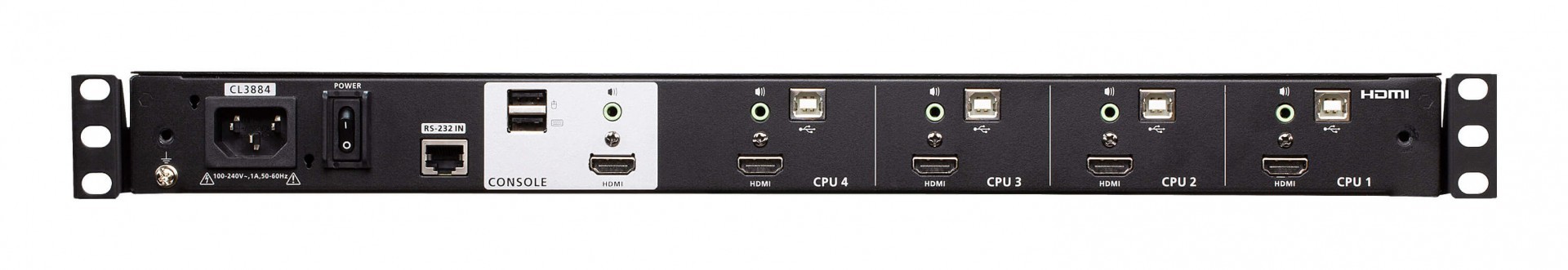

Ports & interfaces
I/O ports
5x HDMI
USB 2.0 Type-B ports quantity
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
RJ-45 ports quantity
1
3.5 mm (1/8-inch) in
Yes
3.5 mm (1/8-inch) out
Yes
USB 2.0 Type-A ports quantity
3
Keyboard
Keyboard layout
QWERTZ
Built-in touchpad
Yes
Keyboard language
German
Hot keys
Yes
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Other operating systems supported
SunOS
Operational conditions
Storage temperature (T-T)
-20 - 60
Operating temperature (T-T)
0 - 40
Packaging content
Rack mount kit
Yes
Cables included
AC, KVM
Quick installation guide
Yes
Manual
Yes
Package type
Box
Technical details
Rack mounting
Yes
Product colour
Black
Compliance certificates
RoHS
Number of computers controlled
4
Auto scan delay (min)
5.0000
Auto scan delay (max)
90.0000
Rack capacity
1U
Maximum resolution
1920 x 1200
Operating relative humidity (H-H)
0 - 80
Hot-Plug support
Yes
LED indicators
Yes
Plug and Play
Yes
On/off switch
Yes
Push button
Yes
Built-in KVM switch
Yes
Material
Metal
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
AC (power) in
Yes
Input current
1 A
Weight & dimensions
Depth
480.6 mm
Width
631 mm
Height
42.8 mm
Weight
1120 g
