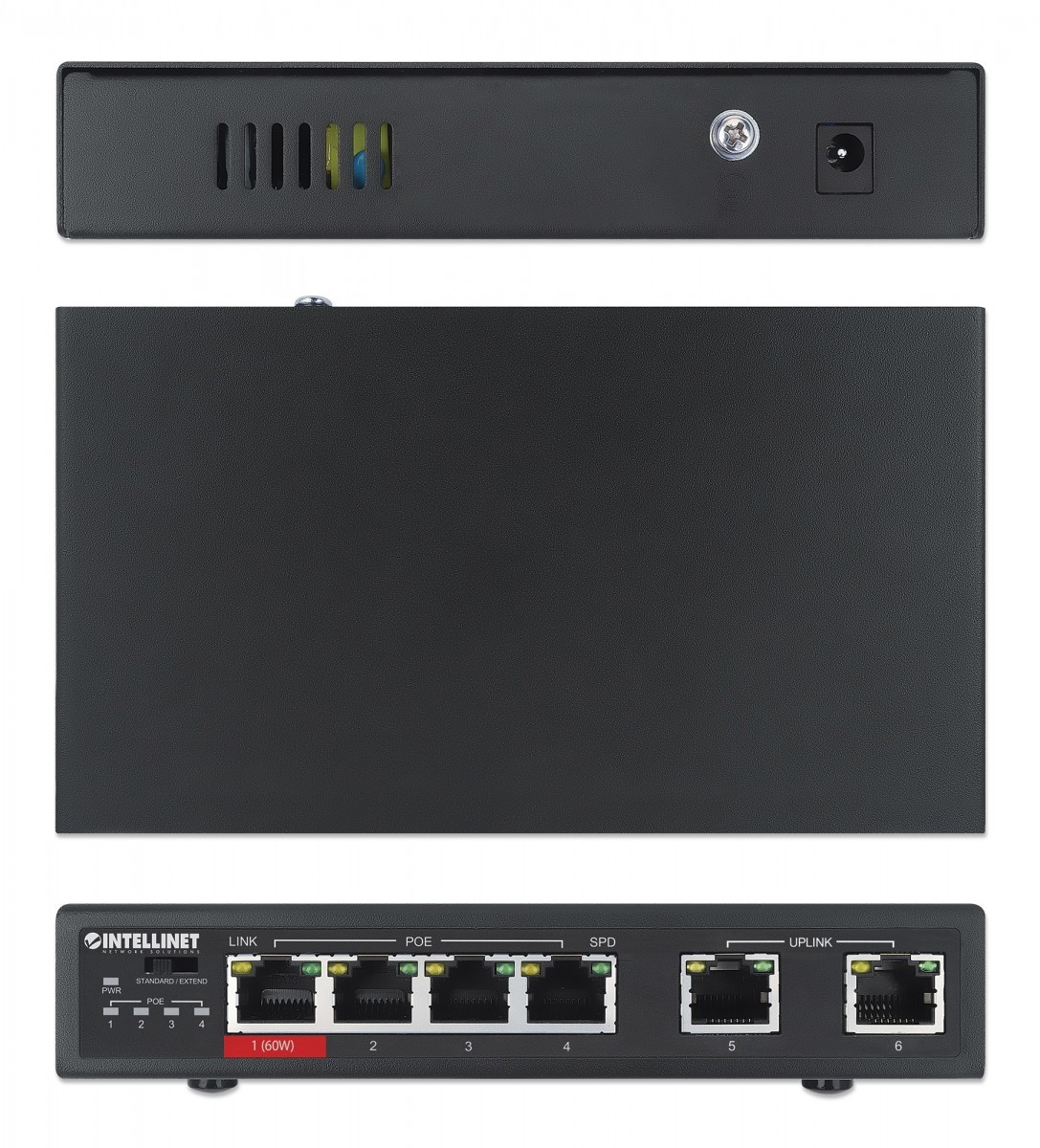

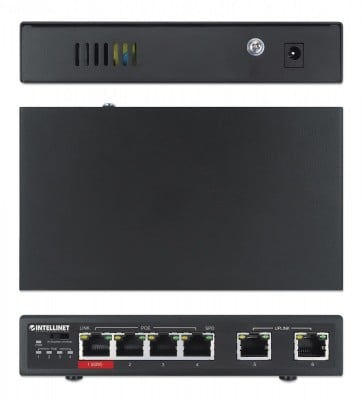

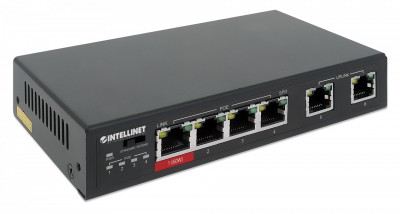

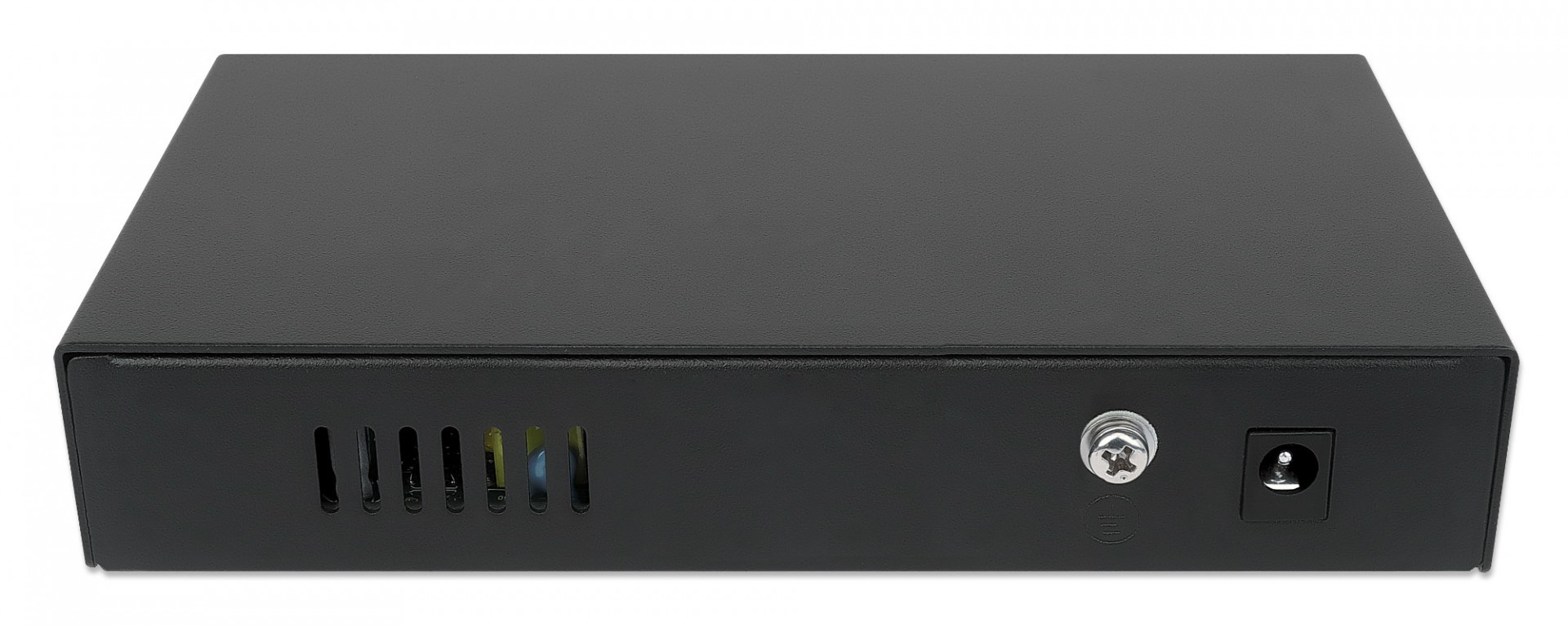

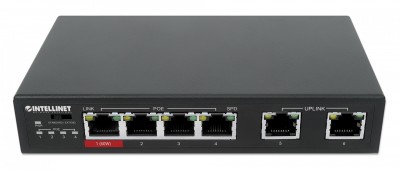

INTELLINET 6-Port Fast Ethernet Switch 4 PoE-Ports

> Provides up to four PoE network devices with power and data

> Manual PoE extend mode (reduces network speed and extends PoE support to 250 m/820 ft.)

> PoE extend mode ideal for IP camera installations

> One high-power PSE PoE Port with power up to 60 W, three IEEE 802.3at/af PSE PoE Ports with up to 30 W each

> PoE power budget of 65 watts

> Two RJ45 Fast Ethernet uplink ports

> On/off switch to toggle VLAN

> Saves time and money by delivering data and power via existing network cables

> Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)

> Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection

> Grounding point to protect equipment from external electrical surges

> 10/100 auto-sensing ports automatically detect optimal network speeds

> Switch fabric of 1.2 Gbps

> Supports 1k MAC address entries with Auto-Learning and Auto-Aging

> Store and forward switching architecture

> Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex

> LEDs for power, link/activity and PoE

> Fanless design ideal for silent operation

> Fully NDAA-compliant
