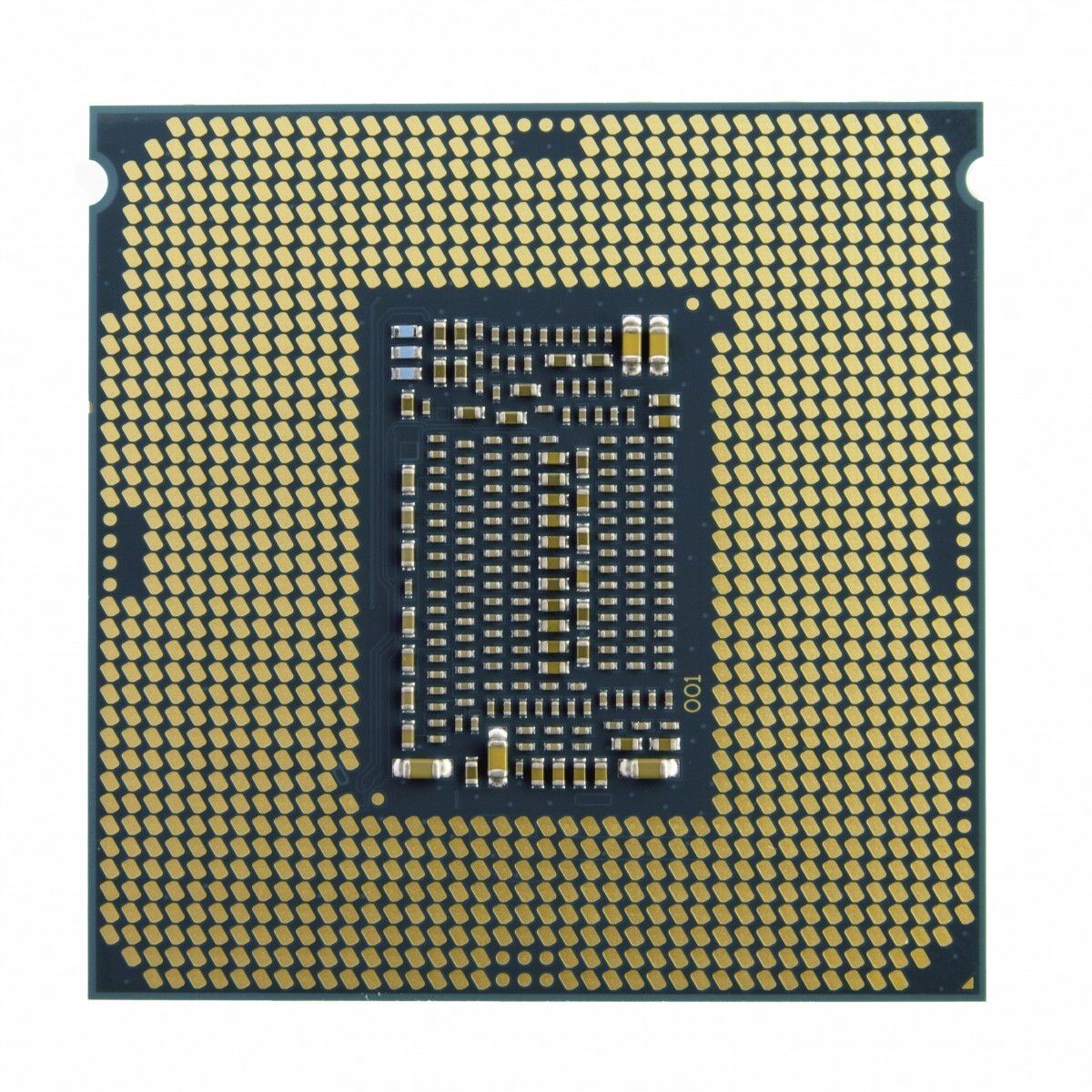

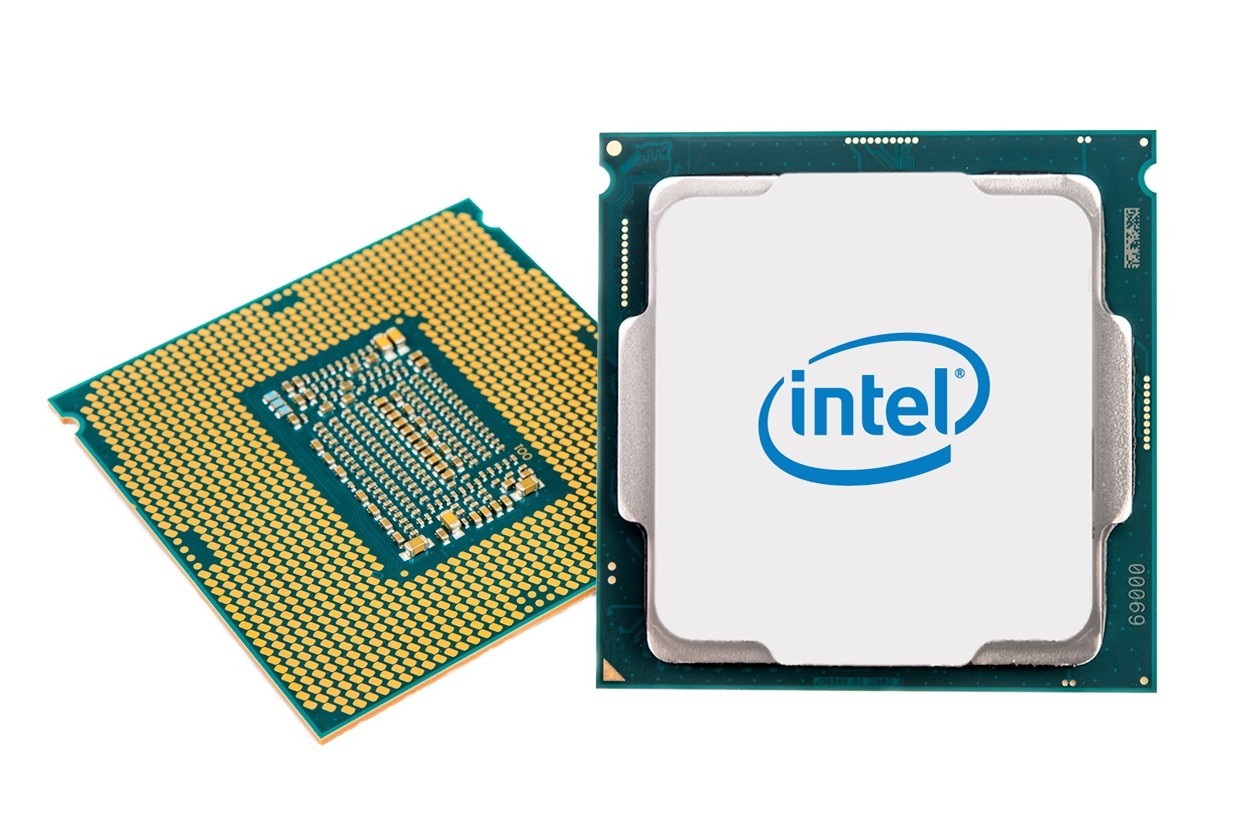

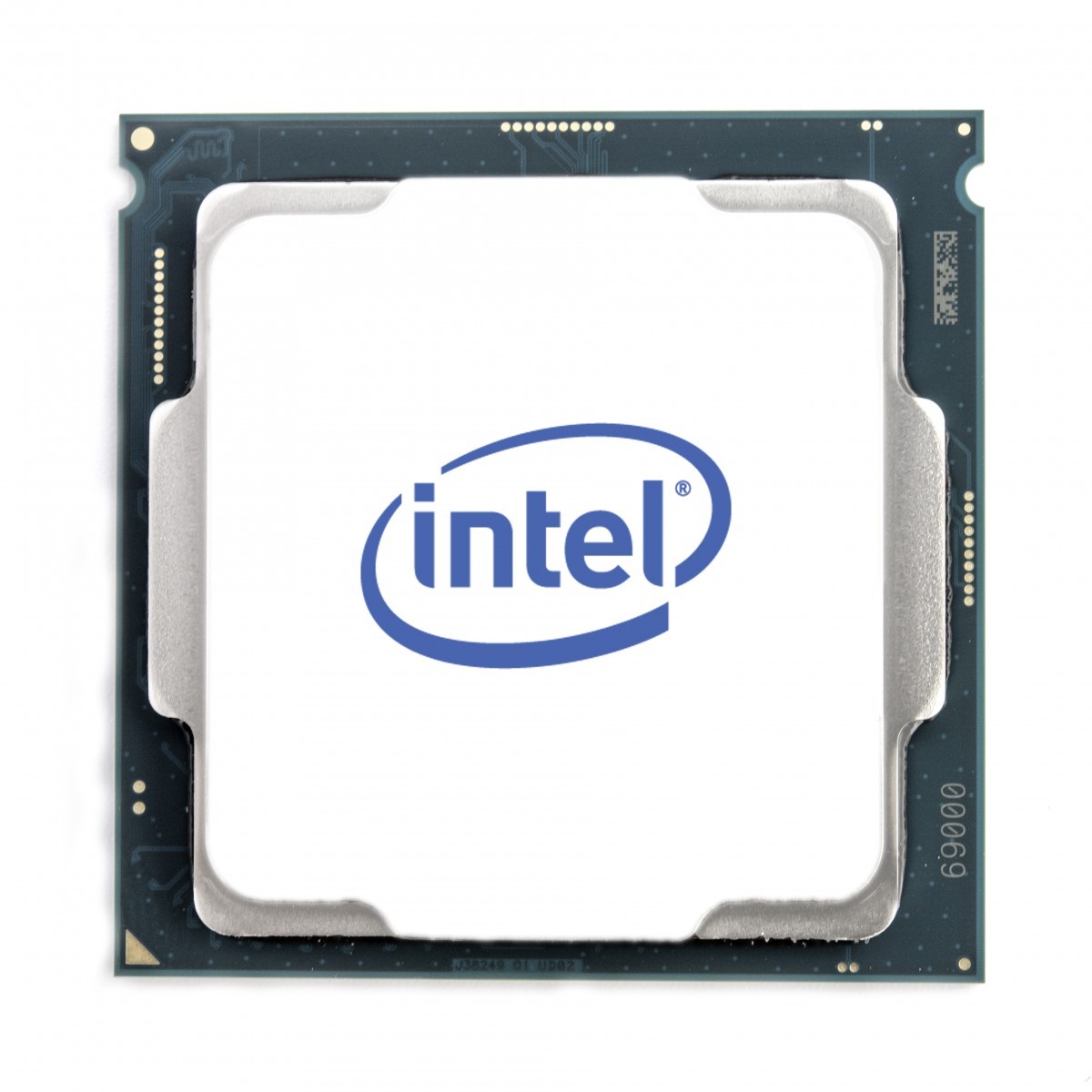

Intel Xeon E-2236 3.4GHz 12M cache 6C, 12T turbo (80W) CK
Part number:
338-BUIT
EAN:
5397184657614
Please contact us by phone or e-mail in order to determine the details.
Payment methods
Delivery methods
> Intel Xeon E E-2236 3.4 GHz
> 12 MB Smart Cache LGA 1151 (Socket H4)
> Processor cores: 6 14 nm 64-bit 80 W
> Maximum internal memory supported by processor: 128 GB DDR4-SDRAM
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
DELL Xeon E-2236. Processor family: Intel Xeon E, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4.8 GHz. Package width: 70 mm, Package depth: 116 mm, Package height: 101 mm
Specifications
Processor
Processor manufacturer
Intel
Processor base frequency
3.4 GHz
Processor socket
LGA 1151 (Socket H4)
Component for
Server/workstation
Processor family
Intel Xeon E
Processor lithography
14 nm
Processor threads
12
Processor model
E-2236
Processor operating modes
64-bit
Processor cache
12 MB
Processor boost frequency
4.8 GHz
System bus rate
8 GT/s
Processor cache type
Smart Cache
Cooler included
No
Thermal Design Power (TDP)
80.0000
Package type
Box, Tray
Processor codename
Coffee Lake
Processor ARK ID
191040
Processor cores
6
Box
No
Memory
ECC
Yes
Memory channels
Dual-channel
Maximum internal memory supported by processor
128 GB
Memory clock speeds supported by processor
2666
Memory types supported by processor
DDR4-SDRAM
Processor special features
Intel Trusted Execution Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® InTru™ 3D Technology
No
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Enhanced Intel SpeedStep Technology
Yes
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Quick Sync Video Technology
No
Intel® Turbo Boost Technology 2.0 frequency
4.8 GHz
Intel® Transactional Synchronization Extensions
Yes
Intel® OS Guard
Yes
Intel® Boot Guard
Yes
Intel Clear Video Technology
No
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel 64
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel TSX-NI
Yes
Intel® vPro™ Platform Eligibility
Yes
Intel® Optane™ Memory Ready
Yes
Graphics
Discrete graphics card model
Not available
On-board graphics card model
Not available
On-board graphics card
No
On-board graphics card 4K support
No
Discrete graphics card
No
Features
PCI Express CEM revision
3.0
Idle States
Yes
Thermal Monitoring Technologies
Yes
Execute Disable Bit
Yes
Maximum number of PCI Express lanes
16
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
PCI Express slots version
3.0
CPU configuration (max)
1
Commodity Classification Automated Tracking System (CCATS)
G077159
Export Control Classification Number (ECCN)
5A992C
Scalability
1S
Market segment
Server
PCI Express configurations
1x16, 1x8+2x4, 2x8
Embedded options available
No
Packaging data
Package width
70 mm
Package depth
116 mm
Package height
101 mm
Package type
Retail box
Package weight
316 g
Operational conditions
Tjunction
100 °C
Tcase
73 °C
Technical details
Supported memory types
DDR4-SDRAM
Product type
Processor
Bus speed
8 GT/s
Maximum memory
128 GB
Processor ID
N/A
Maximum resolution & refresh rate (DisplayPort)
N/A
Launch date
Q2'19
Status
Launched
Weight & dimensions
Processor package size
37.5mm x 37.5mm
Other features
Graphics output
N/A
Maximum internal memory
128 GB
Logistics data
Harmonized System (HS) code
85423119
