iiyama ProLite T1732MSC-B5X Touch Screen Monitor 43.2 cm (17

iiyama ProLite T1732MSC-B5X Touch Screen Monitor 43.2 cm (17") 1280 x 1024 pixels Multi-Touch Black (T1732MSC-B5X)

iiyama ProLite T1731SR-B5 touch screen monitor 43.2 cm (17") 1280 x 1024 pixels Single-touch Black (T1731SR-B5)

Mfg. SKU: T1731SR-B5

SKU: 1045859

EAN: 4948570116010

General
Display diagonal
43.2 cm
Display brightness
200 cd/m²
Display technology
TN
Product colour
Black
International Protection (IP) code
IP54
Touch technology
Single-touch
Touchscreen technology
Resistive
RMS rated power
2 W
Tilt angle range
-5 - 90 °
Panel mounting interface
100 x 100 mm
Cable lock slot
Y
Cable lock slot type
Kensington
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
13 kWh
Power supply type
AC
£370.25 £308.54
Availability: On request

iiyama ProLite T1731SR-B5 touch screen monitor 43.2 cm (17") 1280 x 1024 pixels Single-touch Black

Single-touch Black

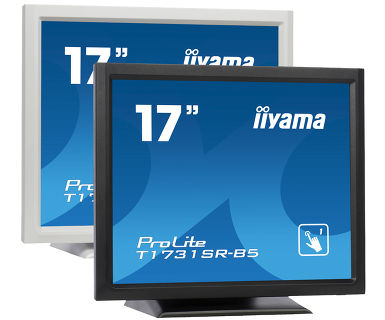

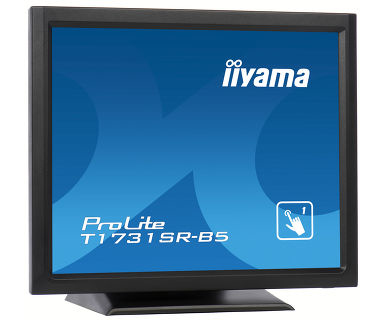

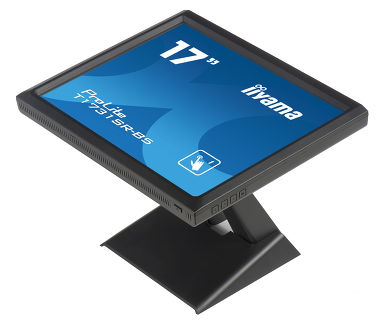

ProLite T1731SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.

iiyama T1731SR-B5
iiyama T1731SR-B5
iiyama T1731SR-B5
iiyama T1731SR-B5
Display
Display diagonal
43.2 cm
Display brightness
200 cd/m²
Display resolution
1280 x 1024 pixels
Display technology
TN
Native aspect ratio
5:4
Aspect ratio
5:4
Anti-glare surface
Y
Response time
5 ms
Contrast ratio (typical)
1000:1
Pixel pitch
0.264 x 0.264 mm
Horizontal scan range
31 - 80 kHz
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
170 °
Viewing angle, vertical
160 °
Display viewable area (HxV)
338 x 270 mm
Separate H/V sync
Y
Display diagonal (metric)
43 cm
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27 cm
Display number of colours
16.78 million colours
Performance
Touch technology
Single-touch
Touchscreen technology
Resistive
Number of simultaneous touchpoints
1
Built-in speaker(s)
Y
RMS rated power
2 W
Number of speakers
2
Built-in camera
N
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
HDCP
Y
Card reader integrated
N
Windows operating systems supported
Y
Linux operating systems supported
Y
Plug and Play
Y
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
13 kWh
Power supply type
AC
Power consumption (typical)
20 W
Power consumption (standby)
2 W
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Energy efficiency scale
A to G
Certificates
Certification
CB, CE, TÜV-Bauart, VCCI, GOST
Ports & interfaces
HDMI
Y
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
Audio input
1
Design
Product colour
Black
International Protection (IP) code
IP54
Weight & dimensions
Width (without stand)
38.7 cm
Depth (without stand)
20.1 cm
Height (without stand)
34.2 cm
Weight (without stand)
5.8 kg
Other features
Megapixel
1.3 MP
Power management
Y
Full HD
N
Ergonomics
Tilt angle range
-5 - 90 °
Tiltable
Y
Wall mountable
Y
Panel mounting interface
100 x 100 mm
Cable lock slot
Y
LED indicators
Y
VESA mounting
Y
Cable lock slot type
Kensington
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80 %
Storage relative humidity (H-H)
10 - 90 %
Packaging content
Cables included
AC, Audio (3.5mm), DisplayPort, HDMI, USB
Quick start guide
Y
