Intel SSDSC2KG960G801 Internal Solid State Drive 2.5

Intel SSDSC2KG960G801 Internal Solid State Drive 2.5" 960 GB Serial ATA III TLC 3D NAND (SSDSC2KG960G801)

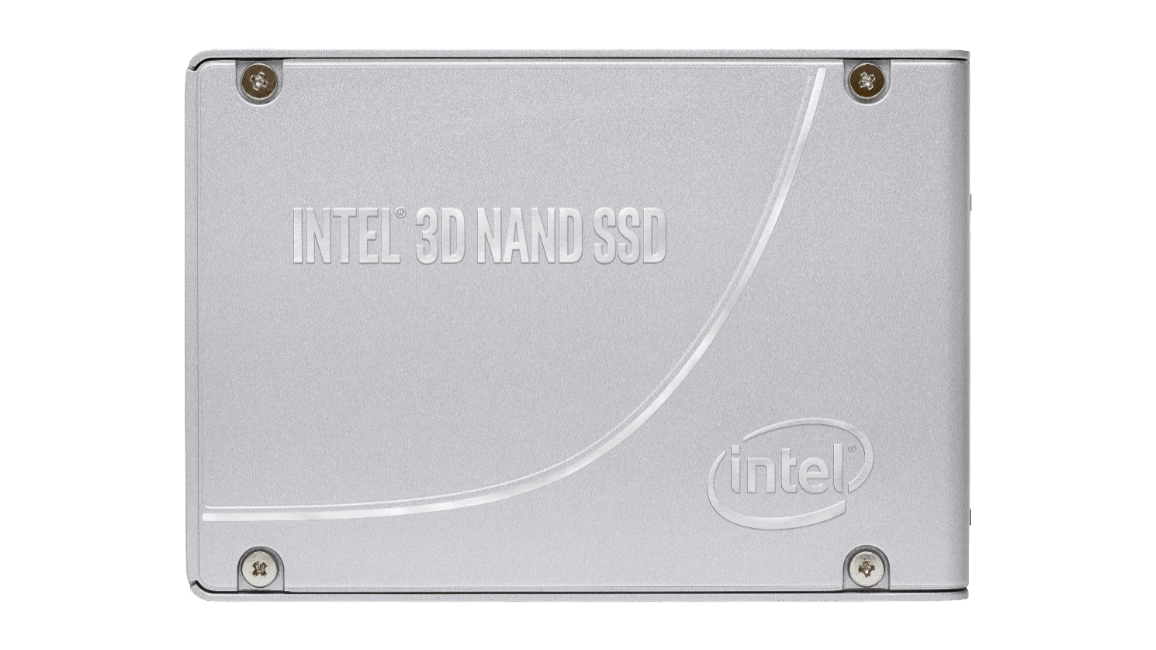

Intel SSDPE2KE032T801 Internal Solid State Drive U.2 3200 GB PCI Express 3.1 TLC 3D NAND NVMe (SSDPE2KE032T801)

Mfg. SKU: SSDPE2KE032T801

SKU: 1049570

EAN: 0735858385404

General
SSD capacity
3200 GB
SSD form factor
U.2
Read speed
3200 MB/s
Write speed
3050 MB/s
Component for
Server/workstation
£875.52 £729.60
Availability: 6 pcs.
Loading...
Delivery date from:
Shipping cost from:

Intel SSDPE2KE032T801 Internal Solid State Drive U.2 3200 GB PCI Express 3.1 TLC 3D NAND NVMe

Intel Internal Solid State Drive

3200GB, U.2, PCI Express 3.1, NVMe, 3D TLC Intel SSDPE2KE032T801. SSD capacity: 3200 GB, SSD form factor: U.2, Read speed: 3200 MB/s, Write speed: 3050 MB/s, Component for: Server/workstation

Intel SSDPE2KE032T801 Internal Solid State Drive U.2 3200 GB PCI Express 3.1 TLC 3D NAND NVMe

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

High Endurance Technology (HET)

High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Intel SSDPE2KE032T801 Internal Solid State Drive U.2 3200 GB PCI Express 3.1 TLC 3D NAND NVMe
Intel SSDPE2KE032T801 Internal Solid State Drive U.2 3200 GB PCI Express 3.1 TLC 3D NAND NVMe
Component for SSD form factor SSD capacity Interface Memory type Read speed Write speed Drive capacity
Server/workstation U.2 3200 GB PCI Express 3.1 TLC 3D NAND 3200 MB/s 3050 MB/s 3200 GB
Features
SSD form factor
U.2
SSD capacity
3200 GB
Interface
PCI Express 3.1
Memory type
TLC 3D NAND
NVMe
Y
NVMe version
3.1
Component for
Server/workstation
Hardware encryption
Y
Security algorithms
256-bit AES
Read speed
3200 MB/s
Write speed
3050 MB/s
Random read (4KB)
638000 IOPS
Random write (4KB)
222000 IOPS
Random read (100% span)
638000 IOPS
Random write (100% span)
222000 IOPS
Read latency
77 µs
Write latency
18 µs
End-to-End Data Protection
Y
Enhanced Power Loss Data Protection technology
Y
SSD temperature monitoring
Y
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read</div></div><div class="ITSr1"><div class="ITSn">Mean time between failures (MTBF)</div><div class="ITSv">2000000 h</div></div><div class="ITSr0"><div class="ITSn">Market segment</div><div class="ITSv">Server</div></div><div class="ITSr1"><div class="ITSn">SSD ARK ID</div><div class="ITSv">140104</div></div><div class="ITSr0"><div class="ITSn">Harmonized System (HS) code</div><div class="ITSv">8523510000</div></div><div class="ITSr1"><div class="ITSn">Export Control Classification Number (ECCN)</div><div class="ITSv">5A992C</div></div><div class="ITSr0"><div class="ITSn">Commodity Classification Automated Tracking System (CCATS)</div><div class="ITSv">G162706</div></div><div class="ITSr1"><div class="ITSn">Temperature monitoring and logging</div><div class="ITSv">Y</div></div><div class="ITSg">Power</div><div class="ITSr0"><div class="ITSn">Power consumption (read)</div><div class="ITSv">14 W</div></div><div class="ITSr1"><div class="ITSn">Power consumption (write)</div><div class="ITSv">14 W</div></div><div class="ITSr0"><div class="ITSn">Power consumption (idle)</div><div class="ITSv">5 W</div></div><div class="ITSg">Operational conditions</div><div class="ITSr0"><div class="ITSn">Operating temperature (T-T)</div><div class="ITSv">0 - 55 °C</div></div><div class="ITSr1"><div class="ITSn">Maximum operating temperature</div><div class="ITSv">55 °C</div></div><div class="ITSr0"><div class="ITSn">Operating vibration</div><div class="ITSv">2.17 G</div></div><div class="ITSr1"><div class="ITSn">Non-operating vibration</div><div class="ITSv">3.13 G</div></div><div class="ITSr0"><div class="ITSn">Operating shock</div><div class="ITSv">1000 G</div></div><div class="ITSr1"><div class="ITSn">Non-operating shock</div><div class="ITSv">100 G</div></div><div class="ITSr0"><div class="ITSn">Operating / non-operating shock</div><div class="ITSv">1000G (0.5ms)</div></div><div class="ITSg">Weight & dimensions</div><div class="ITSr0"><div class="ITSn">Width</div><div class="ITSv">15 mm</div></div><div class="ITSr1"><div class="ITSn">Weight</div><div class="ITSv">139 g</div></div><div class="ITSg">Brand-specific features</div><div class="ITSr0"><div class="ITSn">Intel High Endurance Technology (HET)</div><div class="ITSv">Y</div></div><div class="ITSr1"><div class="ITSn">Intel® Rapid Start Technology</div><div class="ITSv">N</div></div><div class="ITSr0"><div class="ITSn">Intel® Remote Secure Erase</div><div class="ITSv">N</div></div><div class="ITSr1"><div class="ITSn">Intel® Smart Response Technology</div><div class="ITSv">N</div></div><div class="ITSg">Other features</div><div class="ITSr0"><div class="ITSn">Power consumption (active)</div><div class="ITSv">14 W</div></div><div class="ITSr1"><div class="ITSn">Drive capacity</div><div class="ITSv">3200 GB</div></div><div class="ITSr0"><div class="ITSn">Launch date</div><div class="ITSv">Q2'18</div></div><div class="ITSr1"><div class="ITSn">SSD endurance rating</div><div class="ITSv">21.85PBW</div></div><div class="ITSr0"><div class="ITSn">SSD hardware encryption</div><div class="ITSv">AES 256 bit</div></div><div class="ITSr1"><div class="ITSn">SSD power consumption (active)</div><div class="ITSv">14W</div></div><div class="ITSr0"><div class="ITSn">SSD power consumption (idle)</div><div class="ITSv">5W</div></div><div class="ITSr1"><div class="ITSn">SSD shock</div><div class="ITSv">1000G (0.5ms)</div></div><div class="ITSr0"><div class="ITSn">SSD weight</div><div class="ITSv">139 g</div></div><div class="ITSr1"><div class="ITSn">Sequential reading</div><div class="ITSv">3200 MB/s</div></div><div class="ITSr0"><div class="ITSn">Sequential writing speed</div><div class="ITSv">3050 MB/s</div></div><div class="ITSr1"><div class="ITSn">Status</div><div class="ITSv">Launched</div></div><div class="ITSr0"><div class="ITSn">Last change</div><div class="ITSv">63903513</div></div><div class="ITSr1"><div class="ITSn">Product family</div><div class="ITSv">Data center SSD</div></div><div class="ITSr0"><div class="ITSn">Product series</div><div class="ITSv">Intel® SSD DC P4610 Series</div></div><div class="ITSr1"><div class="ITSn">Product codename</div><div class="ITSv">Cliffdale Refresh</div></div></div>
