Cisco SG550X-48MP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey (SG550X-48MP-K9-EU)

Mfg. SKU: SG550X-48MP-K9-EU

SKU: 1042249

EAN: 0882658808234

General
Switch type
Managed
Switch layer
L3
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
Installed SFP+ modules quantity
2
Console port
RJ-45
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Power over Ethernet (PoE)
Y
Rack mounting
Y
Form factor
1U
£3,418.73 £2,848.94
Availability: 1 pc.
Loading...
Delivery date from:
Shipping cost from:

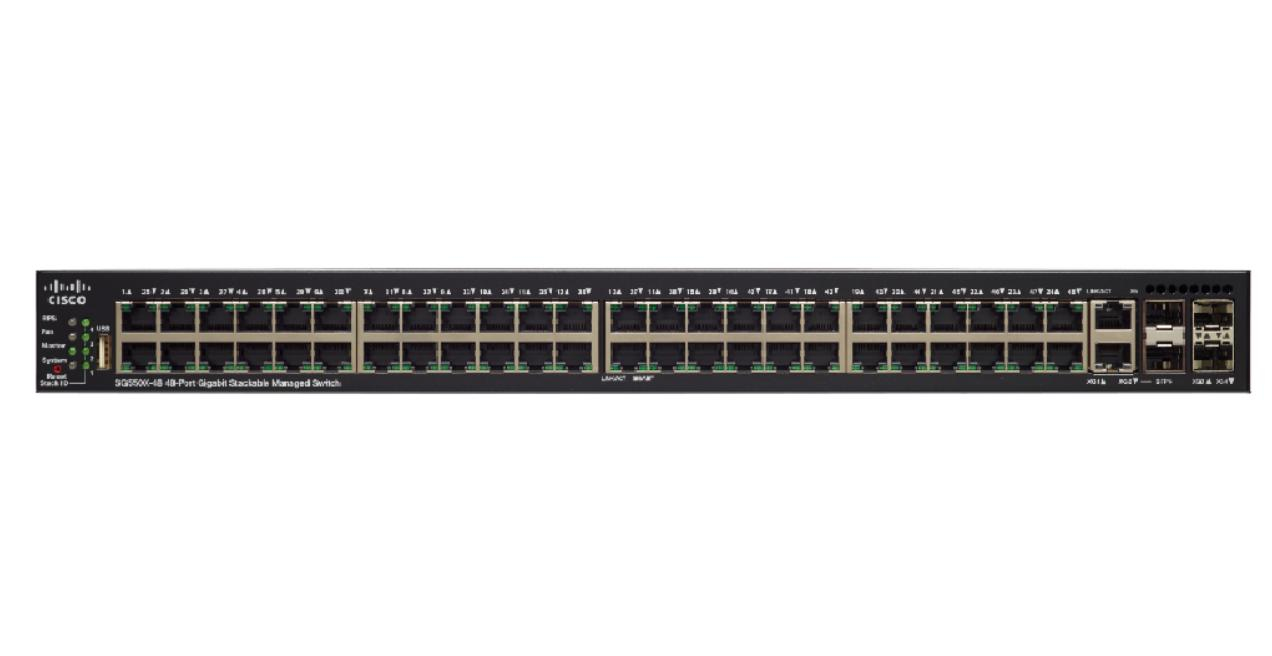

Cisco SG550X-48MP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey

The Cisco® 550X Series

The Cisco® 550X Series are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SX550X models provide 12, 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future and receive credit for your Cisco 550X Series switch. Overall, the Cisco 550X Series provides the ideal technology foundation for a growing business.

Cisco SG550X-48MP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey

Key Product Points

Cisco 550X Series switches provide the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits:

  1. High-performance 10 Gigabit Ethernet
  2. High reliability and resiliency
  3. Power over Ethernet Plus (PoE+) and 60W PoE
  4. Power efficiency
  5. Advanced stacking
  6. Easy deployment and use
  7. Simplified IT operation
  8. Strong security
  9. Advanced Layer 3 traffic management
  10. IPv6 support
  11. Networkwide automatic voice deployment
  12. Peace of mind and investment protection

Additional Product Notes

  1. Conserve power consumption and costs
  2. Enhance network security
  3. Increase network uptime with redundant fans and power
  4. Simplify operations with rich capabilities
Networking standards Management protocols Basic switching RJ-45 Ethernet ports type Switch type Switch layer Switching capacity Internal memory Flash memory DHCP features
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI Gigabit Ethernet (10/100/1000) Managed L3 176 Gbit/s 512 MB 256 MB DHCP server
Design
Rack mounting
Y
Stackable
Y
Form factor
1U
Product colour
Black, Grey
Reset button
Y
LED indicators
Y
Certification
UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Y
Web-based management
Y
ARP inspection
Y
System event log
N
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
48
Installed SFP+ modules quantity
2
Console port
RJ-45
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) power per port
60 W
Total Power over Ethernet (PoE) budget
740 W
Data transmission
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Forwarding rate
130.94 Mpps
Number of queues
8
Number of static routes
7000
Number of IP interfaces
256
Jumbo frames support
Y
Jumbo frames
9000
Packet buffer memory
3 MB
Protocols
Management protocols
SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Network
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
Y
Cable types supported
Cat5,Cat5e,Cat6a
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
Cable length detection
Y
VLAN support
Y
Virtual LAN features
Stacked VLAN,Private VLAN,Tagged VLAN,Port-based VLAN
Number of VLANs
4094
Power
Power supply included
Y
Redundant power supply (RPS) support
Y
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (max)
893.1 W
Performance
Physical stacking (units)
8
Built-in processor
Y
Processor frequency
800 MHz
Internal memory
512 MB
Flash memory
256 MB
Compatible operating systems
Microsoft Windows, Linux, Mac OS X
Firmware upgradeable
Y
Mean time between failures (MTBF)
163264 h
Multicast features
Multicast support
Y
Security
DHCP features
DHCP server
Access Control List (ACL)
Y
IGMP snooping
Y
Security algorithms
802.1x RADIUS,HTTPS,SSH,SSL/TLS
SSH/SSL support
Y
Loop protection
Y
BPDU filtering/protection
Y
IP-MAC-Port binding
Y
Authentication
Guest VLAN, Port-based authentication
Packaging data
Cables included
AC, Serial
Quick start guide
Y
Rack mount kit
Y
Resource CD
Y
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
3047.38 BTU/h
Weight & dimensions
Width
440 mm
Depth
450 mm
Height
44 mm
Weight
6.69 kg
