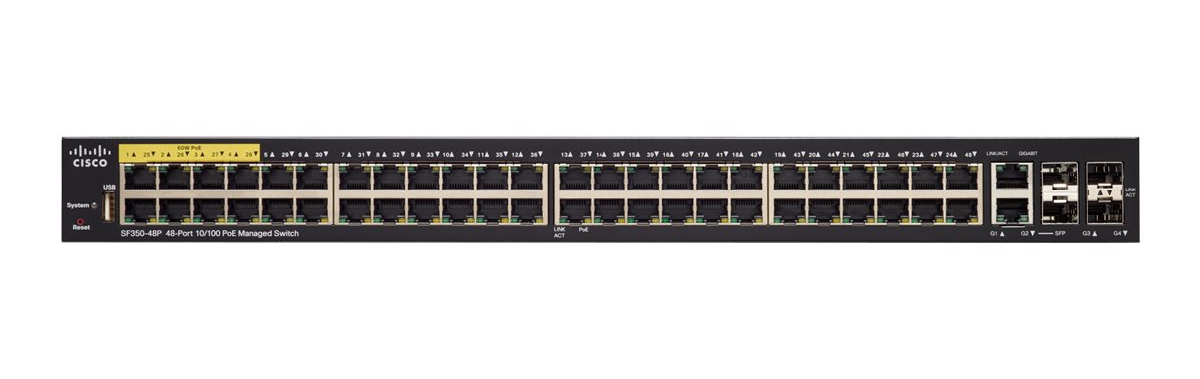

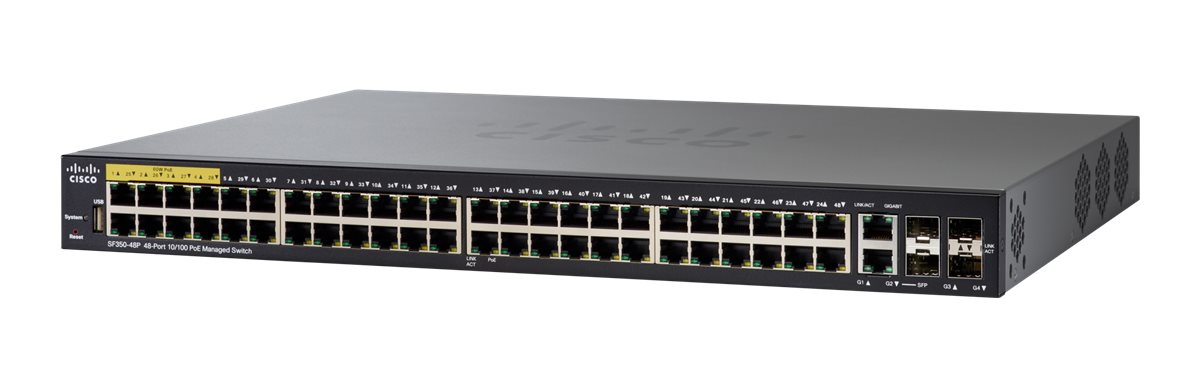

Cisco SF350-48P Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Black (SF350-48P-K9-EU)

Mfg. SKU: SF350-48P-K9-EU

SKU: 1051315

EAN: 0882658766466

General
Switch type
Managed
Switch layer
L2/L3
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
48
MAC address table
16384 entries
Switching capacity
17.6 Gbit/s
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Power over Ethernet (PoE)
Y
£1,138.50 £948.75
Availability: On request

Cisco SF350-48P, Managed, L2/L3, Fast Ethernet (10/100), Power over Ethernet (PoE)

The Cisco SF350-48P Switch is part of the Cisco Small Business line of network solutions and a portfolio of affordable managed switches that provides a reliable foundation for your business network. This switch delivers the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively.

Easy to set up and use, it provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.

Cisco SF350-48P Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

ETHERNET PORT CONFIGURATION

48-port 10/100M, 4 x 1G uplinks.

POWER OVER ETHERNET

24 PoE ports with 382W total power budget.

CONFIGURATION & CONTROL

Easy-to-use GUI interface and CLI, FindIT, PnP, Auto Smartports.

L2+/L3 FEATURES

Static routing, VLANs, QoS, Voice/Guest VLAN, GVRP, MSTP, and IGMP Snooping.

PEACE OF MIND

Limited lifetime warranty and next-business day advanced replacement.

Product Features

  1. Secure desktop connectivity
  2. Secure wireless connectivity
  3. Unified communications
  4. Highly secure guest connectivity
Cisco SF350-48P Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Y
Web-based management
Y
Traffic classification
Y
Traffic shaping
Y
ARP inspection
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity
2
SFP module slots quantity
2
Fiber optic connector
SFP
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
48
Total Power over Ethernet (PoE) budget
382 W
Data transmission
MAC address table
16384 entries
Switching capacity
17.6 Gbit/s
Throughput
13.09 Mpps
Number of queues
8
Number of static routes
512
Number of IP interfaces
128
Jumbo frames support
Y
Jumbo frames
9216
Packet buffer memory
3 MB
Network
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Port mirroring
Y
IP routing
Y
Routing entries
512
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
Active link detection
Y
Cable length detection
Y
VLAN support
Y
Virtual LAN features
Private VLAN,Port-based VLAN
Number of VLANs
4094
Power
Power supply included
Y
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
52.1 W
Optical fiber
Fiber ethernet cabling technology
1000BASE-LH,1000BASE-SX
Multicast features
Multicast support
Y
Number of multicast groups filtered
1000
Design
Product colour
Black
Reset button
Y
LED indicators
Activity, Link, Speed, System
DIN rail mounting
Y
Number of fans
3 fan(s)
Security
DHCP features
DHCP server,DHCP snooping,DHCP client
Access Control List (ACL)
Y
Access Control List (ACL) rules
512
IGMP snooping
Y
Security algorithms
802.1x RADIUS,HTTPS,MD5,SNMP,SSH
Static port security
Y
SSH/SSL support
Y
BPDU filtering/protection
Y
IP-MAC-Port binding
Y
Authentication
Port-based authentication
Packaging data
Cables included
AC
Quick start guide
Y
AC adapter included
Y
Mounting brackets included
Y
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
409.96 BTU/h
Weight & dimensions
Width
440 mm
Depth
350 mm
Height
44 mm
Weight
5.59 kg
Performance
Internal memory
512 MB
Flash memory
256 MB
Noise level
55 dB
Firmware upgradeable
Y
Mean time between failures (MTBF)
182270 h
