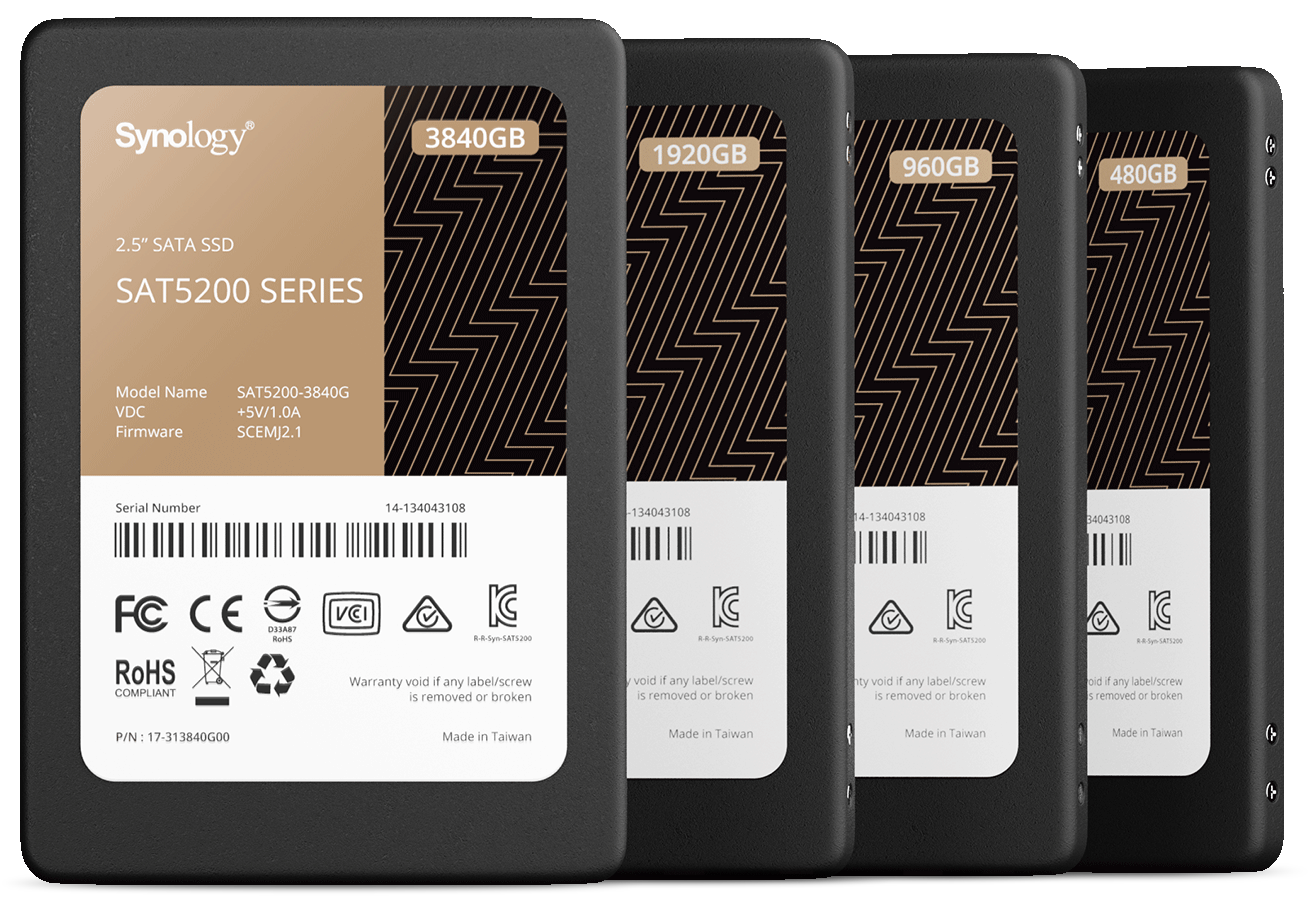

Synology SSD SAT5200-3840G 2.5" 3840 GB Serial ATA III (SAT5200-3840G)

Mfg. SKU: SAT5200-3840G

SKU: 1624982

EAN: 4711174724093

General
SSD capacity
3840 GB
SSD form factor
2.5"
Read speed
530 MB/s
Write speed
500 MB/s
Component for
PC/notebook
£1,004.81 £837.34
Availability: 6 pcs.
Loading...
Delivery date from:
Shipping cost from:

Synology SSD SAT5200-3840G 2.5" 3840 GB Serial ATA III

Synology SSD

Synology SAT5200 offers stable I/O performance while reducing the latency of critical services and applications. It is built to handle mixed and intensive I/O workloads without compromising on endurance, providing a streamlined storage experience on Synology systems and minimizing service disruption. The SAT5200 series comes with advanced lifetime analytics and is backed by Synology 5-year limited warranty.

Synology SSD SAT5200-3840G 2.5

Stable High Performance for Demanding Workloads

Engineered for demanding workloads such as multimedia postproduction, online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 improves the performance and responsiveness of I/O intensive applications. It allows firms to modernize their existing storage infrastructure and boost performance at a competitive per-unit cost. At up to 67,000 4K random write IOPS1, the SAT5200 series delivers stable, consistent performance, and twice the IOPS of name brand SSD.

Enterprise-Grade Endurance and Data Protection

At up to 9,162 TBW2 when handling 24/7 enterprise workloads, Synology SAT5200 provides 1.3 DWPD within the 5-year warranty.3 It can withstand intensive and mixed workloads in all-flash storage and cache applications. The SAT5200 series supports end-to-end data protection to safeguard data integrity over the entire transfer path. Power loss protection circuit design prevents data corruption. Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.

Lifetime Analytics Based on Your Workload

Full integration with Synology’s DiskStation Manager (DSM) operating system allows Synology systems to provide lifetime analytics based on actual workloads for each SAT5200 unit. Timely notifications allow you to plan further ahead for uninterrupted system performance and longevity. Easy monitoring allows you to make optimal use of each SSD.

Purpose-Built for Synology Systems

Firmware versions and component changes can over time cause SSD compatibility issues. Synology SAT5200 is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling and temperature trials ensure that all products meet our strictest standards for quality and reliability.

Synology SSD SAT5200-3840G 2.5
Synology SSD SAT5200-3840G 2.5

Additional Product Notes

  1. Delivers stable performance of over 60,000 4K random write IOPS for demanding I/O1
  2. Suitable for intensive and mixed storage workloads with 1.3 DWPD2
  3. End-to-end data protection and power loss protection prevent data corruption
  4. Actionable insight helps make optimal use of SAT5200 SSD performance and longevity
  5. Proven interoperability with Synology systems through rigorous validation
  6. Synology SAT5200 delivers twice the IOPS and much more stable performance when compared with name brand SSD.
  7. SAT5200’s full integration with Synology DSM allows for SSD remaining lifetime analytics based on each unit's actual workload.
Sequential read (128 KB, QD32)1 Sequential write (128 KB, QD32)1 Capacity Form facto Interface
530 MB/s 500 MB/s 3.84 TB 2.5" 7mm SATA 6 Gb/s
Features
SSD form factor
2.5"
SSD capacity
3840 GB
Interface
Serial ATA III
NVMe
N
Component for
PC/notebook
Read speed
530 MB/s
Write speed
500 MB/s
Random read (4KB)
98000 IOPS
Random write (4KB)
58000 IOPS
End-to-End Data Protection
Y
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read</div></div><div class="ITSr1"><div class="ITSn">Mean time between failures (MTBF)</div><div class="ITSv">1500000 h</div></div><div class="ITSr0"><div class="ITSn">TBW rating</div><div class="ITSv">9.162</div></div><div class="ITSr1"><div class="ITSn">Certification</div><div class="ITSv">FCC CE EAC BSMI VCCI RCM KC RoHS</div></div><div class="ITSg">Power</div><div class="ITSr0"><div class="ITSn">Operating voltage</div><div class="ITSv">5 V</div></div><div class="ITSr1"><div class="ITSn">Power consumption (read)</div><div class="ITSv">3.6 W</div></div><div class="ITSr0"><div class="ITSn">Power consumption (write)</div><div class="ITSv">6.2 W</div></div><div class="ITSr1"><div class="ITSn">Power consumption (standby)</div><div class="ITSv">1.9 W</div></div><div class="ITSg">Operational conditions</div><div class="ITSr0"><div class="ITSn">Operating temperature (T-T)</div><div class="ITSv">0 - 70 °C</div></div><div class="ITSr1"><div class="ITSn">Storage temperature (T-T)</div><div class="ITSv">-40 - 85 °C</div></div><div class="ITSg">Weight & dimensions</div><div class="ITSr0"><div class="ITSn">Width</div><div class="ITSv">69.8 mm</div></div><div class="ITSr1"><div class="ITSn">Depth</div><div class="ITSv">100 mm</div></div><div class="ITSr0"><div class="ITSn">Height</div><div class="ITSv">7 mm</div></div></div>
