Teltonika RUTX11 - Wi-Fi 5 (802.11ac) - Dual-band (2.4 GHz / 5 GHz) - Ethernet LAN - 3G - 4G - Gray (RUTX11000000)

Teltonika RUTX11 - Wi-Fi 5 (802.11ac) - Dual-band (2.4 GHz / 5 GHz) - Ethernet LAN - 3G - 4G - Gray (RUTX11000000)

Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black (RUT955T033B0)

Mfg. SKU: RUT955T033B0

SKU: 1032006

EAN: 4779027311302

General
WAN connection type
RJ-45
Wi-Fi band
Single-band (2.4 GHz)
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN
Y
Ethernet LAN interface type
Fast Ethernet
Networking standards
IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Ethernet LAN data rates
10,100 Mbit/s
2G standards
EDGE,GPRS
3G standards
DC-HSPA+,TD-SCDMA,UMTS
3G
Y
4G
Y
4G standard
LTE
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
32 GB
View full specification...
£207.60 £173.00
Availability: Less than 500 pcs.
Loading...
Delivery date from:
Shipping cost from:
Add to Wish List

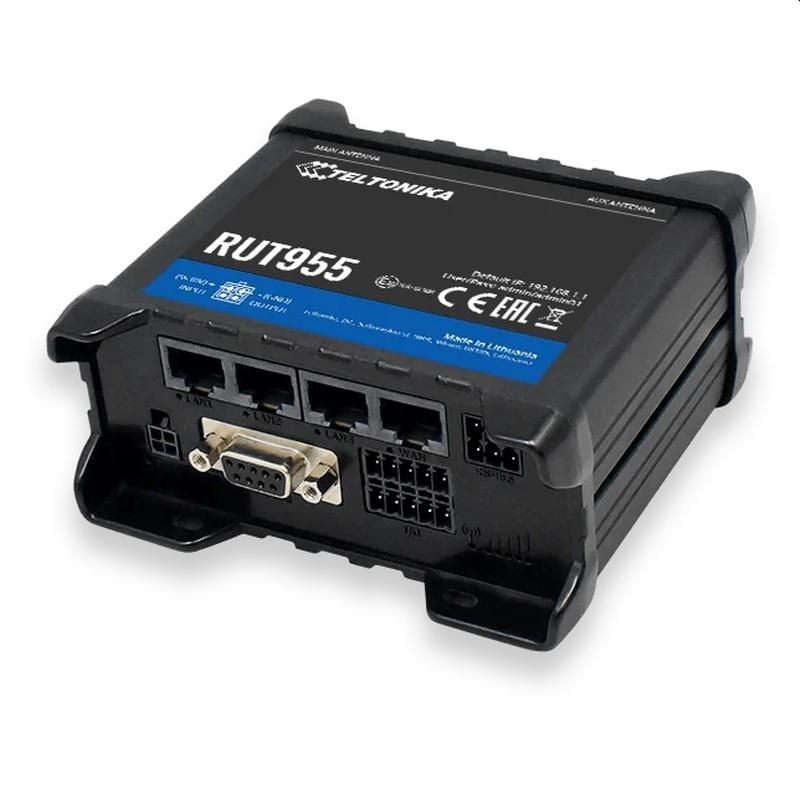

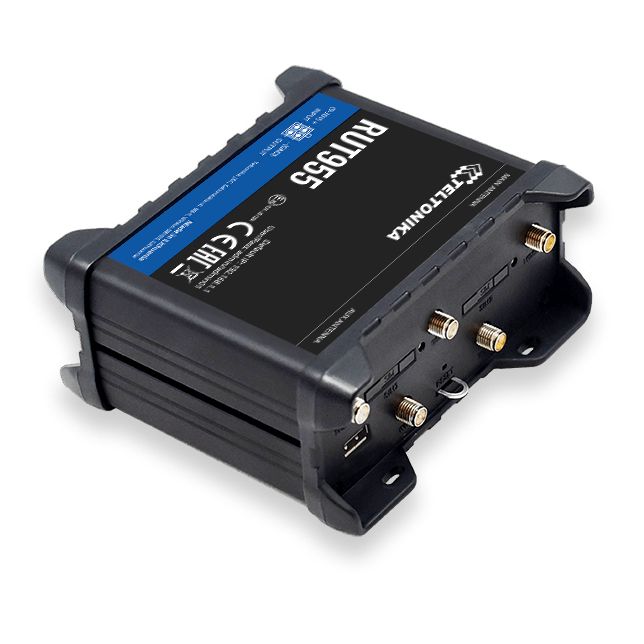

Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black

Teltonika RUT955 Wireless Router

Professional rugged Dual-SIM 4G/LTE & WiFi cellular router. This highly secure and reliable industrial device is equipped with Ethernet, Digital & Analogue I/Os, RS232, RS485, GNSS (GPS), microSD and USB interfaces.

RUT955 is a highly reliable and secure 4G/LTE router with I/O, GNSS and RS232/RS485 intended for professional applications. The device delivers high performance, mission-critical cellular communication and GPS location capabilities and is equipped with connectivity redundancy through Dual-SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black

MOBILE

  • Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • Black/White list: Operator black/white list
  • Band management: Band lock, Used band status display
  • APN: Auto APN
  • Bridge: Direct connection (bridge) between mobile ISP and device on LAN
  • Passthrough: Router assigns its mobile WAN IP address to another device on LAN
  • Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services (not available in standard FW)

WIRELESS

  • Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • SSID: SSID stealth mode and access control based on MAC address
  • WiFi users: up to 100 simultaneous connections
  • Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET

  • WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

  • Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
  • Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
  • VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall: Port forward, traffic rules, custom rules
  • DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
  • QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS: Supported >25 service providers, others can be configured manually
  • Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
  • Load balancing: Balance your internet traffic over multiple WAN connections

SECURITY

  • Authentication: Pre-shared key, digital certificates, X.509 certificates
  • Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN: Port and tag based VLAN separation
  • Mobile quota control: Set up custom data limits for both SIM cards
  • WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
  • Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

  • OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
  • OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
  • IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
  • GRE: GRE tunnel
  • PPTP, L2TP: Client/Server services can run simultaneously
  • Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
  • DMVPN: Method of building scalable IPsec VPNs
  • SSTP: SSTP client instance support
  • ZeroTier: ZeroTier VPN
  • WireGuard: WireGuard VPN client and server support
Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black
Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black

Additional Product Notes

  1. LTE Cat 4 with speeds up to 150 Mbps
  2. Dual SIM – significantly reduce roaming costs
  3. GNSS positioning with geofencing functionality
  4. RS232/RS485 serial communication interfaces
  5. Multiple Inputs/Outputs for remote monitoring and control
  6. Teltonika Remote Management System compatible
Networking standards Security algorithms Ethernet LAN data rates Wi-Fi band Ethernet LAN (RJ-45) ports USB 2.0 ports quantity Compatible memory cards
IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IEEE 802.3x 802.1x RADIUS,PEAP,SSL/TLS,TKIP,TTLS,WEP,WPA-PSK,WPA2,WPA2-PSK 10,100 Mbit/s Single-band (2.4 GHz) 3 1 MicroSD (TransFlash)(Upto 32GB)
Network
Ethernet LAN
Y
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Cabling technology
10/100Base-T(X)
Networking standards
IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Full duplex
Y
Auto MDI/MDI-X
Y
Flow control support
Y
Port forwarding
Y
Load balancing system
Y
Dynamic DNS (DDNS)
Y
Static route
Y
VPN support
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP
Wireless LAN features
Wi-Fi band
Single-band (2.4 GHz)
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
Mobile network
3G
Y
4G
Y
2G standards
EDGE,GPRS
3G standards
DC-HSPA+,TD-SCDMA,UMTS
4G standard
LTE
Short Message Service (SMS)
Y
Power
Power source type
DC
Output voltage
9 - 30 V
Antenna
Antenna type
External
Antenna connector type
SMA/RP-SMA
Antennas quantity
5
WAN connection
Ethernet WAN
Y
DSL WAN
N
SIM card slot
Y
3G/4G USB modem compatibility
Y
Dual SIM support
Y
WAN connection type
RJ-45
Design
Product type
Tabletop router
Product colour
Black
Housing material
Aluminum, Plastic
Indication light
Y
LED indicators
Status
Features
Built-in processor
Y
Processor frequency
550 MHz
Internal memory
128 MB
Flash memory
16 MB
Mean time between failures (MTBF)
230000 h
Safety
IP30
Certification
CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance, EN61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-5:2014, 7.1 / ITU-T K21, ISO 7632-2:2004, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0, AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017, FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017), RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1, IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, AS/NZS 60950.1:2015, EN 50665:2017, EN 62311:2008, FCC 47 CFR Part 1 1.1310, RSS-102 Issue 5 (2015), LST EN 60529:1999+A1+AC:2002, EN 60068-2-6:2008
Security
Security algorithms
802.1x RADIUS,PEAP,SSL/TLS,TKIP,TTLS,WEP,WPA-PSK,WPA2,WPA2-PSK
Authentication method
Radius
Firewall
Y
DoS attack prevention
Y
Filtering
Y
MAC address filtering
Y
URL filtering
Y
System event log
Y
DMZ support
Y
Network address translation (NAT)
Y
NAT functionality
NAT, NAT-T
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
USB port
Y
USB 2.0 ports quantity
1
Memory card slot(s)
Y
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
32 GB
DC-in jack
Y
Packaging data
Cables included
LAN (RJ-45)
AC adapter included
Y
Quick start guide
Y
Management features
Web-based management
Y
Quality of Service (QoS) support
Y
Wake-on-LAN ready
Y
Reset button
Y
Protocols
Universal Plug and Play (UPnP)
Y
Management protocols
HTTP/HTTPS, SNMP, SNMP trap, JSON-RPC, RMS, MQTT, TR-069
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, WakeOnLan
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90 %
Weight & dimensions
Width
100 mm
Depth
110 mm
Height
50 mm
Weight
287 g
