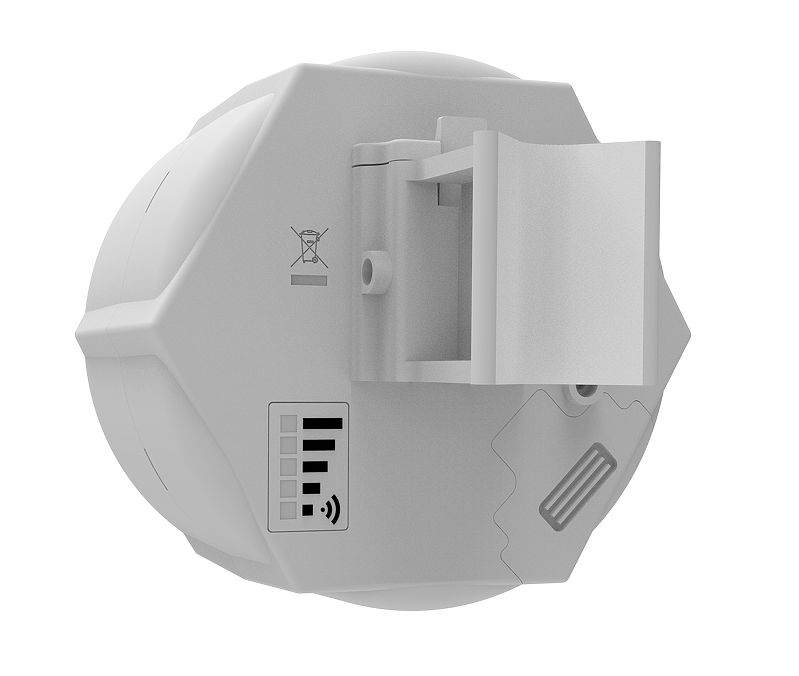

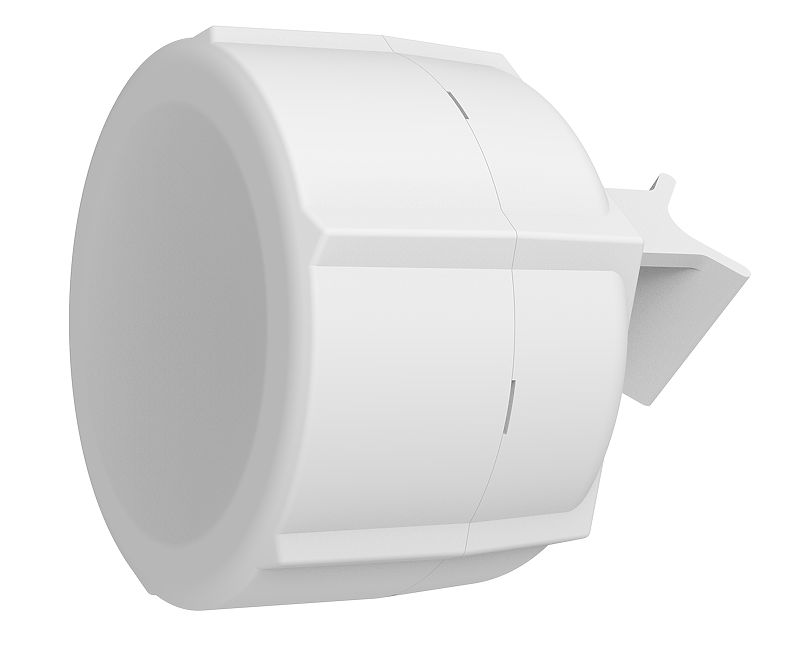

Mikrotik SXT LTE kit Cellular Network Modem/Router (RBSXTR&R11E-LTE)

Mfg. SKU: RBSXTR&R11E-LTE

SKU: 1049387

EAN: 4752224004567

General
Device type
Cellular network modem/router
Mounting
Wall mounting
Ethernet LAN data rates
10,100 Mbit/s
Data network
2G,3G,4G,LTE
4G standard
LTE
2G bands supported
850,900,1800,1900 MHz
Processor frequency
0.65 GHz
RAM capacity
0.064 GB
Internal storage capacity
0.016 GB
Antenna gain level (max)
9 dBi
£134.03 £111.69
Availability: On request

Mikrotik SXT LTE kit Cellular Network Modem/Router

SXT LTE kit

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Mikrotik SXT LTE kit Cellular Network Modem/Router
Mikrotik SXT LTE kit Cellular Network Modem/Router

Additional Product Notes

  1. SXT 2G/3G/4G/LTE CPE
  2. 10.5dBi 60 degree antenna
  3. 2x Ethernet ports (one with PoE out)
  4. 2 SIM
  5. 650MHz CPU
  6. 64MB RAM
  7. Enclosure
  8. PoE and PSU (RouterOS L3)
  9. International bands
Device type Mounting Data network 4G standard RAM capacity Internal storage capacity Ethernet LAN data rates Ethernet LAN (RJ-45) ports
Cellular network modem/router Wall mounting 2G,3G,4G,LTE LTE 0.064 GB 0.016 GB 10,100 Mbit/s 2
Design
Device type
Cellular network modem/router
Mounting
Wall mounting
Built-in display
N
Mobile network
Data network
2G,3G,4G,LTE
4G standard
LTE
2G bands supported
850,900,1800,1900 MHz
3G bands supported
850,900,1900,2100 MHz
4G bands supported
800,900,1800,1900,2100,2300,2600 MHz
Number of SIM cards
2
Performance
Built-in processor
Y
Processor frequency
0.65 GHz
RAM capacity
0.064 GB
Internal storage capacity
0.016 GB
Ethernet LAN features
Ethernet LAN data rates
10,100 Mbit/s
xDSL connection type
N
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (typical)
6 W
Input voltage
18 - 57 V
Antenna
Antenna gain level (max)
9 dBi
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Weight & dimensions
Dimensions (WxDxH)
140 x 103 x 140 mm
