Networks Air Max Sector - 15 dBi - 2.4 GHz - 123° - 118° - Sector antenna - Dual polarization

Networks Air Max Sector - 15 dBi - 2.4 GHz - 123° - 118° - Sector antenna - Dual polarization

ACSWI - 4 dBi - 2.4 - 5.8 GHz - Omni-directional antenna - U.FL - Black

ACSWI - 4 dBi - 2.4 - 5.8 GHz - Omni-directional antenna - U.FL - Black

Networks PBE-M5-400 - 1000 Mbit/s - White

Mfg. SKU: PBE-M5-400

SKU: 1017328

EAN: 0810354022623

General
Maximum data transfer rate
1000 Mbit/s
Antenna gain level (max)
25 dBi
Frequency band
5 GHz
Product colour
White
LED indicators
LAN,Power,WLAN
Internal memory
64 MB
Power consumption (typical)
8 W
£73.31 £61.09
Availability: Less than 100 pcs.
Loading...
Delivery date from:
Shipping cost from:
Data transmission
Maximum data transfer rate
1000 Mbit/s
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95 %
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Wireless LAN features
Frequency band
5 GHz
Weight & dimensions
Dimensions (WxDxH)
420 x 420 x 275 mm
Weight
1.75 kg
Power
Power consumption (typical)
8 W
Power over Ethernet (PoE)
Y
Antenna
Antenna gain level (max)
25 dBi
Features
Product colour
White
LED indicators
LAN,Power,WLAN
Internal memory
64 MB
Certificates
Certification
FCC, IC, CE

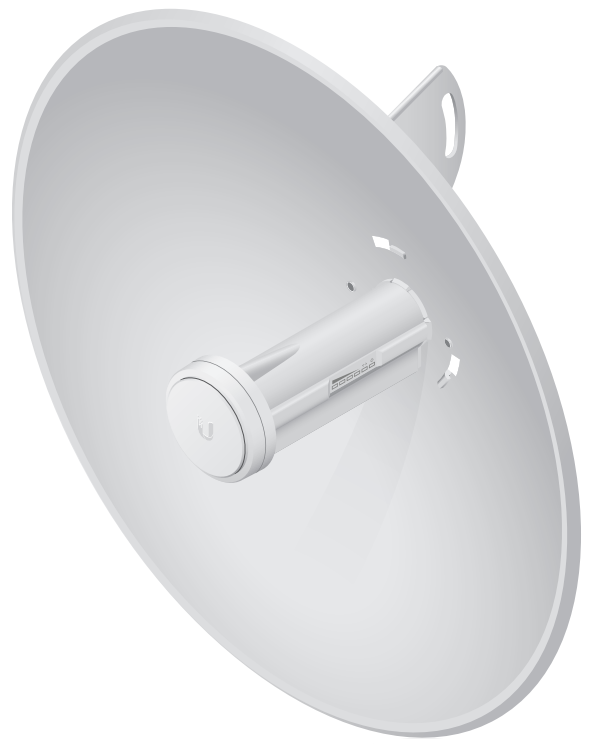

PowerBeam-M5-400 – innovative Ubiquiti device

The PBE-M5-400 is part of the AirMax PowerBeam series. The device works in the 5 GHz band achieving 150+ Mbps bandwidth levels.

The Ubiquiti PowerBeam-M5-400 device is a comprehensive radio system. It complies with the 802.11n MIMO 2x2 standard.  This product is equipped with a 560 MHz Atheros MIPS 74KC processor. The device uses 64 MB internal memory and 8 MB flash drive memory.

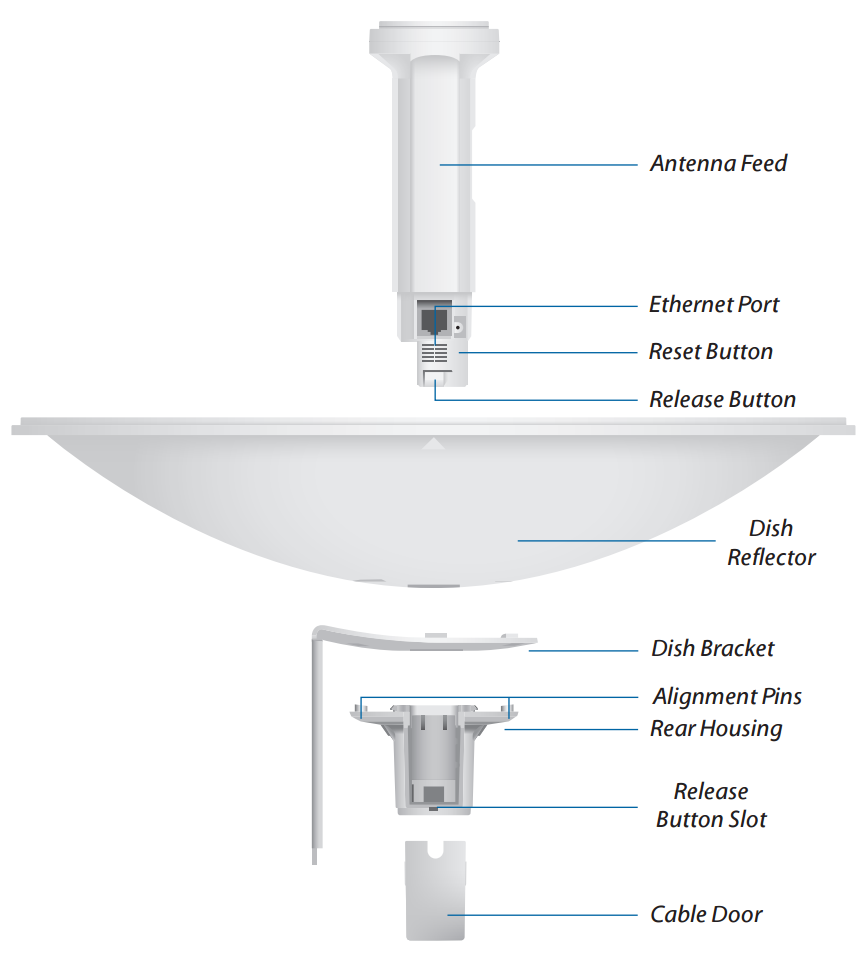

Construction

The PowerBeam-M5-400 device is built from durable components. In combination with innovative technologies this leads to the highest possible quality. The device works at temperatures ranging from -40 to 70 degrees Celsius. The PowerBeam-M5-400 device can be powered by PoE, a technology for powering outside devices in a network through an Ethernet cable.





Bandwidth

The device is characterised by a maximum connection speed of up to 1000 Mbit/s. The device includes one Ethernet LAN (RJ-45) port. The antenna is characterised by a maximum gain of 25 dBi.

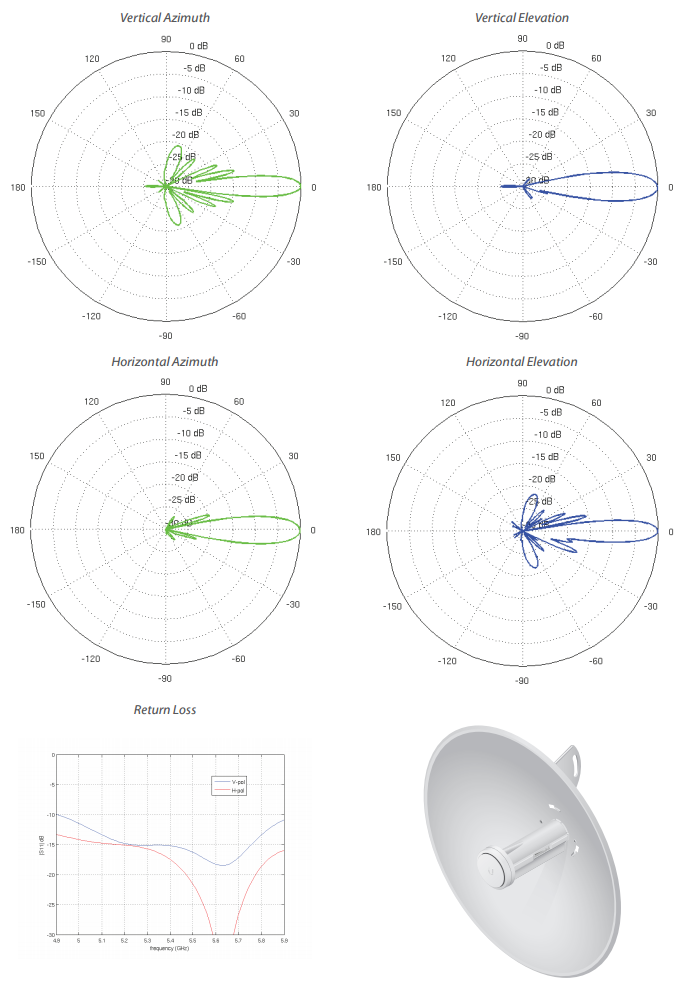

Antenna

Installation

This compact device is easy to install. The installation process is easy and effortless.





Key features

  • works in the 5 GHz band
  • 150+ Mbps bandwidth
  • 25 km range
  • 25 dBi antenna power gain
  • 420 x 420 x 275 mm size
  • durable construction

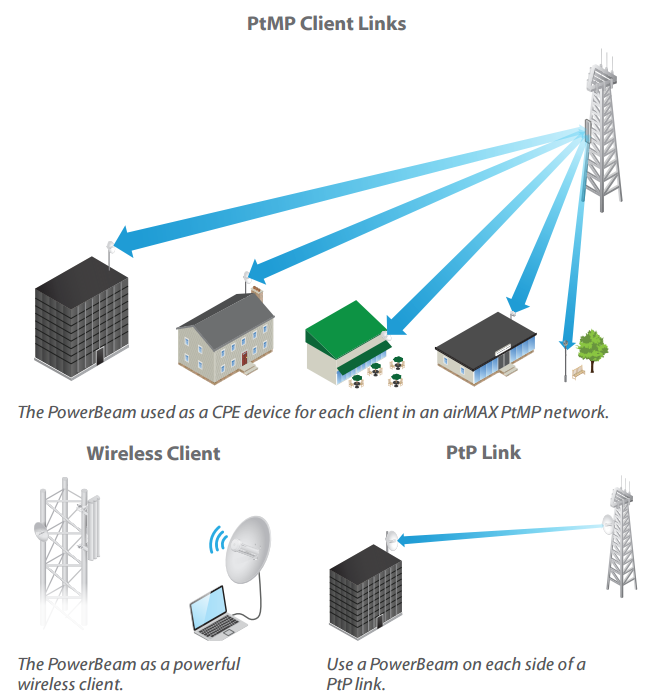

Use





Comparison



PBE-M5-620

PBE-M5-400

PBE-M5-300

PBE-M2-400

Frequency Band 5 GHz 5 GHz 5 GHz 2.4 GHz
Antenna Gain 29 dBi 25 dBi 22 dBi 18 dBi
Dish Reflector 620 mm 400 mm 300 mm 400 mm
Network Interface 10/100/1000 10/100/1000 10/100 10/100
Throughput 150+ Mbps 150+ Mbps 150+ Mbps 150+ Mbps
Range 30+ km 25+ km 20+ km 20+ km



Manufacturer's content

 Read more in the manufacturer's documentation

 Read the manual



Specifications
