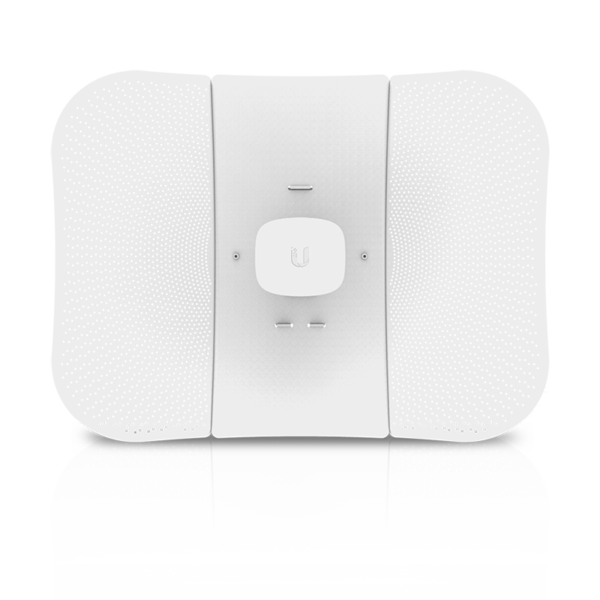

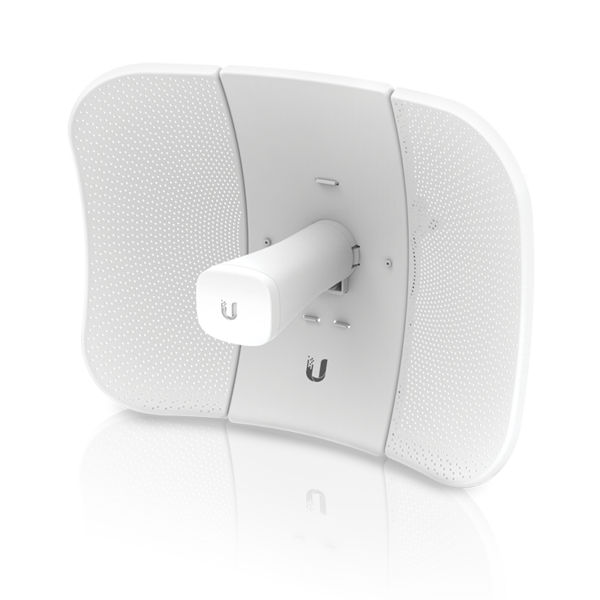

Ubiquiti Networks LiteBeam AC Network Bridge 450 Mbit/s White (LBE-5AC-GEN2)
Ubiquiti Networks LiteBeam AC Network Bridge 450 Mbit/s White
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.
The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
This airMAX ac CPE features adjustment flexibility in three axes for versatile mounting options.
Improved Noise Immunity
The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Powerful Wireless Features
- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support
- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control: Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
- airMagic® Channel Selection Tool
- Redesigned User Interface
- Dynamic Configuration Changes
- Instant Input Validation
- HTML5 Technology
- Optimization for Mobile Devices
- Detailed Device Statistics
- Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer
Additional Product Notes
- Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
- Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.
- Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
- High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC LR provides 26 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
- Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
- Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
|Throughput||100+ Mbps||450+ Mbps||450+ Mbps||450+ Mbps|
|Gain||23 dBi||23 dBi||23 dBi||26 dBi|
