Networks ES-24-LITE - Managed - Gigabit Ethernet (10/100/1000) - Rack mounting - 1U

Mfg. SKU: ES-24-LITE

SKU: 1021618

EAN: 0810354022265

General
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Installed SFP modules quantity
2
Console port
RJ-45
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x
Rack mounting
Y
Form factor
1U
£171.26 £142.72
Availability: 31-40 pcs.
Loading...
Delivery date from:
Shipping cost from:
Design
Rack mounting
Y
Form factor
1U
Product colour
Black
LED indicators
Y
Certification
CE, FCC, IC
Management features
Switch type
Managed
Quality of Service (QoS) support
Y
Web-based management
Y
Traffic classification
Y
System event log
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Installed SFP modules quantity
2
Console port
RJ-45
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Data transmission
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Throughput
38.69 Mpps
Number of queues
8
Jumbo frames support
Y
Protocols
Management protocols
SNMP v1/v2/v3, Telnet
Network
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x
10G support
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Spanning tree protocol
Y
VLAN support
Y
Number of VLANs
255
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
25 W
Multicast features
Multicast support
Y
Security
DHCP features
DHCP server
Access Control List (ACL)
Y
Access Control List (ACL) rules
10
IGMP snooping
Y
Security algorithms
SSH,SSL/TLS
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
443 mm
Depth
221 mm
Height
43 mm
Weight
2.51 kg

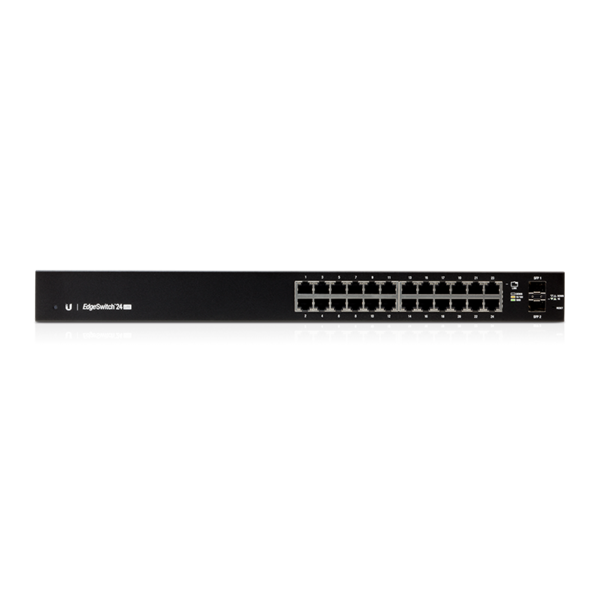

Ubiquiti ES-24-LITE manageable switch

The Ubiquiti ES-24-LITE is an EdgeSwitch LITE switch. The device is perfect for boosting network capabilities.

The switch is fully manageable. It guarantees efficiency and reliability. The device provides intelligent switching for growing networks.




Reliability

The switch is equipped with 24 Gigabit RJ-45 ports and 2 SFP ports. The throughput of the device is up to 26 Gb/s.



Use

It is intended to be mounted in 19' 1U racks. This high quality device is based on innovative solutions. The switch is perfect for companies interested in the setting up of an efficient LAN segment or the development of the existing LAN network.



Key features

  • manageable switch
  • 24 Gigabit Ethernet ports
  • 2 SFP ports
  • 52 Gbps switching capacity
  • high capacity
  • solid construction
  • reliability
  • modern design





Comparison


  ES-24-LITE ES-48-LITE
Total Non-Blocking Throughput 26 Gbps 70 Gbps
Gigabit RJ45 Ports 24 48
SFP+ Ports N/A 2
SFP Ports 2 2
Max. Power Consumption 25W 56W
PoE N/A N/A
